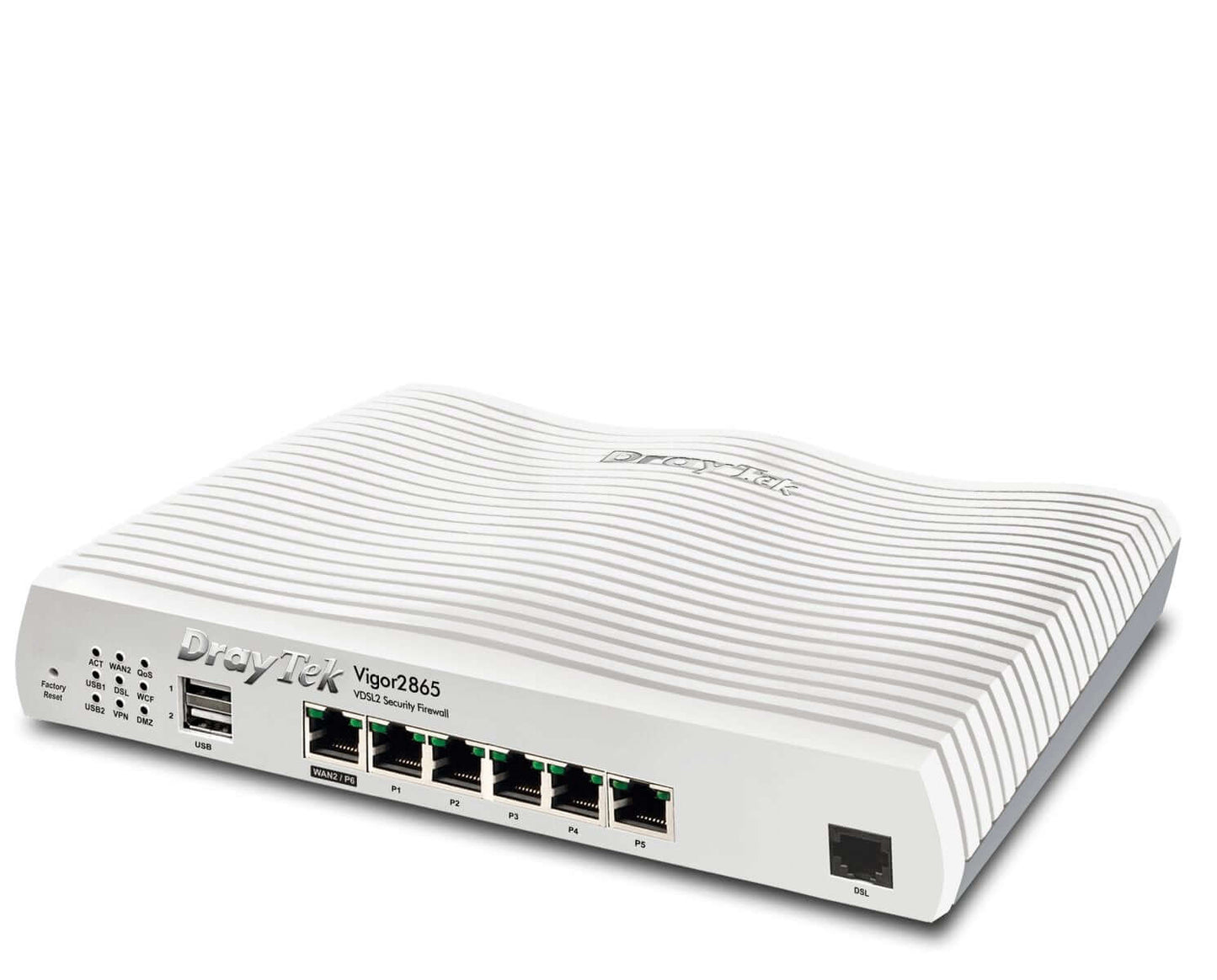

DrayTek 2865 Dual-WAN ADSL+/VDSL2 Router

DrayTek 2865 Dual-WAN ADSL+/VDSL2 Router

Regular price £249.99
Regular price £279.99 Sale price £249.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2865 Vigor Dual-WAN ADSL+/VDSL2 Broadband Router(Wired Only)

The DrayTek Vigor 2865 Simultaneous Triple-WAN ADSL+/VDSL2 Broadband Router is a VDSL2 35b/ADSL2+ Security Firewall Router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring.

There is also a Gigabit Ethernet WAN port for broadband connections to share the traffic load or serve as a failover connection. A 3G/4G/LTE USB modem (sold separately) can also be attached to the USB ports of the router.

Key Features

  • Load Balancing
    Maximise throughput and reliability by using multiple internet connections.
  • 35b Supervectoring Modem
    Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.
  • VPN (Virtual Private Network)
    Build a secure and private tunnel from the LAN of the Vigor2865 to remote offices and teleworkers over the internet.
  • SSL VPN
    The VPN works through firewalls providing secure remote access to any network environment.
  • Firewall & Content Filter
    Filter web pages by URL keyword or web category to block access to insecure or inappropriate content.
  • DrayDDNS
    Free DDNS service for you to access the router by a fixed hostname of your choice.
  • Bandwidth Management
    Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.
  • Central Switch Management
    Set up VLAN easily from the router and get a centralised hierarchy view of your switches.



Setup Guide - CLICK HERE

    View full details

    Explore Further

    Highlights

    Load Balancing
    Maximise throughput and reliability by using multiple internet connections.
    35b Supervectoring Modem
    Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.
    VPN (Virtual Private Network)
    Build a secure and private tunnel from the LAN of the Vigor2865 to remote offices and teleworkers over the internet.
    SSL VPN
    The VPN works through firewalls providing secure remote access to any network environment.
    Firewall & Content Filter
    Filter web pages by URL keyword or web category to block access to insecure or inappropriate content.
    DrayDDNS
    Free DDNS service for you to access the router by a fixed hostname of your choice.
    Bandwidth Management
    Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.
    Central Switch Management
    Set up VLAN easily from the router and get a centralised hierarchy view of your switches.
    App QoS
    Improve Experience for Business-Critical Apps
    Select your business critical apps, and easily put them into QoS classes.
    Flexible Bandwidth Allocation
    Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
    Management Solution
    All-in-One Management
    Vigor Router SWM:
    Auto-Discovery
    Provisioning
    Monitoring
    Centralised Hierarchy View
    Reboot PoE Devices Remotely
    Quick VLAN Configuration
    Vigor Router APM:
    Auto-Discovery
    Auto-Provisioning
    Monitoring
    Centralised View
    Alarm
    Reboot VigorAP Remotely
    Software Management
    VigorACS 2
    Provisioning
    Monitoring
    Centralised Hierarchy View
    Alarm
    Reboot Vigor Devices Remotely
    Scheduled Maintenance
    Report
    Standard Warranty: 2-Years

    Dimensions and Weight

    Width 241 mm, Depth 165 mm, Height 44 mm,Weight 1.35 kg

    Specification

    Interface

    Fixed WAN Port

    1 x RJ11 for VDSL2 35b or ADSL2/2+
    LAN/WAN Switchable Port

    1 x 10/100/1000Base-TX RJ45
    Fixed LAN Port

    5 x 10/100/1000Base-TX RJ45
    USB Port

    2 x USB 2.0
    Performance

    NAT Throughput

    800 Mbps
    IPsec VPN Performance

    300 Mbps (AES 256 bits)
    SSL VPN Performance

    130 Mbps
    Max. Number of NAT Sessions

    60,000
    Max. Concurrent VPN Tunnels

    32
    Max. Concurrent OpenVPN + SSL VPN

    16
    VDSL/ADSL

    VDSL Standards

    ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b but excluding 30a)
    T1.424
    ITU-T G.993.5 (Vectoring)
    VDSL2 Profile

    8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b (not G.fast)
    ADSL Standards

    ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2
    Other Standards

    ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission)
    Band Plan

    998, 997
    Internet Connection

    IPv4

    PPPoE, DHCP, Static IP, PPTP/L2TP
    IPv6

    PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    802.1p/q Multi-VLAN Tagging

    Yes
    Multi-VLAN/PVC

    Yes
    3G/4G/LTE WAN with USB modem

    Yes
    Load Balancing

    IP-based, Session-based
    WAN Active on Demand

    Link Failure, Traffic Threshold
    Connection Detection

    ARP, Ping
    WAN Data Budget

    Yes
    Dynamic DNS

    Yes
    DrayDDNS

    Yes
    LAN Management

    VLAN

    802.1q Tag-based, Port-based
    Max. Number of VLAN

    16
    Number of LAN Subnet

    8
    DHCP Server

    Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    LAN IP Alias

    Yes
    Wired 802.1x Authentication

    Yes
    Port Mirroring

    Yes
    Local DNS Server

    Yes
    Conditional DNS Forwarding

    Yes
    Hotspot Web Portal

    Yes
    Hotspot Authentication

    Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
    Networking

    Routing

    IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
    Policy-based Routing

    Protocol, IP Address, Port, Domain, Country
    High Availability

    Yes
    DNS Security (DNSSEC)

    Yes
    Multicast

    IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
    Local RADIUS server

    Yes
    SMB File Sharing

    Yes (requires external storage)
    VPN

    LAN-to-LAN

    Yes
    Teleworker-to-LAN

    Yes
    Protocols

    PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN (Host to LAN)
    User Authentication

    Local, RADIUS, LDAP, TACACS+, mOTP
    IKE Authentication

    Pre-Shared Key, X.509
    IPsec Authentication

    SHA-1, SHA-256
    Encryption

    MPPE, DES, 3DES, AES
    VPN Trunk (Redundancy)

    Load Balancing, Failover
    Single-Armed VPN

    Yes
    NAT-Traversal (NAT-T)

    Yes
    DrayTek VPN Matcher

    Yes
    Firewall & Content Filtering

    NAT

    Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway)

    SIP, RTSP, FTP, H.323
    VPN Pass-Through

    PPTP, L2TP, IPsec
    IP-based Firewall Policy

    Yes
    Content Filtering

    Application, URL, DNS Keyword, Web Features, Web Category*
    *Subscription required, see accessories tab for compatible licence
    DoS Attack Defense

    Yes
    Spoofing Defense

    Yes
    Bandwidth Management

    IP-based Bandwidth Limit

    Yes
    IP-based Session Limit

    Yes
    QoS (Quality of Service)

    TOS, DSCP, 802.1p, IP Address, Port, Application
    Management

    Local Service

    HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
    Config File Export & Import

    Yes
    Config File Compatibility

    Vigor2862
    Firmware Upgrade

    TFTP, HTTP, TR-069
    2-Level Administration Privilege

    Yes
    Access Control

    Access List, Brute Force Protection
    Notification Alert

    SMS, E-mail
    SNMP

    v1, v2c, v3
    Syslog

    Yes
    Managed by VigorACS

    Yes
    Central VPN Management

    8 VPN
    Central AP Management

    20 VigorAP
    Central Switch Management

    10 VigorSwitch
    Physical

    Power Supply

    DC 12V @ 2A
    Dimensions

    241 x 166 x 46 mm
    Operating Temperature

    0ºC to 45ºC
    Storage Temperature

    -25ºC to 70ºC
    Operating Humidity (non-condensing)

    10% to 90%
    Certificate

    CE
    Package Contents

    1 x DrayTek Vigor2865
    1 x RJ45 to RJ45 Cable (Ethernet)
    1 x RJ45 to RJ45 Cable (Annex B)
    1 x RJ11 to RJ45 Cable (Annex B)
    1 x RJ11 to RJ11 Cable (Annex A)
    1 x UK Power Adapter
    1 x Quick Start Guide
