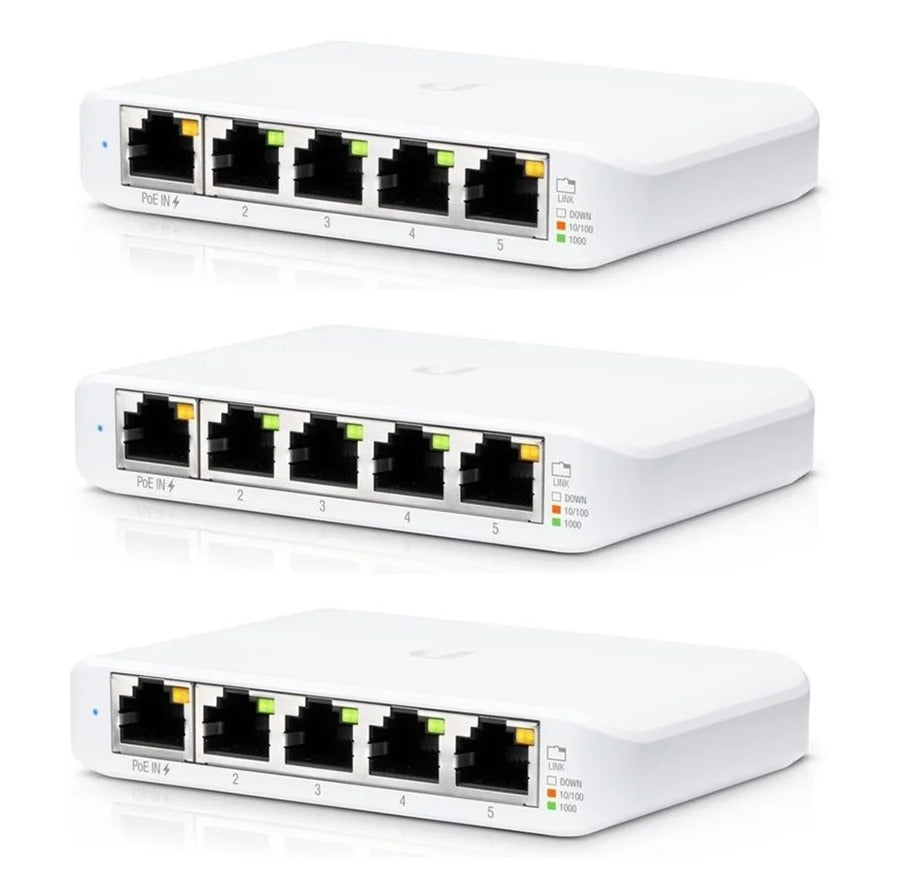

• Ubiquiti USW-FLEX-Mini-3 Main Image

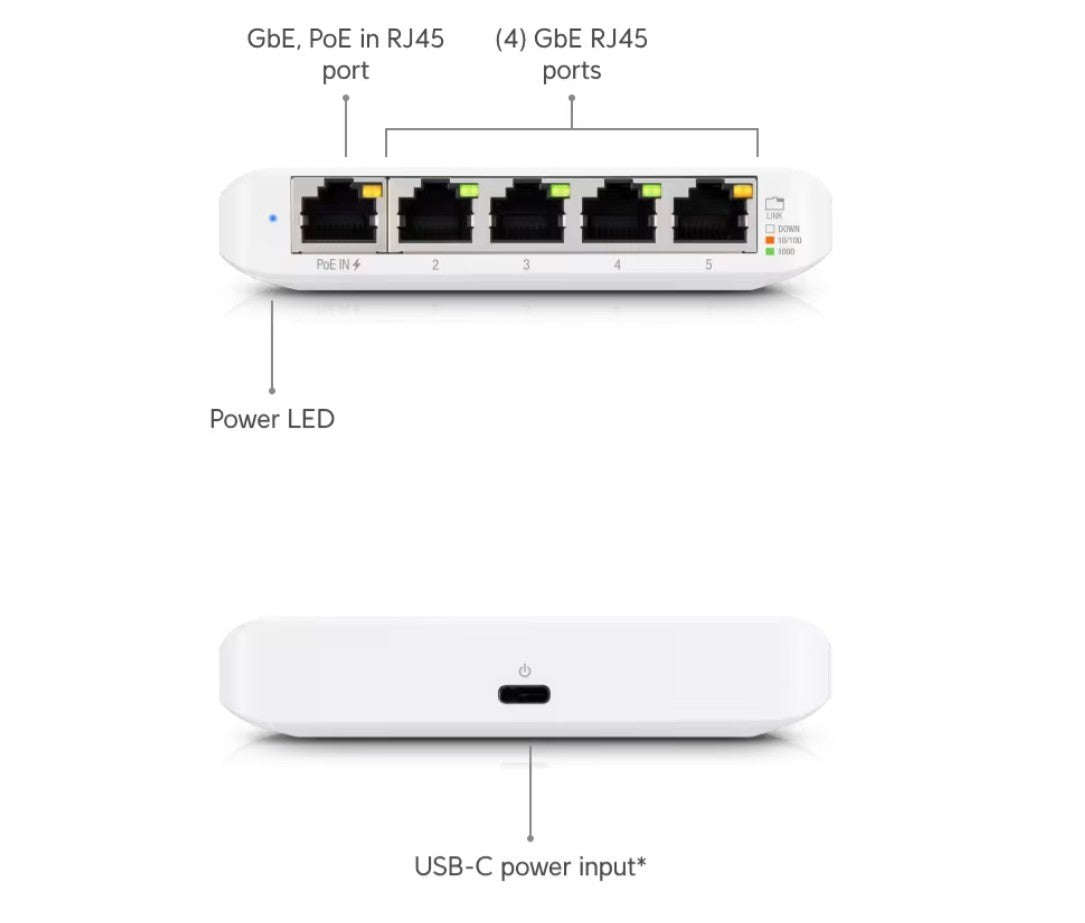

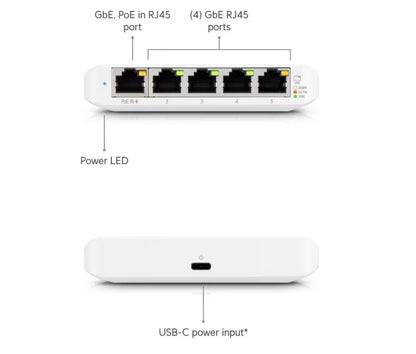

  • Ubiquiti USW-FLEX-Mini-3 Compact Layer 2 Switch

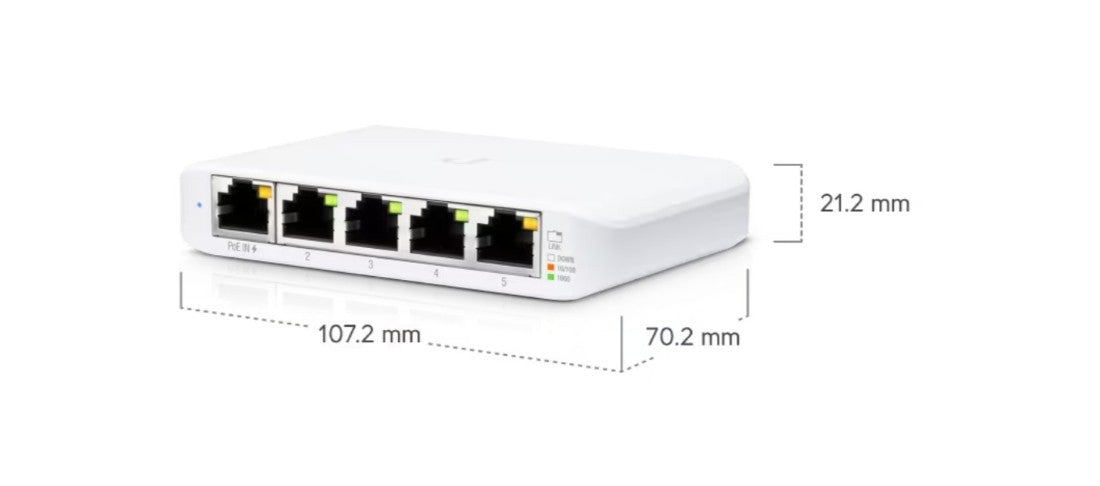

  • Ubiquiti USW-FLEX-Mini-3 Dimensions

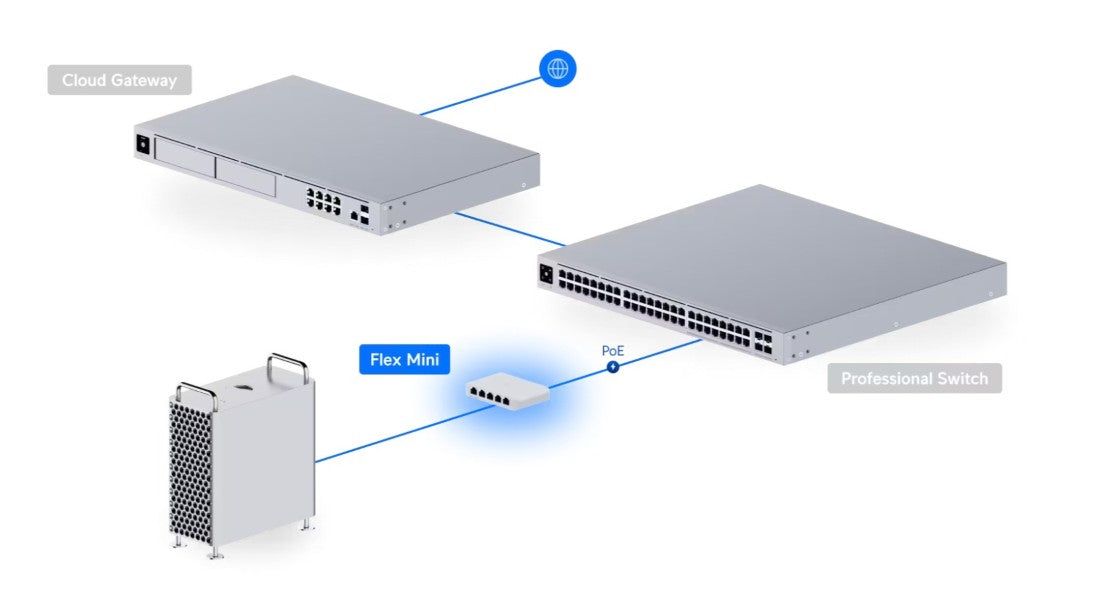

  • Ubiquiti USW-FLEX-Mini-3 Example Deployment

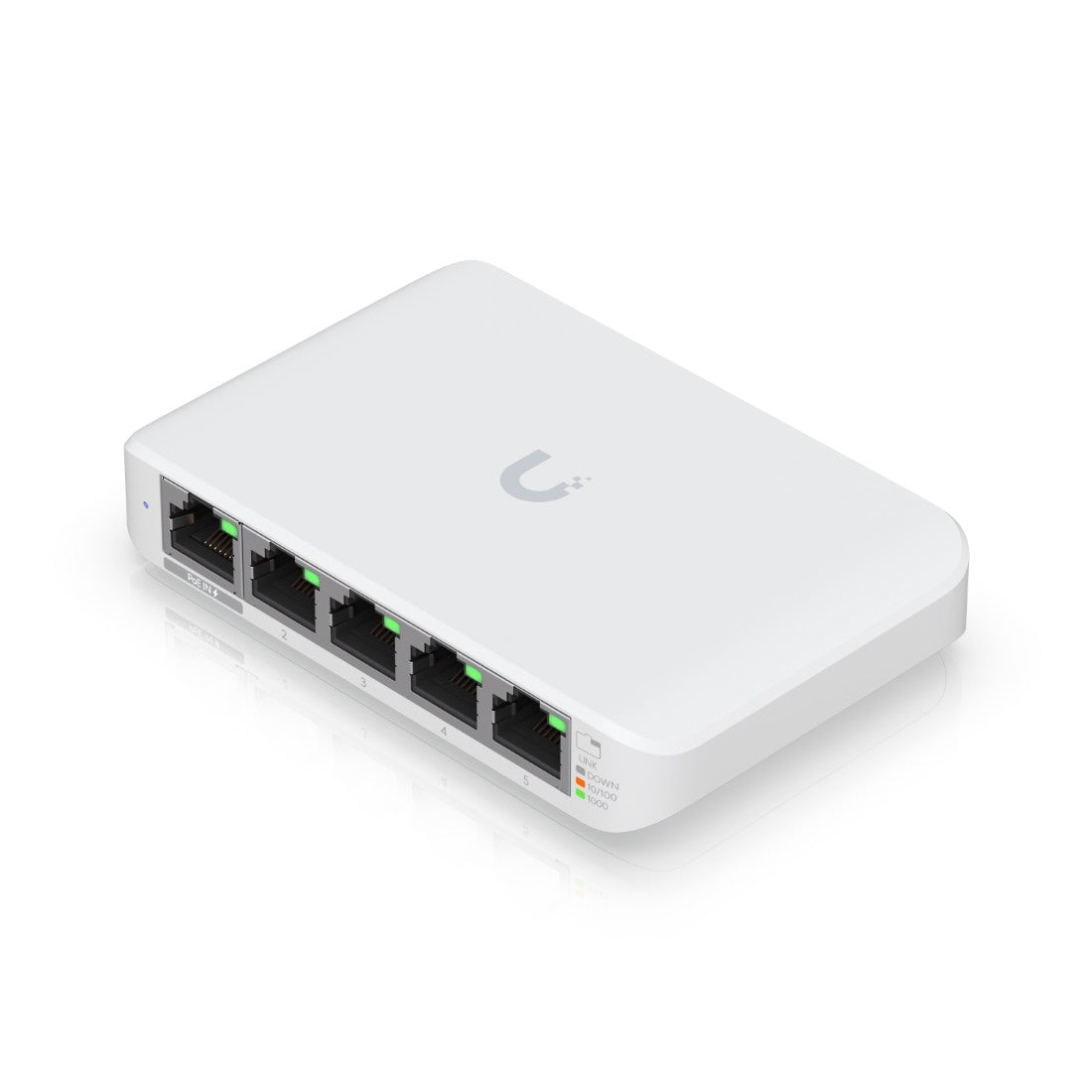

  • Ubiquiti USW-FLEX-Mini-3 Aerial View

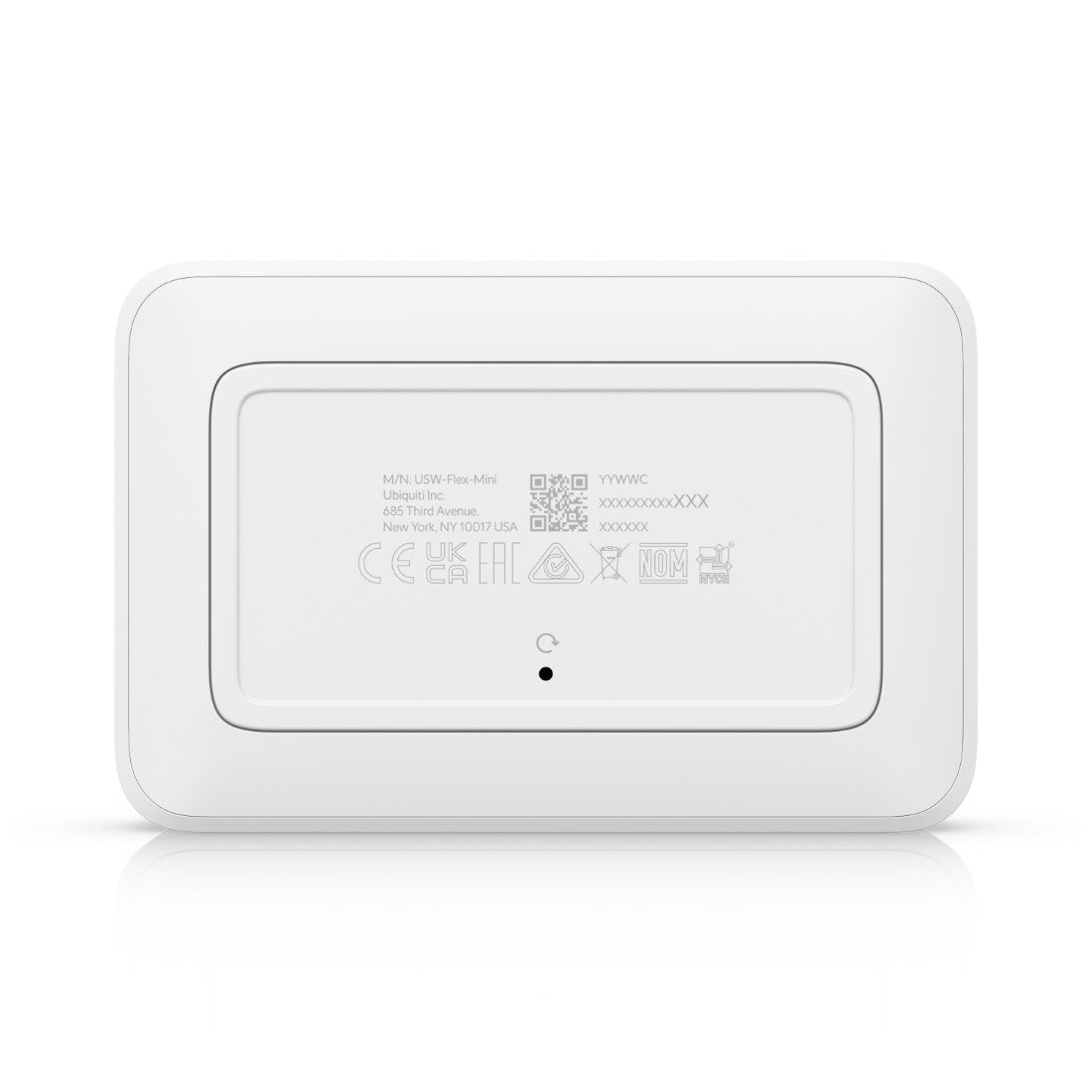

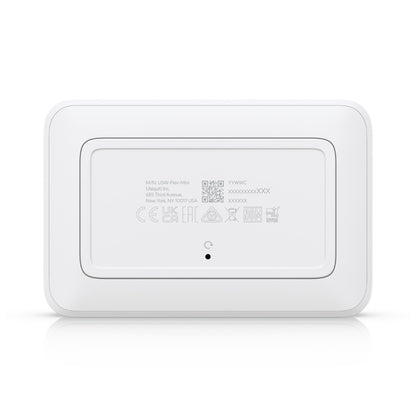

  • Ubiquiti USW-FLEX-Mini-3 Base View

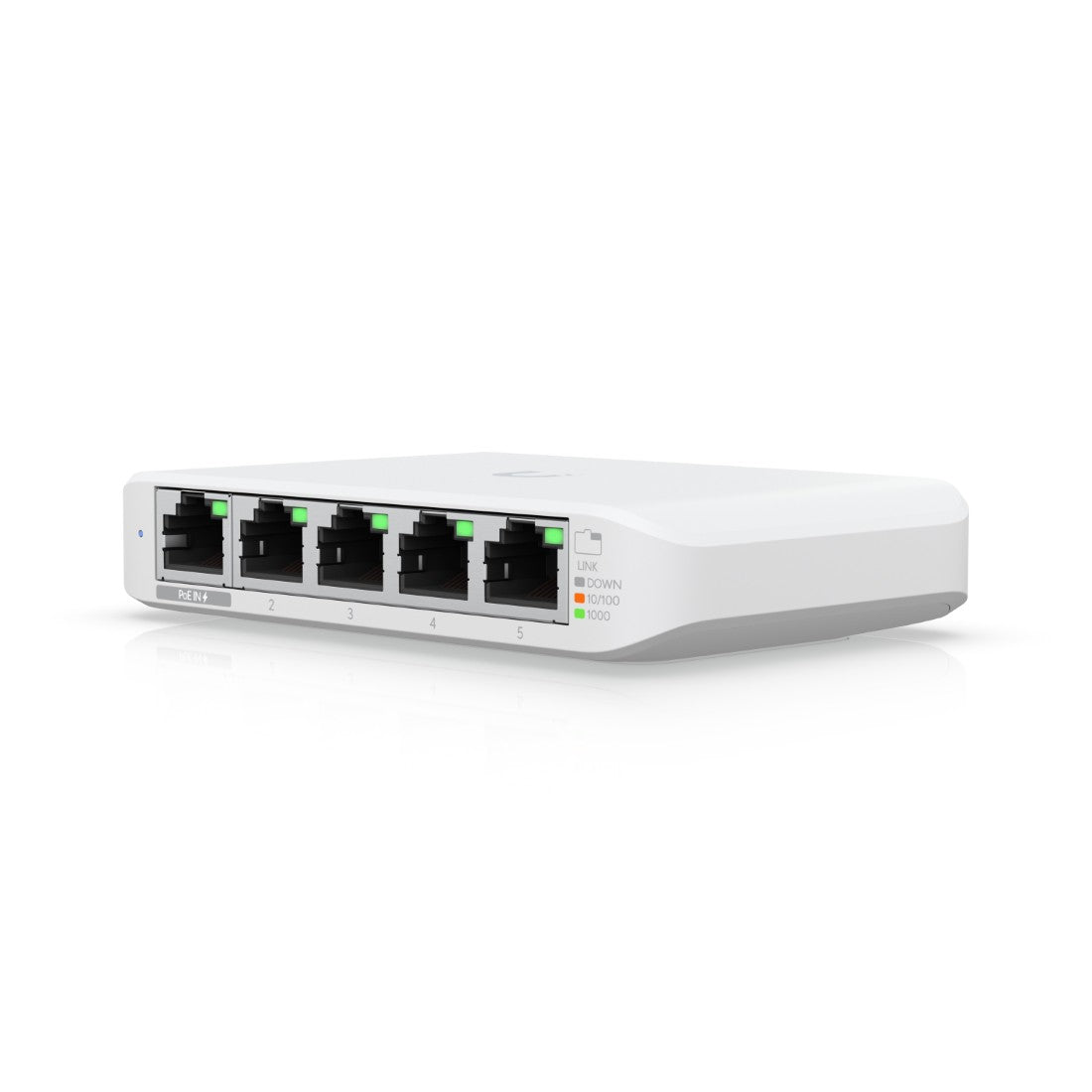

  • Ubiquiti USW-FLEX-Mini-3 Desktop View

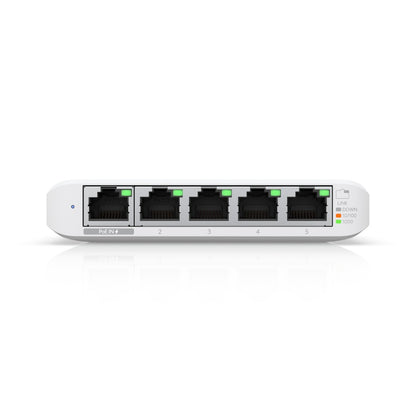

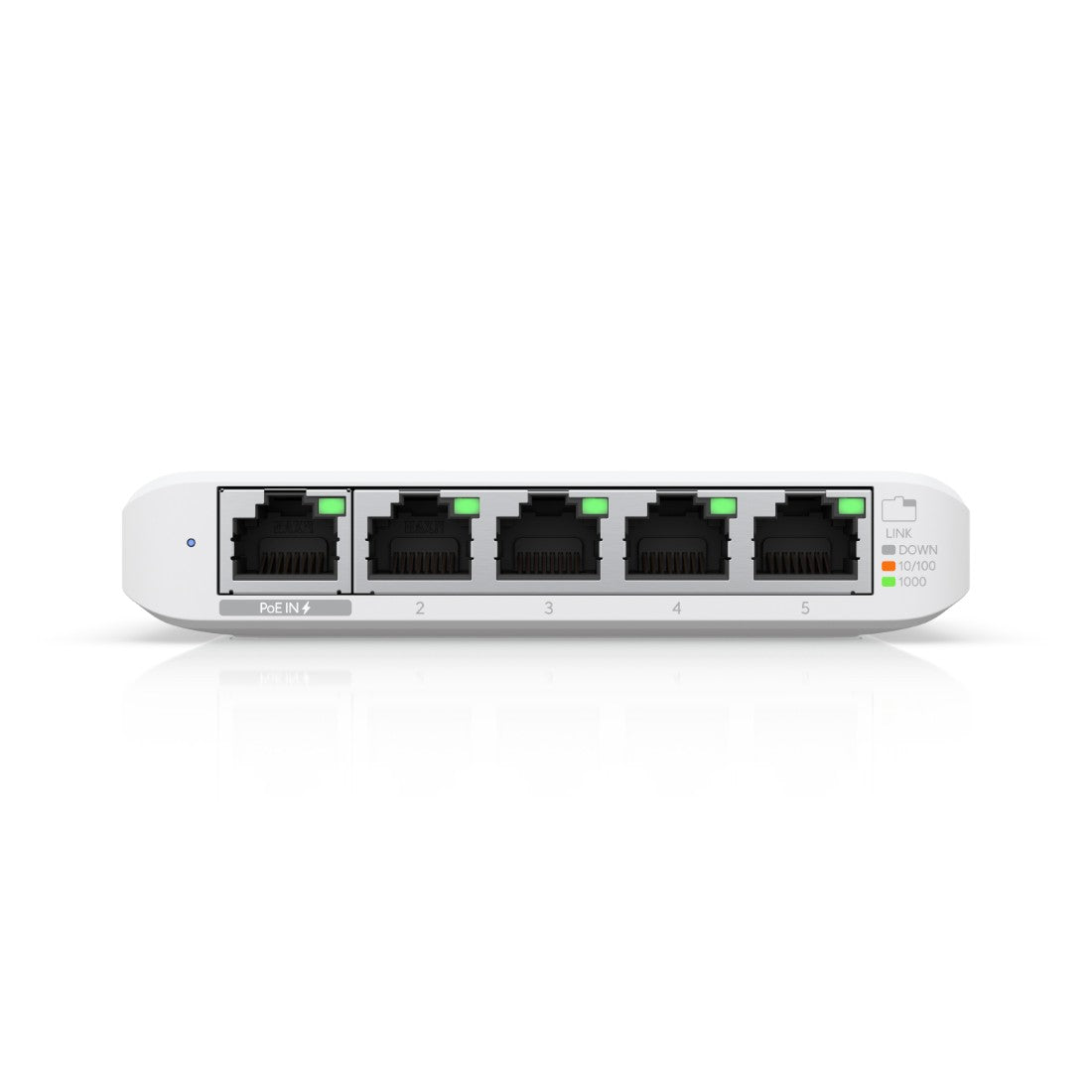

  • Ubiquiti USW-FLEX-Mini-3 Main Image 2

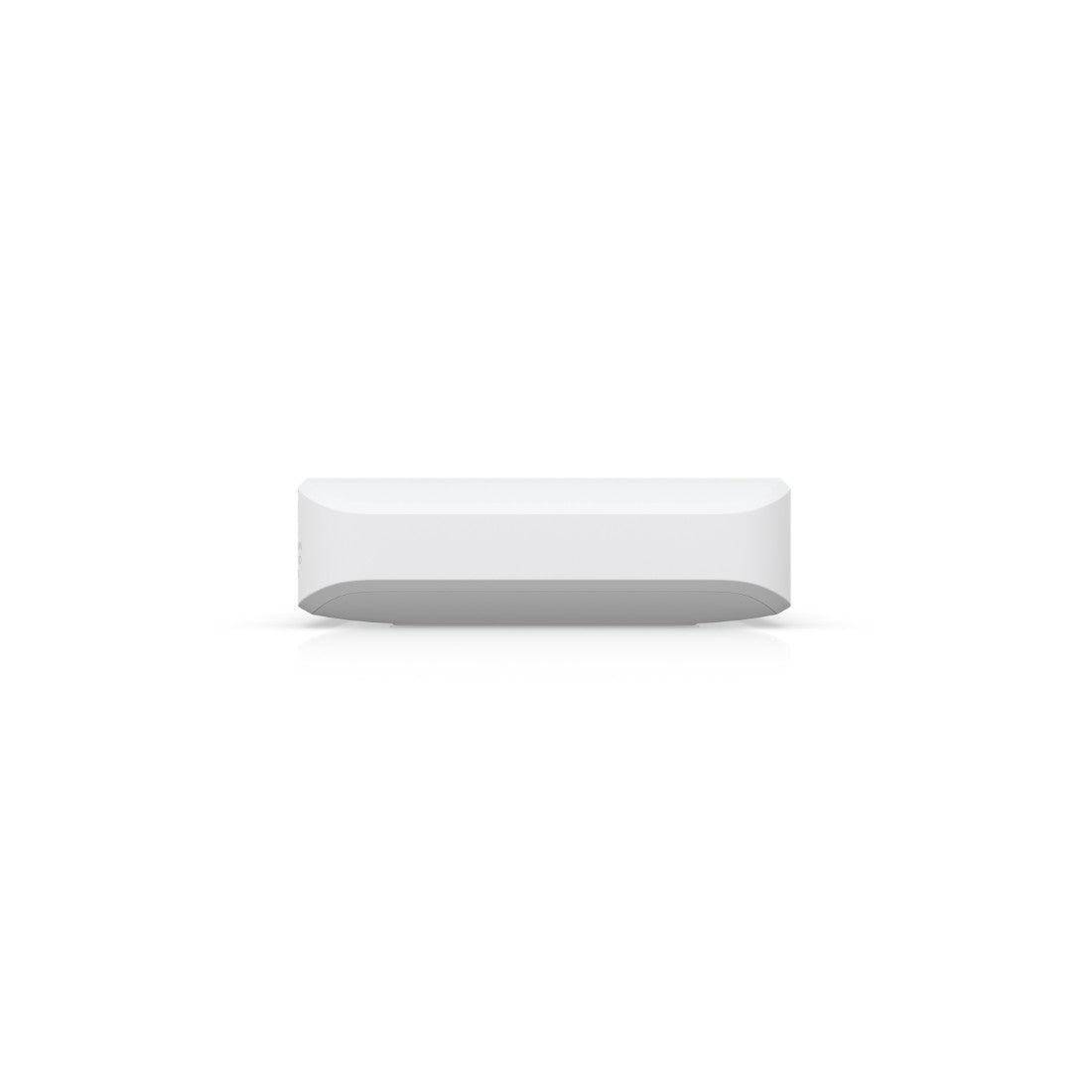

  • Ubiquiti USW-FLEX-Mini-3 Side View

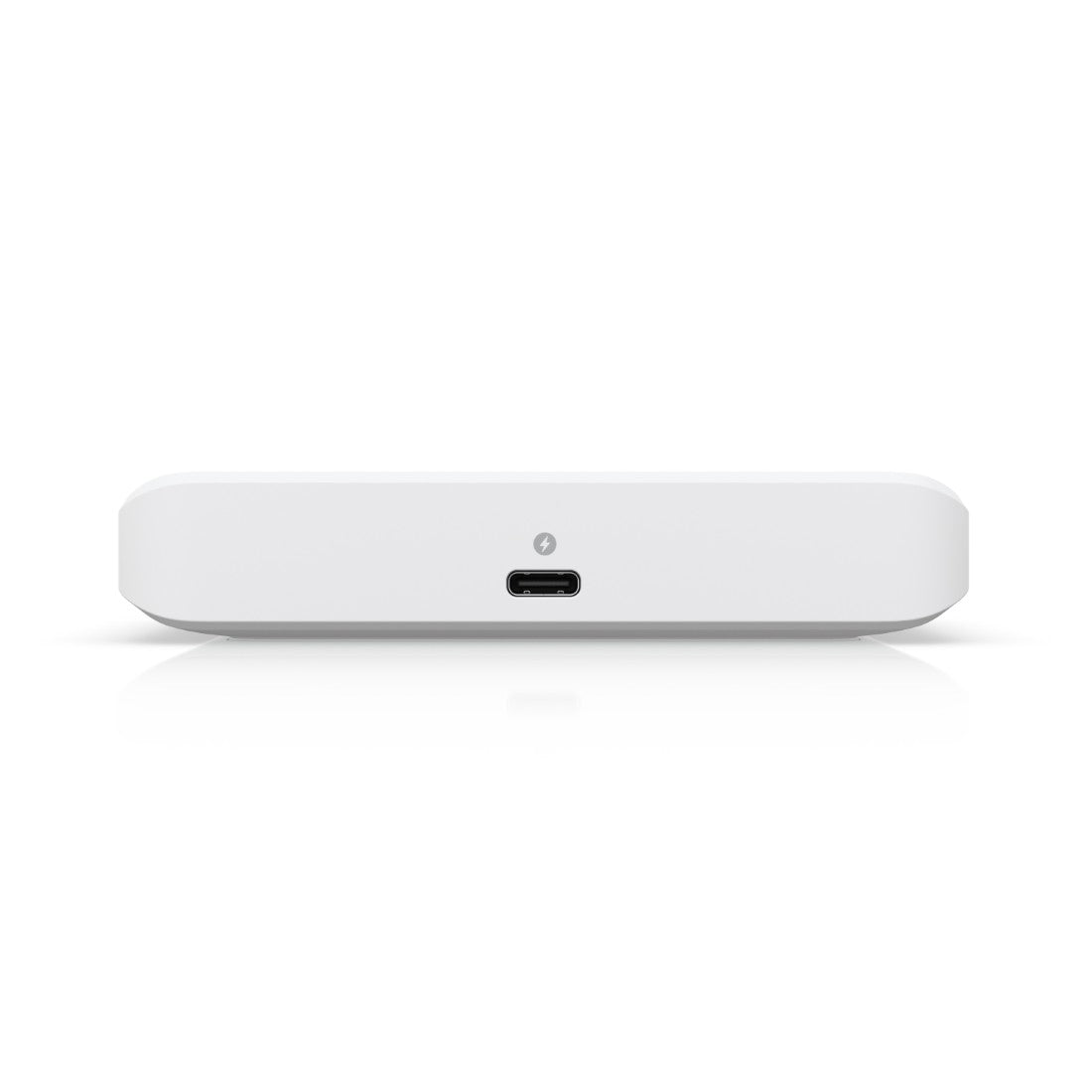

  • Ubiquiti USW-FLEX-Mini-3 USB-C Power Port
1 10

Ubiquiti

Ubiquiti UniFi USW-FLEX-MINI-3 Triple Pack Network Switch

Ubiquiti UniFi USW-FLEX-MINI-3 Triple Pack Network Switch

£80.00
£82.80 £80.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti UniFi USW FLEX MINI Triple Pack Compact 5-port Desktop Gigabit Switch, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

Note. USB-C adapter is NOT included with the Triple Pack

The Ubiquiti USW-Flex-Mini UniFi 5-Port Layer 2 Managed Desktop Gigabit Switch offers five (5) RJ45 Ethernet ports, providing 1GbE links to your devices. Power up the UniFi Switch Flex Mini with a USB Type-C power adapter (sold separately) or with 802.3af PoE Ethernet in port 1.

Key Features

  • Three (3) pack of switches for ease and convenience.
  • Five (5) 10/100/1000 Gigabit Ethernet RJ45 ports.
  • Powered by 802.3af/at PoE.
  • Can be managed with the UniFi Network Controller.
  • Low energy consumption.
  • Compact design.
  • Expand your existing UniFi network.

Compact desktop design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment. Five (5) RJ45 ports offer 10/100/1000 links. One (1) port also supports 802.3af/at PoE input.

Efficient use of energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter (sold separately).

Switching performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Works with UniFi network controller

  • Manage your networks from a single control plane.
  • Intuitive and robust configuration, control and monitoring:
    • Centralised configuration management (including configuration cloning).
    • Auto-MDIX automatically adjusts as needed for straight through or crossover cable.
  • Remote firmware upgrade.
View full details

Explore Further

Highlights

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

Note. USB-C adapter NOT included with Triple Pack


Dimensions and Weight

Width 107 mm, Depth 70 mm, Height 21 mm,Weight 0.4 kg

Specification

Overview
Dimensions
107 x 70 x 21 mm
(4.2 x 2.8 x 0.8")
Port Layout
1 GbE RJ45
5
(1G/100M/10M)
Form Factor
Compact desktop

Performance
Switching Capacity
10 Gbps
Total Non-Blocking Throughput
5 Gbps
Forwarding Rate
7 Mpps
Supported VLANs
1,000
MAC Address Table Size
2,000

Layer 2 Features
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓

Hardware
Max. Power Consumption
2.5W
Power Method
(1) USB Type-C, 5V DC, 1A
(1) PoE
Power Input Method
USB Input
PoE
Power Supply
AC/DC, external, 5W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Management
Ethernet
Heat Dissipation
6.8 BTU/hr
Weight
150 g (5.3 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 14501-20-08356

Software
Application Requirements
UniFi Network
Version 5.12.5 and later

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
