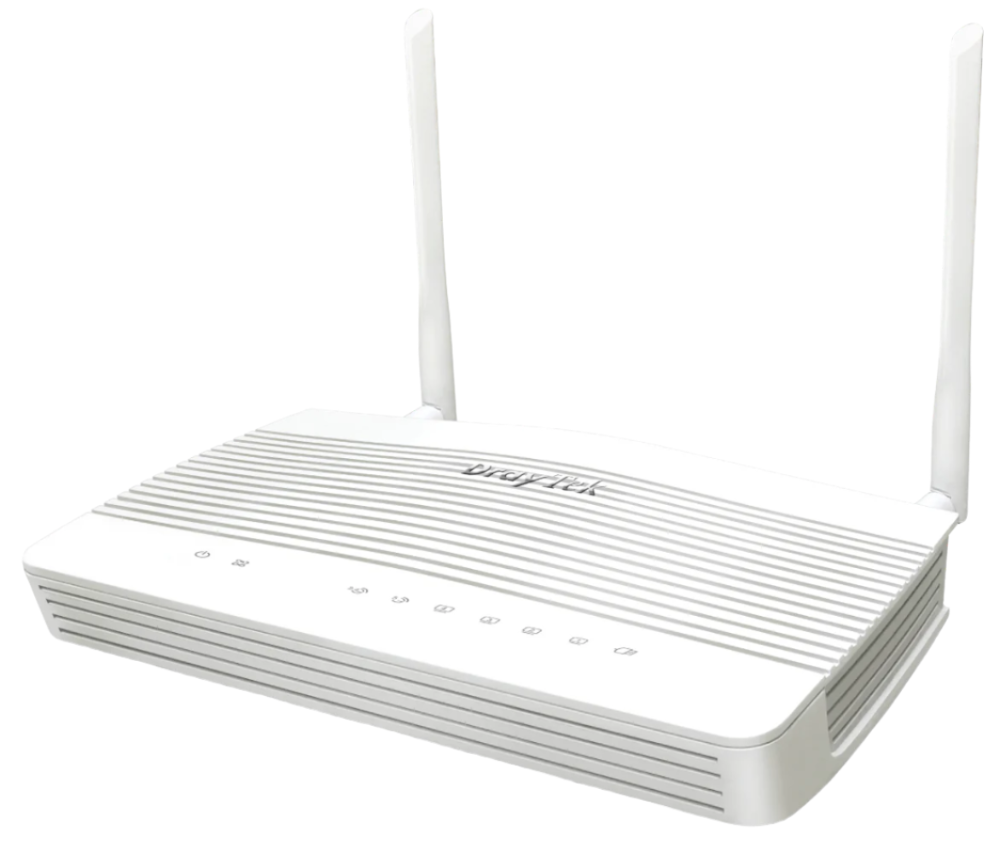

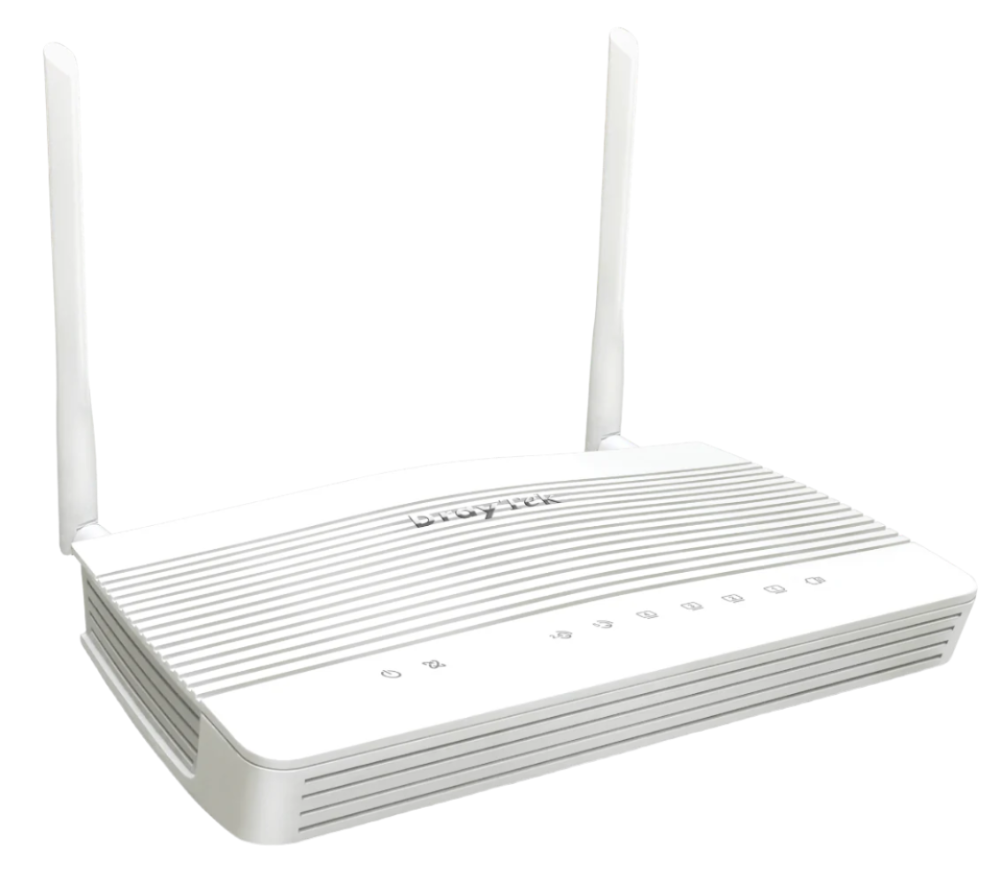

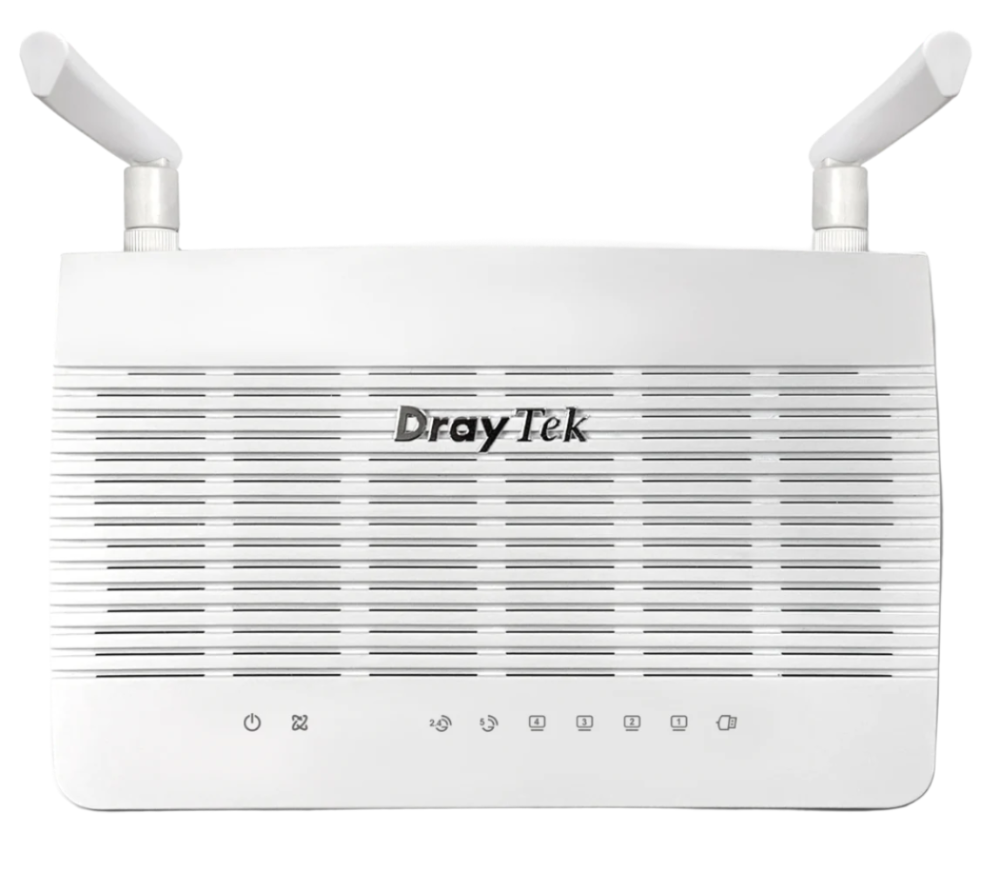

DrayTek 2136ax 2.5GB WAN FTTP Broadband Router WiFi 6 AX3000

DrayTek 2136ax 2.5GB WAN FTTP Broadband Router WiFi 6 AX3000

£170.47
£199.99 £170.47
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2136ax High Performance VPN SOHO Firewall Router with 802.11AX WI-FI 6 2.5GB WAN FTTP Gigabit Ethernet Router


Key Features & Benefits

2.5 Gigabit Ethernet WAN for Fibre Broadband
Make full use of Fibre Broadband with the Vigor 2136ax’s 2.3 Gigabit throughput. Additional Ethernet, Wireless, or USB LTE WAN options are available.

Benefits:
Unleash the full potential of fibre broadband: over 2 Gigabit CPE with flexible application. Ideal for homes and small businesses upgrading to gigabit fibre broadband.

Wi-Fi 6 - AX3000 Performance
Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming, and handling 4K Ultra-HD streaming, without buffering.


Low latency gaming router with Wi-Fi 6

Benefits:
Improve wireless performance. Built with the latest technologies for buffer-free 4K streaming and gaming.

Identity and Access Management (IAM)
The new Identity and Access Management (IAM) feature enables the admin to control access to local resources (servers, NAS drives, etc.) based on pre-defined policies, MFA, and external authentication methods.


Secure router with multi-factor authentication (MFA)

Benefits:
Policy-based access to the local network resources, perfect for business environments requiring strict access control.

High-Performance VPN Router for SMB
Securely connect remote sites at high speed, up to 4 VPN tunnels. Connect remote workers to network resources and secure connectivity, with OpenVPN and WireGuard support.


Secure VPN router for remote workers

Benefits:
Provide secure, encrypted network access for remote workers. Ideal for hybrid workplaces and multi-location businesses.

3+1 Gigabit LAN Ports
Attach Computers, Servers, and Network Attached Storage directly, with up to 4 LAN ports. Use VLANs to supply Broadband and VPN connectivity to as many as 4 separate networks.

Business router for NAS and server connectivity

Benefits:
Improve the quality of service for private and guest data traffic. Mix fixed and virtual configurations for network segmentation and security.

Easily Manage Local APs/Switches with the Virtual Controller
Manage devices locally thanks to the router’s Virtual Controller feature. Automatic discovery allows the router to add connected DrayTek switches and APs to the management pool.



Centralised router management for small networks

Benefits:
Monitor, maintain, and provision directly on the Vigor router, simplifying network management in small business environments.



USER GUIDE >CLICK HERE

View full details

Explore Further

Highlights

Key Specifications
2.5 Gigabit Ethernet Router with Failover
Up to 2.3Gbps Firewall Throughput
Up to 390Mbps IPsec VPN Throughput
4x LAN-to-LAN & Remote Teleworker VPN Tunnels
1x 2.5 Gigabit RJ-45 LAN Port
3x Gigabit RJ-45 LAN Ports
AX3000 – Wi-Fi 6 Dual Band Wireless
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Optional VigorCare Available
Can be centrally Managed by VigorACS

Dimensions and Weight

Width 207 mm, Depth 131 mm, Height 42 mm,Weight 1.4 kg

Specification

Technical Specification (UK Hardware Spec.)
Physical Interfaces
WAN Ports: 1x 2.5Gigabit Ethernet (2.5G/1G/100M/10M), RJ-45
WAN/LAN Switchable Port: 1x 2.5Gigabit Ethernet (2.5G/1G/100M/10M), RJ-45
LAN Ports: 3x Gigabit Ethernet (1G/100M/10M), RJ-45
2x USB 2.0 Ports for LTE Modem, Thermometer or Printer
2x Removable Wireless LAN antennas
Wireless On / Off / WPS button
Recessed Factory Reset button
Performance
NAT Performance:
2.3 Gb/s NAT Throughput for Single WAN
50,000 NAT Sessions
VPN Performance:
390 Mb/s IPsec (AES256) VPN Performance
90 Mb/s WireGuard VPN Throughput
Max. 4 Concurrent VPN Tunnels
WAN Interfaces
WAN1: 2.5 Gigabit Ethernet
WAN2: 2.5 Gigabit Ethernet (LAN switchable)
WAN3: 2.4GHz Wireless WAN
WAN4: 5GHz Wireless WAN
WAN5: LTE USB Modem (not included)
WAN6: LTE USB Modem (not included)
Internet Connection
Hardware Acceleration (Always On)
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
2.4GHz or 5GHz Wireless WAN
WAN Active on Demand: Link Failure, Traffic Threshold
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE, DHCP, Static IP
IPv6 Connection Types:
Ethernet: PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel
Wireless Features
AX3000 Wi-Fi 6 Wireless:
802.11ax 2x2 wireless access point
Compatible with 802.11a/b/g/n/ac wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 2400Mbps PHY rate at 160MHz with 5GHz
Up to 574Mbps PHY rate at 40MHz with 2.4GHz
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
OFDMA
MU-MIMO
Tx Beamforming
1024-QAM
Mesh Root support with DrayTek VigorAP Mesh Nodes^
Up to 8 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time-limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3
Pre-Shared Key authentication
Enterprise 802.1x authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Antenna Specifications
Wireless Antennas:
2x External Dipole
5GHz Gain: 2.7 dBi
2.4GHz Gain: 2.6 dBi
RP-SMA fitting antenna connectors
Firewall & Content Filtering
IP-based or User-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter*
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets (NAT or Routing mode selectable per LAN interface)
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
DHCP Relay per LAN
Wired 802.1x Port Authentication
Port Mirroring (CLI)
Local DNS Server
Conditional DNS Forwarding
Networking Features
Policy-based Routing: Protocol, IP Address, Port
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP, OSPF
VPN Features
Up to 4 active VPN tunnels
Up to 390Mb/s IPsec
LAN-to-LAN - Dial-Out VPN Client / Dial-In VPN Server
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, RADIUS, TACACS+, mOTP, TOTP
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
DHCP over IPsec
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
OpenVPN
WireGuard
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
User-based Data Quota
QoS (Quality of Service):
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features
AP Management: Up to 20 VigorAP access points
Switch Management: Up to 5 VigorSwitch network switches
DrayTek Mesh: Up to 7 VigorAP access points^
Operating Requirements
Power Requirements: 100-240VAC
Power Consumption (Watts, maximum): 18W
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Operating Power: DC 12V @ 1.5A (via external PSU, supplied)
Wall Mountable
Physical Specifications
Dimensions:
207mm Width
131mm Depth
42mm Height
Weight: 508g
Box Contents
Vigor 2136ax series router
Quick Start Guide
Screws & wall plugs for wall mounting
2m Cat-5e RJ-45 Network Cable
2x Detachable Wireless LAN Antennas
DC 12V Power Supply with UK Plug
ROHS, UKCA & CE Compliant
Warranty:
Standard: Two (2) Year, RTB
Software security updates:
5 years after the EOL notification. Please note that this only applies to products sold in the UK
Optional VigorCare Extended Warranty
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
* - subscription required: Group B, URLR-B (includes free 30-day trial)
