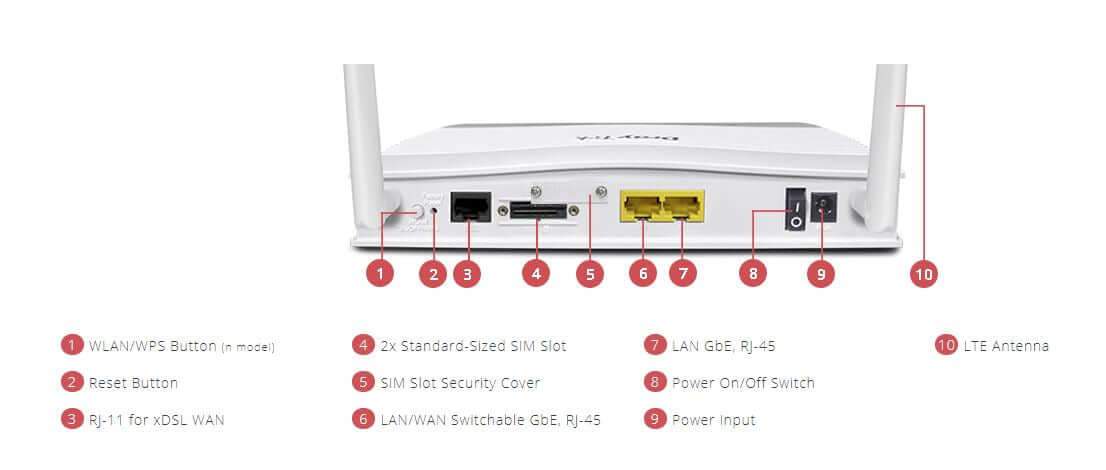

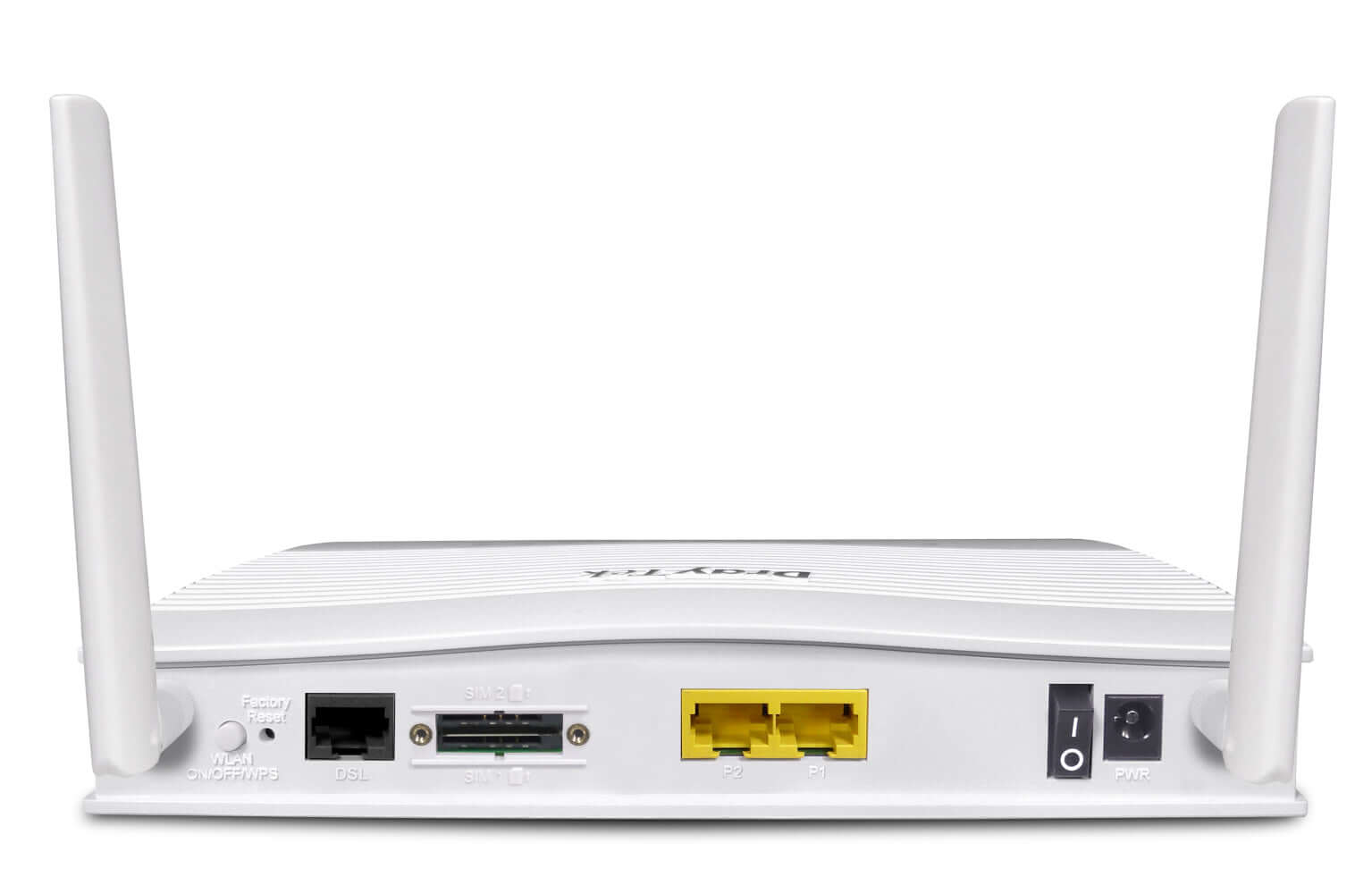

Interface
Fixed WAN Port 1x RJ-11
LAN/WAN Switchable Port 1x GbE RJ-45 (LAN P2 can be Configured as Ethernet WAN)
Fixed LAN Port 1x GbE RJ-45

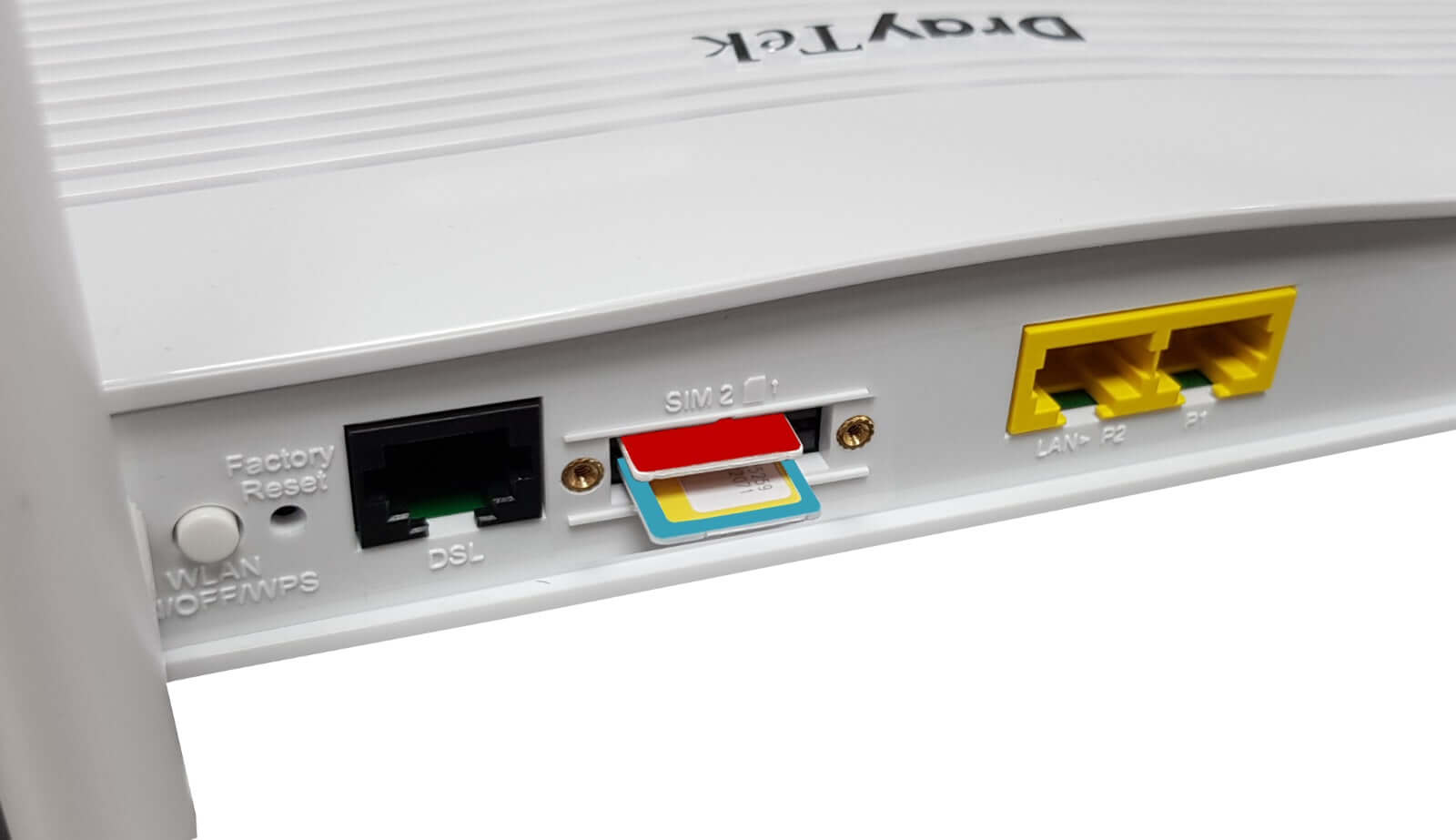

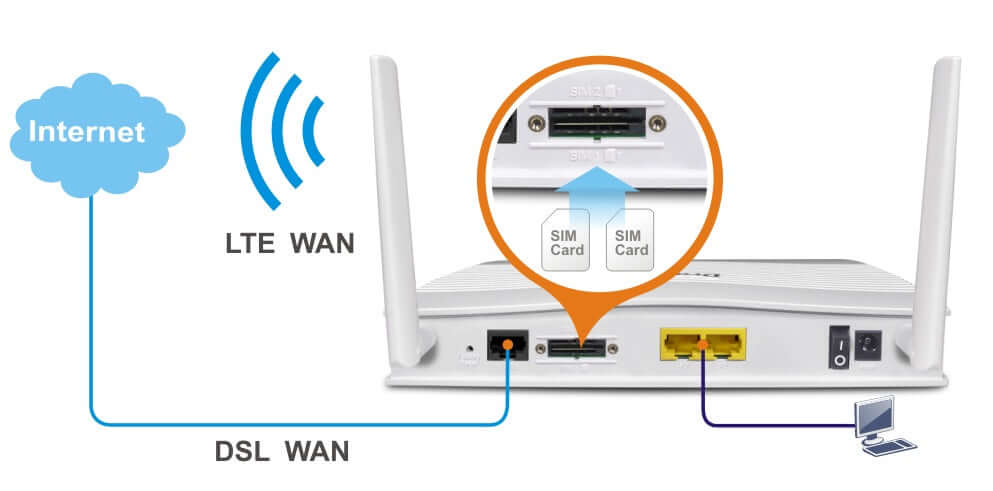

SIM Slot 2x Standard-Sized
LTE Antenna 2x Detachable
2.4G WLAN 802.11n 2x2 MIMO 300Mbps (n model)
Performance
Max. Throughput on VDSL 100 Mbps
Max. NAT Throughput 350 Mbps
IPsec VPN Performance 50 Mbps (AES 256 bits)
SSL VPN Performance 25 Mbps
Max. Number of NAT Sessions 30,000
Max. Concurrent VPN Tunnels 2
Max. Concurrent SSL VPN 2
VDSL/ADSL
VDSL Standards ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
VDSL Band Plan 997
G.Vectoring
ADSL Standards ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
ADSL2 Standards ITU-T G.992.3, G.992.3 Annex M/J
ADSL2+ Standards ITU-T G.992.5, G.992.5 Annex M/J
LTE Category 4
Max. Data Rate 150 Mbps downlink, 50 Mbps uplink
FDD Band 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz)
WCDMA (3G) Band 1, 8
For other band availability, please contact your local DrayTek distributor or us
IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
LTE WAN Bridge DHCP Client
Multi-VLAN/PVC
WAN Failover
Connection Detection ARP, Ping
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, RIPv2
Multicast IGMP Proxy, IGMP Snooping & Fast Leave
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IPsec XAuth
User Authentication Local, RADIUS, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
NAT-Traversal (NAT-T)
Firewall & Content Filtering
NAT Port Redirection, Open Ports, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port
Wireless LAN (n model)
Number of SSID 4 per radio band
Security WEP, WPA, WPA2, WPS
Authentication Pre-Shared Key, 802.1x
WDS Bridge, Repeater
Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
WMM
Management
Local Service HTTP, HTTPS, Telnet, SSH, TR-069, SMS Sending & Recieving
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v2, v2c, v3
Syslog
Central AP Management 2 VigorAP
Managed by VigorACS
Physical
Power Supply DC 12V @ 1A
Max. Power Consumption 12 watts (Ln model)
Dimension 207mm x 131mm x 42mm
Weight 400g (Ln model)
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%
