Vigor 2763 Router series
Key Specifications
VDSL2 (Superfast Fibre) or Gigabit Ethernet WAN Router with Failover
Up to 950Mbps Firewall Throughput for Ethernet WAN
4 Gigabit LAN Ports
AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models)
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Up to 200Mbps IPsec VPN Throughput
2 LAN-to-LAN or Remote Teleworker VPN Tunnels
DrayTek SSL VPN and OpenVPN support
Optional VigorCare Available
Can be centrally Managed by VigorACS
The Vigor 2763 series comes in different models depending on the features required. Please double check when ordering that you have selected the correct product and a product intended for the correct region/network.
This model:
UK Product Code EAN Product Name Product Description
V2763AC-K 4710484745347 Vigor 2763ac (UK/IE) Vigor 2763ac VDSL and Ethernet Router with Wi-Fi 5 AC1300 Wireless
Other models in the Vigor 2763 router series:
UK Product Code EAN Product Name Product Description
V2763-K 4710484745330 Vigor 2763 (UK/IE) Vigor 2763 wired VDSL and Ethernet Router
The EAN is a barcode number which identifies the unique specific product type. It is separate to the product serial number which is unique to each product. The EAN will also appear on your product box when you receive it so you can double check that you have been sent the right product.
These product codes are for UK/Irish products only. Please check with your local DrayTek office for the correct part nos. for your region if you are not in the UK/IE to ensure that you get the correct hardware and local support/warranty.
Technical Specification (UK Hardware Spec.)

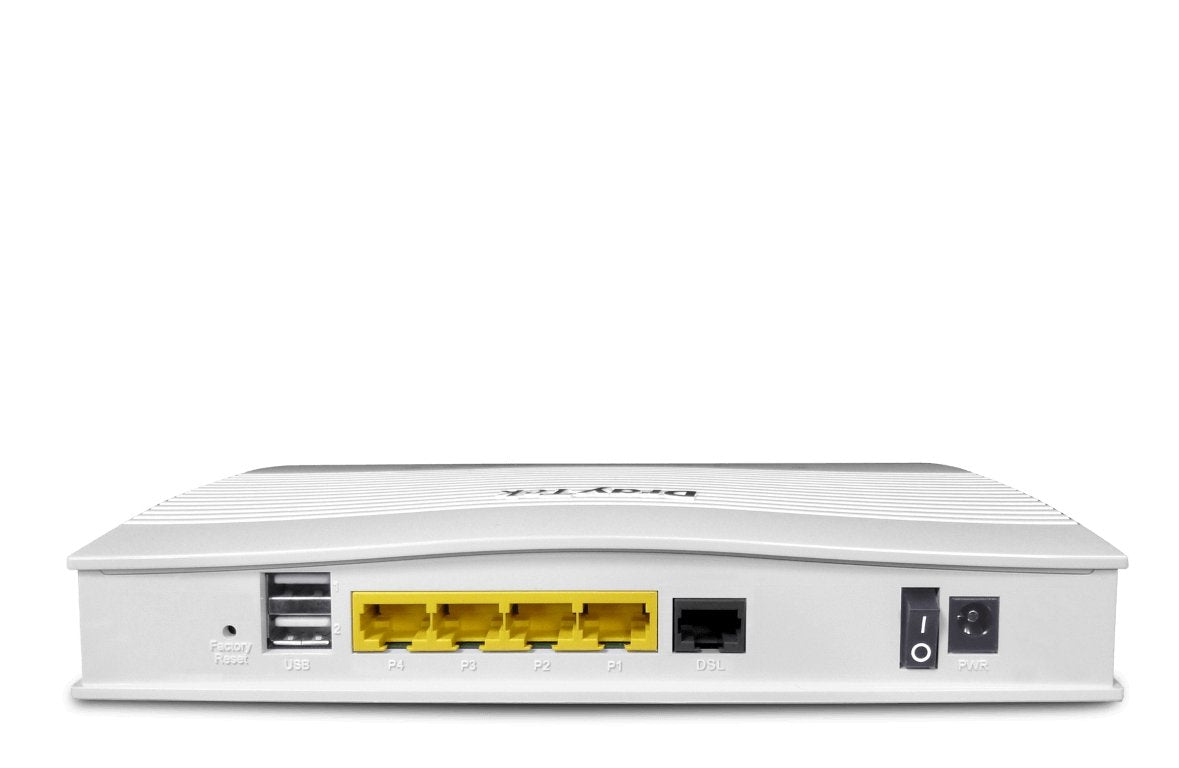

Physical Interfaces
WAN1: VDSL2 / ADSL2+, RJ-11
WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
WAN3: USB 2.0 Port for 3G/4G Modem (not included)
LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
2x USB 2.0 Port for USB storage, thermometer or Printer
2x Removable Wireless antennas (wireless models)
Wireless On / Off / WPS button
Recessed Factory Reset button
Antenna Specifications
Wireless Antennas (wireless 'ac' models):
2x External Dipole
5GHz Gain: 4 dBi
2.4GHz Gain: 2 dBi
Performance
Router Performance:
100 Mb/s Max Sync Rate with VDSL2
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
700 Mb/s NAT Throughput per WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
200 Mb/s IPsec (AES256) VPN Throughput
80 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection
Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
USB 4G/LTE Modem: TSPC, AICCU
VDSL & ADSL Features
BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 498
Auto Detection of VDSL and ADSL line modes
Support for G.INP (G.998.4) & Vectoring (G.993.5)
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a (not 35b or G.fast)
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114, TR048/67, TR-100
ADSL Standards:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2 including Annex M/J
ITU-T G.992.5 ADSL2+ including Annex M/J
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Wireless Features (‘ac’ models)
AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models):
802.11ac 2x2 wireless access point
Compatible with 802.11a/b/g/n wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 866Mbps PHY rate at 80MHz with 5GHz
Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
MU-MIMO
Tx Beamforming
Mesh Root support with DrayTek VigorAP Mesh Nodes – New!
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3 – New!
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
IP-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires GlobalView subscription)
DoH (DNS over HTTP) & DoT (DNS over TLS) Filtering - New!
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features
2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client / Dial-In VPN Server
Teleworker-to-LAN – Dial-In VPN Server
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
PPTP for legacy applications
L2TP, L2TP over IPsec
User Authentication:
Local
RADIUS
mOTP - Mobile One Time Password
TOTP - Time-based One Time Password, compatible with Google Authenticator - New!
Bandwidth Management
IP-based (IPv4 & IPv6) Bandwidth Limit
App-based Bandwdith Limit - New!
IP-based (IPv4 & IPv6) Session Limit
Quality of Service (QoS)
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Class-based Outbound Traffic Tagging: DSCP & IP Precedence
Hardware QoS - New!
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Import Config from Vigor 2760, 2762, 2765, 2766
Auto Backup Config to USB Storage – New!
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features
AP Management: 2 VigorAP access points
DrayTek Mesh: Up to 7 VigorAP access points – New!
Operating Requirements
Wall or Shelf Mountable
Temperature Operating: 0 °C ~ 40 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 21 Watts maximum (ac model)
Operating Power: DC 12V (via external PSU, supplied)
Power Requirements : 100-240VAC
Dimensions:
207mm Width
131mm Depth
42mm Height
Warranty
Two (2) Years RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
Box Contents
Vigor 2763ac router
Quick Start Guide
Screws & wall plugs for wall mounting
2m Cat-5e RJ-45 Network Cable
2x Detachable Wireless LAN Antennas (‘ac’ models)
DC 12V Power Supply with UK Plug
