Utilize Transmission Opportunity with OFDMA (ax model)
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.

Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.

OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.

OFDM
OFDM
OFDMA
OFDMA
802.11ax BSS Coloring (ax model)
It is regulated that only one radio can transmit on the same wireless channel at any given time. When an 802.11 radio hears transmissions of any other 802.11 radio, it will defer transmissions.

When too many APs and WiFi clients hear each other on the same channel, every transmission will be postponed and result in airtime consumption and performance degrading.

BSS coloring helps to deal with spatial frequency reused problem in overlapping BSS. As long as the overlapping channels are allocated with different colors, AP and WiFi clients can transmit even if hearing each other on the same channel.

802.11ax BSS Coloring
Hardware NAT & Routing with Hardware QoS
The accelerator supports up to 2k NAT and routing connections, providing firewall performance up to 940Mbps on either Ethernet or DSL WAN (G.fast), while still meeting high expectation of QoS quality.

Hardware Acceleration
AP-assisted Roaming

Making Transmission Effective
Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal.

Resource Saving
Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.

No Controller Required
Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.

Stronger Signal Guaranteed
By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.

Hotspot Web Portal
Market your business while offering free WLAN

WLAN Marketing
Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.

Grow Your Email List
Require the guest to leave contact info or social media accounts before they can use the Internet service.

Various Authentication Type
A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

3rd-Party Service Compliant
Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.

Quota Management
Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.

DrayTek Hotspot
LAN Management
An all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery
All you need is connect the Vigor Switch/AP to the LAN side of the router, Vigor Router will then discover the devices to be managed.

LAN Management scenario of Vigor2766
Provisioning
Basic settings may be done on the Vigor Router, and provision to the managed VigorAP.

Monitoring
Vigor Router provides a centralized view of managing devices, you may always check if the managed VigorAP is online.

System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.

Key Features
G.Fast, VDSL and Ethernet Router
Reliable and fast internet connectivity with Failover backup WAN and powerful Route Policy.
Four (4) Gigabit LAN Ports with VLANs
Provide a fully separated guest network, with support for four (4) VLANs.
Firewall & Content Filtering
Manage internet access with Firewall, App Enforcement & Category-based Web Filtering (requires GlobalView subscription - see accessories tab for compatible licences).
DrayDDNS with LetsEncrypt Certificates
Free DrayDDNS address for each router, with automated LetsEncrypt SSL/TLS Certificates.
Multi-Purpose USB Ports
Connect 4G modem, USB storage, USB thermometer and USB printers (sold separately) to share resources.
Powerful SoHo VPN Router
Up to two (2) active VPN tunnels for LAN to LAN, Remote Dial-In Users and VPN services.
VPN Matcher
Break through NAT and CG-NAT with DrayTek's VPN Matcher service for LAN to LAN and Teleworker VPNs.
VigorACS Central Management
Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Quality of Service with App QoS
Prioritise latency-sensitive applications such as Teams and Zoom, quickly & easily with App QoS.
Centralised LAN Management
Manage and provision up to two (2) DrayTek VigorAP wireless access points.

Width 207 mm, Depth 131 mm, Height 39 mm,Weight 1.1 kg

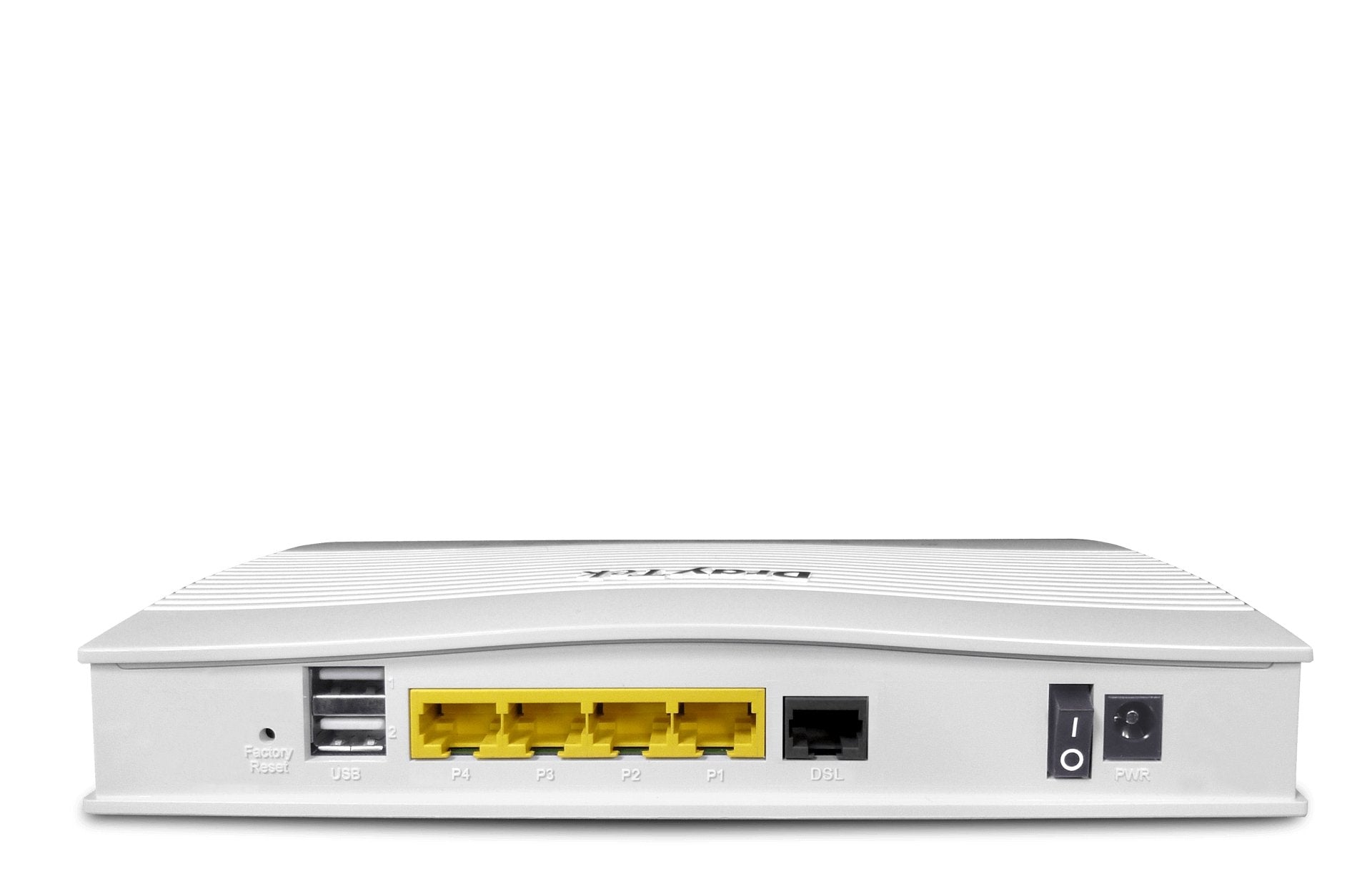

Physical Interfaces
WAN1: G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11
WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
WAN3: USB 2.0 Port for 3G/4G Modem (not included)
LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
2x PSTN RJ-11 Telephone Ports (‘Vac’ model)
2x USB 2.0 Port for USB storage, thermometer or Printer
2x Removable Wireless antennas (wireless models)
Wireless On / Off / WPS button
Recessed Factory Reset button
Antenna Specifications
Wireless Antennas (wireless 'ac' models):
2x External Dipole
5GHz Gain: 4 dBi
2.4GHz Gain: 2 dBi
Performance
Router Performance:
1.3Gb/s Max Sync Rate with G.Fast (dependant on ISP & Exchange equipment)
100 Mb/s Max Sync Rate with VDSL2
300 Mb/s Max Sync Rate with VDSL2 35b
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
700 Mb/s NAT Throughput per WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
200 Mb/s IPsec (AES256) VPN Throughput
80 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection
Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
USB 4G/LTE Modem: TSPC, AICCU
G.Fast, VDSL & ADSL Features
BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 527 & SIN 498
Auto Detection of G.Fast, VDSL and ADSL line modes
Support for G.INP & Vectoring
G.Fast Standards:
ITU-T G.9700, G.9701 G.Fast
Profile: 212MHz & 106MHz
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
ADSL Standards:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Wireless Features (‘ac’ models)
AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models):
802.11ac 2x2 wireless access point
Compatible with 802.11a/b/g/n wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 866Mbps PHY rate at 80MHz with 5GHz
Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
MU-MIMO
Tx Beamforming
Mesh Root support with DrayTek VigorAP Mesh Nodes – New!
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3 – New!
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
IP-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires GlobalView subscription)
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features
2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, mOTP
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
PPTP for legacy applications
L2TP, L2TP over IPsec
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
Quality of Service (QoS)
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Class-based Outbound Traffic Tagging: DSCP & IP Precedence
VoIP Features (‘Vac’ model)
2x RJ-11 PSTN Telephone Ports (FXS)
Integrated VoIP SIP ATA (Analogue Telephone Adapter)
6 SIP Accounts with VoIP Setup Wizard
Protocols: SIP, RTP / RTCP
G.168 Line Echo-cancellation
Dial Plan: Phone Book, Digit Map, Call Barring
Voice Codecs: G.711 A / Law, G.723.1, G.726, G.729 A / B, VAD / CNG
Tone Generation: DTMF, Dial, Busy, Ring Back, Call Progress
DTMF Transmission: In Band, Out Band (RFC-2833), SIP info
FAX / Modem Support with G.711 Pass-through and T.38
Supplemental Services: Caller ID, Call Hold/Retrieve, Waiting, Transfer, Forwarding, Barring
DND (Do not Disturb)
MWI (Message Waiting Indicator) (RFC-3842)
Hotline (Dial preset number when handset lifted)
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Import Config from Vigor 2762, 2765
Auto Backup Config to USB Storage – New!
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features
AP Management: 2 VigorAP access points
DrayTek Mesh: Up to 7 VigorAP access points – New!
Operating Requirements
Wall or Shelf Mountable
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 24 Watts maximum (Vac model)
Operating Power: DC 12V (via external PSU, supplied)
Power Requirements : 220-240VAC
Dimensions:
207mm Width
131mm Depth
39mm Height
Warranty
Two (2) Years RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
Box Contents
Vigor 2766 series router
Quick Start Guide
Screws & wall plugs for wall mounting
2m Cat-5e RJ-45 Network Cable
2x Detachable Wireless LAN Antennas (‘ac’ models)
DC 12V Power Supply with UK Plug

Please check the Specification Section for Warranty Information

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

VigorCare Activation Link

https://www.draytek.co.uk/support/vigorcare-registration

Product Code	Description	Applicable To These DrayTek Products	Duration	Buy Now
VCARE-A3	VigorCare A3 3 Year Subscription	Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series VigorAP 810, 903, 912C, 960C, 1000C, 1060C VigorSwitch P1092, G1080	3 Years
VCARE-A5	VigorCare A5 5 Year Subscription	Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series VigorAP 810, 903, 912C, 960C, 1000C, 1060C VigorSwitch P1092, G1080	5 Years
VCARE-B3	VigorCare B3 3 Year Subscription	Vigor 2620Ln Vigor 2832, 2862, 2865, 2866, 2926, 2927 series VigorAP 920, VigorAP 918 series VigorSwitch P2121, G2100, P2100	3 Years
VCARE-B5	VigorCare B5 5 Year Subscription	Vigor 2620Ln Vigor 2832, 2862, 2865, 2866, 2926, 2927 series VigorAP 920, VigorAP 918 series VigorSwitch P2121, G2100, P2100	5 Years
VCARE-C3	VigorCare C3 3 Year Subscription	Vigor 2952, 2960, 2962, 3220 VigorSwitch P1280, G1280, P1282, G1282	3 Years
VCARE-C5	VigorCare C5 5 Year Subscription	Vigor 2952, 2960, 2962, 3220 VigorSwitch P1280, G1280, P1282, G1282	5 Years
VCARE-D3	VigorCare D3 3 Year Subscription	Vigor 3900, Vigor 3910 VigorSwitch G2280, G2280x, G2500, G2540x VigorSwitch P2280, P2280x, P2500, P2540x	3 Years
VCARE-D5	VigorCare D5 5 Year Subscription	Vigor 3900, Vigor 3910 VigorSwitch G2280, G2280x, G2500, G2540x VigorSwitch P2280, P2280x, P2500, P2540x	5 Years

 Warranty Terms & Conditions Apply - please see here

https://www.draytek.co.uk/support/vigorcare#terms-and-conditions
