DrayTek 2865L-5G LTE Dual-WAN Router Wired Only
DrayTek 2865L-5G LTE Dual-WAN Router Wired Only
Couldn't load pickup availability
DrayTek Vigor 2865L-5G VDSL router with 5G/LTE modem(Non Wireless Model)
Key Specifications
- VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
- 5G / LTE with Dual-SIMs for Second Backup Telco - New!
- Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- Up to 800Mbps VPN Throughput with IPsec acceleration
- 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 16 DrayTek SSL VPN or OpenVPN Tunnels
- 5+1 Gigabit RJ-45 LAN Ports
- 8 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS Central Management Platform
Share

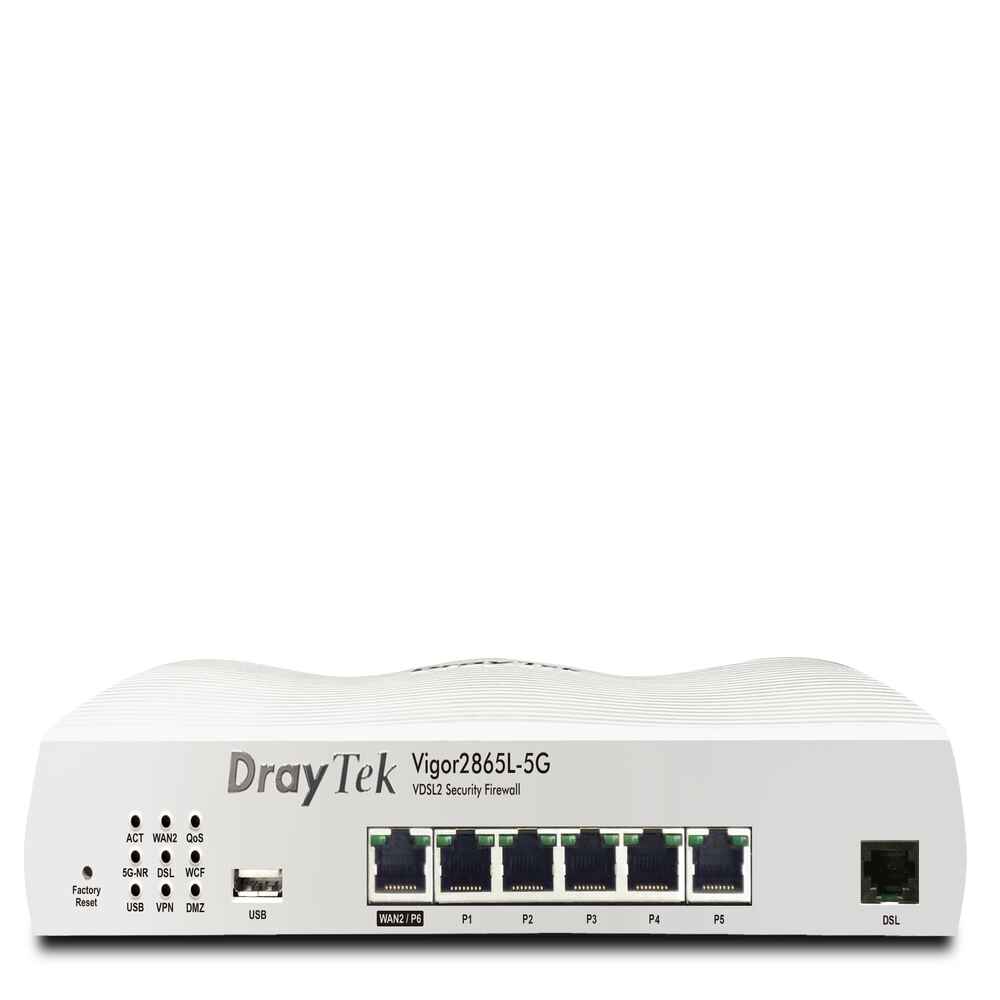

![DrayTek 2865L-5G LTE Router VDSL Ultrafast FTTP Wired Front View](http://admireit.co.uk/cdn/shop/files/DrayTek2865L-5GLTERouterVDSLUltrafastFTTPWiredFrontView.jpg?v=1718266990&width=1445)

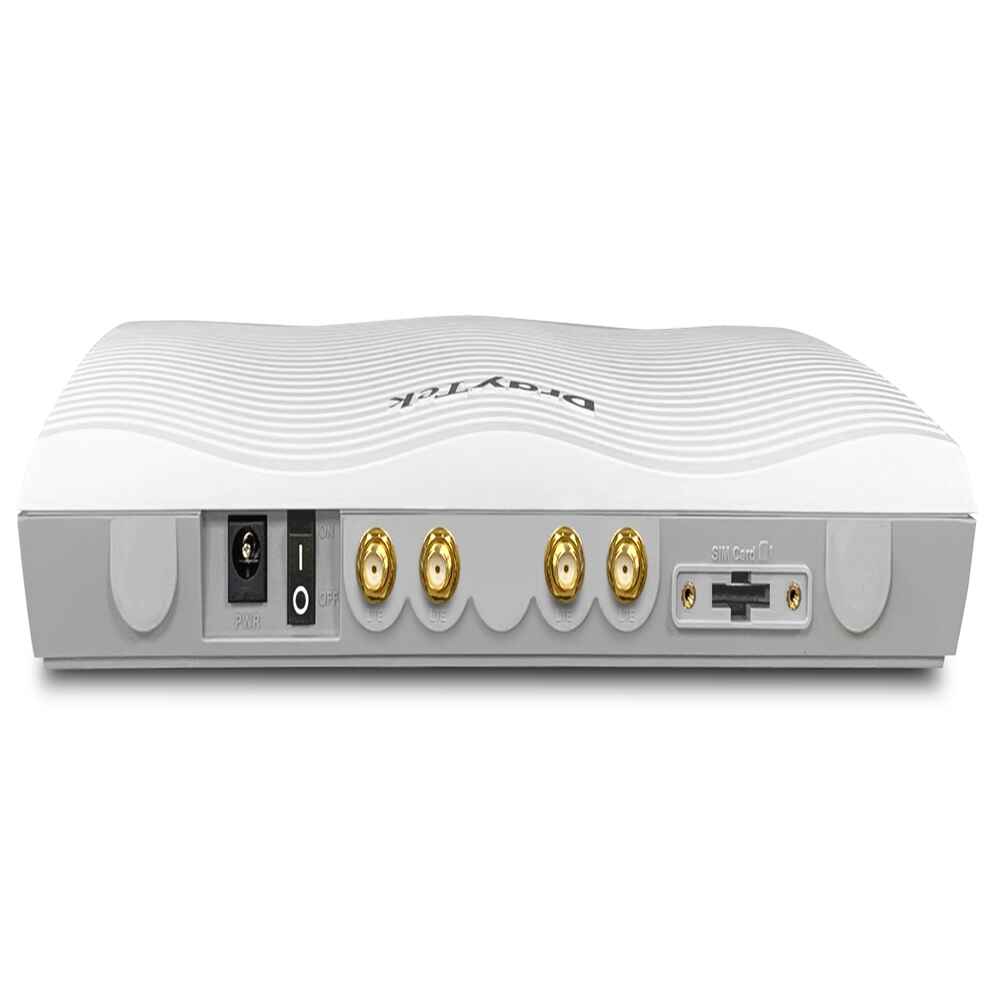

![DrayTek 2865L-5G LTE Router VDSL Ultrafast FTTP Wired Rear View](http://admireit.co.uk/cdn/shop/files/DrayTek2865L-5GLTERouterVDSLUltrafastFTTPWiredRearView.jpg?v=1718266990&width=1445)

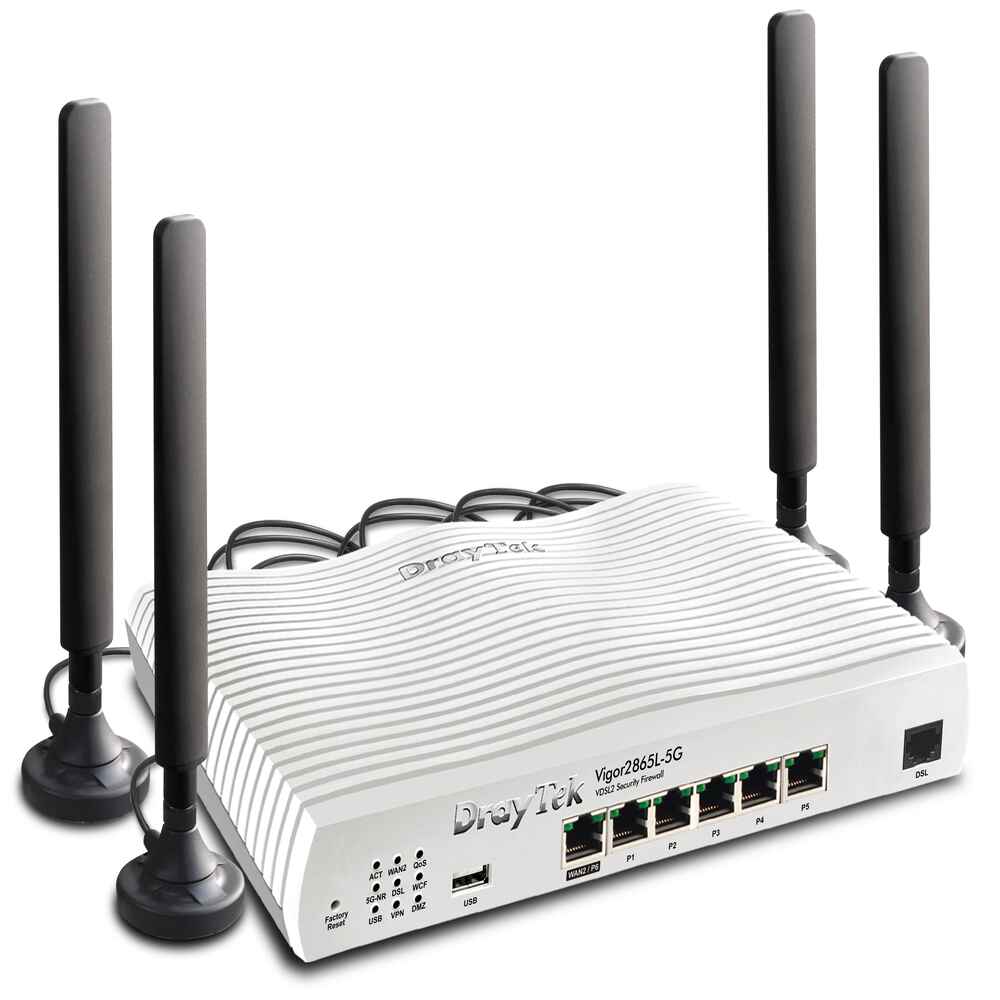

![DrayTek 2865L-5G LTE Router VDSL Ultrafast FTTP Wired Left View](http://admireit.co.uk/cdn/shop/files/DrayTek2865L-5GLTERouterVDSLUltrafastFTTPWiredLeftView.jpg?v=1718266987&width=1445)

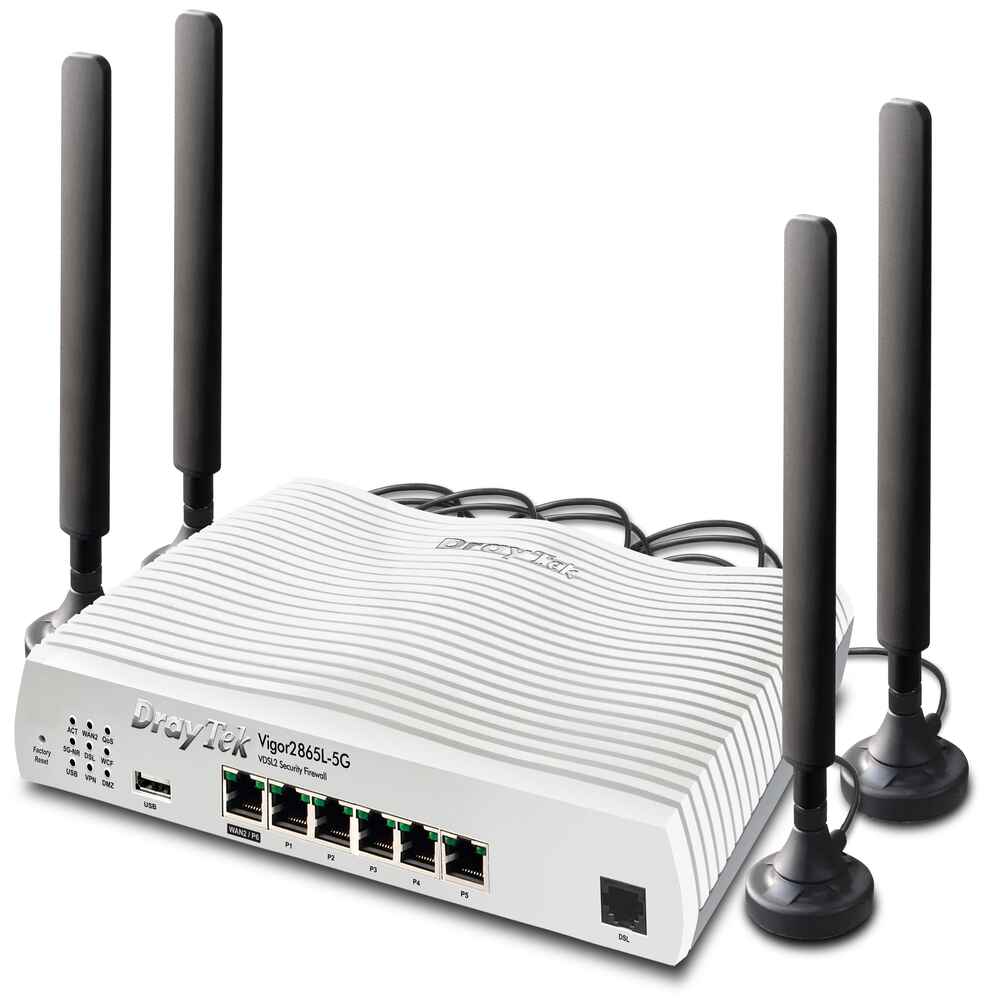

![DrayTek 2865L-5G LTE Router VDSL Ultrafast FTTP Wired Right View](http://admireit.co.uk/cdn/shop/files/DrayTek2865L-5GLTERouterVDSLUltrafastFTTPWiredRightView.jpg?v=1718266988&width=1445)
Explore Further
Highlights
Key Features & Benefits
VDSL and Ethernet Load Balancer
Connect the Vigor 2865 to Superfast Fibre with the integrated VDSL modem. Use the Ethernet WAN with Cable and Ultrafast FTTP. Load Balance multiple connections to boost performance.
Benefits: Fully utilise Fibre Broadband. High performance DSL & Gigabit CPE with flexible application.
Robust SMB VPN Router
Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support.
Benefits: Securely encrypt network access for remote workers and working from home.
Feature Packed Router
Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, VPN Matcher, DrayDDNS and more.
Benefits: Advanced DrayTek router functionality solves many complex networking issues.
5G/LTE Router with Dual Sim Slot
Integrated 5G/LTE modem on ‘5G’ models supporting LTE Category 19. Unlocked to any network. Backward compatible with 4G/LTE.
Benefits: Faster 5G/LTE Mobile Broadband. Ensure constant connectivity.
5+1 Gigabit LAN Ports with VLANs
Link Server, Computers, and Network Attached Storage directly, with up to 6 Gigabit LAN ports. VLANs allow for as many as 8 separate networks, with options for Hotspot Captive Portal.
Benefits: Improve quality of service for private and guest data traffic. Connect more devices.
VigorACS SD-WAN Central Management
Manage the Vigor 2865 remotely and utilise DrayTek’s powerful SD-WAN features with the VigorACS 3 management platform. Centrally manage & provision whole networks across multiple sites.
Benefits: Save time and money. Provision, manage and monitor remote sites easily, without on-site IT or dedicated staff.
Dimensions and Weight
Width 241 mm, Depth 165 mm, Height 44 mm,Weight 2.1 kg
Specification
Technical Specification (UK Hardware Spec.)
Physical Interfaces
WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ-11
WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
1x USB 2.0 Ports for LTE Modem, thermometer or Printer
4x Removable 5G LTE antennas
Recessed Factory Reset button
Performance
NAT Performance:
100 Mb/s Max Sync Rate with VDSL2
300 Mb/s Max Sync Rate with VDSL2 35b
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
1.3Gb/s Total Multi-WAN NAT Throughput
800 Mb/s NAT Throughput per WAN without Hardware Acceleration
60,000 NAT Sessions
VPN Performance:
300 Mb/s IPsec (AES256) VPN Performance
800 Mb/s Hardware Accelerated IPsec VPN Performance
130 Mb/s SSL VPN Performance
Max. 32 Concurrent VPN Tunnels
Max. 16 Concurrent SSL VPN / OpenVPN Tunnels
WAN Interfaces
WAN1: VDSL2 / VDSL2 35b / ADSL2+
WAN2: Gigabit Ethernet
5G-NR: Integrated 5G/LTE Modem
WAN6: LTE USB Modem (not included)
Internet Connection
Load Balancing: IP-based, Session-based
Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
WAN Active on Demand: Link Failure, Traffic Threshold
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE, PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN only)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
5G/4G Modem & USB LTE Modem: TSPC, AICCU
VDSL & ADSL Features
BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 498
Auto Detection of VDSL and ADSL line modes
Support for G.INP & Vectoring
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
ADSL Standards:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Integrated 5G Modem Features – New!
Dual-SIM Failover
5G LTE Category 19 (DL) Modem with fallback to 4G/LTE
Unlocked to any network (EE, 3, O2, Vodafone, Eircom)
5G Max Data Rates:
Please note that the maximum real-world throughput speed is estimated to be approximately 600Mbps. Below are the theoretical maximum data link rates for 5G New Radio Standalone (NR SA) and 5G New Radio Non-standalone (NR NSA) for the device
5G NR SA
2.4Gbps Downlink (Category 19)
900Mbps Uplink (Category 18)
5G NR NSA
2.8Gbps Downlink (Category 19)
555Mbps Uplink (Category 18)
5G NR Sub-6 SA Bands: 1, 3, 7, 8, 20, 28, 38, 40, 77, 78
5G NR Sub-6 NSA Bands: 1, 3, 7, 8, 20, 28, 38, 40, 77, 78
4G LTE (FDD) Bands: 1, 3, 7, 8, 20, 28
4G LTE (TDD) Bands: 38, 40
3G (WCDMA) Bands: 1, 8
4x 5G Antennas included with 1m extension cables
Per-SIM-Card WAN Data Budget
2x Nano-Size SIM-Card Slots
Removable SIM slot cover
SMS Inbox - Send & Receive SMS text messages
SMS Router Commands - Status Report, Reboot via text message
Antenna Specifications
5G/LTE Antennas:
4x External Dipole
4x 1m extension base included
Gain: 4.37 dBi
SMA fitting antenna connectors
Firewall & Content Filtering
IP-based or User-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter*
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
Up to 16 VLANs
DMZ Port
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 1022 addresses for LANs 1-3
DHCP Pool Count up to 253 addresses for LANs 4-8
DHCP Relay per LAN
LAN IP Alias
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking Features
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
High Availability: Active-Standby, Hot-Standby
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP
VPN Features
Up to 32 active VPN tunnels - including up to 16 SSL VPN or OpenVPN Tunnels
Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels
LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP, TOTP – New!
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
VPN Trunk (Redundancy): Load Balancing, Failover
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
WireGuard - New!
GRE over IPsec
PPTP
L2TP, L2TP over IPsec
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
User-based Data Quota
Quality of Service (QoS)
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Class-based Outbound Traffic Tagging: DSCP & IP Precedence
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Import Config from Vigor 2862
Auto Backup Config to USB Storage – New!
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS (version 3.6.0 or later)
Router Central Management Features
AP Management: Up to 20 VigorAP access points
Switch Management: Up to 10 VigorSwitch network switches
VPN Management: Up to 8 Vigor routers
Operating Requirements
Power Requirements: 100-240VAC
Power Consumption (Watts, maximum): 31.2W
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Operating Power: DC 12V (via external PSU, supplied)
Rack Mountable (Optional Vigor RM1 mounting bracket required)
Wall Mountable
Physical Specifications
Dimensions:
241mm Width
165mm Depth
44mm Height
Weight: 600g
Box Contents
Vigor 2865L-5G router
Quick Start Guide
Screws & Wall Plugs for Wall Mounting
2m Cat-5e RJ-45 Network Cable
4x Detachable LTE Antennas
4x 1m LTE Extension Base
DC 12V Power Supply with UK Plug
ROHS, UKCA & CE Compliant
