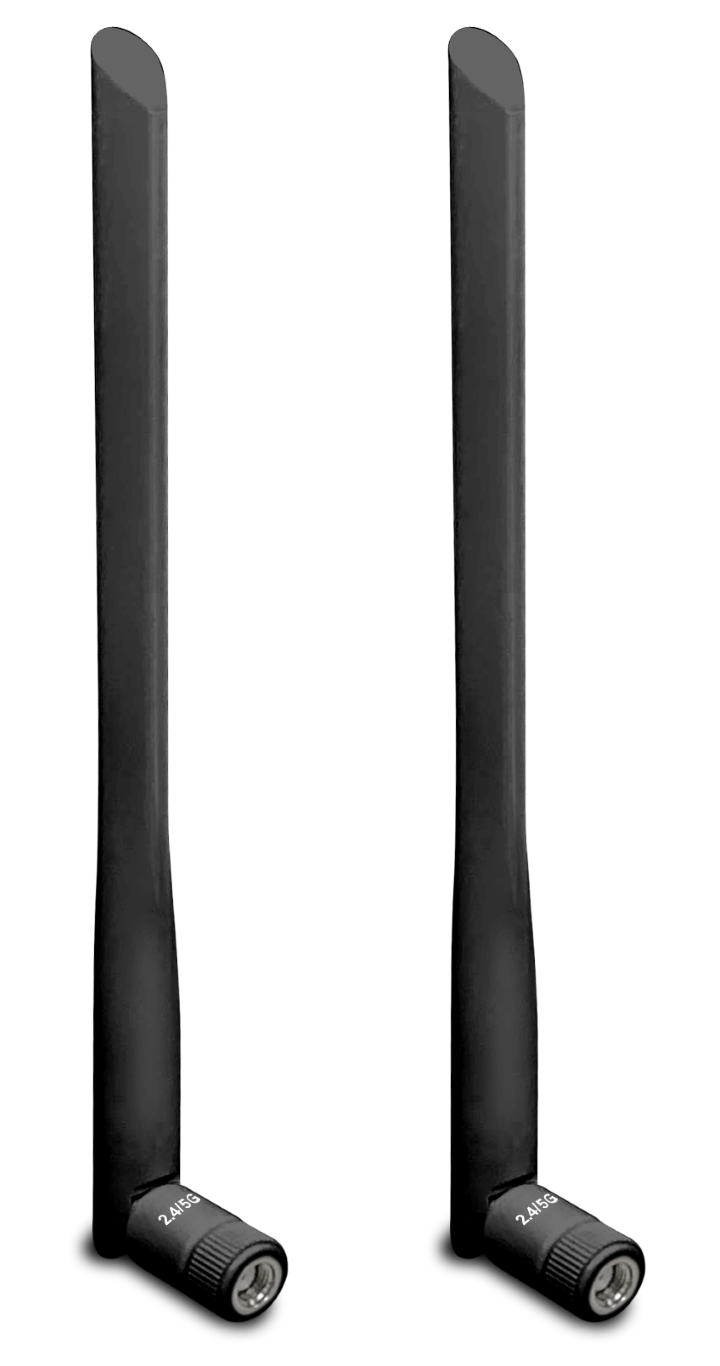

• DrayTek Pair of ANT-1205 5dB High-Gain Dual Band Antenna Black Pair Shown

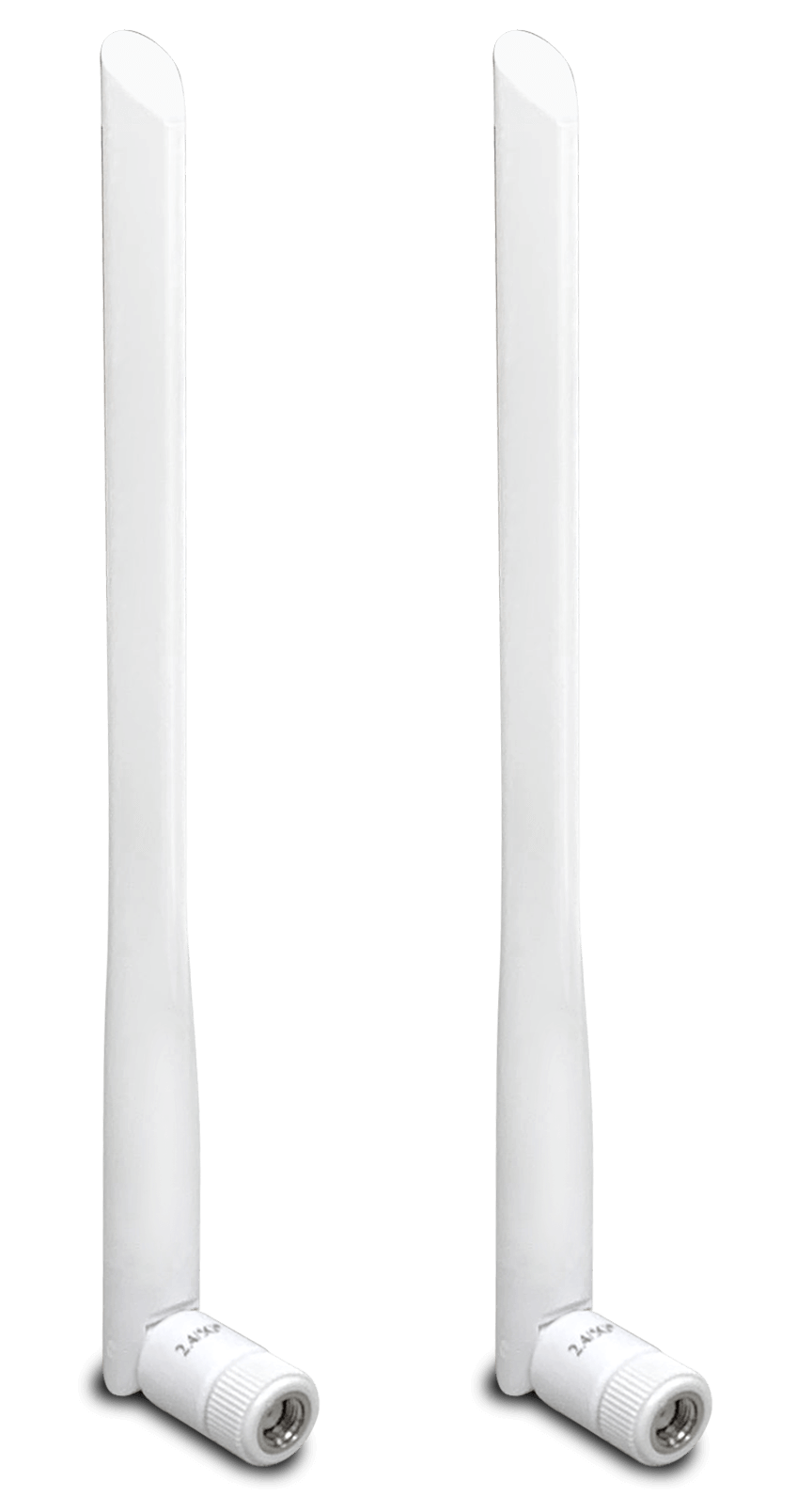

  • DrayTek Pair of ANT-1205 5dB High-Gain Dual Band Antenna White Pair Shown

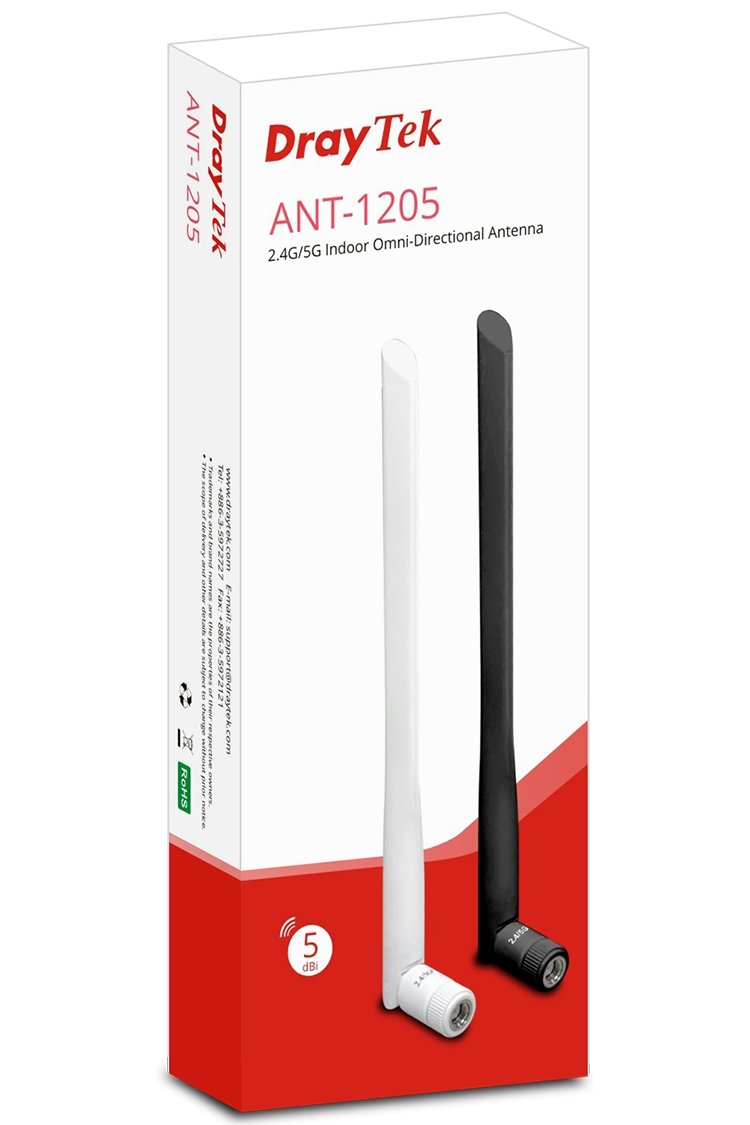

  • DrayTek Pair of ANT-1205 5dB High-Gain Dual Band Antenna Retail Box Shown

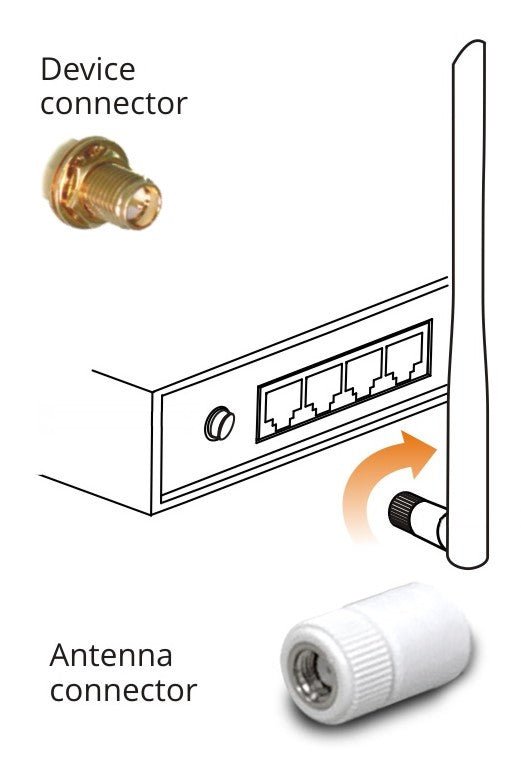

  • DrayTek Pair of ANT-1205 5dB High-Gain Dual Band Antenna Close up of SMA Connector

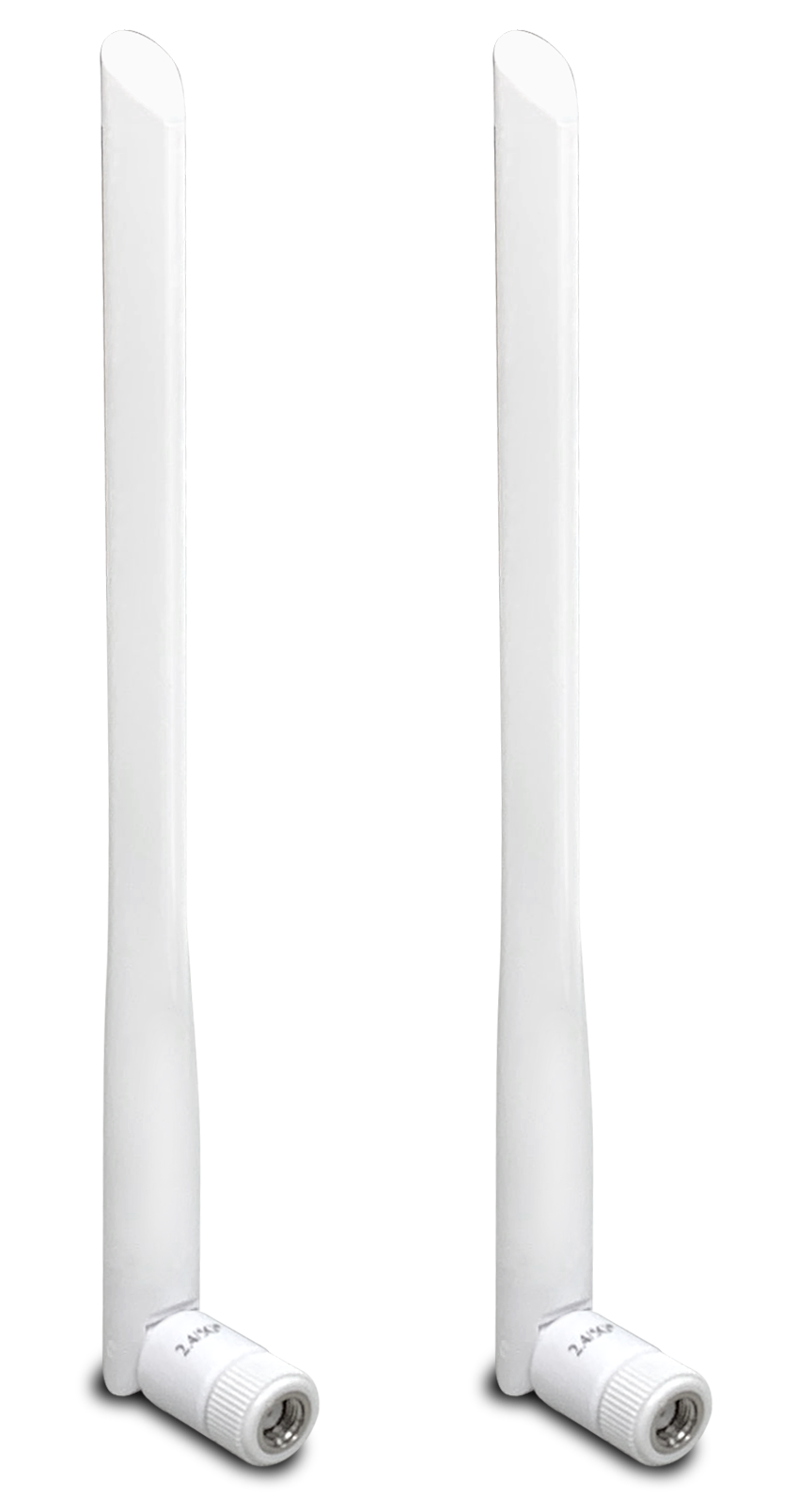

  • DrayTek Pair of ANT-1205 5dB High-Gain Dual Band Antenna White Pair Shown
1 4

DrayTek ANT-1205W/ANT-1205B 5dB High-Gain Dual Band Antenna

DrayTek ANT-1205W/ANT-1205B 5dB High-Gain Dual Band Antenna

£21.99
£21.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Color

DrayTek ANT1205 5dB High-Gain Dual-Band Omnidirectional Aerial Antennas Suitable for 802.11AC and 802.11AX (WiFi 6) Routers

ANT1205B = Black Version

ANT1205W = White Version

The DrayTek ANT-1205 Indoor 5dB Omni-Directional Antennas are replacement antennas for any DrayTek router or wireless access point. They provide up to 5dBi gain (vs. the 2 or 3 dBi standard antenna supplied with the access point/router). The ANT-1205 can increase coverage in your environment, creating a stronger signal for your WiFi coverage. A high-gain antenna achieves this by creating a narrower and therefore more concentrated radiation pattern. It is still an omni-directional antenna, i.e. signal radiates in all directions (360 degrees) perpendicular to the antenna's length. The ANT-1205 is supplied as a pair of antennas, ideal for most DrayTek wireless access points and wireless routers.



High-Gain Dual-Band Antenna Pack

The ANT-1205B(Black) or ANT-1205W(White) is a dual-band antenna so can be used for either 2.4Ghz or 5.8Ghz operation, or both simultaneously. It is also suitable for 802.11ac (WiFi 5) operation (5.8Ghz). The antenna can tilt at its base to allow for optimum coverage/spread, or to allow for router wall mounting.

Instead of mounting the antennas on the back of your router directly, you can use an optional magnetic base (sold separately, see accessories tab) - useful if your router is in a rack or you want to get the best aerial position. The optional base can be wall mounted using suitable adhesive pads (sold separately).

Antenna Gain

Remember that signal gain (increased range) doesn't 'magically come from nowhere'. Your base signal strength is still the same. Antenna gain occurs by concentrating the beam and reducing its vertical angle, so for best all-round coverage (above and below as well as to the sides), use the antennas included with your router.

Important Note: Different local regulations may limit the maximum power output of any wireless transmitting device or the gain an transmitter produces. The use of any optional antennas with increased gain may exceed local limits. It is the user's responsibility to comply with any local restrictions.

  • High-Gain Dual-Band Aerials
  • Set of 2 Antennas
  • Available in white or black
  • Can improve range and coverage of wireless signal
  • Suitable for all DrayTek routers & access Points
  • Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
  • Frequency Range : 2400-2500Mhz & 5150-5850Mhz
  • 4.5dBi Gain at 5.8Ghz
  • 5dBi Gain at 2.4Ghz
  • Connector: RP-SMA
  • Suitable for indoor use only
  • Optional magnetic/extension base (ANT-BAS1)

Compatible with DrayTek 2763,2765,2766,2862,2865,2866,2927 Series WiFi Routers


    View full details

    Explore Further

    Highlights

    High-Gain Dual-Band Aerials
    Set of 2 Antennas
    Available in white or black
    Can improve range and coverage of wireless signal
    Suitable for all DrayTek routers & access Points
    Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
    Frequency Range : 2400-2500Mhz & 5150-5850Mhz
    4.5dBi Gain at 5.8Ghz
    5dBi Gain at 2.4Ghz
    Connector: RP-SMA
    Suitable for indoor use only
    Optional magnetic/extension base (ANT-BAS1)

    Dimensions and Weight

    Width 70 mm, Depth 70 mm, Height 220 mm,Weight 0.3 kg

    Specification

    High-Gain Dual-Band Aerials
    Set of 2 Antennas
    Available in white or black
    Can improve range and coverage of wireless signal
    Suitable for all DrayTek routers & access Points
    Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
    Frequency Range : 2400-2500Mhz & 5150-5850Mhz
    4.5dBi Gain at 5.8Ghz
    5dBi Gain at 2.4Ghz
    Connector: RP-SMA
    Suitable for indoor use only
    Optional magnetic/extension base (ANT-BAS1)
