DrayTek Vigor AP960C WiFi 6 Access Point 802.11ax

DrayTek Vigor AP960C WiFi 6 Access Point 802.11ax

£210.99
£229.99 £210.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor AP960C Wireless Access Point - For Ceiling or Wall AX1800

Wi-Fi 6 - Fast & Efficient

802.11ax - AX1800 - Improved efficiency, faster overall performance and less lag when compared with WiFi 5 (11ac) wireless networks. Uplifts both 2.4GHz(ax600) and 5GHz(ax1200) client speeds. WiFi 6 is less susceptible to interference from neighbouring wireless networks.

  • Significantly boosts real world performance for both 2.4 & 5GHz WiFi 6 clients.

Mesh Wireless

DrayTek's Mesh system intelligently manages and links VigorAPs wirelessly, with guest network and VLAN support. The Self-Optimising Mesh ensures your wireless network nodes are always using the fastest path to the Mesh Root.

  •  Quick to set up and easy to manage. Implement complex wireless networks with VLANs.

Gigabit Power Over Ethernet

The VigorAP 960C can be powered through its Gigabit Ethernet interface with standard IEEE 802.3af PoE for a tidier and more convenient installation. Alternatively, power the VigorAP with an AC adapter.

Benefits: High Speed connections even in locations without mains power.

WPA3 Security

Supports the latest and strongest wireless security standards, with WPA3-Personal and Enterprise 802.1x options. Mixed WPA3/WPA2 support helps networks transition to the new standard.

  •  Stronger wireless security. Better protection against brute force attacks.

Easy to Configure and Manage

The DrayTek Wireless app simplifies setting up your network. Optionally configure and monitor through one of DrayTek's management platforms - VigorACS cloud, VigorConnect, Router AP Management, or directly via the AP's Web Interface.

  •  Quick to install and change configuration.

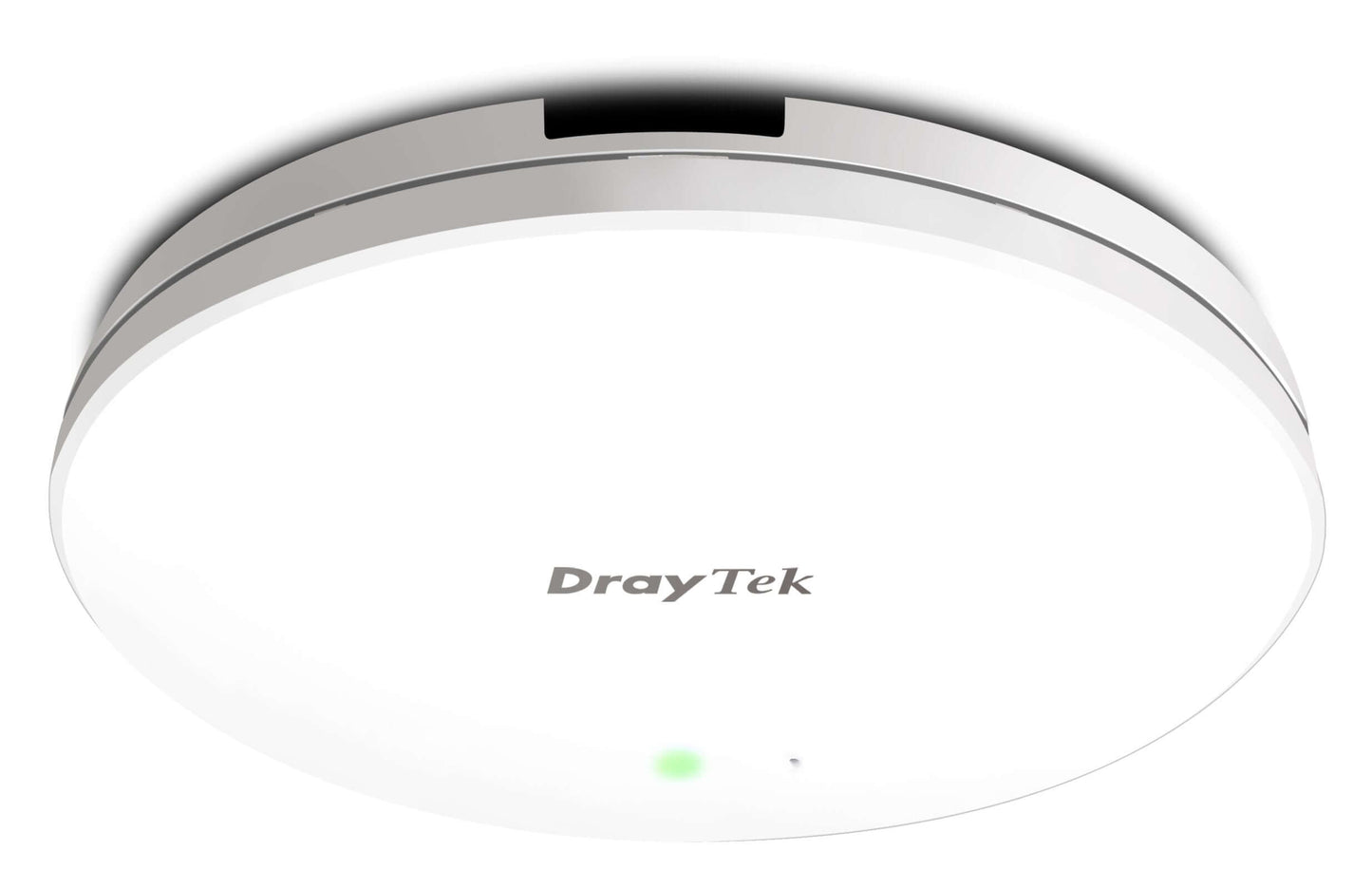

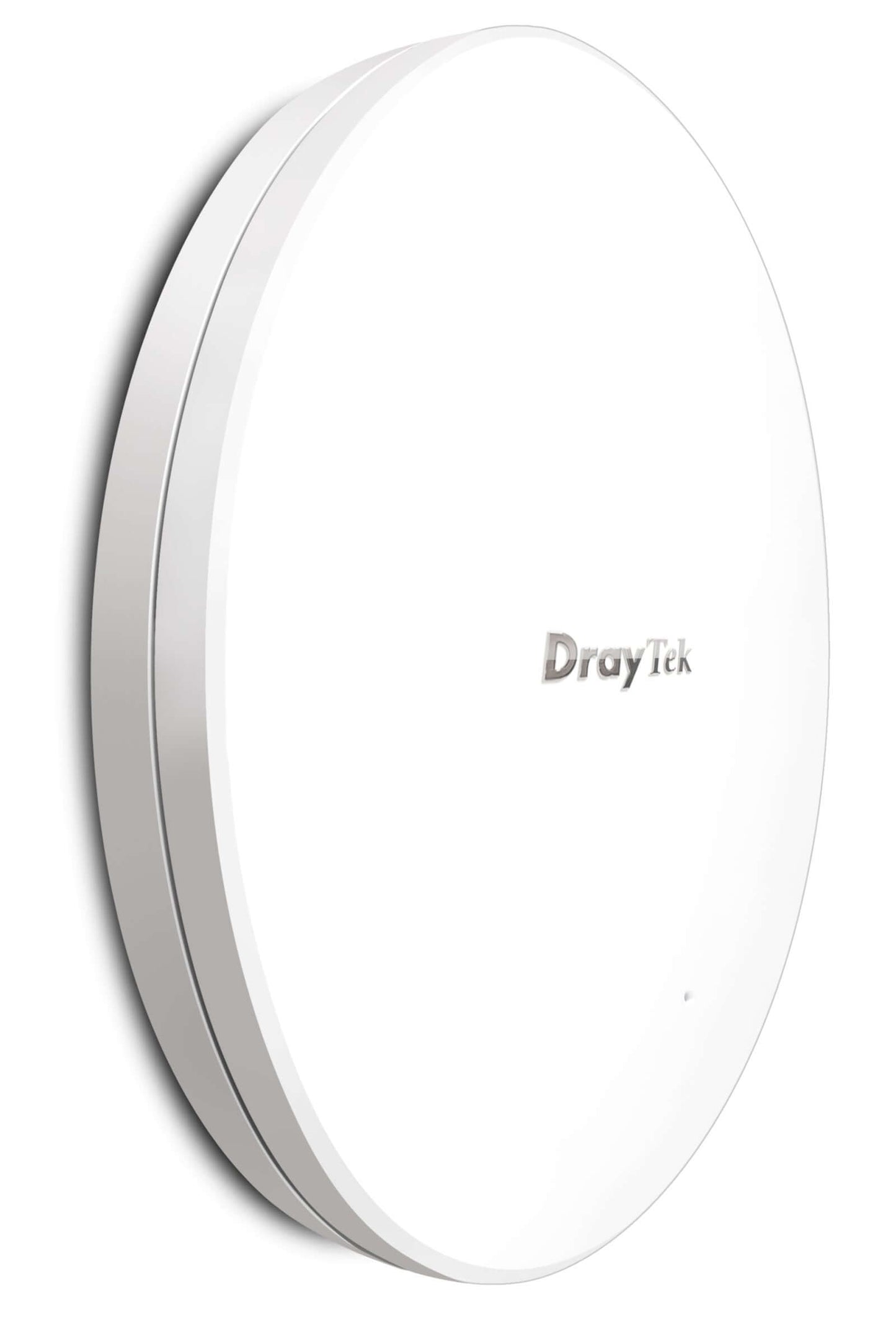

Ceiling or Wall Mounted

With a new matte finish, the VigorAP 960C blends well with home and office interiors. Suitable for ceiling and wall mounting. Clips into its ceiling plate for secure mounting and easier maintenance.

  • Flexible and discrete installation, with option to disable status LED.

VigorAP 960C

Ceiling or Wall Mounted WiFi 6 Mesh Wireless PoE Access Point

VigorAP 960C is a WiFi 6 Access Point with Mesh, offering up to 1.8Gbps Dual-Band wireless rates. WiFi 6 brings significantly improved efficiency, better overall performance and reliably handles more clients per AP. DrayTek's Mesh with VLAN capability can significantly reduce the cost of network deployments, improves coverage and eliminates Wi-Fi dead zones for homes and businesses.

Wi-Fi 6 configuration

The DrayTek VigorAP 960C is a Wi-Fi 6 AX1800 access point. The new wireless standard does more than simply boost speeds for single users, it improves overall performance for busy environments. More efficient resource sharing results in greater overall performance, lower latency and less pauses in connectivity for users.

To achieve this, Wi-Fi 6 or 802.11ax brings in several new technologies (including some features used extensively by 4G and LTE networks), to enhance speeds even as many users demand content at the same time.



 Setup Guide - CLICK HERE

View full details

Explore Further

Highlights

Wi-Fi 6 - Fast & Efficient
Improved efficiency, faster overall performance and less lag when compared with WiFi 5 (11ac) wireless networks. Uplifts both 2.4GHz and 5GHz client speeds. WiFi 6 is less susceptible to interference from neighbouring wireless networks.

Benefits: Significantly boosts real world performance for both 2.4 & 5GHz WiFi 6 clients.

Mesh Wireless
DrayTek's Mesh system intelligently manages and links VigorAPs wirelessly, with guest network and VLAN support. The Self-Optimising Mesh ensures your wireless network nodes are always using the fastest path to the Mesh Root.

Benefits: Quick to set up and easy to manage. Implement complex wireless networks with VLANs.

Gigabit Power Over Ethernet
The VigorAP 960C can be powered through its Gigabit Ethernet interface with standard IEEE 802.3af PoE for a tidier and more convenient installation. Alternatively, power the VigorAP with an AC adapter.

Benefits: High Speed connections even in locations without mains power.

WPA3 Security
Supports the latest and strongest wireless security standards, with WPA3-Personal and Enterprise 802.1x options. Mixed WPA3/WPA2 support helps networks transition to the new standard.

Benefits: Stronger wireless security. Better protection against brute force attacks.

Easy to Configure and Manage
The DrayTek Wireless app simplifies setting up your network. Optionally configure and monitor through one of DrayTek's management platforms - VigorACS cloud, VigorConnect, Router AP Management, or directly via the AP's Web Interface.

Benefits: Quick to install and change configuration.

Ceiling or Wall Mounted
With a new matte finish, the VigorAP 960C blends well with home and office interiors. Suitable for ceiling and wall mounting. Clips into its ceiling plate for secure mounting and easier maintenance.

Benefits: Flexible and discrete installation, with option to disable status LED.

Dimensions and Weight

Width 178 mm, Depth 178 mm, Height 35 mm,Weight 1.1 kg

Specification

VigorAP 960C
Product Code EAN Product Name Description
VAP960C-K 4710484741349 VigorAP 960C (UK/IE) VigorAP 960C Wi-Fi 6 Mesh 11ax Ceiling AP with PoE
Key Specifications
WiFi 6 Mesh Wireless Access Point and Range Extender
Ceiling or Wall mounted
AX1800 - 11ax Dual Band Wireless
WPA3 – Stronger Security with WPA3 Personal & Enterprise
Self-Healing Wireless Mesh with VLAN support
Power through 802.3af PoE or DC power adapter
Centrally Managed or Standalone operation
Advanced Access Control with Mobile Device Management and Station Control
Technical Specification (UK Hardware Spec.)
Physical Interfaces/Controls

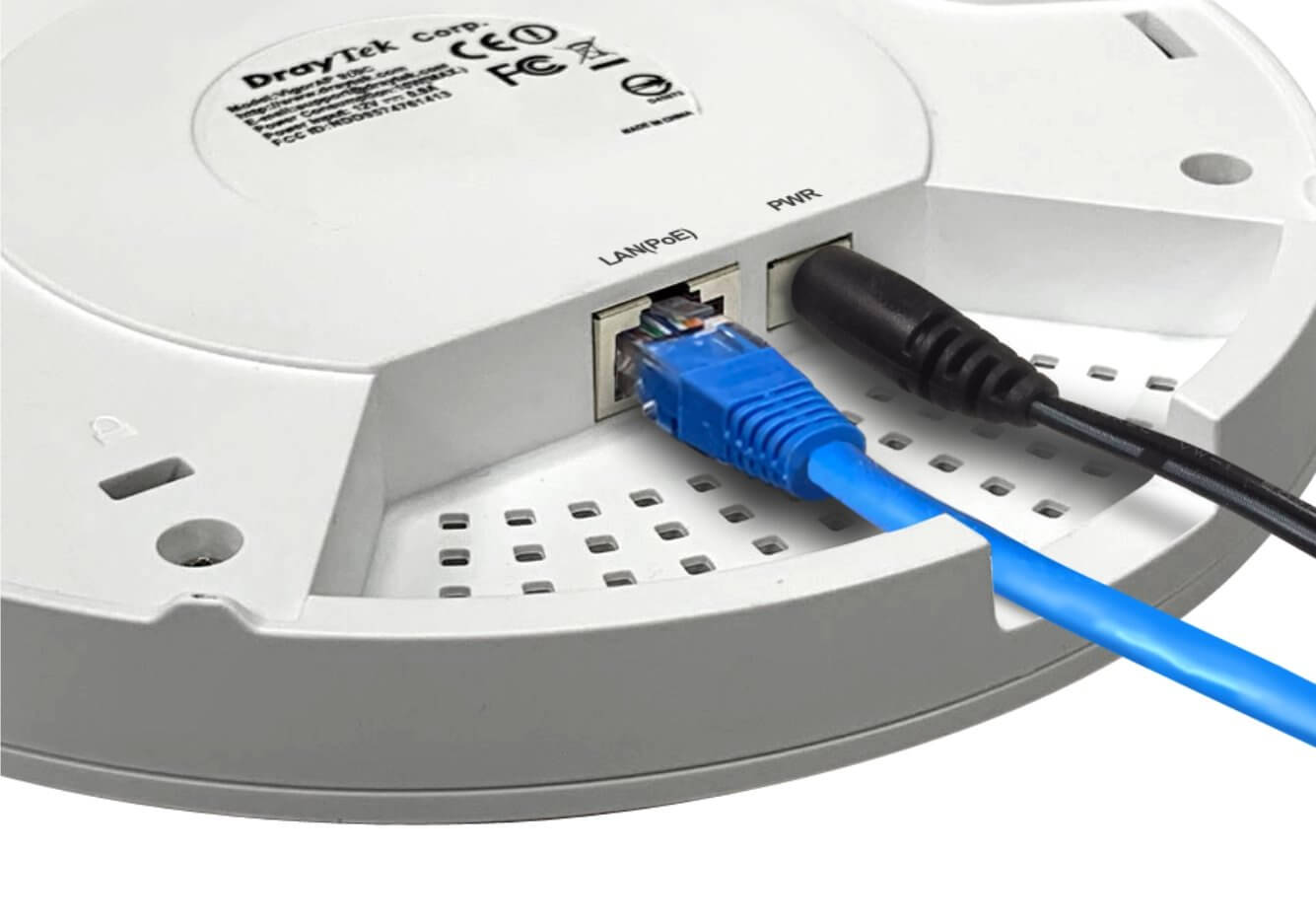

1 x Gigabit Ethernet LAN Port, RJ45 (accepts PoE Power)
Factory Reset Button (recessed)
DC Power Socket
1 x Security Lock
Wireless Performance
AX1800 Class Wireless Access Point
Max Concurrent Clients: 256 total. 128 per band
Max Wireless Networks (SSIDs): 8 total. 4 per band
2.4GHz: Up to 574Mb/s PHY Rate with 2 Spatial Streams (287Mb/s each)
5GHz: Up to 1201Mb/s PHY Rate with 2 Spatial Streams (600Mb/s each)
Wireless Antennas
2x Internal PiFA Dual-Band Antennas
2.4GHz Gain: 2.1dBi
5GHz Gain: 2.8dBi
Wireless LAN Compatibility
2.4GHz Standards: IEEE 802.11ax / b / g / n, 2x2 MU-MIMO
5GHz Standards: IEEE 802.11ax / ac Wave 2 / a / n, 2x2 MU-MIMO
Wireless LAN Features
WiFi 6
Dual Band 802.11ax - 2.4 GHz & 5Ghz
Backwards compatible with 802.11ac, 802.11b, 802.11g, 802.11n
2.4GHz Channel Bandwidth: 20 / 40 MHz
5GHz Channel Bandwidth: 20 / 40 / 80 MHz
2.4GHz Channels: 1 to 13
5GHz Channels: Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
DFS/TPC Support for 5GHz channels 52 to 140
OFDMA – New! – Higher Efficiency
BSS Colouring - New! - Improves Interference Handling
TX Beamforming
1024-QAM
Multi-User MIMO
Security Features
Wireless Encryption:
WPA2: Personal, Enterprise (802.1x)
WPA3: Personal, Enterprise, OWE
also supports WPA/WEP for legacy applications
Built in 802.1x server (PEAP / EAP-TLS)
802.1x RADIUS Proxy (PEAP / EAP-TLS)
PMK Caching & Pre-authentication
Wireless Client Isolation
Controllable Isolation of 2.4GHz and 5GHz bands
Hidden SSIDs (Selectable)
WPS - WiFi Protected Setup
MAC Address Filtering (ACL) - Up to 256 entries
Mobile Device Management
EAPOL Key Retry - Protect unpatched WLAN clients from KRACK
Access Point Modes
Access Point
Mesh Root
Mesh Node
Range Extender
Wireless Control Features
Wireless Client Status List in WUI
Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
Client Limit: Per Radio & Per SSID
MAC Cloning
802.1q VLAN
Built-in DHCP Server & DHCP Relay
Station Control - Time limit wireless connectivity per Station (e.g. 1 hour) & set allowed Reconnection time (e.g. 1 day)
Device Object/Group Control - New! - Schedule access for individual devices or groups
Wireless Performance Optimisation
Airtime Fairness
Band Steering
AP-Assisted Client Mobility
WMM (Wireless MultiMedia)
Bandwidth Management (Per Station / Per SSID)
Fast Roaming 802.11r*
Mesh Features
Up to 8 APs per Mesh Group
Up to 3 Mesh Hops per chain with optional Wired Uplinks
Config Sync
Self-Healing
Can be configured & managed with the DrayTek Wireless App
Mesh Syslog
Diagnostic Features
Dashboard: Traffic Graph & Client Usage
System Log
Data Flow Monitor
Speed Test
Traffic Graph
Wireless LAN Statistics
Interference Monitor - Built-in Site Surveyor
Management
Web Interface (HTTP/HTTPS)
DHCP Client
TR-069 Control (For VigorACS or other TR-069 platform)
CLI (Command Line Interface) - Telnet
Firmware upgrade by TR-069/HTTP
Central AP Management (from compatible DrayTek router/controller)
SNMP v2, v2c, v3
Management VLAN
Configuration File Export (with password) & Import
Wireless Auto On/Off
Schedule: Wi-Fi Up/Down, Auto-Reboot, LED On/Off
Power Requirements
Maximum Power Consumption: 11 Watt
DC 12V via external 100-240v AC/DC PSU
802.3af PoE via LAN port. Requires PoE injector or a PoE switch such as the VigorSwitch P2121
Environmental & Physical
Operating Temperature: 0 ° C to 40 ° C
Operating Humidity: 10% to 90% (Non-condensing)
Physical Dimensions: 178mm (wide/diameter) x 35mm (high)
Weight: 0.38kg
Ceiling or Wall Mountable (requires rear cable entry)
Pack Contents
VigorAP 960C wireless access point
Ceiling Mount Bracket
T-Rail Bracket & Screws
Side slot cover for use with rear cable entry
Quick Start Guide
Ethernet Cable
DC 12V PSU
ROHS & CE Compliant
Warranty
Two (2) Year Manufacturer's RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
*Available in a future firmware release
