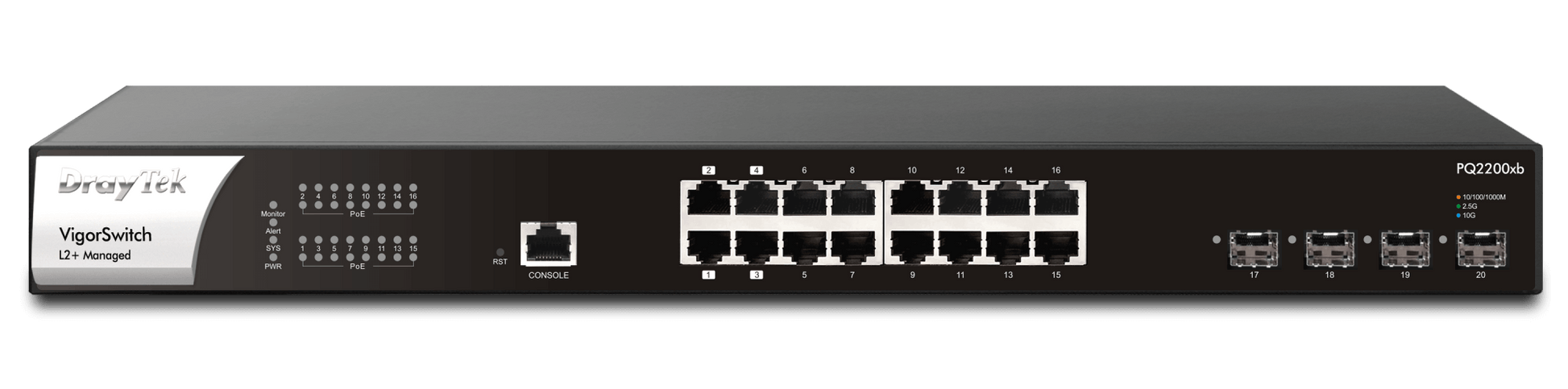

• DrayTek VigorSwitch PQ2200xb 16x2.5GBe Network Ports POE++ Managed Switch 900w 160GBPs Switching Capacity Front View
  • DrayTek VigorSwitch PQ2200xb 16x2.5GBe Network Ports POE++ Managed Switch 900w 160GBPs Switching Capacity Left View 2

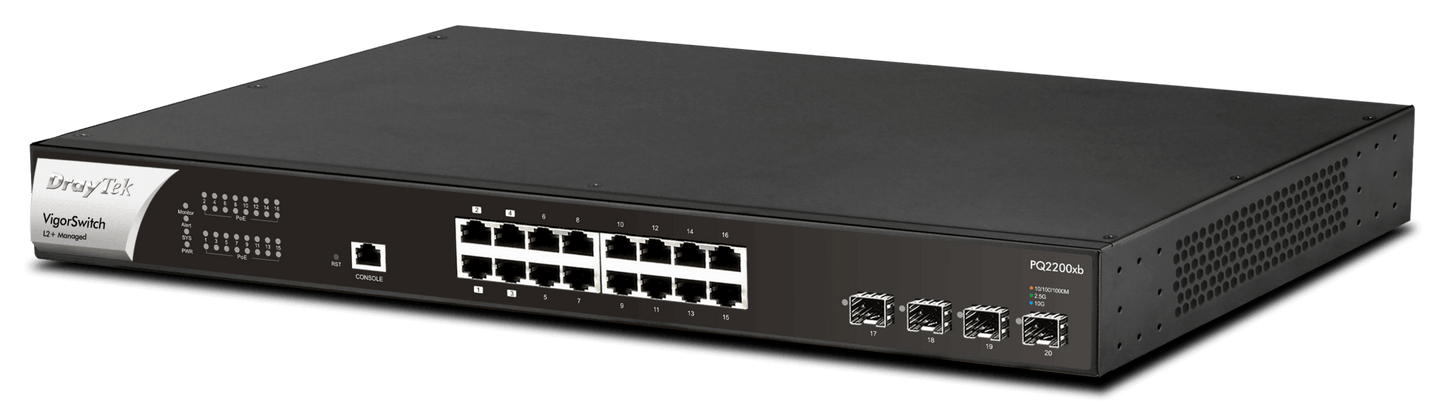

  • DrayTek VigorSwitch PQ2200xb 16x2.5GBe Network Ports POE++ Managed Switch 900w 160GBPs Switching Capacity Right View 2
1 3

DrayTek VigorSwitch PQ2200xb Full 2.5GbE L2+ POE Switch 400W

DrayTek VigorSwitch PQ2200xb Full 2.5GbE L2+ POE Switch 400W

£576.99
£576.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek VigorSwitch PQ2200xb 160GBPs Switching Capacity Full 2.5GbE L2+ Managed Switch with 4X POE++ Ports and 12 x POE+ Ports with Advanced Layer 3 Features






DrayTek VigorSwitch PQ2200xb features 16 x 2.5GbE ports for LAN and 4x10G SFP+ for uplink/downlink. Together with WiFi 6 VigorAPs (e.g., VigorAP 1060C), VigorSwitch PQ2200xb brings the full WiFi 6 performance to LAN clients.

DrayTek VSPQ2200xb has 4 PoE++ ports providing up to 90W per port and 12 PoE+ ports. With total 400W output, it is ideal for more IoT applications integration, including LED lighting, POS (point of sale) computer, motion sensors, IP Cam,…etc.

Supporting advanced Layer 3 features, DHCP Server, and VLAN Routing, The DrayTek VigorSwitch PQ2200xb improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.

Numbers at a glance

90W PoE++ & 30W PoE+

4x PoE++ & 12x PoE+, 400W Total

16x 2.5GbE

16x 10M/100M/1G/2.5GbE

4x 10G SFP+

1G/10G SFP+

160 Gbps

Switching Capacity



DataSheet

View full details

Explore Further

Highlights

Key Features
PoE++ (802.3bt)
PoE++ (802.3bt)
Deliver up to 90W over one Ethernet cable. Turn on/off the PoE device periodically with PoE Schedule.


Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.

2.5GbE
2.5GbE
Provides higher performance to WiFi 6 AP and other Ethernet devices.

10G SFP
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

routing
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch PQ2200xb to route the inter-VLAN traffic directly and offload the router.

surveillance
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

ip conflict prevention
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Quality of Service
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

ONVIF CCTV
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

ipv6
IPv6 Ready
VigorSwitch PQ2200xb supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

Graphic User Interface
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.

network administrators
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.

switch management
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

Dimensions and Weight

Width 440 mm, Depth 281 mm, Height 44 mm,Weight 4.3 kg

Specification

Interface
LAN Port 16x 10/100/1000/2500Mbps Ethernet, RJ-45
4x 1000Mbps/10Gbps SFP+ slot
Console Port 1x RJ-45
Button 1x RST Button
PoE
PoE Capable Ports 4x PoE/PoE+/PoE++ (802.3af/at/bt), up to 90W per port, Type mode A
12x PoE/PoE+ (802.3af/at), up to 30W per port, Type mode A
PoE Power Budget 400 watts
Power Limit
Scheduled On/Off
Power Cycle on Port Manual, Auto by Ping check timeout
Capacity
Buffer Size 12 Mbit
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 10 KB
L3 Routing Table 6k static route + 512 prefix route
Networking Standards
IP Version IPv4, IPv6
Ethernet Standards 802.3af PoE
802.3at PoE+
802.3bt PoE++
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3bz 2.5GBase-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
VLAN
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN
Port Isolation
GVRP
Q-in-Q Basic
ONVIF Surveillance
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping
Security
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Link Aggregation
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Multicast
IGMP Snooping v2, v3 (BISS)
IGMP Querier
MLD Snooping v1, v2 (Basic)
Max. Number of Multicast Group 256
Group Throttling
Group Filtering
MVR (Multicast VLAN Registration)
Layer 3 Features
Static Route
VLAN Route
DHCP Server
AAA
Authentication Server RADIUS, TACACS+
Port Authorization
Management Account
RADIUS Attribute Assignment User Privilege, VLAN
Accounting
Multiple Server
Management
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH v2
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow
SNMP v1, v2, v3
Private MIB
RMON Group 1, 2, 3, 9
LLDP LLDP-MED, Media Endpoint Discovery Extension
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Syslog
2-Level Admin Privilege
Multiple Admin Accounts
Managed by VigorRouter SWM
Managed by VigorConnect
Managed by VigorACS 3
Config File Export/Import
Dual Image
SNTP (Simple Network Time Protocol)
Diagnostics Tools Port Mirroring, Ping, Cable Test, Fan Test
Physical
19-inch Rack Mountable Mouting Kit Included
Power Input AC 100-240V @ 6A
Max. Power Consumption 550 watts
Dimension (mm) 440(W) x 281(D) x 44(H)
Weight 4.3 kg (9.0 lb)
Ventilation Variable-speed Fan
Operating Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Certificate CE
