DrayTek VigorSwitch Q2200X Full 2.5GbE L2+ Managed Switch

Name: DrayTek VigorSwitch Q2200X Full 2.5GbE L2+ Managed Switch
Brand: Draytek
SKU: VSQ2200X-K
Price: 399.99 GBP
Availability: InStock

£399.99

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

DrayTek VigorSwitch Q2200x features 16 x 2.5GbE ports for LAN and 10G SFP+ for uplink/downlink. Together with WiFi 6 VigorAPs (e.g., VigorAP 1060C), Q2200x series brings the full WiFi 6 performance to LAN clients.

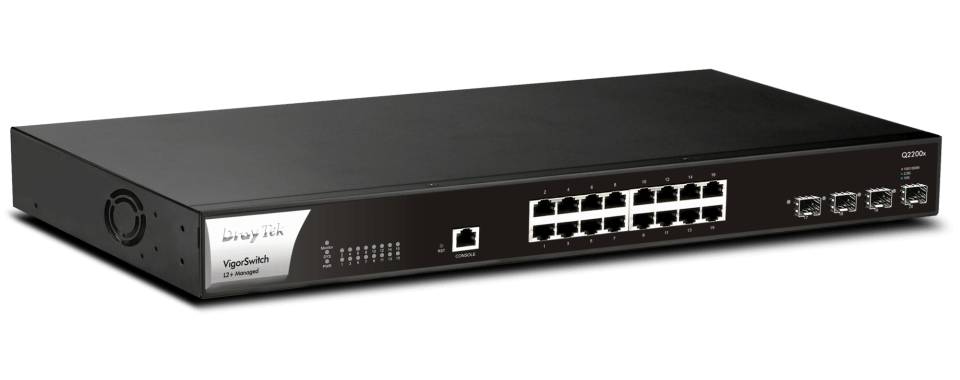

The VSQ2200x has 16 2.5G/1G ports and 4 SFP+ ports for uplink/downlink. Supporting advanced Layer 3 features, DHCP Server, and VLAN Routing, VigorSwitch Q2200x improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.

At a Glance Numbers

160 Gbps

Switching Capacity

16x 2.5GbE

16x 10M/100M/1G/2.5GbE

4x 10G SFP+

1G/10G SFP+

8x LACP

Up to 8 Link Aggregation Groups

DataSheet

View full details

Explore Further

Highlights

Key Features
2.5GbE
2.5GbE
Provides higher performance to WiFi 6 AP and other Ethernet devices.

10G SFP
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

routing
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch Q2200x to route the inter-VLAN traffic directly and offload the router.

surveillance
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

ip conflict prevention
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Quality of Service
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, send out mail alert.

ONVIF CCTV
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

ipv6
IPv6 Ready
VigorSwitch Q2200x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

Graphic User Interface
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo

network administrators
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.

switch management
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

Dimensions and Weight

Width 440 mm, Depth 205 mm, Height 44 mm,Weight 2.8 kg

Specification

Interface
LAN Port 16x 10/100/1000/2500Mbps Ethernet, RJ-45
4x 1000Mbps/10Gbps SFP+ slot
Console Port 1x RJ-45
Button 1x RST Button
Capacity
Buffer Size 12 Mbit
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 10 KB
L3 Routing Table 6k static route + 512 prefix route
Networking Standards
IP Version IPv4, IPv6
Ethernet Standards 802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3bz 2.5GBase-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
VLAN
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN
Port Isolation
GVRP
Q-in-Q Basic
ONVIF Surveillance
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping
Security
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Link Aggregation
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Multicast
IGMP Snooping v2, v3 (BISS)
IGMP Querier
MLD Snooping v1, v2 (Basic)
Max. Number of Multicast Group 256
Group Throttling
Group Filtering
MVR (Multicast VLAN Registration)
Layer 3 Features
Static Route
VLAN Route
DHCP Server
AAA
Authentication Server RADIUS, TACACS+
Port Authorization
Management Account
RADIUS Attribute Assignment User Privilege, VLAN
Accounting
Multiple Server
Management
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH v2
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow
SNMP v1, v2, v3
Private MIB
RMON Group 1, 2, 3, 9
LLDP LLDP-MED, Media Endpoint Discovery Extension
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Syslog
2-Level Admin Privilege
Multiple Admin Accounts
Managed by VigorRouter SWM
Managed by VigorConnect
Managed by VigorACS 3
Config File Export/Import
Dual Image
SNTP (Simple Network Time Protocol)
Diagnostics Tools Port Mirroring, Ping, Cable Test
Physical
19-inch Rack Mountable Mouting Kit Included
Power Input AC 100-240V @ 0.9A
Max. Power Consumption 45 watts
Dimension (mm) 440(W) x 205(D) x 44(H)
Weight 2.8 kg (6.0 lb)
Operating Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Certificate CE

Warranty Information

Please check the Specification Section for Warranty Information

Extended Warranty

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

Prepare for the unforeseen, equipment unfortunately does fail from time to time, be it a power surge, overheating or update failure, having an extended warranty can be a lifeline to your business when you need it most. The following packages below are available.

Broken Equipment

Advanced Replacement

If you suspect that your covered DrayTek product has developed a fault, our experienced support technicians will help you to diagnose the problem and determine whether the unit needs to be service or replaced. If it does, a replacement unit will be sent out the same day for delivery on the next working/business day (to most of the UK). If you wish to take the unit yourself to the service centre (currently North of London), replacement or diagnosis/repair can be carried out in person.

3 or 5 Year Warranty

Enhanced Warranty Service

3 or 5 year warranty upgrades available

Advanced-Replacement of faulty unit

Next working day* replacement unit

Cover for 3 or 5 years warranty with single payment

Available for all DrayTek Vigor routers

Warranty upgrades available to purchase for up to 6 months after product purchase

With VigorCare, you also have the benefit of an extension to a full 3 or even 5 years of warranty so that if a fault does develop, you will have no bills for parts, labour or replacement in the event that a warranty fault develops. We're proud of the reliability that DrayTek products achieve but however unlikely a problem might be, if your business depends on your DrayTek product, VigorCare should give you the peace of mind and convenience that you need.

VigorCare membership is subject to the VigorCare Terms & Conditions (see terms tab, above) and should be taken out within 6 months of purchase of your new product

VigorCare Service Packs

VigorCare subscription is available for several categories of product. Determine the correct pack for your product below. NOTE: The subscription must be activated via the link below within 6 months of your router and service pack being purchased.

VigorCare Activation Link

https://www.draytek.co.uk/support/vigorcare-registration

Product Code	Description	Applicable To These DrayTek Products	Duration	Buy Now
VCARE-A3	VigorCare A3 3 Year Subscription	Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series VigorAP 810, 903, 912C, 960C, 1000C, 1060C VigorSwitch P1092, G1080	3 Years
VCARE-A5	VigorCare A5 5 Year Subscription	Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series VigorAP 810, 903, 912C, 960C, 1000C, 1060C VigorSwitch P1092, G1080	5 Years
VCARE-B3	VigorCare B3 3 Year Subscription	Vigor 2620Ln Vigor 2832, 2862, 2865, 2866, 2926, 2927 series VigorAP 920, VigorAP 918 series VigorSwitch P2121, G2100, P2100	3 Years
VCARE-B5	VigorCare B5 5 Year Subscription	Vigor 2620Ln Vigor 2832, 2862, 2865, 2866, 2926, 2927 series VigorAP 920, VigorAP 918 series VigorSwitch P2121, G2100, P2100	5 Years
VCARE-C3	VigorCare C3 3 Year Subscription	Vigor 2952, 2960, 2962, 3220 VigorSwitch P1280, G1280, P1282, G1282	3 Years
VCARE-C5	VigorCare C5 5 Year Subscription	Vigor 2952, 2960, 2962, 3220 VigorSwitch P1280, G1280, P1282, G1282	5 Years
VCARE-D3	VigorCare D3 3 Year Subscription	Vigor 3900, Vigor 3910 VigorSwitch G2280, G2280x, G2500, G2540x VigorSwitch P2280, P2280x, P2500, P2540x	3 Years
VCARE-D5	VigorCare D5 5 Year Subscription	Vigor 3900, Vigor 3910 VigorSwitch G2280, G2280x, G2500, G2540x VigorSwitch P2280, P2280x, P2500, P2540x	5 Years

Warranty Terms & Conditions Apply - please see here

https://www.draytek.co.uk/support/vigorcare#terms-and-conditions
