DrayTek Vigor 2135ax Ethernet Router with Wi-Fi 6 AX3000 Wireless

DrayTek Vigor 2135ax Ethernet Router with Wi-Fi 6 AX3000 Wireless

Regular price £204.45
Regular price £259.99 Sale price £204.45
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek V2135ax-K High Performance VPN SOHO Firewall Router with 802.11AX WIFI 6 FTTP Gigabit Ethernet Router

The DrayTek Vigor 2135ax Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

The inclusion of Wi-Fi 6 technology in the Vigor 2135ax model provides a reliable, highly integrated and reliable connectivity solution for SoHo networks.

Key Features & Benefits
Gigabit Ethernet WAN for Fibre Broadband
Make full use of Fibre Broadband with the Vigor 2135ax’s Gigabit WAN. Ideal performance for Home and Small Office applications, where Firewall, Content Filtering and Quality of Service can be managed.

Benefits: Unleash the full potential of Fibre broadband. High speed, Gigabit CPE with flexible application.

Wi-Fi 6 - AX3000 Performance
Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering.

Benefits: Improve wireless performance. Built with the latest technologies.

Quality of Service with App QoS
Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.

Benefits: Ensures the best quality and overall performance from your Internet connections.

High-Performance VPN Router for SMB
Securely connect remote sites at high speed, up to 2 VPN tunnels. Connect remote workers to network resources and secure connectivity, with DrayTek SSL VPN and OpenVPN support.

Benefits: Fast and Secure network access to enable working from home and remote work.

Feature Packed Router
Take advantage of DrayTek’s rich feature set and useful functionality such as Route Policy, Quality of Service, Firewall, VPN Matcher, DrayDDNS and more.

Benefits: Advanced DrayTek router functionality solves many complex networking issues.

Hardware NAT & Routing with Hardware QoS
The accelerator supports up to 4k NAT and routing connections. With acceleration enabled, Vigor2135’s firewall performance can reach 940Mbps, while still meeting high expectation of QoS quality. Easily prioritize critical apps, and always keep VoIP in 1st priority.

Benefits: Up to 940 Mbps throughput helps get the most out of your fibre broadband connection.

10 Most Searched Questions about Draytek 2135AX Router Answered

View full details

Explore Further

Highlights


Full Fibre Ethernet Router
Reliable and fast Internet connectivity with Failover backup WAN and powerful Route Policy.


Wi-Fi 6 AX3000 Wireless Network
Featuring Wi-Fi 6 with up to 3 Gigabits link rate for real Gigabit wireless.


4 Gigabit LAN Ports with VLANs
4 LAN ports and 4 LAN subnets allow for implementation of complex & secure networks.


Firewall & Content Filtering
Manage Internet access with Firewall, App Enforcement & Category-based Web Filtering.


DrayDDNS with LetsEncrypt Certificates
Free DrayDDNS address for each router, with automated LetsEncrypt SSL/TLS Certificates.


Multi-Purpose USB Ports
Connect 4G modem, USB storage, USB thermometer and USB printers to share resources.


Powerful SoHo VPN Router
Connect up to 2 Remote Dial-In User tunnels, Site-to-Site or connect to VPN services.


VPN Matcher
Break through NAT and CG-NAT with DrayTek's VPN Matcher service for LAN to LAN and Teleworker VPNs.


DrayTek SSL VPN
Access the Vigor 2135ax's network remotely with a securely TLS encrypted VPN tunnel.


VigorACS Central Management
Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.


Quality of Service with App QoS
Prioritise latency-sensitive applications such as Teams and Zoom, quickly & easily with App QoS.


Centralised LAN Management
Manage and provision 2 DrayTek VigorAPs through the router.

Dimensions and Weight

Width 194 mm, Depth 155 mm, Height 50 mm,Weight 1.4 kg

Specification

Vigor 2135ax Router
Key Specifications
Gigabit Ethernet WAN Router with Failover
Up to 940Mbps Firewall Throughput for Ethernet WAN
4 Gigabit LAN Ports
AX3000 - 11ax Dual Band Wireless
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Up to 150Mbps IPsec VPN Throughput
2 LAN-to-LAN or Remote Teleworker VPN Tunnels
DrayTek SSL VPN and OpenVPN support
Optional VigorCare Available
Can be centrally Managed by VigorACS

Technical Specification (UK Hardware Spec.)

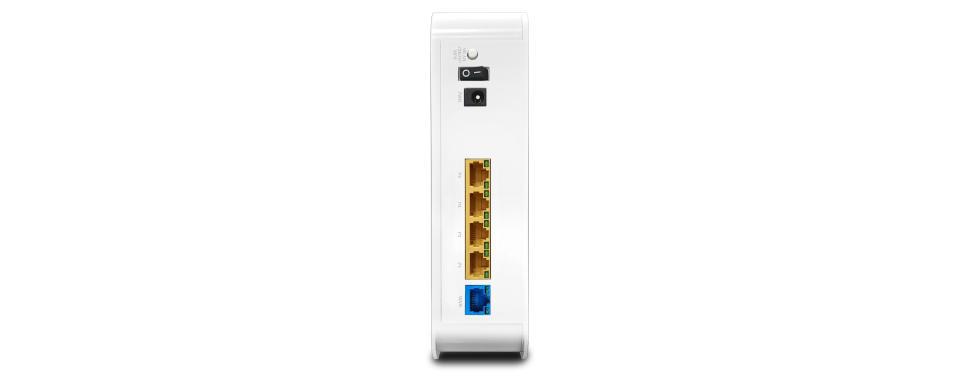

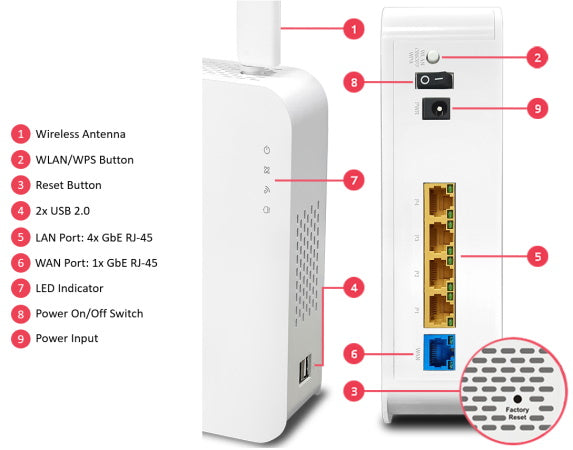

Physical Interfaces
WAN1 Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45

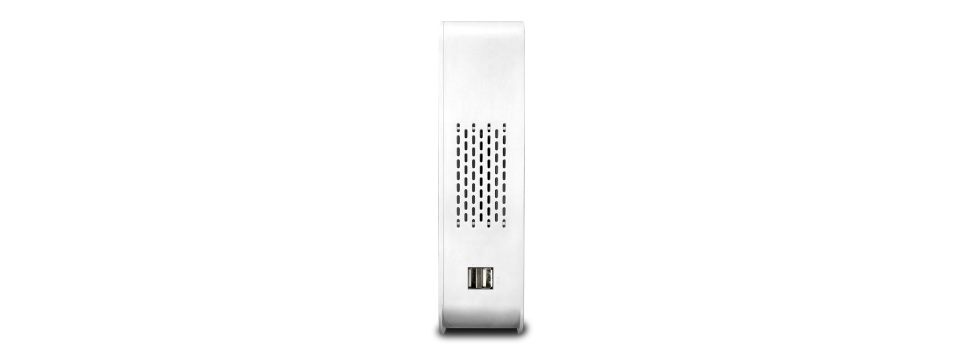

2x USB 2.0 Port for 3G/4G Modem (not included), USB storage, thermometer or Printer
Wireless On / Off / WPS button
Recessed Factory Reset button
Antenna Specifications
Wireless Antennas:
2x External Dipole Antennas
5GHz Gain: 2.5 dBi
2.4GHz Gain: 2.7 dBi
Performance
Router Performance:
940 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
600 Mb/s NAT Throughput per Ethernet WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
150 Mb/s IPsec (AES256) VPN Throughput
100 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection
Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 Connection Types:
Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
USB 4G/LTE Modem: TSPC, AICCU, DHCPv6, Static IPv6
Wireless Features
AX3000 Wi-Fi 6 Wireless:
802.11ax 2x2 wireless access point
Compatible with 802.11a/b/g/n/ac wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 2402Mbps PHY rate with 5GHz
Up to 574Mbps PHY rate with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
MU-MIMO
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3 – New!
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
IP-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires GlobalView subscription)
DoH (DNS over HTTP) & DoT (DNS over TLS) Filtering - New!
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets
Up to 4 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features
2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client / Dial-In VPN Server
Teleworker-to-LAN – Dial-In VPN Server
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
PPTP for legacy applications
L2TP, L2TP over IPsec
User Authentication:
Local
RADIUS
mOTP - Mobile One Time Password
TOTP - Time-based One Time Password, compatible with Google Authenticator - New!
Bandwidth Management
IP-based (IPv4 & IPv6) Bandwidth Limit
App-based Bandwidth Limit - New!
IP-based (IPv4 & IPv6) Session Limit
Quality of Service (QoS)
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Class-based Outbound Traffic Tagging: DSCP & IP Precedence
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Auto Backup Config to USB Storage – New!
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features
AP Management: 2 VigorAP access points
Operating Requirements
Wall or Shelf Mountable with included fittings
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 23.6 Watts maximum
Operating Power: DC 12V (via external PSU, supplied)
Power Requirements : 100-240VAC
Dimensions:
155mm Width
50mm Depth
194mm Height
Warranty
Two (2) Years RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
Box Contents
Vigor 2135ax router
Quick Start Guide
Screws & wall plugs for wall mounting
2m Cat-5e RJ-45 Network Cable
DC 12V Power Supply with UK Plug

Warranty Information

Please check the Specification Section for Warranty Information

Extended Warranty

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

Prepare for the unforeseen, equipment unfortunately does fail from time to time, be it a power surge, overheating or update failure, having an extended warranty can be a lifeline to your business when you need it most. The following packages below are available.

Broken Equipment

Advanced Replacement

If you suspect that your covered DrayTek product has developed a fault, our experienced support technicians will help you to diagnose the problem and determine whether the unit needs to be service or replaced. If it does, a replacement unit will be sent out the same day for delivery on the next working/business day (to most of the UK). If you wish to take the unit yourself to the service centre (currently North of London), replacement or diagnosis/repair can be carried out in person.

3 or 5 Year Warranty





  • Enhanced Warranty Service
  • 3 or 5 year warranty upgrades available
  • Advanced-Replacement of faulty unit
  • Next working day* replacement unit
  • Cover for 3 or 5 years warranty with single payment
  • Available for all DrayTek Vigor routers
  • Warranty upgrades available to purchase for up to 6 months after product purchase
  •

    With VigorCare, you also have the benefit of an extension to a full 3 or even 5 years of warranty so that if a fault does develop, you will have no bills for parts, labour or replacement in the event that a warranty fault develops. We're proud of the reliability that DrayTek products achieve but however unlikely a problem might be, if your business depends on your DrayTek product, VigorCare should give you the peace of mind and convenience that you need.

    VigorCare membership is subject to the VigorCare Terms & Conditions (see terms tab, above) and should be taken out within 6 months of purchase of your new product

    VigorCare Service Packs

    VigorCare subscription is available for several categories of product. Determine the correct pack for your product below. NOTE: The subscription must be activated via the link below within 6 months of your router and service pack being purchased.

    VigorCare Activation Link

    https://www.draytek.co.uk/support/vigorcare-registration



     Product Code Description Applicable To These DrayTek Products Duration Buy Now
    VCARE-A3 VigorCare A3 3 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080
    3 Years Buy Now Button
    VCARE-A5 VigorCare A5 5 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080
    5 Years Buy Now Button
    VCARE-B3 VigorCare B3 3 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100
    3 Years Buy Now Button
    VCARE-B5 VigorCare B5 5 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100
    5 Years Buy Now Button
    VCARE-C3 VigorCare C3 3 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282
    3 Years Buy Now Button
    VCARE-C5 VigorCare C5 5 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282
    5 Years Buy Now Button
    VCARE-D3 VigorCare D3 3 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x
    3 Years Buy Now Button
    VCARE-D5 VigorCare D5 5 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x
    5 Years Buy Now Button



     Warranty Terms & Conditions Apply - please see here

    https://www.draytek.co.uk/support/vigorcare#terms-and-conditions
