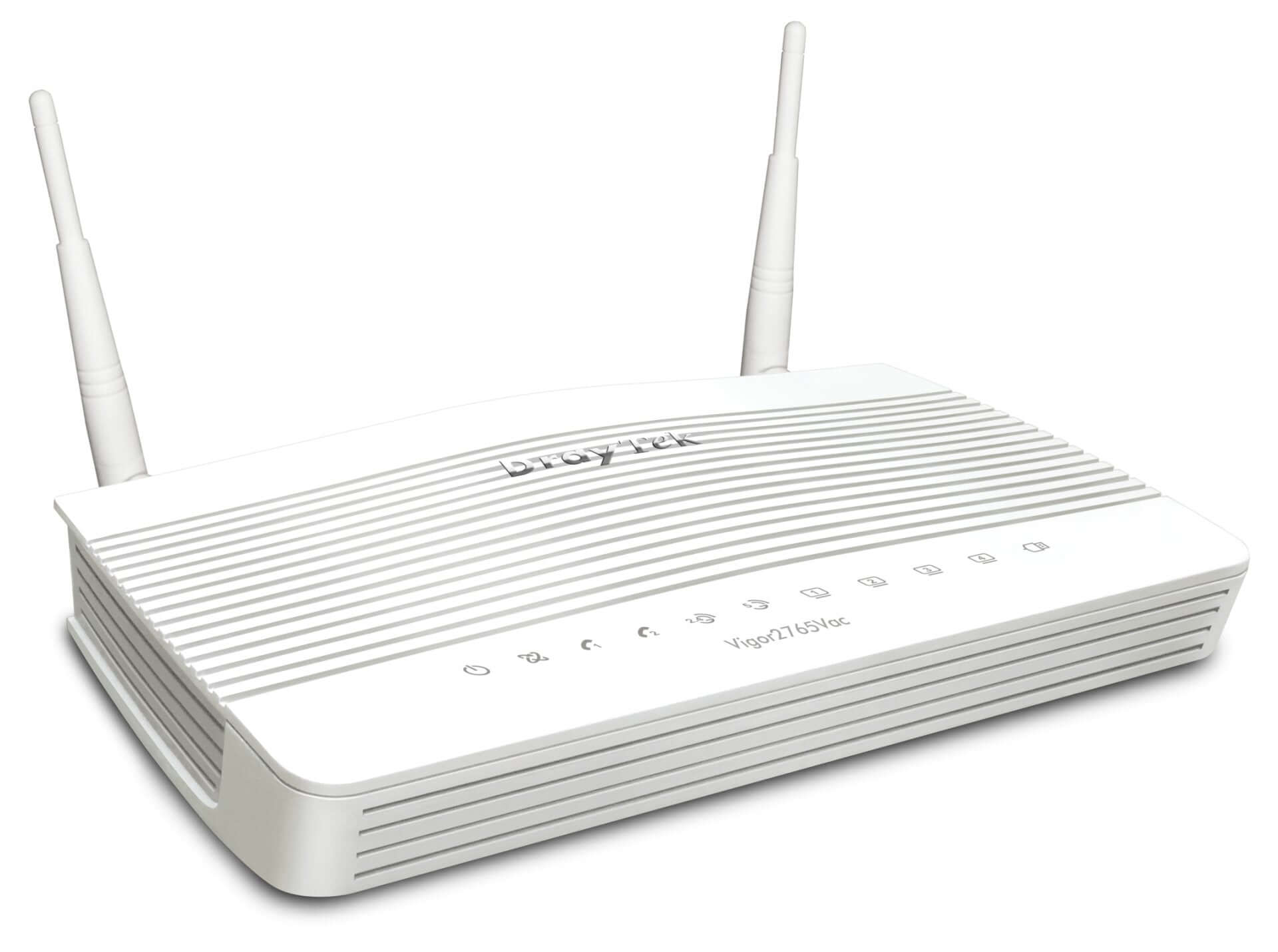

• DrayTek Vigor 2765Vac Wireless VoIP Router Left View

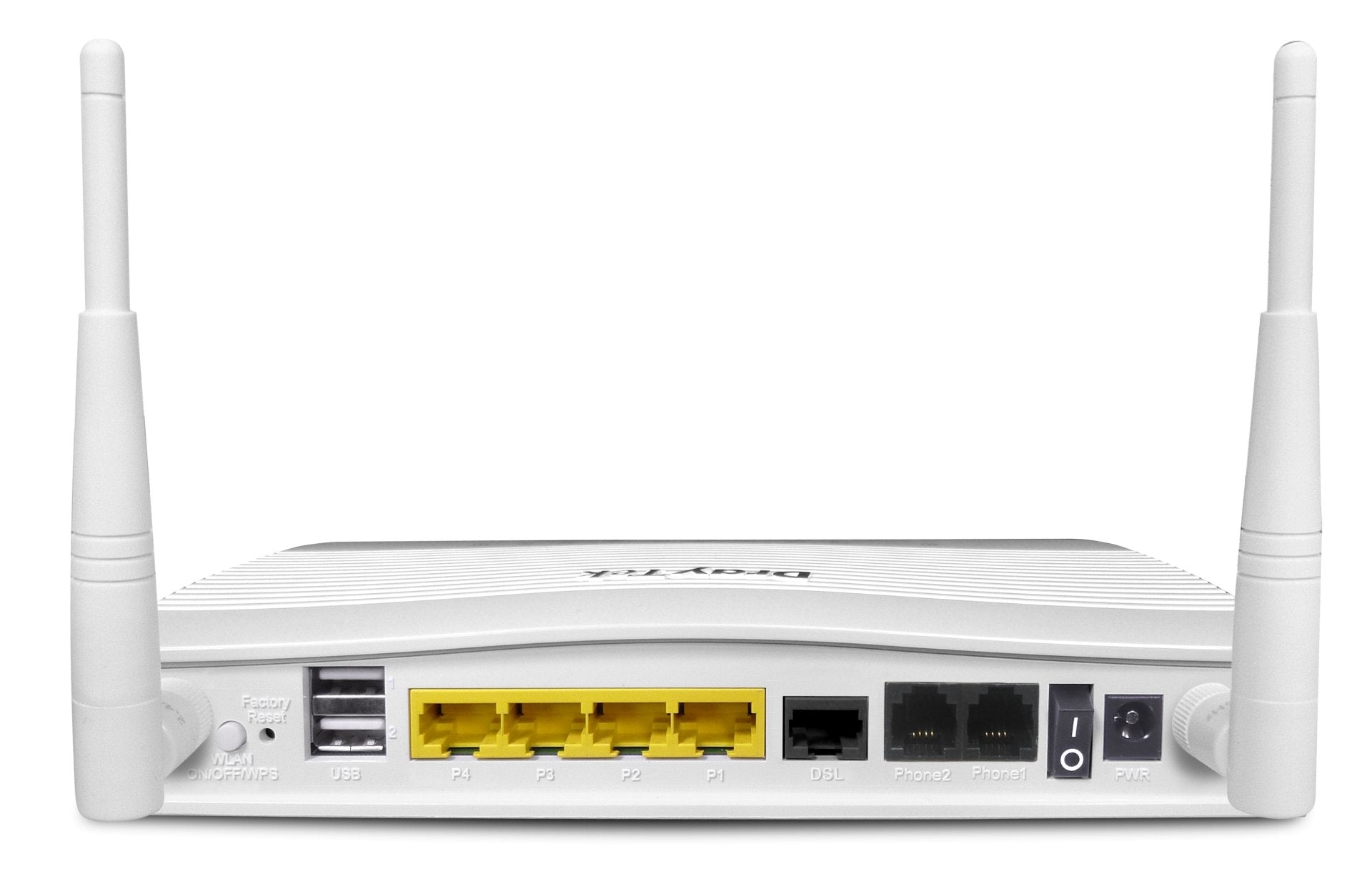

  • DrayTek Vigor 2765Vac Wireless VoIP Router Rear View
1 2

DrayTek Vigor 2765Vac Wireless VoIP Router

DrayTek Vigor 2765Vac Wireless VoIP Router

£237.99
£249.99 £237.99
Sale Sold out
Tax included. Shipping calculated at checkout.



DrayTek Vigor V2765VAC-K VDSL and Ethernet Router with Wi-Fi 5 AC1300 Wireless and VoIP





The Ideal SoHo VPN Router for VDSL and Gigabit Fibre

The DrayTek Vigor 2765 series VDSL and Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wireless and VoIP features in ‘2765ac’ and ‘2765Vac’ models, the Vigor 2765 series provide a reliable, highly integrated and reliable network solution for SoHo environments.



Key Features

  • VDSL and Ethernet Router
    Reliable and fast internet connectivity with Failover backup WAN and powerful Route Policy.
  • Powerful SoHo VPN Router
    Up to two (2) active VPN tunnels for LAN to LAN, Remote Dial-In Users and VPN services.
  • AC1300 Wireless with Mesh
    802.11ac (WiFi 5) Dual-Band Wireless. Use DrayTek Mesh to expand wireless coverage.
  • VPN Matcher
    Break through NAT and CG-NAT with DrayTek's VPN Matcher service for LAN to LAN and Teleworker VPNs.
  • Four (4) Gigabit LAN Ports with VLANs
    Provide a fully separated Guest network, with support for two (2) VLANs.
  • Integrated VoIP Telephone Ports
    Connect two (2) analogue phones to VoIP. Great VoIP features for reliable calls.
  • Firewall & Content Filtering
    Manage internet access with Firewall, App Enforcement & Category-based Web Filtering (see accessories tab for compatible URL Reputation licence).
  • VigorACS Central Management
    Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
  • DrayDDNS with LetsEncrypt Certificates
    Free DrayDDNS address for each router, with automated LetsEncrypt SSL/TLS Certificates.
  • Quality of Service with App QoS
    Prioritise latency-sensitive applicatins such as Teams and Zoom, quickly & easily with App QoS.
  • Multi-Purpose USB Ports
    Connect 4G modem, USB storage, USB thermometer and USB printer (sold separately) to share resources.
  • Centralised LAN Management
    Manage and provision two (2) DrayTek VigorAPs and two (2) VigorSwitches (sold separately) through the router.

View full details

Explore Further

Highlights

Dimensions and Weight

Width 207 mm, Depth 131 mm, Height 42 mm,Weight 1.3 kg

Specification

Physical Interfaces

WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ11
WAN2/LAN Switchable Port: 1 x Gigabit Ethernet (1G/100M/10M), RJ45
WAN3: USB 2.0 Port for 3G/4G Modem (not included)
LAN Ports: 4 x Gigabit Ethernet (1G/100M/10M), RJ45 (3 x with WAN2 enabled)
2 x PSTN RJ11 Telephone Ports
2 x USB 2.0 Port for USB storage, thermometer or Printer
Wireless On / Off / WPS button
Recessed Factory Reset button
Performance

Router Performance:
100 Mb/s Max Sync Rate with VDSL2
300 Mb/s Max Sync Rate with VDSL2 35b
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
700 Mb/s NAT Throughput per WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
200 Mb/s IPsec (AES256) VPN Throughput
80 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection

Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration (requires f/w 4.3.0):
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
USB 4G/LTE Modem: TSPC, AICCU
VDSL & ADSL Features

BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 498
Auto Detection of VDSL and ADSL line modes
Support for G.INP & Vectoring
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
ADSL Standards:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Wireless Features

AC1300 - 11ac 'Wave 2' Dual Band Wireless:
802.11ac 2x2 wireless access point
Compatible with 802.11a/b/g/n wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 866Mbps PHY rate at 80MHz with 5GHz
Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
MU-MIMO
Tx Beamforming
Mesh Root support with DrayTek VigorAP Mesh Nodes (requires f/w 4.3.0, available in Q1 2021)
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3 (requires f/w 4.3.0)
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering

IP-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires URL Reputation subscription)
NAT Features

NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management

802.1q Tag-based, Port-based VLAN
Up to 2 LAN Subnets
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features

Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features

2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, mOTP
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
PPTP for legacy applications
L2TP, L2TP over IPsec
Bandwidth Management

IP-based Bandwidth Limit
IP-based Session Limit
Quality of Service (QoS)

Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Features

2 x RJ11 PSTN Telephone Ports (FXS)
Integrated VoIP SIP ATA (Analogue Telephone Adapter)
6 x SIP Accounts with VoIP Setup Wizard
Protocols: SIP, RTP / RTCP
G.168 Line Echo-cancellation
Dial Plan: Phone Book, Digit Map, Call Barring
Voice Codecs: G.711 A / Law, G.723.1, G.726, G.729 A / B, VAD / CNG
Tone Generation: DTMF, Dial, Busy, Ring Back, Call Progress
DTMF Transmission: In Band, Out Band (RFC-2833), SIP info
FAX / Modem Support with G.711 Pass-through and T.38
Supplemental Services: Caller ID, Call Hold/Retrieve, Waiting, Transfer, Forwarding, Barring
DND (Do not Disturb)
MWI (Message Waiting Indicator) (RFC-3842)
Hotline (Dial preset number when handset lifted)
Management

Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Import Config from Vigor 2760, 2762
Auto Backup Config to USB Storage
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features

AP Management: 2 VigorAP access points
Switch Management: 2 VigorSwitch network switches
DrayTek Mesh: Up to 7 VigorAP access points – (requires f/w 4.3.0, available in Q1 2021)
Operating Requirements

Wall or Shelf Mountable
Operating Temperature: 0ºC ~ 45ºC
Storage Temperature: -25ºC ~ 70ºC
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 21.8 Watts maximum
Operating Power: DC 12V (via external PSU, supplied)
Power Requirements : 220-240VAC
Dimensions (W x D x H): 207 x 131 x 42 mm
Package Contents

1 x Vigor 2765Vac router
1 x Quick Start Guide
1 x Set of screws & wall plugs for wall mounting
1 x 2m CAT5e RJ45 Network Cable
2 x Detachable Wireless LAN Antennas
1 x DC 12V Power Supply with UK Plug

Warranty Information

Please check the Specification Section for Warranty Information

Extended Warranty

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

Prepare for the unforeseen, equipment unfortunately does fail from time to time, be it a power surge, overheating or update failure, having an extended warranty can be a lifeline to your business when you need it most. The following packages below are available.

Broken Equipment

Advanced Replacement

If you suspect that your covered DrayTek product has developed a fault, our experienced support technicians will help you to diagnose the problem and determine whether the unit needs to be service or replaced. If it does, a replacement unit will be sent out the same day for delivery on the next working/business day (to most of the UK). If you wish to take the unit yourself to the service centre (currently North of London), replacement or diagnosis/repair can be carried out in person.

3 or 5 Year Warranty





  • Enhanced Warranty Service
  • 3 or 5 year warranty upgrades available
  • Advanced-Replacement of faulty unit
  • Next working day* replacement unit
  • Cover for 3 or 5 years warranty with single payment
  • Available for all DrayTek Vigor routers
  • Warranty upgrades available to purchase for up to 6 months after product purchase

    •

    With VigorCare, you also have the benefit of an extension to a full 3 or even 5 years of warranty so that if a fault does develop, you will have no bills for parts, labour or replacement in the event that a warranty fault develops. We're proud of the reliability that DrayTek products achieve but however unlikely a problem might be, if your business depends on your DrayTek product, VigorCare should give you the peace of mind and convenience that you need.

    VigorCare membership is subject to the VigorCare Terms & Conditions (see terms tab, above) and should be taken out within 6 months of purchase of your new product

    VigorCare Service Packs

    VigorCare subscription is available for several categories of product. Determine the correct pack for your product below. NOTE: The subscription must be activated via the link below within 6 months of your router and service pack being purchased.

    VigorCare Activation Link

    https://www.draytek.co.uk/support/vigorcare-registration



     Product Code Description Applicable To These DrayTek Products Duration Buy Now
    VCARE-A3 VigorCare A3 3 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080     		3 Years Buy Now Button
    VCARE-A5 VigorCare A5 5 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080     		5 Years Buy Now Button
    VCARE-B3 VigorCare B3 3 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100     		3 Years Buy Now Button
    VCARE-B5 VigorCare B5 5 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100     		5 Years Buy Now Button
    VCARE-C3 VigorCare C3 3 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282     		3 Years Buy Now Button
    VCARE-C5 VigorCare C5 5 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282     		5 Years Buy Now Button
    VCARE-D3 VigorCare D3 3 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x     		3 Years Buy Now Button
    VCARE-D5 VigorCare D5 5 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x     		5 Years Buy Now Button



     Warranty Terms & Conditions Apply - please see here

    https://www.draytek.co.uk/support/vigorcare#terms-and-conditions
