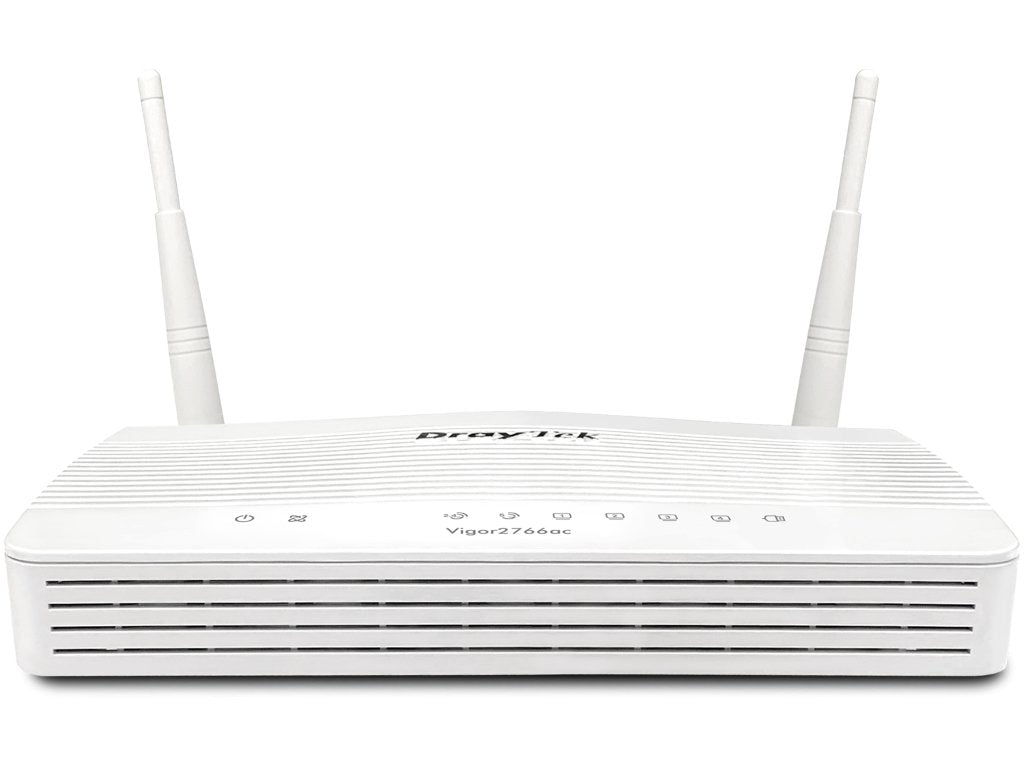

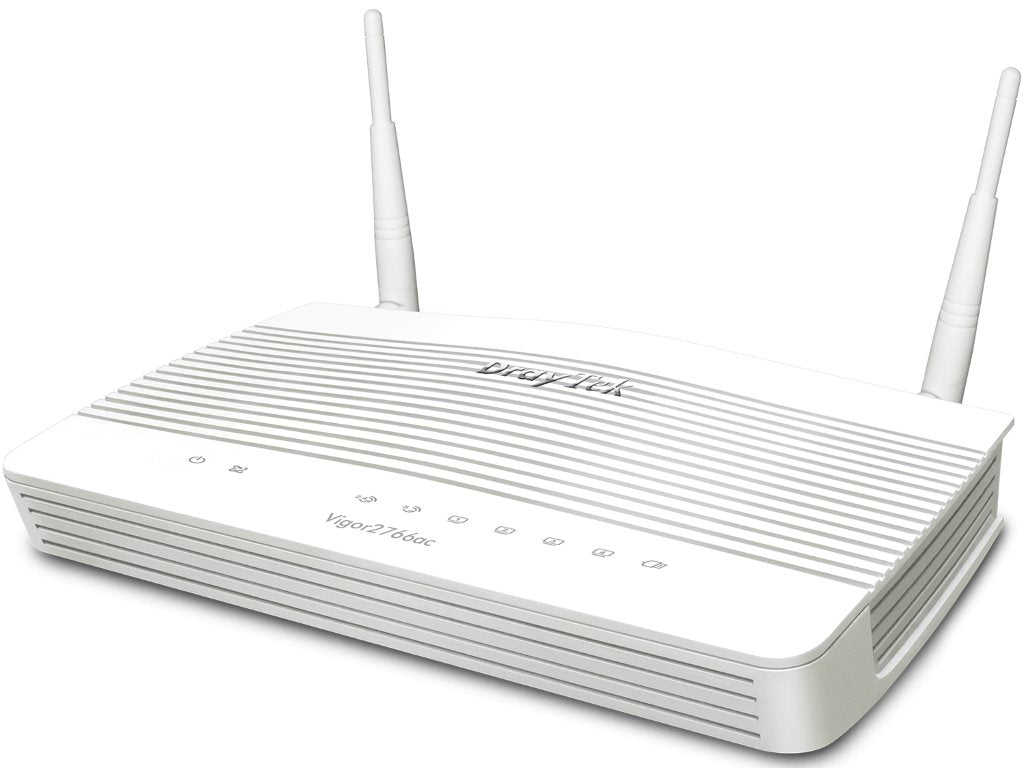

DrayTek Vigor 2766AC VDSL WLAN Router

DrayTek Vigor 2766AC VDSL WLAN Router

Regular price £259.99
Regular price £279.99 Sale price £259.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2766ac Selective Triple-WAN G.Fast/VDSL2/ADSL2+ WiFi 5 Router w/ VPN & 3G/4G USB Modem Support (1266Mbps AC)

DrayTek V2766AC-K Selective Triple-WAN G.Fast/VDSL2/ADSL WiFi 5 Router

The DrayTek Vigor 2766ac Selective Triple-WAN G.Fast/VDSL2/ADSL WiFi 5 Router is ideal for Small Office and Home Office networks. It features powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband. Incorporating WiFi 5, the Vigor 2766ac provides a reliable and highly integrated network solution for SoHo environments.

G.Fast, VDSL and Ethernet Router

The Vigor 2766ac is a G.Fast, VDSL or Ethernet WAN router with Gigabit performance, allowing you to make full use of DrayTek's advanced feature set with Quality of Service, VPN and Content Filtering. Connect the Vigor 2766ac to Superfast Fibre with its integrated G.Fast and VDSL modem, or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Either connection (or a 4G USB modem, sold separately) can be used as the primary or Failover connections, so that if the main internet connection goes down the Vigor 2766ac can use its backup connections to guarantee reliable internet access and VPN connectivity.

Route Policy - Routing Management for WAN & VPN

The Vigor 2766ac provides full policy-based control of where and how outbound traffic is routed with Route Policy, to send traffic through VPN services and alternative LAN gateways:

  • VPN Routing
    Send all or select traffic through VPN services.
  • Hostname Routing
    Route access to individual websites, internet domains (i.e. and hostnames through a VPN tunnel or a specific WAN.
  • Service Routing
    Push specific services or ports, such as DNS, through a set WAN, an alternative Gateway or VPN Tunnel.
  • Failover & Failback
    Extensive control of Failover with multiple Failover rules and paths. Manage how connections are moved back to the primary connection after a failover has occurred with Failback settings.

Powerful SoHo VPN Router

The Vigor 2766ac features extensive VPN (Virtual Private Networking) capabilities. Its VPN capabilities are well suited to SoHo (small office, home office) environments. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office.

The Vigor 2766ac allows you to make full use of Fibre broadband with VPN. Up to 200 Mbps of IPsec VPN throughput for fast and secure connections, to VPN services and other offices. Connect 2 VPN tunnels concurrently to access remote resources securely. Connect the Vigor 2766ac in a branch office or home office to a head office for seamless access to network resources.

It supports all common industry standard VPN protocols, for it to connect to VPN services, link remote offices and handle connections from all types of VPN clients. Supporting IPsec IKEv1 & IKEv2 protocols with EAP and XAuth authentication, DrayTek's SSL VPN and L2TP for both LAN to LAN and Dial-In teleworker VPNs. In addition, teleworkers can connect to the router with OpenVPN. User management for Dial-In Teleworkers is managed through the router's web interface, with mOTP 2-factor authentication available for IPsec, L2TP and SSL VPN Teleworker connections.

Connecting Remote Sites with LAN to LAN VPN

Supporting up to 2 concurrently active VPN tunnels and 200 Mbps of IPsec VPN throughput, the Vigor 2766ac is ideal as a branch-office or home-office router, to connect with a head office router such as the Vigor 3910.

Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices.

DrayTek SSL VPN for Dial-In Teleworkers & LAN to LAN

Connect up to 2 DrayTek SSL VPN tunnels. These encrypted tunnels securely link teleworkers or remote DrayTek Vigor routers back to your main office using SSL/TLS technology - similar to the HTTPS security that's used for most secure websites on the internet such as on-line banking and shopping services.

Teleworkers can connect with a secure SSL VPN tunnel to the DrayTek Vigor 2766, using the free DrayTek Smart VPN Client app. Available for Windows, macOS, Apple iOS (iPad, iPhone) and Android devices.

Connect VPNs from behind NAT with DrayTek's VPN Matcher

A typical requirement for connecting a VPN tunnel between two points is that the VPN server must be directly accessible on the public internet. Sometimes this can be achieved with NAT Port Forwarding if the router is located behind another router, but if the router is connected to 4G Mobile Broadband or is behind Carrier-Grade NAT (CG-NAT), connecting to that VPN server may be impossible.

DrayTek's VPN Matcher service helps DrayTek routers behind NAT to allow Dial-In Teleworkers to connect, or connect two DrayTek VPN routers that are behind NAT and could not normally establish a VPN tunnel.

AC1300 Wireless LAN with Mesh

The Vigor 2766ac provides 802.11ac (WiFi 5) simultaneous Dual-Band wireless for fast and efficient wireless connectivity. Multi-User MIMO allows the router to send to more than one device at a time, with each of its antennas streaming data to different devices at once, improving efficiency over standard 802.11ac (WiFi 5) wireless and allowing the router to effectively serve more wireless clients.

With firmware 4.3.0, the Vigor 2766ac wireless router can be used as part of DrayTek's Mesh wireless system, allowing the router to work as the Mesh Root, providing internet access and management of Mesh VigorAPs directly.

Gigabit LAN Ports with VLANs

The Vigor 2766ac provides 4 Gigabit LAN ports for wired links to computers, servers and Network Attached Storage. The 4 LAN subnets and VLANs allow the Vigor 2766ac to provide a guest network fully separate from internal network data or any other configuration that can use 4 subnets, whether that's 4 wireless networks with different IP ranges, or a separate LAN subnet for printers and server. Each network can have its own Content Filtering, Firewall, Quality of Service and Route Policy configurations.

The router has full support for 802.1Q VLAN tagging, so that these subnets can be passed to other devices that support VLAN tags, such as the DrayTek VigorSwitch G1080 8-port switch (sold separately), for additional network ports. The Wireless LAN also links to these VLANs, making the same guest & private networks possible simply using different wireless SSIDs. Alternatively, connect up a DrayTek VigorAP wireless access point, such as the VigorAP 903 (sold separately), to do the same, spanning the router's own wireless and any connected wireless APs.

Designed for Central Management

The Vigor 2766ac can be centrally managed along with VigorAPs and switches via the VigorACS central management platform. This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs managing customers' devices or any user who wants to know what's going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues.

Robust & Comprehensive IPv4 / IPv6 Firewall

Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems.

The DrayTek object-based firewall enables you to create combinations of Firewall rules and Content Filtering to suit a home or small office environment, applying Content Filtering to the whole network, only specified devices or just the network that guests can connect to.

The Vigor 2766ac supports both IPv4 and IPv6 with Dual-Stack IPv4/IPv6. Advanced networking features, such as the object-based Firewall, Quality of Service, Content Filtering and VLANs support both IPv4 and IPv6 networks.

Web Content Filtering with DNS Filter

The content control features of the Vigor 2766ac allow you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules.

Content filtering can also block sites using HTTPS/SSL where URLs are encrypted (and normal routers cannot block). Using the GlobalView service, you can block whole categories of web sites (e.g. gambling, adult sites etc.), subject to an annual subscription, which is continuously updated with new or changed site categorisations or sites which have become compromised (such as infected with Malware). A free 30-day trial is included with this router (see accessories tab for compatible GlobalView licences).

DrayDDNS - DrayTek Dynamic DNS Address

DrayTek provides a free Dynamic DNS address to each Vigor 2766ac router, allowing you to link the router's current IP address to a memorable "" hostname, such as "".

This address automatically updates whenever the internet connection's IP changes, so if one WAN’s IP address allocation is dynamic, or the IP changes when switching from the primary WAN connection to a backup, you can easily locate and access your Vigor 2766ac router. Just use the hostname to access the router's VPN services, management and any other services you have made accessible through the router.

The Vigor 2766ac can also authenticate your DrayDDNS hostname with free SSL/TLS certificates provided by LetsEncrypt. The router manages and automates the certificate process, keeping the certificate up to date and ready for use with SSL VPN and other services.

Quality of Service with App QoS

Prioritise latency-sensitive applications on your network with Quality of Service. App QoS simplifies setting up Quality of Service significantly - simply select which applications or services to prioritise, such as Zoom and Skype. Use 4 separate queues to give priority to servers & PCs (IP address), services such as VoIP or DNS, or packet tagging used by IP phones with 802.1p and DSCP support.

Multi-Purpose USB Ports

The Vigor 2766ac has two USB ports which can be used for 4G/LTE modem, USB temperature sensor, storage, or a printer for shared access (sold separately). Connect a USB 4G/LTE modem to the Vigor 2766ac and use mobile broadband as your internet connectivity. That can be your primary connection, or the router can switch over to 4G in the case of ADSL/VDSL/G.Fast outage, so that you're always connected.

Use your Vigor 2766ac as a network attached storage (NAS) by connecting a USB flash drive or hard drive (not included). With Windows networking (SMB) & FTP connectivity to allow Windows, Apple, Android and Linux devices to access the router's storage, locally and through VPN.

Central AP Management

The Vigor 2766ac can manage and aid in setting up VigorAP access points, connected locally to the router. This enables you to centrally control, manage and administer multiple AP devices installed around your home or office, through the router's web interface for local or remote setup:

  • Monitor Status information
  • View Traffic Graphs
  • Provision Wireless Configurations (with Auto Provisioning)
  • Manage Access Control Lists (blacklist / whitelist for wireless client MAC addresses)
  • Track the usage of each AP over time
  • View Event Logs
  • View Temperature Sensor graphs
  • Load Balance APs - automatically move clients off of busy access points onto nearby, less busy access points
  • Backup and restore AP configurations
  • Perform VigorAP firmware upgrades remotely through the router

The DrayTek router operating as the wireless controller can provision both DrayTek VigorAP access points and its own Wireless LAN settings with Central AP Management profiles configured on the router, with an option to Auto Provision - auto configuring newly installed VigorAP access points with the Auto Provisioning profile, upon initial connection to the DrayTek Vigor router's network.


View full details

Explore Further


G.Fast, VDSL and Ethernet Router
Reliable and fast Internet connectivity with Failover backup WAN and powerful Route Policy.
AC1300 Wireless with Mesh
802.11ac (WiFi 5) Dual-Band Wireless. Use DrayTek Mesh to expand wireless coverage.
Four (4) Gigabit LAN Ports with VLANs
Provide a fully separated guest network, with support for four (4) VLANs.
Firewall & Content Filtering
Manage internet access with Firewall, App Enforcement & Category-based Web Filtering (requires GlobalView subscription - see accessories tab for compatible licences).
DrayDDNS with LetsEncrypt Certificates
Free DrayDDNS address for each router, with automated LetsEncrypt SSL/TLS Certificates.
Multi-Purpose USB Ports
Connect 4G modem, USB storage, USB thermometer and USB printers (sold separately) to share resources.
Powerful SoHo VPN Router
Up to two (2) active VPN tunnels for LAN to LAN, Remote Dial-In Users and VPN services.
VPN Matcher
Break through NAT and CG-NAT with DrayTek's VPN Matcher service for LAN to LAN and Teleworker VPNs.
VigorACS Central Management
Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Quality of Service with App QoS
Prioritise latency-sensitive applications such as Teams and Zoom, quickly & easily with App QoS.
Centralised LAN Management
Manage and provision up to two (2) DrayTek VigorAP wireless access points.

Dimensions and Weight

Width 207 mm, Depth 131 mm, Height 39 mm,Weight 1.3 kg

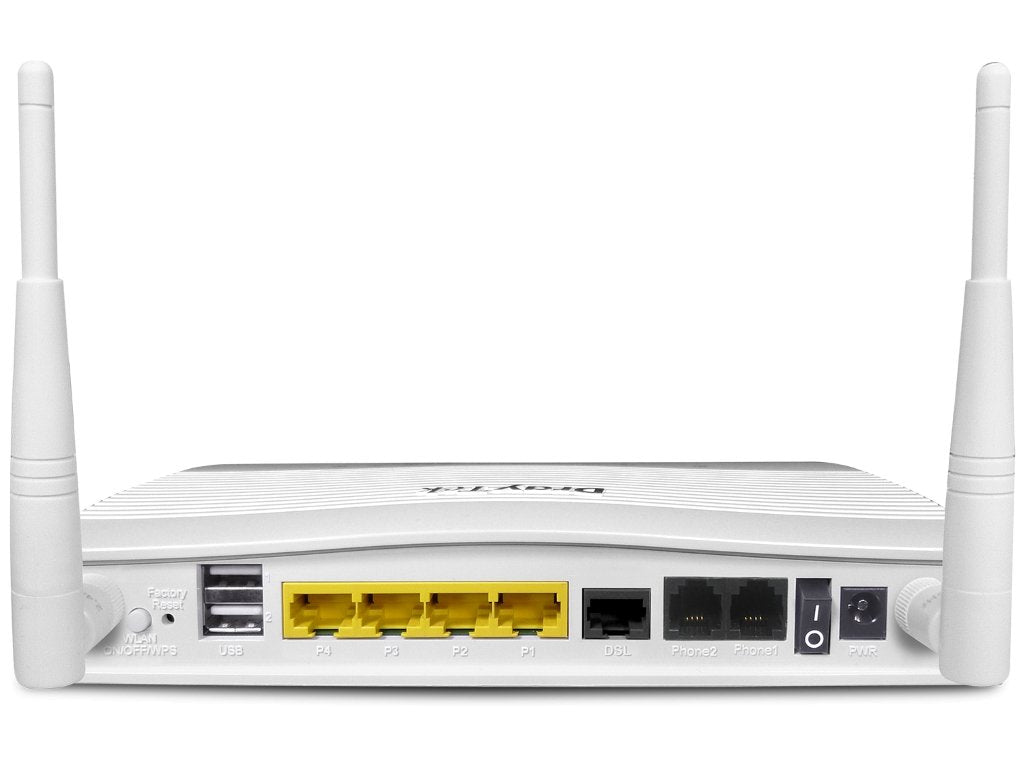

Physical Interfaces

WAN1: G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ11
WAN2/LAN Switchable Port: 1 x Gigabit Ethernet (1G/100M/10M), RJ45
WAN3: USB 2.0 Port for 3G/4G Modem (not included)
LAN Ports: 4 x Gigabit Ethernet (1G/100M/10M), RJ45 (3 x with WAN2 enabled)
2 x USB 2.0 Port for USB storage, thermometer or printer (sold separately)
2 x Removable Wireless antennas
Wireless On / Off / WPS button
Recessed Factory Reset button
Antenna Specifications

Wireless Antennas:
2 x External Dipole
5GHz Gain: 4 dBi
2.4GHz Gain: 2 dBi

Router Performance:
1.3Gb/s Max Sync Rate with G.Fast (dependant on ISP & Exchange equipment)
100 Mb/s Max Sync Rate with VDSL2
300 Mb/s Max Sync Rate with VDSL2 35b
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
700 Mb/s NAT Throughput per WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
200 Mb/s IPsec (AES256) VPN Throughput
80 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection

Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
G.Fast, VDSL & ADSL Features

BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 527 & SIN 498
Auto Detection of G.Fast, VDSL and ADSL line modes
Support for G.INP & Vectoring
G.Fast Standards:
ITU-T G.9700, G.9701 G.Fast
Profile: 212MHz & 106MHz
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
ADSL Standards:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Wireless Features

AC1300 - 11ac 'Wave 2' Dual Band Wireless:
802.11ac 2x2 wireless access point
Compatible with 802.11a/b/g/n wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 866Mbps PHY rate at 80MHz with 5GHz
Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
Tx Beamforming
Mesh Root support with DrayTek VigorAP Mesh Nodes
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering

IP-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires GlobalView subscription, sold separately)
NAT Features

NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management

802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features

Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features

2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, mOTP
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
PPTP for legacy applications
L2TP, L2TP over IPsec
Bandwidth Management

IP-based Bandwidth Limit
IP-based Session Limit
Quality of Service (QoS)

Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
Class-based Outbound Traffic Tagging: DSCP & IP Precedence

Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Import Config from Vigor 2762, 2765
Auto Backup Config to USB Storage
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features

AP Management: 2 VigorAP access points
DrayTek Mesh: Up to 7 VigorAP access points
Operating Requirements

Wall or Shelf Mountable
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -25°C ~ 70°C
Humidity: 10% ~ 90% (non-condensing)
Operating Power: DC 12V (via external PSU, supplied)
Power Requirements: 220-240VAC
207 mm Width
131 mm Depth
39 mm Height
Package Contents

1 x Vigor 2766ac router
1 x Quick Start Guide
1 x Set of screws & wall plugs for wall mounting
1 x 2m CAT5e RJ45 Network Cable
2 x Detachable Wireless LAN Antennas
1 x DC 12V Power Supply with UK Plug

Warranty Information

Please check the Specification Section for Warranty Information

Extended Warranty

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

Prepare for the unforeseen, equipment unfortunately does fail from time to time, be it a power surge, overheating or update failure, having an extended warranty can be a lifeline to your business when you need it most. The following packages below are available.

Broken Equipment

Advanced Replacement

If you suspect that your covered DrayTek product has developed a fault, our experienced support technicians will help you to diagnose the problem and determine whether the unit needs to be service or replaced. If it does, a replacement unit will be sent out the same day for delivery on the next working/business day (to most of the UK). If you wish to take the unit yourself to the service centre (currently North of London), replacement or diagnosis/repair can be carried out in person.

3 or 5 Year Warranty



  • Enhanced Warranty Service
  • 3 or 5 year warranty upgrades available
  • Advanced-Replacement of faulty unit
  • Next working day* replacement unit
  • Cover for 3 or 5 years warranty with single payment
  • Available for all DrayTek Vigor routers
  • Warranty upgrades available to purchase for up to 6 months after product purchase

    With VigorCare, you also have the benefit of an extension to a full 3 or even 5 years of warranty so that if a fault does develop, you will have no bills for parts, labour or replacement in the event that a warranty fault develops. We're proud of the reliability that DrayTek products achieve but however unlikely a problem might be, if your business depends on your DrayTek product, VigorCare should give you the peace of mind and convenience that you need.

    VigorCare membership is subject to the VigorCare Terms & Conditions (see terms tab, above) and should be taken out within 6 months of purchase of your new product

    VigorCare Service Packs

    VigorCare subscription is available for several categories of product. Determine the correct pack for your product below. NOTE: The subscription must be activated via the link below within 6 months of your router and service pack being purchased.

    VigorCare Activation Link


     Product Code Description Applicable To These DrayTek Products Duration Buy Now
    VCARE-A3 VigorCare A3 3 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080
    3 Years Buy Now Button
    VCARE-A5 VigorCare A5 5 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080
    5 Years Buy Now Button
    VCARE-B3 VigorCare B3 3 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100
    3 Years Buy Now Button
    VCARE-B5 VigorCare B5 5 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100
    5 Years Buy Now Button
    VCARE-C3 VigorCare C3 3 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282
    3 Years Buy Now Button
    VCARE-C5 VigorCare C5 5 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282
    5 Years Buy Now Button
    VCARE-D3 VigorCare D3 3 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x
    3 Years Buy Now Button
    VCARE-D5 VigorCare D5 5 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x
    5 Years Buy Now Button


     Warranty Terms & Conditions Apply - please see here
