G.Fast, VDSL and Ethernet Router
Reliable and fast internet connectivity with Failover backup WAN and powerful Route Policy.
WiFi 6 AX3000 Wireless Network
Featuring WiFi 6 with up to 3Gbps link rate for real Gigabit wireless.
Four (4) Gigabit LAN Ports with VLANs
Provide a fully separated Guest network, with support for four (4) VLANs.
Firewall & Content Filtering
Manage internet access with Firewall, App Enforcement & Category-based Web Filtering.
DrayDDNS with LetsEncrypt Certificates
Free DrayDDNS address for each router, with automated LetsEncrypt SSL/TLS Certificates.
Multi-Purpose USB Ports
Connect 4G modem, USB storage, USB thermometer and USB printers to share resources.
Powerful SoHo VPN Router
Up to two (2) active VPN tunnels for LAN to LAN, Remote Dial-In Users and VPN services.
VPN Matcher
Break through NAT and CG-NAT with DrayTek's VPN Matcher service for LAN to LAN and Teleworker VPNs.
DrayTek SSL VPN
Access the Vigor 2766ax network remotely with a TLS encrypted VPN tunnel.
VigorACS Central Management
Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Quality of Service with App QoS
Quickly & easily prioritise latency-sensitive applications such as Teams and Zoom with App QoS.
Centralised LAN Management
Manage and provision up to two (2) DrayTek VigorAP wireless access points (sold separately).

Width 194 mm, Depth 155 mm, Height 50 mm,Weight 1.4 kg

Technical Specification (UK Hardware Spec.)

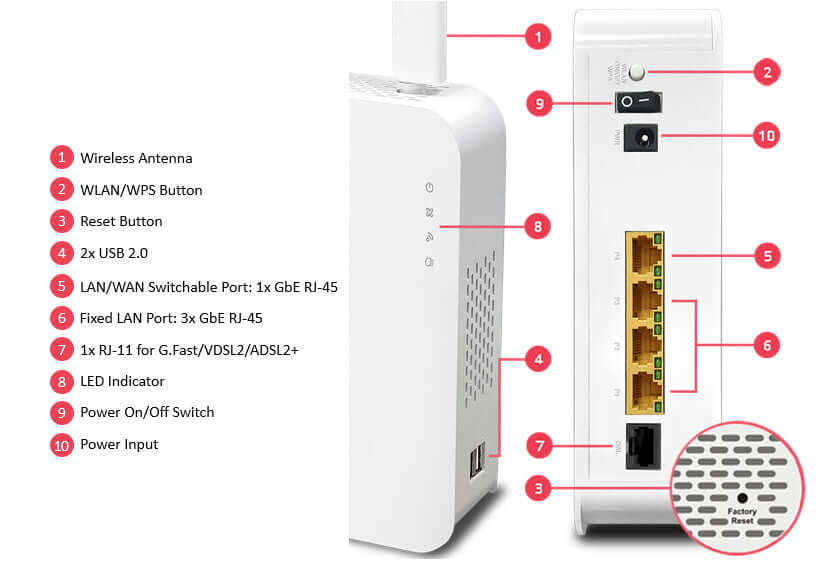

Physical Interfaces
WAN1: G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11
WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
WAN3: USB 2.0 Port for 3G/4G Modem (not included)
LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)

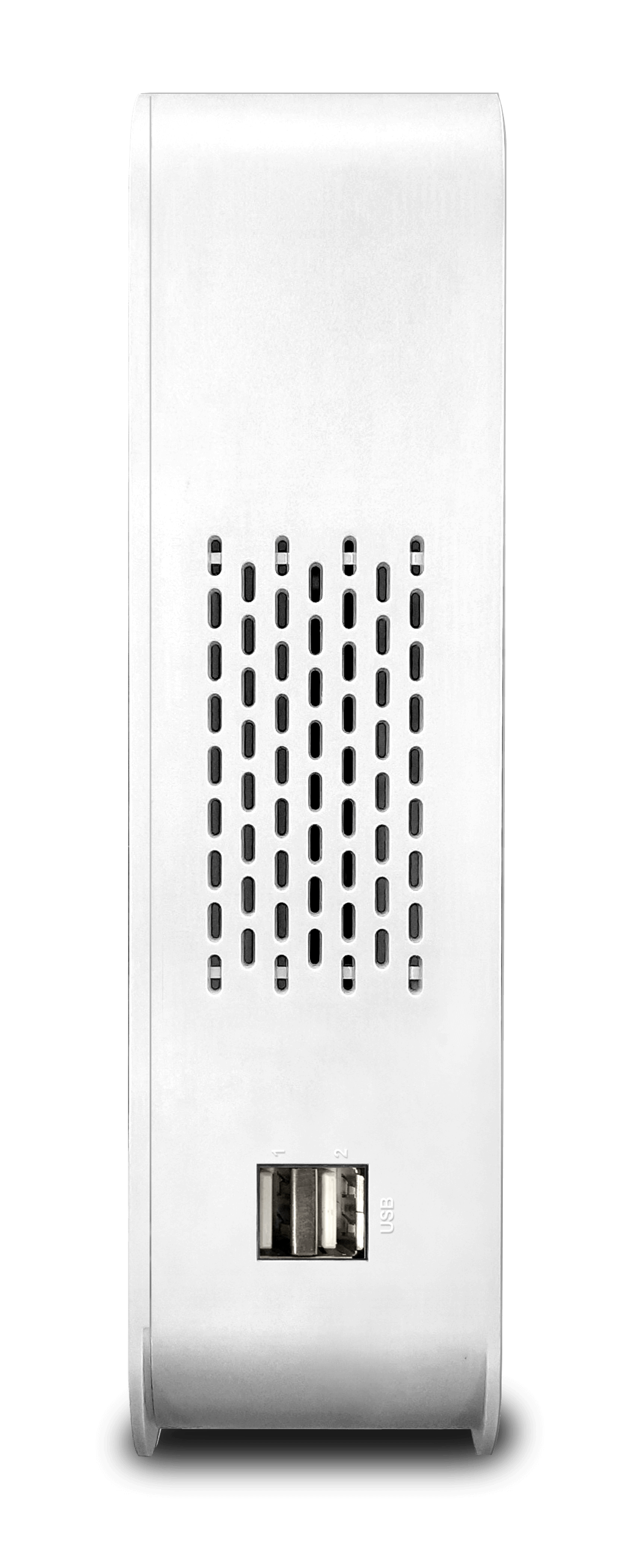

2x USB 2.0 Port for USB storage, thermometer or Printer
2x External Dipole Wireless antennas
Wireless On / Off / WPS button
Recessed Factory Reset button
Antenna Specifications
Wireless Antennas
2x External Dipole
5GHz Gain: 2.5 dBi
2.4GHz Gain: 2.7 dBi
Performance
Router Performance:
1.3Gb/s Max Sync Rate with G.Fast (dependant on ISP & Exchange equipment)
100 Mb/s Max Sync Rate with VDSL2
300 Mb/s Max Sync Rate with VDSL2 35b
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
700 Mb/s NAT Throughput per WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
150 Mb/s IPsec (AES256) VPN Throughput
80 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection
Failover / Backup WAN
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
USB 4G/LTE Modem: TSPC, AICCU
G.Fast, VDSL & ADSL2+ Features
BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 527 & SIN 498
Auto Detection of G.Fast, VDSL and ADSL line modes
Support for G.INP & Vectoring
G.Fast Standards:
ITU-T G.9700, G.9701 G.Fast
Profile: 212MHz & 106MHz
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
ADSL2 Standards:
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Wireless Features
AX3000 - 11ax MU-MIMO Wireless:
802.11ax 2x2 wireless access point
2.4GHz: 2x2 MIMO with 2.7 dBi Antenna Gain
5GHz: 2x2 MU-MIMO with 2.5 dBi Antenna Gain
Backwards Compatible with 802.11a/b/g/n/ac wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 2402Mbps PHY rate with 5GHz
Up to 574Mbps PHY rate with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
IP-based Firewall Policy
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires GlobalView subscription)
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP (configurable), RTSP (configurable), FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features
2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, mOTP
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
PPTP for legacy applications
L2TP, L2TP over IPsec
User Authentication:
Local
RADIUS
mOTP - Mobile One Time Password
TOTP - Time-based One Time Password, compatible with Google Authenticator - New!
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service):
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Auto Backup Config to USB Storage – New!
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features:
AP Management: Up to 2 VigorAP access points
Operating Requirements
Wall or Shelf Mountable
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 24 Watts maximum
Dimensions: 194 x 155 x 50
Operating Power: DC 12V (via external PSU, supplied)
Warranty : Two (2) Years RTB
Power Requirements: 220-240VAC
Box Contents
Vigor 2766ax router
Quick Start Guide
Screws & wall plugs for wall mounting
2m Cat-5e RJ-45 Network Cable
DC 12V Power Supply with UK Plug

Please check the Specification Section for Warranty Information
