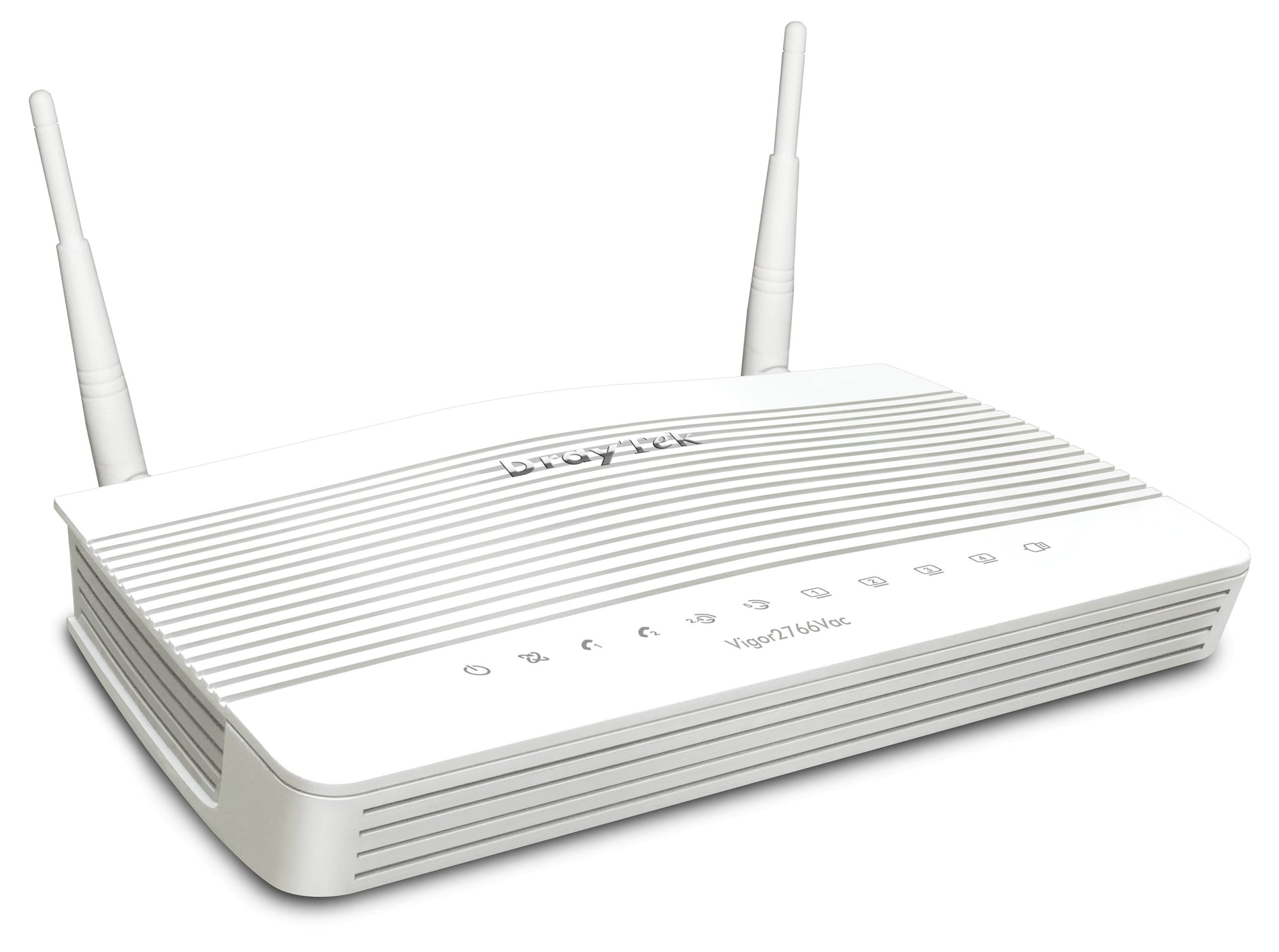

• DrayTek Vigor 2766Vac Wireless VoIP Router Left View
1 1

DrayTek Vigor 2766Vac Wireless VoIP Router

DrayTek Vigor 2766Vac Wireless VoIP Router

£249.99
£279.99 £249.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2766VAC VDSL and Ethernet Router with Wi-Fi 5 AC1300 Wireless and VoIP

The Ideal SoHo VPN Router for G.Fast, VDSL and Gigabit Fibre

The Vigor 2766 series is DrayTek’s G.Fast / VDSL and Ethernet router that is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wireless and VoIP features in ‘2766ac’ and ‘2766Vac’ models, the Vigor 2766 series provide a reliable, highly integrated and reliable network solution for SoHo environments.


View full details

Explore Further

Highlights

Dimensions and Weight

Width 207 mm, Depth 131 mm, Height 39 mm,Weight 1.3 kg

Specification

Physical Interfaces
WAN1: G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11
WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
WAN3: USB 2.0 Port for 3G/4G Modem (not included)
LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
2x PSTN RJ-11 Telephone Ports (‘Vac’ model)
2x USB 2.0 Port for USB storage, thermometer or Printer
2x Removable Wireless antennas (wireless models)
Wireless On / Off / WPS button
Recessed Factory Reset button
Antenna Specifications
Wireless Antennas (wireless 'ac' models):
2x External Dipole
5GHz Gain: 4 dBi
2.4GHz Gain: 2 dBi
Performance
Router Performance:
1.3Gb/s Max Sync Rate with G.Fast (dependant on ISP & Exchange equipment)
100 Mb/s Max Sync Rate with VDSL2
300 Mb/s Max Sync Rate with VDSL2 35b
950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
700 Mb/s NAT Throughput per WAN without Hardware Acceleration
50,000 NAT Sessions
VPN Performance:
200 Mb/s IPsec (AES256) VPN Throughput
80 Mb/s SSL VPN Throughput
Max. 2 Concurrent VPN Tunnels
Internet Connection
Hardware Acceleration
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Connection Detection: PPP, ARP Detect, Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
Full Feature-set Hardware Acceleration:
Hardware Accelerated Quality of Service
Multi-WAN Data Budget
Traffic Graph & Data Flow Monitor
Bandwidth Limit
IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
IPv6 Connection Types:
DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
USB 4G/LTE Modem: TSPC, AICCU
G.Fast, VDSL & ADSL Features
BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 527 & SIN 498
Auto Detection of G.Fast, VDSL and ADSL line modes
Support for G.INP & Vectoring
G.Fast Standards:
ITU-T G.9700, G.9701 G.Fast
Profile: 212MHz & 106MHz
VDSL Standards:
ITU-T G.993.1 VDSL
ITU-T G.993.2, G.997.1 VDSL2
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
ADSL Standards:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ATM Protocols:
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
Support for RFC4638 for MTU up to 1500
Wireless Features (‘ac’ models)
AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models):
802.11ac 2x2 wireless access point
Compatible with 802.11a/b/g/n wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 866Mbps PHY rate at 80MHz with 5GHz
Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
MU-MIMO
Tx Beamforming
Mesh Root support with DrayTek VigorAP Mesh Nodes – New!
Up to 4 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
Bandwidth Management (Per Station / Per SSID)
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
Wireless Security:
WPA2
WPA3 – New!
Pre-Shared Key authentication
WEP/WPA for Legacy Clients
Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
IP-based Firewall Policy
User-based Time Quota
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter (requires GlobalView subscription)
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
802.1q Tag-based, Port-based VLAN
Up to 4 LAN Subnets
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses per subnet
Wired 802.1x Port Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Networking Features
Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
DNS Security (DNSSEC)
Local RADIUS server
SMB File Sharing (Requires external USB storage)
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features
2 Concurrent active VPN Tunnels
LAN-to-LAN - Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, mOTP
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: MPPE, DES, 3DES, AES (128/192/256)
Authentication: SHA-256, SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
DHCP over IPsec
DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
VPN Protocols:
IPsec IKEv1, IKEv2, IKEv2 EAP
IPsec-XAuth
DrayTek SSL VPN
OpenVPN
PPTP for legacy applications
L2TP, L2TP over IPsec
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
Quality of Service (QoS)
Classify via TOS, DSCP, 802.1p, IP Address, Service Type
4 Priority Queues
App QoS
VoIP Prioritization
Class-based Outbound Traffic Tagging: DSCP & IP Precedence
VoIP Features (‘Vac’ model)
2x RJ-11 PSTN Telephone Ports (FXS)
Integrated VoIP SIP ATA (Analogue Telephone Adapter)
6 SIP Accounts with VoIP Setup Wizard
Protocols: SIP, RTP / RTCP
G.168 Line Echo-cancellation
Dial Plan: Phone Book, Digit Map, Call Barring
Voice Codecs: G.711 A / Law, G.723.1, G.726, G.729 A / B, VAD / CNG
Tone Generation: DTMF, Dial, Busy, Ring Back, Call Progress
DTMF Transmission: In Band, Out Band (RFC-2833), SIP info
FAX / Modem Support with G.711 Pass-through and T.38
Supplemental Services: Caller ID, Call Hold/Retrieve, Waiting, Transfer, Forwarding, Barring
DND (Do not Disturb)
MWI (Message Waiting Indicator) (RFC-3842)
Hotline (Dial preset number when handset lifted)
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Import Config from Vigor 2762, 2765
Auto Backup Config to USB Storage – New!
Firmware Upgrade via TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert
SNMP: v1, v2c, v3
Managed by VigorACS
Router Central Management Features
AP Management: 2 VigorAP access points
DrayTek Mesh: Up to 7 VigorAP access points – New!
Operating Requirements
Wall or Shelf Mountable
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 24 Watts maximum (Vac model)
Operating Power: DC 12V (via external PSU, supplied)
Power Requirements : 220-240VAC
Dimensions:
207mm Width
131mm Depth
39mm Height
Warranty
Two (2) Years RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
Box Contents
Vigor 2766 series router
Quick Start Guide
Screws & wall plugs for wall mounting
2m Cat-5e RJ-45 Network Cable
2x Detachable Wireless LAN Antennas (‘ac’ models)
DC 12V Power Supply with UK Plug

Warranty Information

Please check the Specification Section for Warranty Information
