DrayTek Vigor AP1062C WiFi 6 to 6GBPs Wifi and 2.5Gb Ethernet

Name: DrayTek Vigor AP1062C WiFi 6 to 6GBPs Wifi and 2.5Gb Ethernet
Brand: DrayTek
SKU: VAP1062C-K
Price: 329.99 GBP
Availability: InStock

£329.99

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

DrayTek VigorAP 1062C, Wi-Fi 6,Mesh Wireless Access Point AX6000 Dual-Band Performance with 2.5Gb PoE Ethernet

Fastest Wi-Fi 6 Access Point
Experience lightning-fast speeds with the DrayTek AX access point, which offers a combined speed of up to 6000Mbps. This device is perfect for businesses that require efficient networks for demanding applications such as video conferencing, gaming, and large file transfers.

Benefits: High-demand network capacity.

Master AP Management
With VigorAP 1062C, you can effortlessly manage up to eight compatible mesh VigorAPs and as many as 50 access points through the easy-to-use Wireless Virtual Controller module. Enjoy the convenience of auto-provisioning and AP monitoring, both readily available upon initial use.

Benefits: Zero Touch Deployment.

High-Density Performance
Easily accommodate high-density environments by linking up to 256 clients with our 802.11ax dual-band antennas and Wi-Fi 6 4x4 Multi-User MIMO technology.

Benefits: Improved network efficiency in dense environments.

Strong WPA3 Connection Encryption
Protect your network with robust wireless security using the latest WPA3-Personal or 802.1x Enterprise. Networks can transition to the new standard with mixed WPA3/WPA2 support and different SSIDs can be set with varying security levels.

Benefits: Private and secure Wi-Fi network.

2.5 Gigabit Power Over Ethernet
The VigorAP 1062C can be powered through its 2.5Gb Ethernet interface using standard IEEE 802.3at PoE+ for a convenient and neat installation.

Benefits: Easily install the VigorAP in locations without mains power.

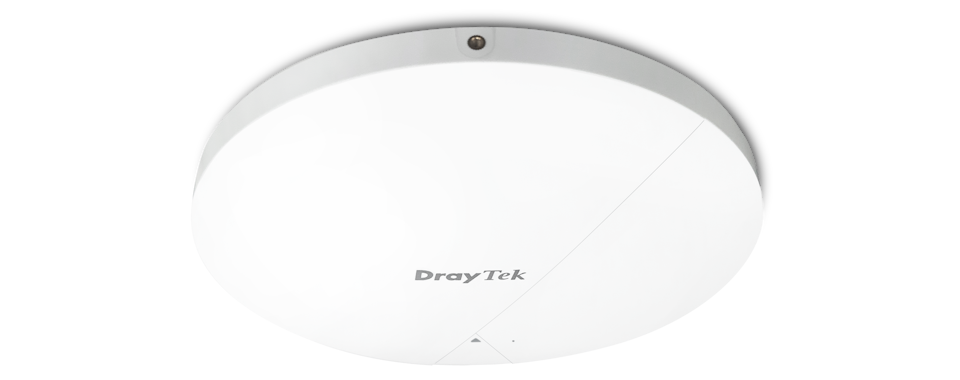

Ceiling Mounting
The AP-1062C is a versatile shape that complements both business and home interiors. It can be installed on ceilings or walls and comes with a secure ceiling mounting plate and easy-to-install clips for suspended ceilings.

Benefits: Flexible and discrete installation.

VigorAP 1062C
Ceiling or Wall Mounted AX 6000 Mesh Wireless PoE Access Point
The VigorAP 1062C is a high-performance ceiling or wall-mounted Mesh Wireless Access Point. It offers up to 6Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity.

View full details

Explore Further

Highlights

Key Specifications
WiFi 6 Mesh Ceiling-mount Mesh Wireless Access Point and Range Extender
AX6000 – 11ax Dual Band Wireless
WPA3 – Stronger Security with WPA3 Personal & Enterprise
Power through 802.3at PoE+ or DC Power Adapter
Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
2.5Gb Ethernet Uplink
Centrally Managed or Standalone Operation
Advanced Access Control with Mobile Device Management and Station Control
Root AP for AP Management

Dimensions and Weight

Width 208 mm, Depth 208 mm, Height 32 mm,Weight 813 g

Specification

Technical Specification (UK Hardware Spec.)

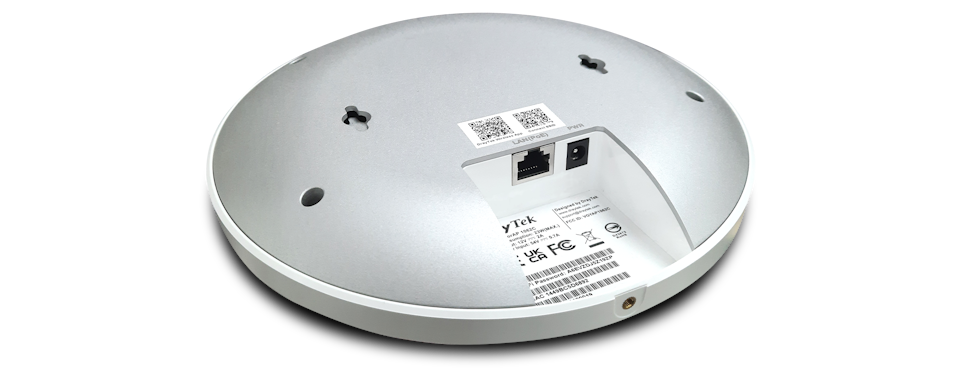

Physical Interfaces/Controls
1 x 2.5 Gigabit Ethernet LAN Port (2.5G/1G/100M/10M), RJ45 (accepts PoE Power)
Factory Reset Button (recessed)
DC Power Socket
Wireless Performance
AX6000 Class Wireless Access Point
Max Concurrent Clients: 256 total. 128 per band
Max Wireless Networks (SSIDs): 16 total, 8 per band
5GHz: Up to 4800Mb/s PHY Rate with 4 Spatial Streams
2.4GHz: Up to 1200Mb/s PHY Rate with 4 Spatial Streams
Wireless Antennas
4x Internal PiFA 5G Antennas (4.9 dBi)
4x Internal PiFA 2.4G Antennas (4.2 dBi)
Wireless LAN Compatibility
2.4GHz Standards: IEEE 802.11ax / b / g / n, 4x4 MIMO, up to 1024-QAM
5GHz Standards: IEEE 802.11ax / ac Wave 2 / a / n, 4x4 MU-MIMO, up to 1024-QAM
Wireless LAN Features
WiFi 6
Dual Band 802.11ax - 2.4 GHz & 5Ghz
Backwards compatible with 802.11ac, 802.11b, 802.11g, 802.11n
2.4GHz Channel Bandwidth: 20 / 40 MHz
5GHz Channel Bandwidth: 20 / 40 / 80 / 160 MHz
2.4GHz Channels: 1 to 13
5GHz Channels: Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
DFS/TPC Support for 5GHz channels 52 to 140
OFDMA – Higher Efficiency
BSS Colouring - Improves Interference Handling
TX Beamforming
1024-QAM
Multi-User MIMO
Security Features
Wireless Encryption:
WPA2: Personal, Enterprise (802.1x)
WPA3: Personal, Enterprise, OWE
WPA/WEP for legacy applications
802.1x RADIUS Proxy (PEAP / EAP-TLS)
PMK Caching & Pre-authentication
Wireless Client Isolation
Hidden SSIDs (Selectable)
WPS - WiFi Protected Setup
MAC Address Filtering (ACL) - Up to 128 entries
EAPOL Key Retry - Protect unpatched WLAN clients from KRACK
Access Point Modes
Access Point
Mesh Root*
Mesh Node*
Range Extender
Wireless Control Features
Wireless Client Status List in WUI
Up to eight distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
802.1q VLAN
Built-in DHCP Server & DHCP Relay
Wireless Performance Optimisation
Airtime Fairness
Band Steering
WMM (Wireless MultiMedia)
Fast Roaming 802.11r
Mesh Features*
Up to 8 APs per Mesh Group
Up to 3 Mesh Hops per chain with optional Wired Uplinks
Config Sync
Self-Healing
Can be configured & managed with the DrayTek Wireless App
Mesh Syslog
Diagnostic Features
Dashboard: Traffic Graph
System Log
Traffic Graph
Wireless LAN Statistics
Interference Monitor - Built-in Site Surveyor
Management
Web Interface (HTTP/HTTPS)
DHCP Client
TR-069 Control (For VigorACS or other TR-069 platform)
CLI (Command Line Interface) - Telnet
Firmware upgrade by TR-069/HTTP
Central AP Management – Manage Up To 50 VigorAPs
SNMP v2, v2c, v3
Management VLAN
Configuration File Export (with password) & Import
Wireless Auto On/Off
Schedule: Wi-Fi Up/Down
Power Requirements
Maximum Power Consumption: 23 Watt
DC 12V via external 100-240v AC/DC PSU
802.3at PoE+ via LAN port. Requires PoE+ injector or a PoE+ switch such as the VigorSwitch P2100
Environmental & Physical
Operating Temperature: 0 ° C to 40 ° C
Operating Humidity: 10% to 90% (Non-condensing)
Physical Dimensions: 208mm (height) x 208mm (width) x 32.1mm (depth)
Weight: 813g
Ceiling or Wall Mountable (requires rear cable entry)
Pack Contents
VigorAP 1062C wireless access point
Ceiling Mount Bracket & Fittings Kit
Quick Start Guide
ROHS, UKCA & CE Compliant
Warranty
Two (2) Year Manufacturer's RTB
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5

Warranty Information

Please check the Specification Section for Warranty Information

Extended Warranty

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

Prepare for the unforeseen, equipment unfortunately does fail from time to time, be it a power surge, overheating or update failure, having an extended warranty can be a lifeline to your business when you need it most. The following packages below are available.

Broken Equipment

Advanced Replacement

If you suspect that your covered DrayTek product has developed a fault, our experienced support technicians will help you to diagnose the problem and determine whether the unit needs to be service or replaced. If it does, a replacement unit will be sent out the same day for delivery on the next working/business day (to most of the UK). If you wish to take the unit yourself to the service centre (currently North of London), replacement or diagnosis/repair can be carried out in person.

3 or 5 Year Warranty

Enhanced Warranty Service

3 or 5 year warranty upgrades available

Advanced-Replacement of faulty unit

Next working day* replacement unit

Cover for 3 or 5 years warranty with single payment

Available for all DrayTek Vigor routers

Warranty upgrades available to purchase for up to 6 months after product purchase

With VigorCare, you also have the benefit of an extension to a full 3 or even 5 years of warranty so that if a fault does develop, you will have no bills for parts, labour or replacement in the event that a warranty fault develops. We're proud of the reliability that DrayTek products achieve but however unlikely a problem might be, if your business depends on your DrayTek product, VigorCare should give you the peace of mind and convenience that you need.

VigorCare membership is subject to the VigorCare Terms & Conditions (see terms tab, above) and should be taken out within 6 months of purchase of your new product

VigorCare Service Packs

VigorCare subscription is available for several categories of product. Determine the correct pack for your product below. NOTE: The subscription must be activated via the link below within 6 months of your router and service pack being purchased.

VigorCare Activation Link

https://www.draytek.co.uk/support/vigorcare-registration

Product Code	Description	Applicable To These DrayTek Products	Duration	Buy Now
VCARE-A3	VigorCare A3 3 Year Subscription	Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series VigorAP 810, 903, 912C, 960C, 1000C, 1060C VigorSwitch P1092, G1080	3 Years
VCARE-A5	VigorCare A5 5 Year Subscription	Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series VigorAP 810, 903, 912C, 960C, 1000C, 1060C VigorSwitch P1092, G1080	5 Years
VCARE-B3	VigorCare B3 3 Year Subscription	Vigor 2620Ln Vigor 2832, 2862, 2865, 2866, 2926, 2927 series VigorAP 920, VigorAP 918 series VigorSwitch P2121, G2100, P2100	3 Years
VCARE-B5	VigorCare B5 5 Year Subscription	Vigor 2620Ln Vigor 2832, 2862, 2865, 2866, 2926, 2927 series VigorAP 920, VigorAP 918 series VigorSwitch P2121, G2100, P2100	5 Years
VCARE-C3	VigorCare C3 3 Year Subscription	Vigor 2952, 2960, 2962, 3220 VigorSwitch P1280, G1280, P1282, G1282	3 Years
VCARE-C5	VigorCare C5 5 Year Subscription	Vigor 2952, 2960, 2962, 3220 VigorSwitch P1280, G1280, P1282, G1282	5 Years
VCARE-D3	VigorCare D3 3 Year Subscription	Vigor 3900, Vigor 3910 VigorSwitch G2280, G2280x, G2500, G2540x VigorSwitch P2280, P2280x, P2500, P2540x	3 Years
VCARE-D5	VigorCare D5 5 Year Subscription	Vigor 3900, Vigor 3910 VigorSwitch G2280, G2280x, G2500, G2540x VigorSwitch P2280, P2280x, P2500, P2540x	5 Years

Warranty Terms & Conditions Apply - please see here

https://www.draytek.co.uk/support/vigorcare#terms-and-conditions
