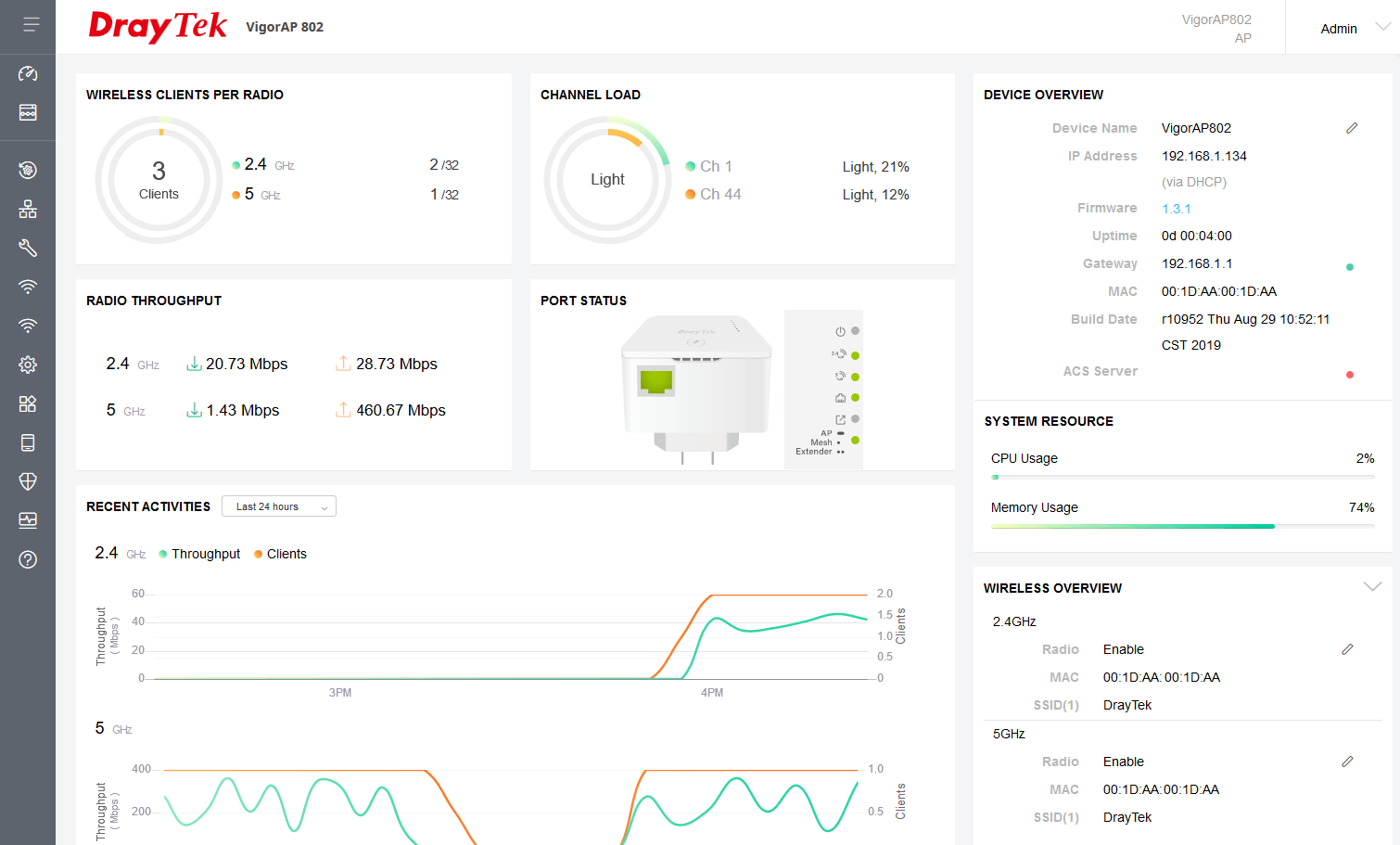

Draytek Powerline Extender Wifi Access Point VAP802 Advanced Statistics Screen
Draytek Powerline Extender Wifi Access Point VAP802 Configuring Multiple SSID with VLAN Tags
Draytek Powerline Extender Wifi Access Point VAP802 Interference Monitor Selecting Best Channel
Draytek Powerline Extender Wifi Access Point VAP802 Using the Quick Start Wizard
Draytek Powerline Extender Wifi Access Point VAP802 Wireless App Screenshot
Draytek Powerline Extender Wifi Access Point VAP802 Wireless App Screenshots of Mesh Setup

Draytek Vigor AP802 Mesh Access Point

DrayTek

Regular price £119.99 £99.79 Sale

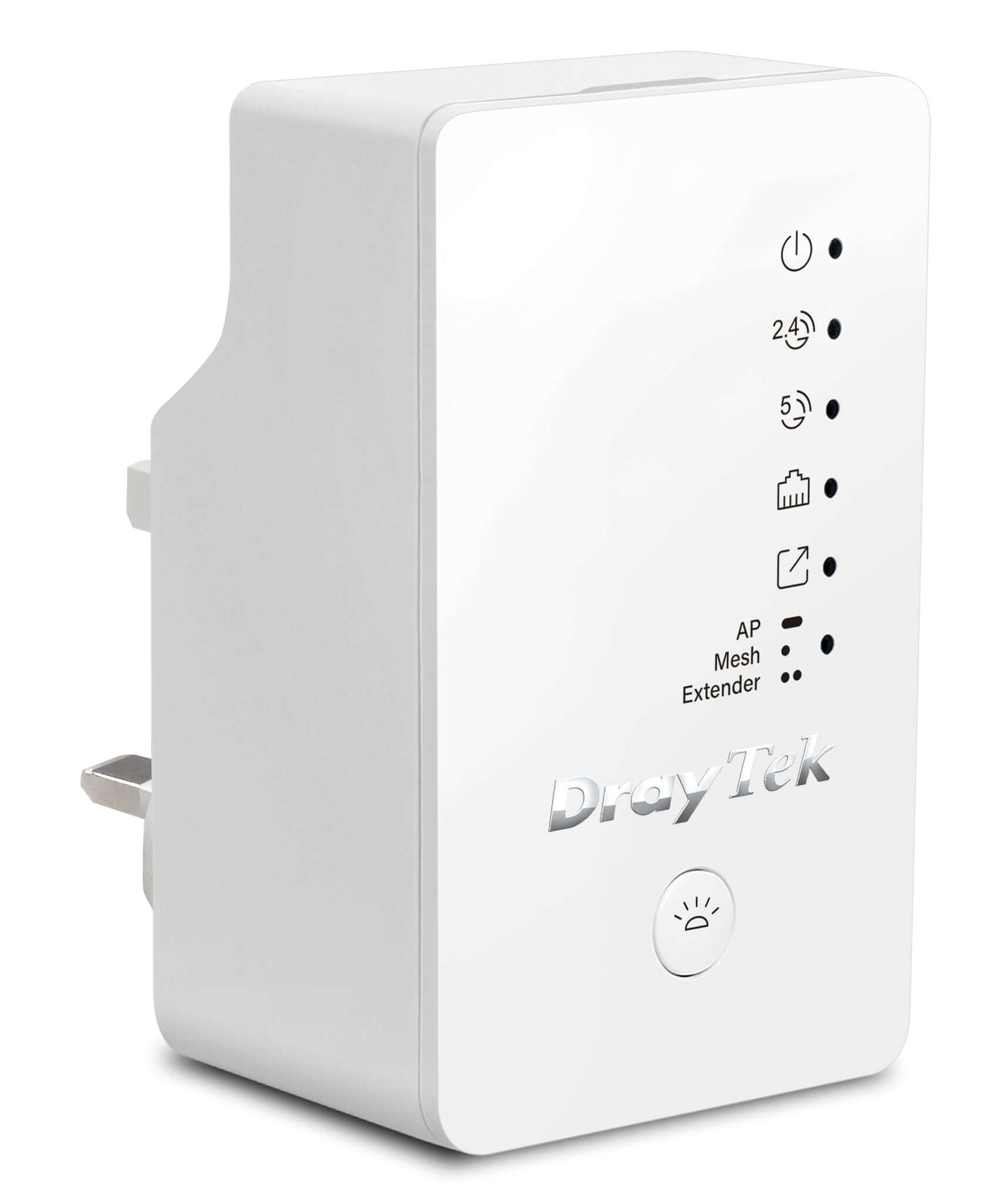

VigorAP 802

Mesh Wireless 802.11ac Range Extender & Access Point

VigorAP 802 is a high-performance Mesh Wireless Access Point and Range Extender. With a Mesh network, you can easily expand wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. DrayTek's Mesh wireless solution supports VLAN tags, allowing you to provide two distint and separate wireless networks, such as an internal and a guest network, without any cable installation required.

The VigorAP 802 is a Mesh Node to be used in conjunction with a Mesh Root, such as the VigorAP 903 Mesh Wireless Access Point. It can also be used as a traditional Access Point to provide wireless connectivity for your network. Extend wireless coverage for regular wireless networks without Mesh with the Range Extender mode. This joins the VigorAP 802 to an existing wireless network, expanding its coverage.

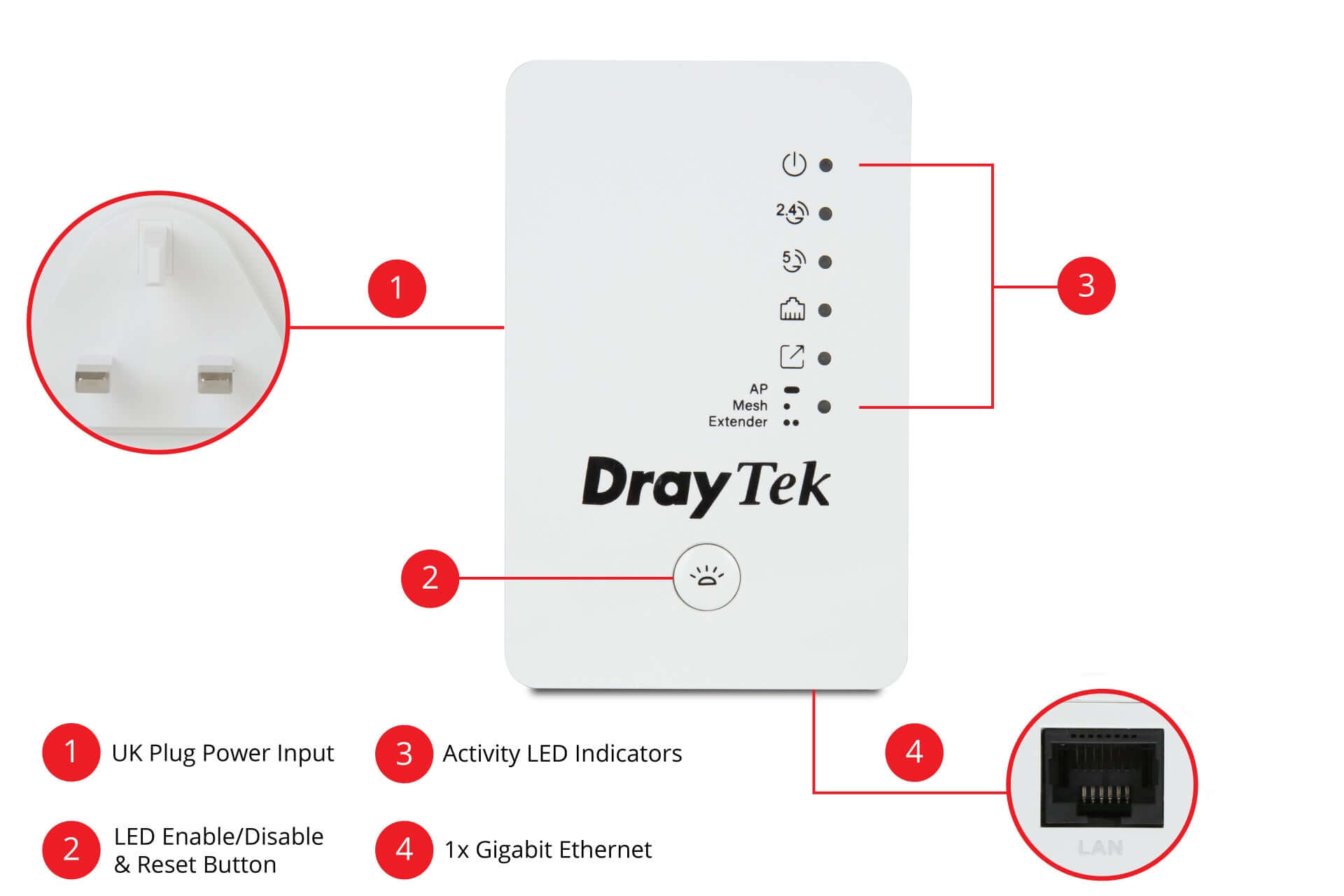

The plug design makes the VigorAP 802 easy to install and tidy once in place. With a Gigabit LAN port on the underside to connect Wired Ethernet devices into your Mesh network.

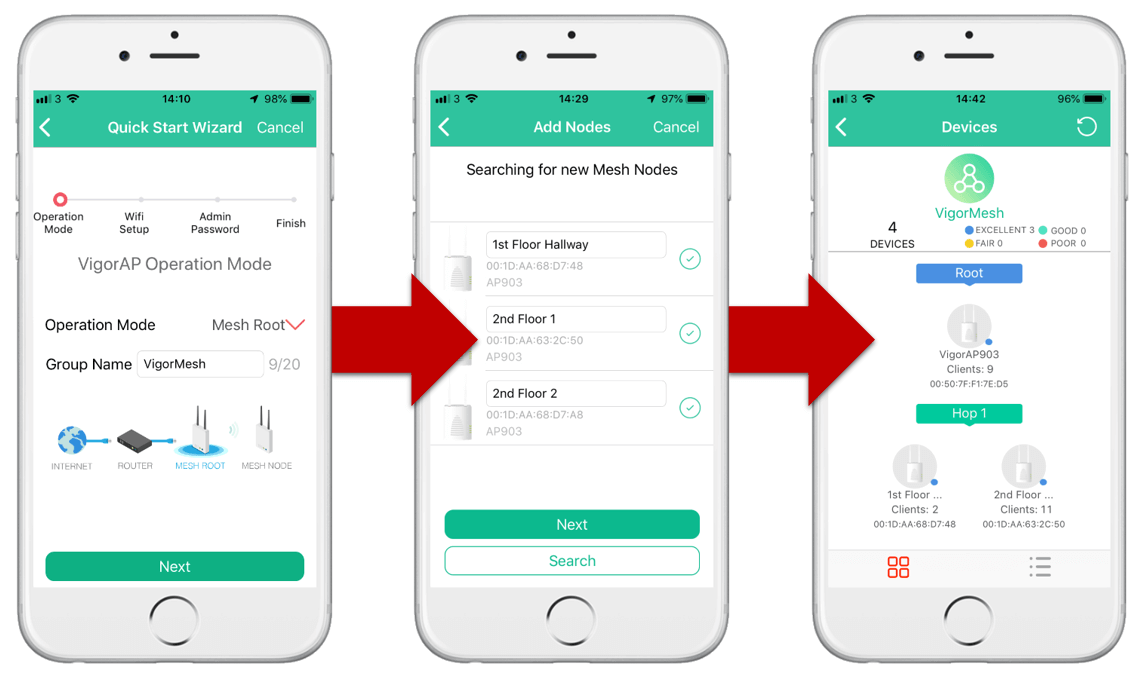

Initial setup of the VigorAP 802 is easy with the DrayTek Wireless app, whether it's joining an existing Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.
Manage the VigorAP 802 centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 802 has the flexibility to be used how you need it.



Mesh Wireless

Mesh Wireless links VigorAP access points across both Wi-Fi and Wired links to cover a large area with a single Wireless network, spanning multiple Wireless Access Points and easily managed from the Mesh Root VigorAP or with the DrayTek Wireless app.

The Mesh Root VigorAP links up to your existing Internet router, such as the DrayTek Vigor 2862 and additional VigorAPs join up as Mesh Nodes, which connect wirelessly to the Mesh Root.

Your devices see a single Wi-Fi network (SSID) and connect to the nearest VigorAP in the Mesh, instead of a distant Wi-Fi network with low signal. Internet connectivity relays through the Mesh, using the up to 866Mbps 5GHz wireless as the backhaul link, to relay between Mesh Nodes and avoid long waits for downloads.

The VigorAP 802 can operate in standalone autonomous mode, but can also form part of a centrally managed wireless installation by adding a compatible DrayTek wireless controller such as the Vigor 2862 router. This enables you to centrally control, manage and administer multiple AP devices installed around your building/campus. Management also enables efficient usage of your wireless access point through load-balancing, whereby wireless clients are distributed across several access points to reduce congestion.

The DrayTek router operating as the wireless controller can provision DrayTek VigorAP access points using the Central AP Management profiles configured on the router, with an option to Auto Provision - auto configuring newly installed VigorAP access points with the Auto Provisioning profile, upon initial connection to the DrayTek Vigor router's network.
