Draytek Vigor 3910 Multi-WAN VPN 10Gb Enterprise Level High-Performance VPN Concentrator with Powerful 1.2GHz Quad-Core Processor

The Vigor 3910 is a Multi-WAN VPN Router designed for high performance and capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load-Balancing and Failover.

Featuring 12 LAN and WAN interfaces in total, 4 dedicated LAN ports and 8 switchable ports that can operate as LAN or WAN ports to fit your network requirements.

With up to 9Gb/s of NAT & Firewall throughput, the Vigor 3910 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3910 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.

Based on the familiar DrayOS platform, the Vigor 3910 combines high performance and capacity with DrayTek's traditional ease of use and comprehensive feature set.

For multi-tenant or departmental flexibility, the Vigor3910 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.

Technical Specification (UK Hardware Spec.)

• Key Specifications

  • Multi-WAN Router with 10Gb WAN
  • Ethernet and Fibre WAN Router(RJ-45 & SFP+)
  • High-performance VPN Concentrator
    • 500 LAN-to-LAN VPN Tunnels
    • 200 DrayTek SSL VPN Tunnels

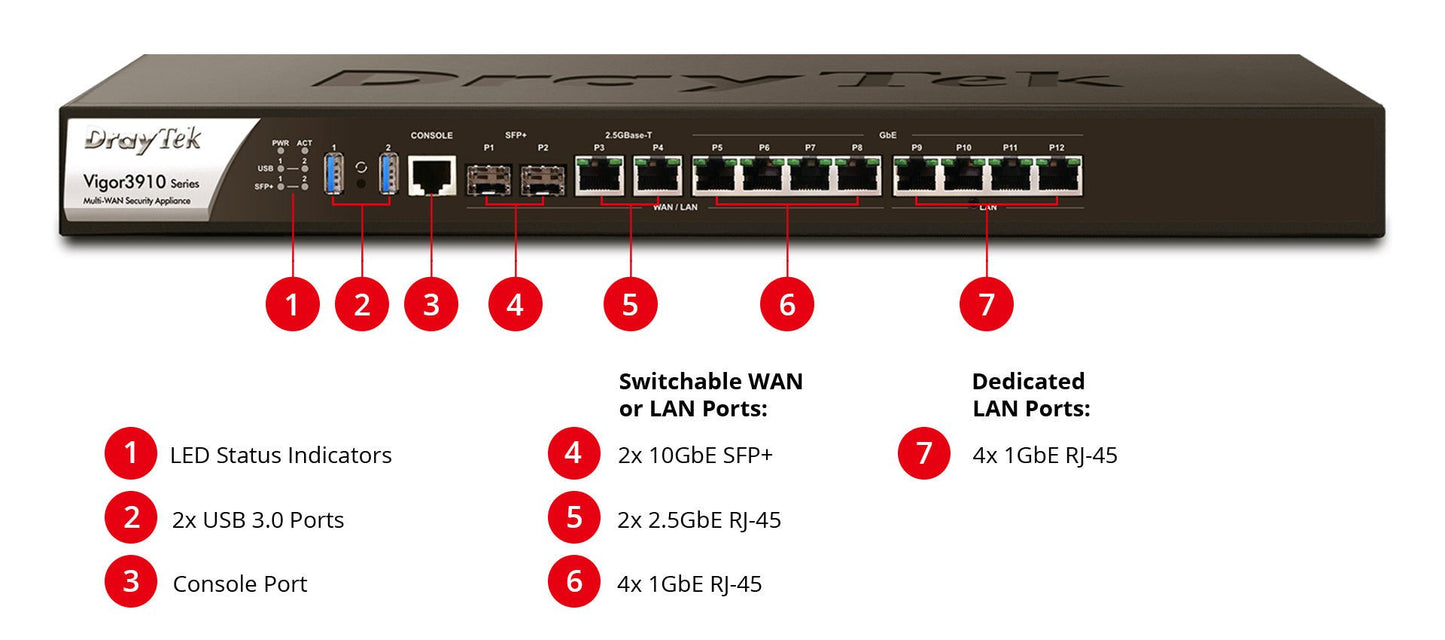

  • 8x Switchable LAN or WAN Ports
  • Load Balance up to 8 WAN interfaces:

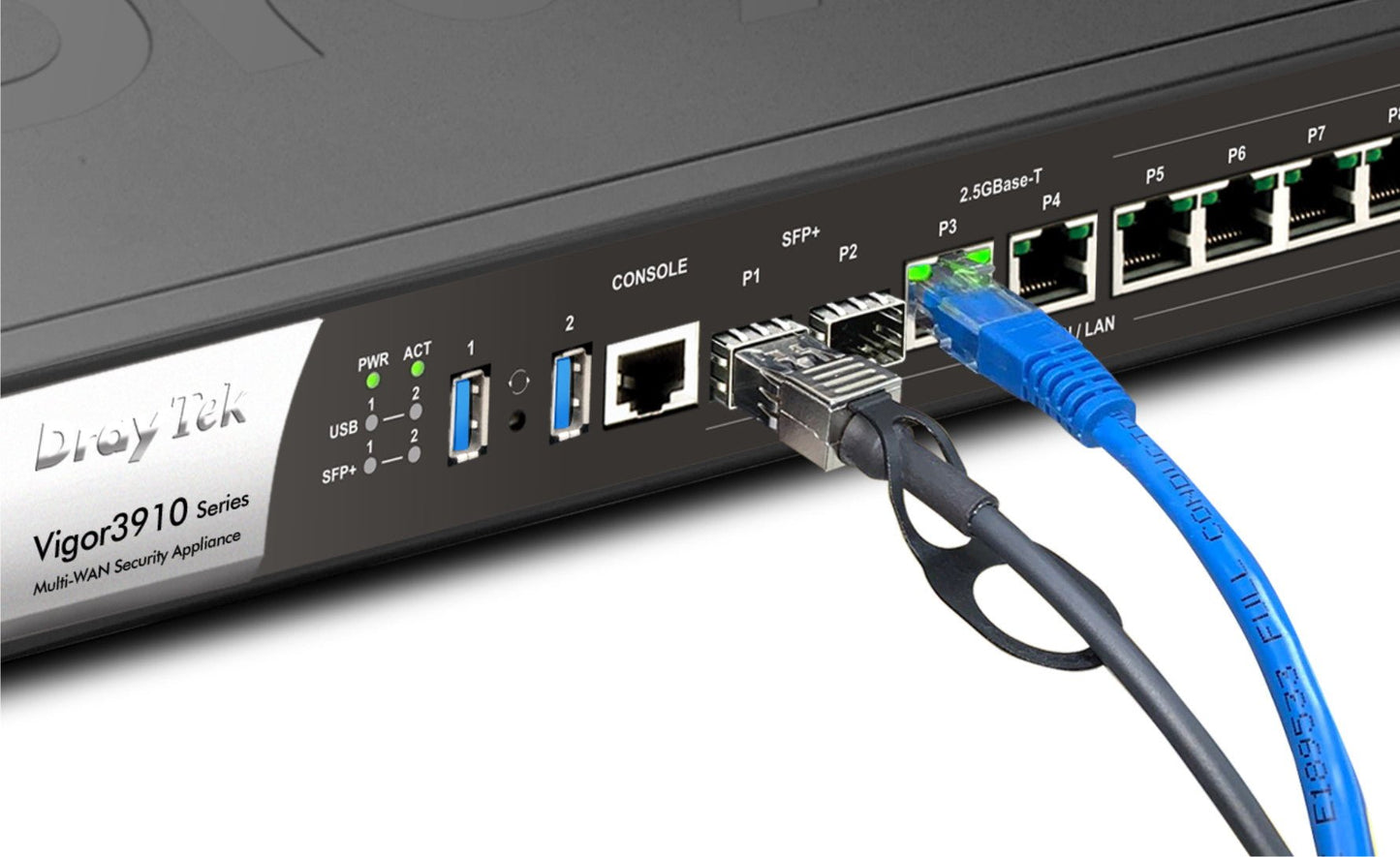

    • 2x 10GbE SFP+ LAN/WAN Ports
    • 2x 2.5GbE RJ-45 LAN/WAN Ports
    • 4x Gigabit RJ-45 LAN/WAN Ports
  • 4x Dedicated Gigabit RJ-45 LAN Ports
  • 50 LAN Subnets with VLANs (Port, 802.1q)
  • Quality of Service Assurance
  • Optional VigorCare Available
  • Can be centrally Managed by VigorACS (requires VigorACS version 2.5.4 for full support)

Internet Connection Features
IPv4	PPPoE, DHCP, Static IP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	PPP, Ping
Dynamic DNS
DrayDDNS	with LetsEncrypt Certificate support

Networking Features
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, OSPFv2, BGP
Policy-based Routing	Match via: Protocol, IP Address, Port, Domain Name, Country Direct Traffic via: WAN Interface, LAN Interface, NAT/Routing, LAN Gateway, VPN Tunnel Failover with optional Failback to: WAN/LAN, VPN, Route Policy, LAN Gateway
High Availability	Active-Standby, Hot-Standby
DNS Security (DNSSEC)
Multicast	IGMP Proxy, Bonjour
Local RADIUS server
SMB File Sharing	(Requires external storage)

VPN Features
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication	Pre-Shared Key, X.509, XAuth, EAP
IPsec Authentication	SHA-1, SHA-256, MD5
Encryption	MPPE, DES, 3DES, AES
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)

Firewall & Content Filtering Features
NAT	Port Redirection (520 rules) Open Ports (260 rules, 10 port ranges per rule) Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
User-based Firewall Policy	with Data and Time Quota Management
Content Filtering	App Enforcement - application based URL Content Filtering Web Category Filtering - Includes free 30-day trial DNS Keyword - URL or Category Web Features
DoS Attack Defense
Spoofing Defense

Box Contents
Vigor 3910 Router
Quick Start Guide
Cat-5e RJ-45 Cable
Rackmount Kit
RJ-45 to RS-232 Adapter
Silver RJ-45 Serial Cable
IEC C13 Power Cord
