• Draytek VigorAP 912C Wifi Ceiling Access Point 802.11ac Wave 2 Mesh
1 1

DrayTek Vigor AP912C Wireless Access Point

DrayTek Vigor AP912C Wireless Access Point

£99.99
£169.99 £99.99
Sale Sold out
Tax included. Shipping calculated at checkout.

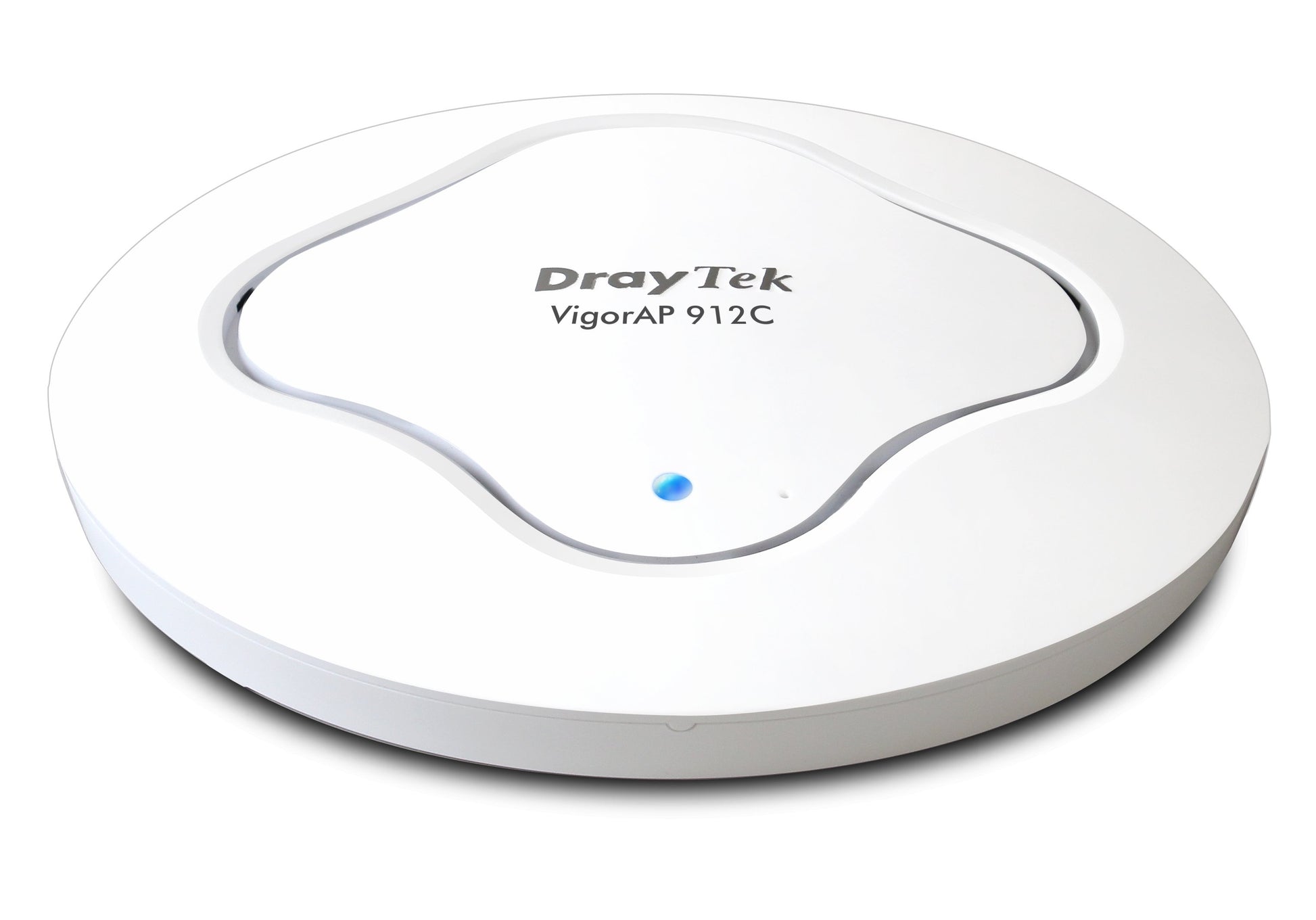

DrayTek VigorAP 912C is a WiFI 5 AC1200 802.11AC dual-band wireless access point designed for ceiling or wall mount.

It supports stand-alone operation and can also integrate with DrayTek routers or VigorACS platform for central management.  It has a capacity of up to 256 concurrent active users, ideal for a high-density environment such as a BYOD workplace. The low-profile appearance and PoE power supply provide the flexibility in deployment.



  • Ceiling/Wall mountable Auto Optimising Mesh Wireless Access Point or Range Extender
  • AC1200 - 802.11ac 'Wave 2' Dual-Band MIMO Wireless with Gigabit Lan Port
  • Power either through 802.3af PoE or DC power adapter (provided)
  • Multi-SSID over Mesh with Separate internal and Guest networks over Mesh
  • Centrally Managed or Standalone operation with Advanced Access Control with Mobile Device Management and Station Control
    View full details

    Explore Further

    Highlights

    Mesh Wireless
    Link up to 8 DrayTek VigorAP access points over wireless with Mesh. Mesh auto configures wireless links.

    Easy to Configure and Manage
    Setup of the VigorAP 912C is easy with the DrayTek Wireless app.

    Dual-Band 11ac Wave 2 Access Point
    Up to 866Mbps + 300Mbps total wireless bandwidth. Connect 128 clients per wireless band, 256 in total.

    Wireless Security & VLANs
    Secure your wireless networks with 802.1x and Access Control.

    AP & Repeater Modes
    Use the VigorAP 912C as an Access Point or extend an existing wireless network.

    Central Management with VigorACS
    Manage VigorAPs from the cloud with DrayTek VigorACS.

    Power Over Ethernet
    Power the VigorAP 912C through its Gigabit Ethernet cable with standard IEEE 802.3af PoE.

    Ceiling Mounting
    With the flexibility in mind, AP-912C is designed to be installed on ceilings and walls.

    Wireless Optimisation
    Band Steering, Airtime Fairness and AP-Assisted Mobility features help to improve wireless network efficiency.

    Multi-SSID over Mesh
    Provide separate wireless networks for 4 separate LANs over Mesh.

    Mesh - Auto-Optimisation
    DrayTek Mesh is Self-organising & Self-Healing to ensure reliable wireless connectivity.

    Central Management with a DrayTek Router
    Manage, monitor and provision VigorAPs connected to a DrayTek Vigor router.

    Dimensions and Weight

    Width 162 mm, Depth 162 mm, Height 42 mm,Weight 0.85 kg

    Specification

    VigorAP 912C
    Product Code EAN Description
    VAP912C-K 4712909129022 VigorAP 912C Ceiling-mount Mesh Wireless 802.11ac Access Point
    Key Specifications
    Ceiling-mount Mesh Wireless Access Point and Range Extender
    AC1200 - 11ac 'Wave 2' Dual Band Wireless
    Power through 802.3af PoE or DC power adapter
    Multi-SSID over Mesh – New! Separate internal and Guest networks over Mesh
    Centrally Managed or Standalone operation
    Advanced Access Control with Mobile Device Management and Station Control
    Technical Specification (UK Hardware Spec.)
    Physical Interfaces/Controls
    1 x Gigabit Ethernet LAN Port, RJ45 (accepts PoE Power)
    Factory Reset Button (recessed)
    DC Power Socket
    1 x Security Lock
    Wireless Performance
    AC1200 Class Wireless Access Point
    5GHz: PHY Rate 866Mb/s
    2.4GHz: PHY Rate 300Mb/s
    Wireless LAN Compatibility
    IEEE 802.11ac (Wave 1 & 2) / a / b / g / n
    Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation
    Up to 128 clients per radio
    2.4GHz Wireless LAN Features
    802.11b, 802.11g, 802.11n
    20 / 40 MHz
    Up to 300Mb/s total Wi-Fi throughput (PHY Rate):
    802.11b/g/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream)
    5Ghz Wireless LAN Features
    802.11ac (Wave 1 & 2) / 802.11n / 802.11a
    20 / 40 / 80 MHz
    Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
    DFS/TPC Support
    Multi-User MIMO - New!
    Up to 866Mb/s total Wi-Fi throughput (PHY Rate):
    802.11a/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream)
    802.11ac: 866Mb/s PHY rate (433Mb/s per Spatial Stream)
    Security Features
    Wireless Encryption:
    WPA2-Personal (WPA2/PSK)
    WPA2-802.1x
    WPA3-Personal - New!
    Mixed (WPA2+WPA3)/PSK*
    also supports WPA/WEP (Not recommended)
    Built in 802.1x server (PEAP / EAP-TLS)
    802.1x RADIUS Proxy (PEAP / EAP-TLS)
    PMK Caching & Pre-authentication
    Wireless Client Isolation
    Control Isolation of 2.4GHz and 5GHz bands
    Hidden SSIDs (Selectable)
    WPS - WiFi Protected Setup
    MAC Address Filtering (ACL) - Up to 256 entries
    Mobile Device Management
    EAPOL Key Retry - New! - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
    Wireless Control Features
    Wireless Client Status List in WUI
    Client Limit per radio
    Client Limit per SSID - New!
    Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
    MAC Cloning
    Built-in DHCP Server & DHCP Relay
    Trusted DHCP Server IP for WLAN - New! - Only specifed DHCP server IP can assign IP addresses to WLAN clients
    802.1q VLAN
    Station Control - Time limit wireless connectivity per Station (e.g. 1 hour) & set allowed Reconnection time (e.g. 1 day)
    Device Object/Group Control - New! - Schedule Internet access for individual devices or groups
    Wireless Performance Optimisation
    Airtime Fairness
    Band Steering
    AP-Assisted Client Mobility
    WMM (Wireless MultiMedia)
    Bandwidth Management (Per Station / Per SSID)
    Diagnostic Features
    System Log
    Speed Test
    Traffic Graph
    Wireless LAN Statistics
    Interference Monitor - Built-in Site Surveyor
    Management
    Web Interface (HTTP/HTTPS)
    DHCP Client
    TR-069 Control (For VigorACS or other TR-069 platform)
    CLI (Command Line Interface) - Telnet
    Firmware upgrade by TR-069/HTTP
    Central AP Management (from compatible DrayTek router/controller)
    SNMP v2, v2c, v3
    Management VLAN
    Configuration File Export (with password) & Import
    Wireless Auto On/Off - New! - Disable Wireless if VigorAP is unable to ping specified host
    Power Requirements
    Maximum Power Consumption: 10 Watt
    DC 12V via external 100-240v AC/DC PSU
    802.3af PoE via LAN port. Requires PoE injector or a PoE switch such as the VigorSwitch P2121
    Environmental & Physical
    Operating Temperature : 0 ° C to 45 ° C
    Operating Humidity: 10% to 90% (Non-condensing)
    Physical Dimensions: 162mm (wide/diameter) x 42mm (high)
    Weight : 0.3kg
    Ceiling or Wall Mountable (requires rear cable entry)
    Pack Contents
    VigorAP 912C wireless access point
    Ceiling Mount Bracket
    T-Rail Brackets & Screws
    Quick Start Guide
    Ethernet Cable
    DC 12V PSU
    ROHS & CE Compliant
    Warranty
    Two (2) Years RTB
    Optional VigorCare Enhanced Warranty Available
    VigorCare A3 3 Year Subscription: VCARE-A3
    VigorCare A5 5 Year Subscription: VCARE-A5

    Warranty Information

    Please check the Specification Section for Warranty Information
