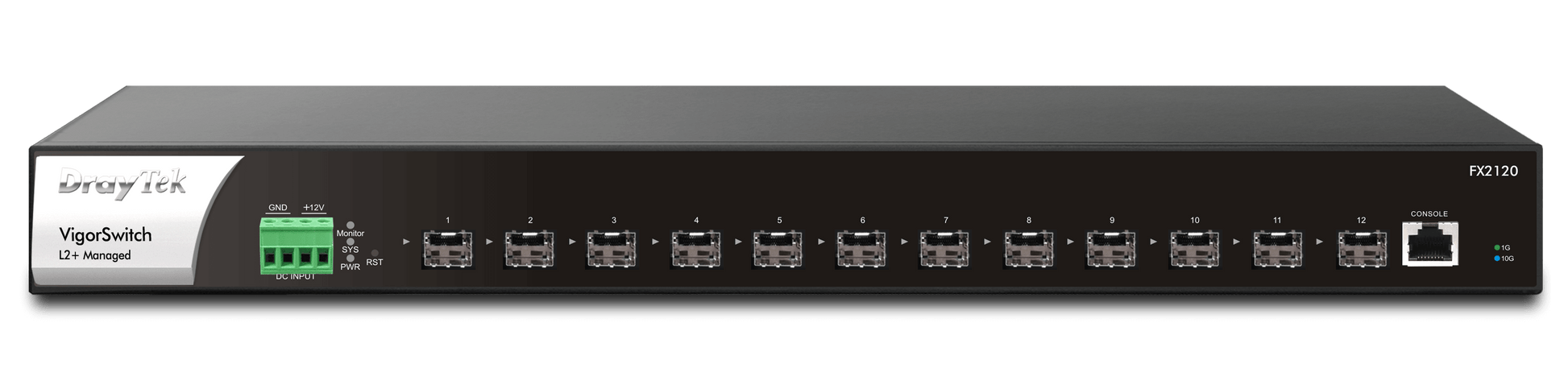

DrayTek VigorSwitch FX2120 12 port 10Gbps SFP+ Switch

Name: DrayTek VigorSwitch FX2120 12 port 10Gbps SFP+ Switch
Brand: Draytek
SKU: VSFX2120-K
Price: 369.99 GBP
Availability: InStock

£369.99

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

DrayTek VigorSwitch Full Fibre-10G FX2120 12 port 10Gbps SFP+ Layer 2+ Managed

DrayTek VigorSwitch FX2120 is a full 10 Gigabit switch with 12x SFP+ ports for uplink/downlink and 1x console port. It is well-suited for ISP and enterprise network with intensive data transmission.

Supporting OpenFlow 1.3, it’s also a future-proofed switch that can be operating in either traditional switch or SDN switch mode.

Equipped with Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch FX2120 improves local network sustainability and efficiency regardless of the gateway. Furthermore, with IP Conflict Detection & Prevention, ONVIF Surveillance and a lot more, this is the balanced switch that brings advanced features into mid-sized environments.

Numbers at a glance

12x SFP+

1000Mbps/10Gpbs fiber slot

240 Gbps

Switching Capacity

16 Mbit

Buffer Size

8x LACP

Up to 8 Link Aggregation Groups

Product Features

Auto Surveillance & Voice VLAN

Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

10G SFP+

Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

ONVIF-Friendly

Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

IPv6 Ready

VigorSwitch FX2120 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

Wire-Speed VLAN Routing

Improve overall network performance by using VigorSwitch FX2120 to route the inter-VLAN traffic directly and offload the router.

Web-Based GUI

Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.

IP Conflict Prevention

Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Multiple Admin Accounts

Multiple Admin accounts with two levels of administrator privilege.

Access Control

VigorSwitch FX2120 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.

Central Switch Management

Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

QoS (Quality of Service)

Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Energy-Efficient Ethernet

Compliant with IEEE 802.3az to reduce power consumption.

UserGuide

Datasheet

View full details

Explore Further

Highlights

Layer 2+ VLAN Routing
Use the VigorSwitch to link multiple subnets with Static Routes, VLAN Routing and integrated DHCP server.

Auto Surveillance VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Access Control
VigorSwitch FX2120 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter.

Rack Mountable & Silent
Includes rack mount fittings to fit in any 19" rack with 1u height. Quiet in operation.

Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.

10GbE SFP+ Ports
12 SFP+ ports provide fast, high bandwidth uplinks to Fibre, Switches, Servers & Network Attached Storage.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

IPv6 Ready
VigorSwitch FX2120 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

ONVIF IP Camera Management
Manage and view ONVIF capable cameras, automatically detecting their topology on the network.

Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

Hardware Monitor with Smart Fan
Quieter in operation at low-load. Alerts if a fan fails or switch overheats.

Dimensions and Weight

Width 441 mm, Depth 197 mm, Height 44 mm,Weight 2.7 kg

Specification

Key Specifications
12x SFP+ 10GbE Ports
1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
VLAN Routing & Static Route with DHCP server / relay
QoS for Application traffic prioritisation
1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Centrally managed or standalone operation
Console Port
Technical Specification (UK Hardware Spec.)
Physical Interfaces
12 SFP+ Ports – 10GbE
Console Port (RJ-45 physical, RS-232 electrical)
VLAN
802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 255 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Protocol VLAN
MAC-based VLAN
Management VLAN
Port Isolation
QoS
Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
802.1p CoS
DSCP
CoS-DSCP
IP Precedence ToS
Network Security
IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
AAA Authentication
MAC Authentication
Protected Port / Port Isolation
Static Port Security
Dynamic ARP Inspection
DHCP Snooping with Option 82
Loop Detection & Prevention
Access Control Lists (ACL)
Up to 512 ACL Entries
Source and destination MAC
VLAN ID
IPv4/v6 address
Protocol
TCP/UDP port
Spanning Tree
Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)
Link Aggregation
Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing
Networking Performance
Switching Capacity: 240Gbps
Forwarding Rate: 178.56 Mpps at 64 bytes
MAC Addresses Supported: 32,000
Jumbo Frames up to 12KB
Packet Buffer size: 16Mbit
Layer 3 Routing Table: Up to 12k Entries
Multicast
Up to 256 multicast groups
Multicast Group Filtering / Throttling
IGMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier
Multicast VLAN registration
MLD Snooping V1/V2
Immediate Leave
Report Suppression
IGMP/MLD Querier
AAA
RADIUS / TACACS+ Authentication for Management
Multiple AAA Server
MAC / Inaccessible Authentication bypass
RADIUS Authentication 802.1X
Accounting
Guest VLAN
Port based Authorisation
802.1X Single/Multi
MAC-based
Web-based
Attribute Assignment
User Privilege
VLAN
TACACS+ Authentication
Port Authorisation
Accounting
ONVIF Surveillance Management
Discovery of ONVIF-compliant IP Cameras
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance
Device Information
Network Settings Configuration
Time Settings
Reboot
Reset to Factory Default Settings
Ping Check with Mail Alert on disconnection
Management
Central Management
VigorACS
VigorConnect
Vigor Router Switch Management (requires router firmware support)
OpenFlow
Running/Startup/Backup Configuration
sFlow
IPv4 & IPv6 Dual-Stack
LLDP(802.1ab) + MED
Web User Interface (HTTP or HTTPS)
Firmware Upgrade/Backup by HTTP/HTTPS
HTTP (Non-TLS) can be disabled for increased security
Configuration Backup/Restore
Factory Default
System Reboot
Dual Firmware Image (Active & Backup Firmware)
Command Line Interface (CLI) via SSH/Telnet
Console Port (RJ45) for CLI management
OpenVPN Client with Certificate-based auth
SNMP v1, v2c, v3 (with Generic Traps)
RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
SNTP (Simple Network Time Protocol)
Diagnostics
Port Status & Usage display
CPU/RAM Usage display
MAC Address Table
Device Check
Syslog
Mail Alert
Port Status
Port Speed Change
System Restart
Device Check
IP Conflict
ONVIF IP Camera Snapshot
Port Mirroring
Ping Diagnostics
Port-based Cable Test
Hardware Monitor
Remote Monitoring through Web Interface & VigorACS *
Hardware Monitor Data Recording & Graphing
Email & LED alert on Fan failure, voltage high/low and overheat
Temperature Monitoring
Voltage Monitoring
Smart Fan Control for low noise operation
Power Saving Mode
Layer 3 Networking Features
Static Route
VLAN Routing
IPv4 Features
DHCP Client
DNS Client
DHCP Server *
Up to 8 subnets
Option 82, 66, 67
DHCP Relay
DHCP Snooping
DHCP IP Source Guard
IPv6 Features
Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client
General IEEE Standards Compliance
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.3af PoE
802.3at PoE+
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree
802.1x Port Based Network Access Control
802.1ab Link Layer Discovery Protocol (LLDP)
802.1ad QinQ
Operating Requirements
Power Input Requirements: 100-240VAC @ 2A
Power supply: Internal
Maximum Input Power Consumption: 28.9 Watts
Cooling: Fan
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Operating Humidity: 5% to 90% RH (non-condensing)
Physical Specifications
Dimensions: 441 x 197 x 44 mm (W x D x H)
Rack mountable: 1U
Weight: 2.67 kg (excluding SFP modules/cables)
ROHS & CE Compliant
Warranty
2 Year Manufacturer's RTB
Optional VigorCare Enhanced Warranty Available
VigorCare D3 3 Year Subscription: VCARE-D3
VigorCare D5 5 Year Subscription: VCARE-D5
Box Contents
VigorSwitch FX2120 Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
Quick Start Guide

Warranty Information

Please check the Specification Section for Warranty Information
