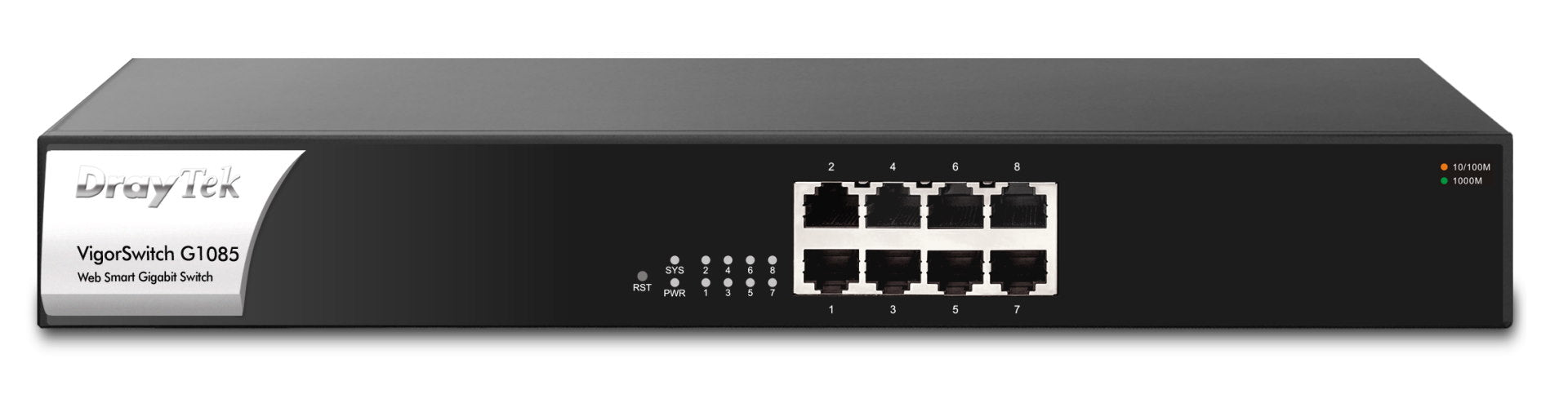

DrayTek VigorSwitch G1085 8 Port Gb Enterprise Level Managed Switch

1GbE Smart Managed Gigabit Switch with 8 Gigabit Ports

The VigorSwitch G1085 is a high-performance, Smart Managed Gigabit Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch's Access Control List.

Designed for centralised management, the VigorSwitch G1085 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.



Key Features & Benefits
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.

Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.

Benefits: Less time to install, move ports around without reconfiguring VLANs.

Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.

Benefits: Secure & control access to your network.

IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.

Benefits: Easily configure, deploy & manage connected IP Cameras.

Link Aggregation & Port Trunking
With Link Aggregation, two or more ports can be bundled together to operate as one link, aggregating the traffic through the ports for increased speed and additional resilience to cable failures.

Benefits: Increased throughput and resilience for network uplinks.

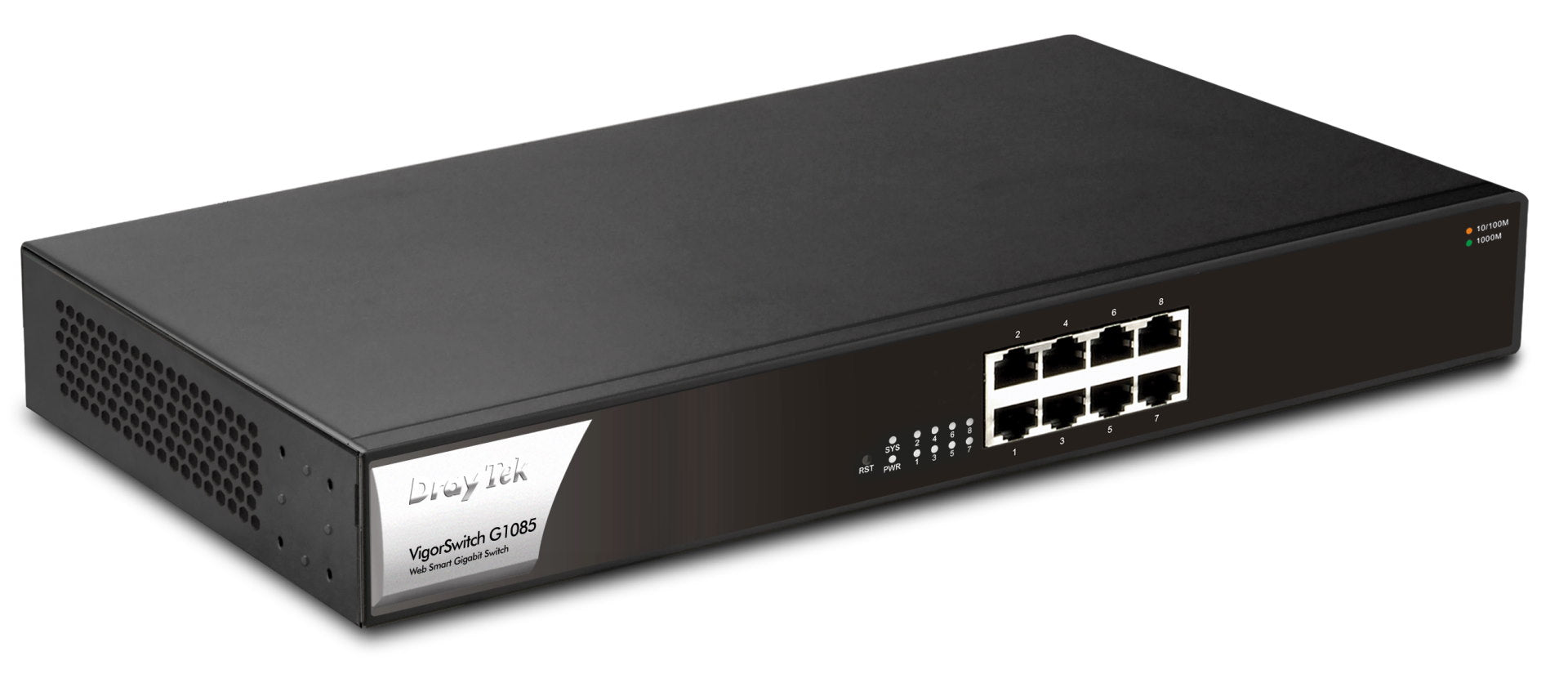

Rack Mountable & Silent
Fit the VigorSwitch G1085 with the included rack mounting kit into any standard 19” rack.

The switch is fanless and silent, ideal for use in a quiet office environment.

Benefits: Flexible installation. Quiet in operation.



Key Specifications

  • 8 x RJ-45 Gigabit Ethernet Ports
  • Cloud Managed with VigorACS
  • 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
  • ONVIF IP Camera Surveillance Management with Device Check
  • QoS for application traffic prioritisation
  • Access Control List (ACL) for port & traffic level security
  • Port Mirroring & Link Aggregation
  • IGMP Snooping & Querying
  • IPv4 and IPv6 Support with IP Conflict Prevention
  • Centrally managed or standalone operation

Technical Specification (UK Hardware Spec.)

Physical Interfaces

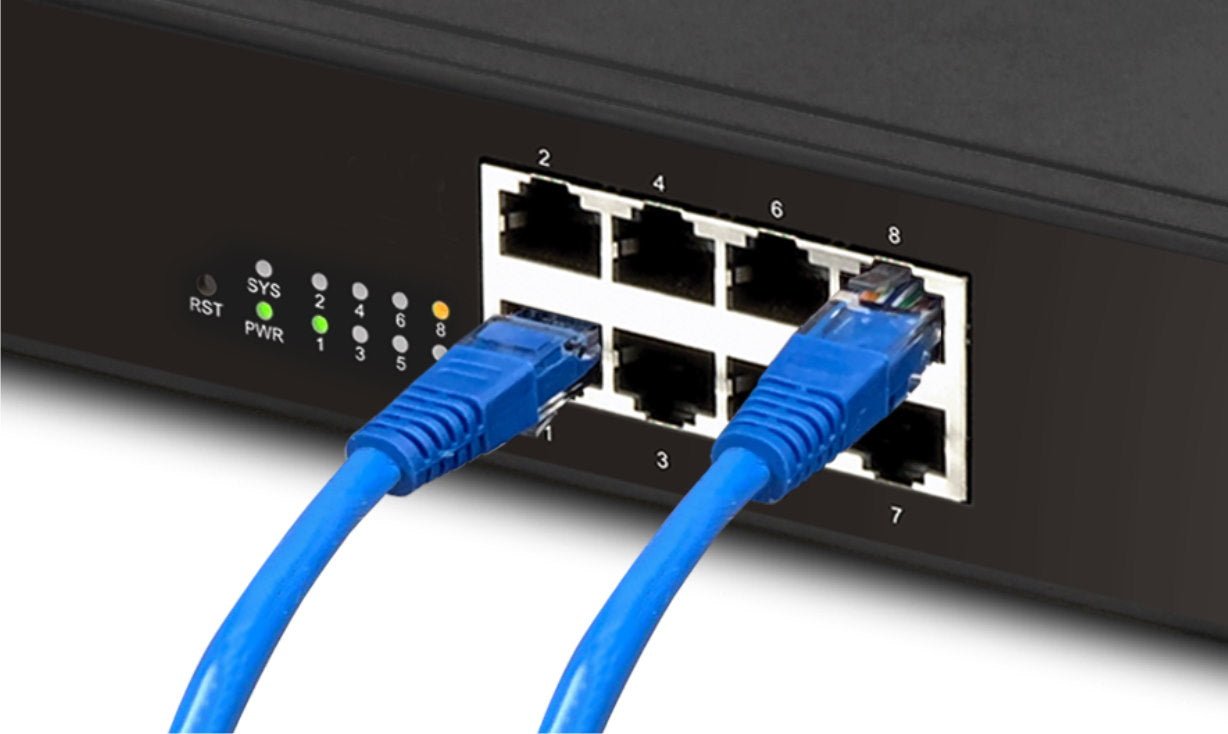

  • 8 RJ-45 Ethernet Ports – 10/100/1000Mbps
  • Factory Reset Button

VLAN

  • 802.1q Tag-based VLAN
  • Port-based & MAC-based VLANs
  • Up to 255 VLANs (out of 4096 VLAN IDs)
  • Voice VLAN (OUI Mode)
  • Surveillance VLAN (OUI Mode)
  • Management VLAN
  • Port Isolation (Protected Ports)

QoS

  • Support 8 priority queues
  • Port-Based rate control (Ingress & Egress)
  • Priority queue schedule (WRR or Strict Priority)
  • Rate Limit
  • Class of Service
    • 802.1p CoS
    • DSCP
    • CoS-DSCP
    • IP Precedence ToS

Network Security

  • IP Source Guard with ARP inspection
  • IP Conflict Prevention
  • Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
  • DoS Attack protection
  • Protected Port / Port Isolation
  • Static Port Security
  • Loop Detection & Prevention
  • Access Control Lists (ACL)
    • Up to 512 ACL Entries
    • Source and destination MAC
    • VLAN ID
    • IPv4/v6 address
    • Protocol
    • TCP/UDP port

Spanning Tree

  • Spanning Tree Protocol (STP)
  • Rapid Spanning Tree Protocol (RSTP)

Link Aggregation

  • Combine multiple ports to increase bandwidth
  • 8 Aggregation Groups
  • Up to 8 ports in each group
  • LACP or Static setup
  • Supports traffic load balancing

Networking Performance

  • Switching Capacity: 16Gbps
  • Forwarding Rate: 11.9Mpps
  • Jumbo Frames up to 9KB
  • Packet Buffer size: 4.1Mbit

Multicast

  • Up to 256 multicast groups
  • Multicast Group Filtering / Throttling
  • IGMP Snooping V2/V3 (BISS)
  • IGMP V2/V3 Querier
  • Multicast VLAN registration

ONVIF Surveillance Management

  • Discovery of ONVIF-compliant IP Cameras
  • Surveillance Topology
  • Real-Time Video Streaming
  • ONVIF Device Maintenance
    • Device Information
    • Network Settings Configuration
    • Time Settings
    • Reboot
    • Reset to Factory Default Settings
    • Ping Check with Mail Alert on disconnection

Management

  • Central Management
    • VigorACS
    • VigorConnect
    • Vigor Router Switch Management
      (requires router firmware support)
  • IPv4 & IPv6 Dual-Stack
  • Web User Interface
  • Firmware Upgrade/Backup
  • Configuration Backup/Restore
  • Factory Default
  • System Reboot
  • 2-level Admin Privileges
  • Multiple Admin Accounts
  • Command Line Interface (CLI) via SSH/Telnet
  • OpenVPN Client with Certificate-based auth
  • SNMP v1, v2c, v3 (with Generic Traps)
  • SNTP (Simple Network Time Protocol)
  • LLDP (802.1ab)

Diagnostics

  • Port Status & Usage display
  • CPU/RAM Usage display
  • MAC Address Table
  • Device Check
  • Syslog
  • Mail Alert
    • Port Status
    • Port Speed Change
    • System Restart
    • Device Check
    • IP Conflict
    • ONVIF IP Camera Snapshot
  • Port Mirroring
  • Ping Diagnostics
  • Port-based Cable Test

IPv4 Features

  • DHCP Client
  • DNS Client

IPv6 Features

  • Auto Configuration
  • Static IPv6 Address & Prefix Length
  • Static IPv6 Default Gateway
  • IPv6 Neighbour Discovery (ND)
  • IPv6 Duplicate Address Detection
  • ICMPv6
  • DHCPv6 Client

General IEEE Standards Compliance

  • 802.3 10Base-T
  • 802.3u 100Base-T
  • 802.3ab 1000Base-T
  • 802.3x Flow Control
  • 802.3 Auto-Negotiation
  • 802.1q Tag-based VLAN
  • 802.1p Class of Service
  • 802.1d STP
  • 802.1w RSTP
  • 802.3ad LACP
  • 802.1AB LLDP
  • 802.3az EEE

Operating Requirements

  • Power Input Requirements: 100-240VAC
  • Power supply: Internal
  • Maximum Input Power Consumption: 9 Watts
  • Cooling: Passively cooled
  • Operating Temperature: 0 °C to 45 °C
  • Storage Temperature: -20 °C to 70 °C
  • Operating Humidity: 5% to 90% RH (non-condensing)

Physical Specifications

  • Dimensions: 330 x 230 x 44 mm (W x D x H)
  • Rack mountable: 1U
  • Weight: 1.83Kg

Box Contents

  • VigorSwitch G1085 Network Switch
  • UK IEC13 Power Cable
  • 1U Rack Mount Fittings
  • Quick Start Guide

ROHS & CE Compliant

Warranty : 2 Year Manufacturer's RTB
