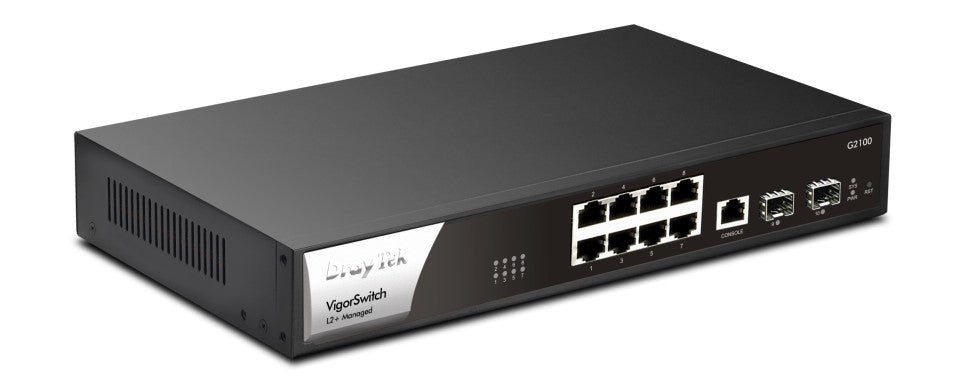

Draytek Vigor Switch G2100 8-Port Gigabit Layer 2+ Managed Switch Side View

DrayTek VigorSwitch G2100 8-Port Gigabit Layer 2+ Managed Switch

AdmireIT

Regular price £121.99 Sale



DrayTek VigorSwitch G2100 8-Port Gigabit Layer 2+ Managed Switch with 2 SFP Uplink Ports

The VigorSwitch G2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.

The VigorSwitch G2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.



Key Features & Benefits
Great Security Features
Protect your network against unauthorised access and network problems with DrayTek’s IP Conflict Prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. Check the features sections for more information.

Benefits: Secure & control access to your network.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

Benefits: Provides a fast and secure bridge between networks.

Rack Mountable & Silent
Fit the VigorSwitch G2100 with the included rack mounting kit into any standard 19” rack. Fanless and silent, these switches are ideal for use in a quiet office or home environment.

Benefits: Flexible installation. Quiet in operation.

IP Conflict Prevention
Use DrayTek's powerful and easy to configure IP Conflict Prevention system to improve network stability and security, by avoiding IP conflicts caused by a misconfigured or malicious host.

Benefits: Ensures network stability without intervention.

ONVIF IP Camera Surveillance Management
Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. PoE Device Check and Email Alerts with Camera Snapshot help to rapidly detect & troubleshoot problems.

Benefits: Easily configure, deploy & manage IP Cameras.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Key Specifications

  • 8 x RJ-45 Gigabit Ethernet Ports with PoE+
  • Cloud Managed with VigorACS
  • 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
  • ONVIF IP Camera Surveillance Management with Device Check
  • Access Control List (ACL) for port & traffic level security
  • Port Mirroring & Link Aggregation
  • IGMP Snooping & Querying
  • IPv4 and IPv6 Support with IP Conflict Prevention
  • Centrally managed or standalone operation

Technical Specification (UK Hardware Spec.)

Physical Interfaces

  • 8 RJ-45 Ethernet Ports – 10/100/1000Mbps
  • 2 SFP Ports – 1000Mbps
  • Console Port (RJ-45 physical, RS-232 electrical)
  • Factory Reset Button

VLAN

  • 802.1q Tag-based VLAN
  • Port-based and MAC-based VLANs
  • QinQ (Basic)
  • GVRP – General VLAN Registration Protocol
  • Up to 256 VLANs (out of 4096 VLAN IDs)
  • 802.1v Protocol-Based VLAN
  • Voice VLAN (OUI Mode)
  • Surveillance VLAN (OUI Mode)
  • Protocol VLAN
  • MAC-based VLAN
  • Management VLAN
  • Port Isolation

QoS (Quality of Service)

  • Support 8 priority queues
  • Port-Based rate control (Ingress & Egress)
  • Priority queue schedule (WRR or Strict Priority)
  • Rate Limit
  • Class of Service
    • 802.1p CoS
    • DSCP
    • CoS-DSCP
    • IP Precedence ToS

Network Security

  • IP Source Guard with ARP inspection
  • Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
  • DoS Attack protection
  • AAA Authentication
  • MAC Authentication
  • Protected Port / Port Isolation
  • Static Port Security
  • Dynamic ARP Inspection
  • DHCP Snooping with Option 82
  • Loop Detection & Prevention
  • Access Control Lists (ACL)
    • Up to 512 ACL Entries
    • Source and destination MAC
    • VLAN ID
    • IPv4/v6 address
    • Protocol
    • TCP/UDP port

Spanning Tree

  • Spanning Tree Protocol (STP)
  • Rapid Spanning Tree Protocol (RSTP)
  • Multiple Spanning Tree Protocol (MSTP)

Link Aggregation

  • Combine multiple ports to increase bandwidth
  • 8 Aggregation Groups
  • Up to 8 ports in each group
  • LACP or Static setup
  • Supports traffic load balancing

Networking Performance

  • Switching Capacity: 20Gbps
  • Forwarding Rate: 14.88Mpps (64 bytes)
  • Jumbo Frames up to 9KB
  • Packet Buffer size: 4.1Mbit

Multicast

  • Up to 256 multicast groups
  • Multicast Group Filtering / Throttling
  • IGMP Snooping V2/V3 (BISS)
  • IGMP V2/V3 Querier
  • Multicast VLAN registration
  • MLD Snooping V1/V2
    • Immediate Leave
    • Report Suppression
    • IGMP/MLD Querier

AAA (Authentication, Authorisation, Accounting)

  • RADIUS / TACACS+ Authentication for Management
  • Multiple AAA Server
  • MAC / Inaccessible Authentication bypass
  • RADIUS Authentication 802.1X
    • Accounting
    • Guest VLAN
    • Port based Authorisation
      • 802.1X Single/Multi
      • MAC-based
      • Web-based
    • Attribute Assignment
      • User Privilege
      • VLAN
  • TACACS+ Authentication
    • Port Authorisation
    • Accounting

ONVIF Surveillance Management

  • Discovery of ONVIF-compliant IP Cameras
  • Surveillance Topology
  • Real-Time Video Streaming
  • ONVIF Device Maintenance
    • Device Information
    • Network Settings Configuration
    • Time Settings
    • Reboot
    • Reset to Factory Default Settings
    • Ping Check with Mail Alert on disconnection

Management

  • Central Management
    • VigorACS
    • VigorConnect
    • Vigor Router Switch Management (requires router firmware support)
  • IPv4 & IPv6 Dual-Stack
  • LLDP(802.1ab) + MED
  • Web User Interface (HTTP or HTTPS)
  • Firmware Upgrade/Backup by HTTP/HTTPS
  • HTTP (Non-TLS) can be disabled for increased security
  • Configuration Backup/Restore
  • Factory Default
  • System Reboot
  • Command Line Interface (CLI) via SSH/Telnet
  • Console Port (RJ45) for CLI management
  • OpenVPN Client with Certificate-based auth
  • SNMP v1, v2c, v3 (with Generic Traps)
  • RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
  • SNTP (Simple Network Time Protocol)

Diagnostics

  • Port Status & Usage display
  • CPU/RAM Usage display
  • MAC Address Table
  • Device Check
  • Syslog
  • Mail Alert
    • Port Status
    • Port Speed Change
    • System Restart
    • Device Check
    • IP Conflict
    • ONVIF IP Camera Snapshot
  • Port Mirroring
  • Ping Diagnostics
  • Port-based Cable Test

Layer 3 Networking Features

  • Static Route
  • VLAN Routing
  • DHCP Server (from firmware 2.6.8)

IPv4 Features

  • DHCP Client
  • DNS Client
  • DHCP Server (from firmware 2.6.8)
    • Up to 8 subnets
    • Option 82, 66, 67
    • DHCP Snooping
    • DHCP IP Source Guard

IPv6 Features

  • Auto Configuration
  • Static IPv6 Address & Prefix Length
  • Static IPv6 Default Gateway
  • IPv6 Neighbour Discovery (ND)
  • IPv6 Duplicate Address Detection
  • ICMPv6
  • DHCPv6 Client

General IEEE Standards Compliance

  • 802.3 10Base-T
  • 802.3u 100Base-T
  • 802.3ab 1000Base-T
  • 802.3x Flow Control
  • 802.3 Auto-Negotiation
  • 802.1q Tag-based VLAN
  • 802.1p Class of Service
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • 802.3ad LACP
  • 802.1ad QinQ
  • 802.1x Port Access Control
  • 802.1AB LLDP
  • 802.3az EEE

Operating Requirements

  • Power Input Requirements: 100-240VAC
  • Power supply: Internal
  • Maximum Input Power Consumption: 18 Watts
  • Cooling: Passively cooled
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: -20 °C to 70 °C
  • Operating Humidity: 5% to 90% RH (non-condensing)

Physical Specifications

  • Dimensions: 270 x 181 x 44 mm (W x D x H)
  • Rack mountable: 1U
  • Weight: 1.78 kg (3lb)

Box Contents

  • VigorSwitch G2100 Network Switch
  • UK IEC13 Power Cable
  • 1U Rack Mount Fittings
  • Quick Start Guide

ROHS & CE Compliant

Warranty

  • Two (2) Year Manufacturer's RTB
  • Optional VigorCare Enhanced Warranty Available
    • VigorCare B3 3 Year Subscription: VCARE-B3
    • VigorCare B5 5 Year Subscription: VCARE-B5
