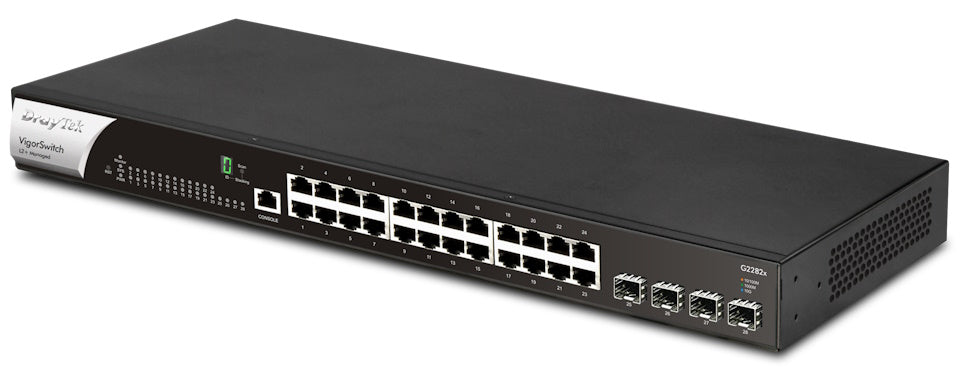

• DrayTek VigorSwitch G2282x 28-Port Layer 2+ Managed 10G Switch Right Side View

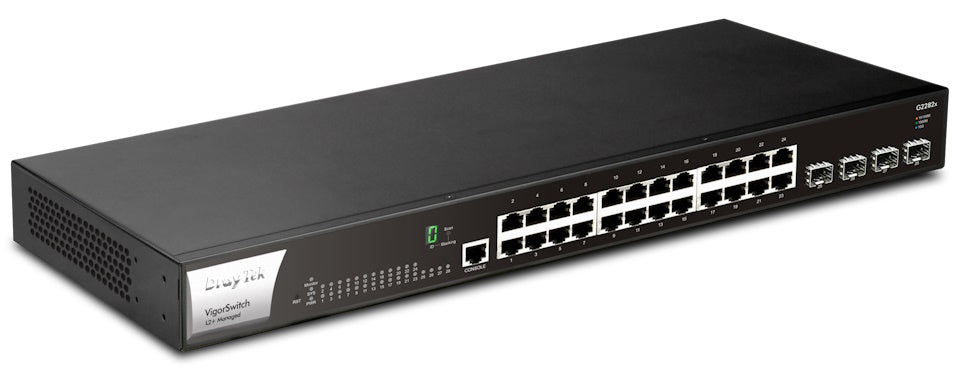

  • DrayTek VigorSwitch G2282x 28-Port Layer 2+ Managed 10G Switch Left Side View

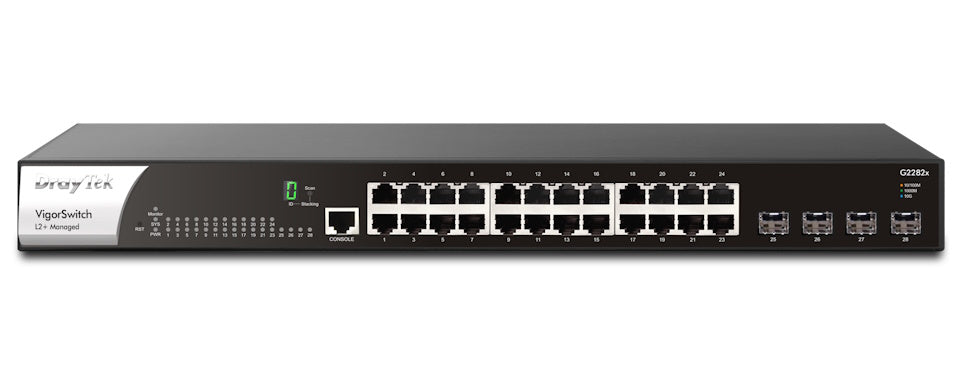

  • DrayTek VigorSwitch G2282x 28-Port Layer 2+ Managed 10G Switch Front View

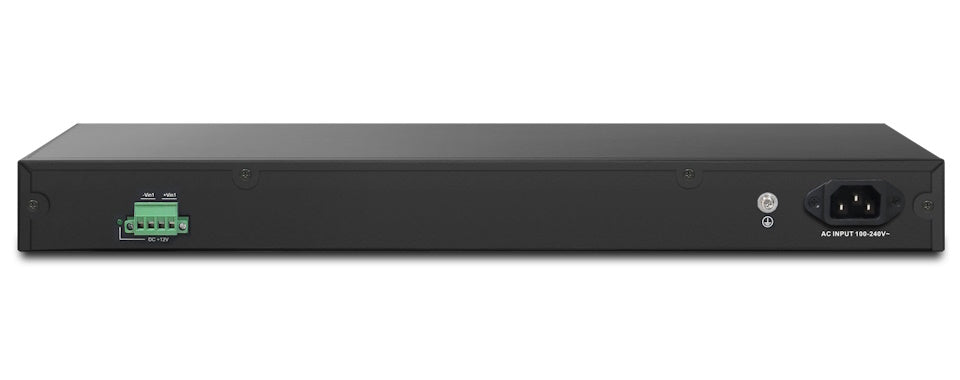

  • DrayTek VigorSwitch G2282x 28-Port Layer 2+ Managed 10G Switch Rear View
1 4

DrayTek VigorSwitch G2282x 28-Port Layer 2+ Managed 10G Switch

DrayTek VigorSwitch G2282x 28-Port Layer 2+ Managed 10G Switch

£279.99
£279.99
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek VigorSwitch VSG2282x 10-Gigabit Layer 2+ Fully Managed Switch with 4 10GbE SFP and 24Gb Ports

DrayTek G2282x VigorSwitch 24-Port L2+ Managed GbE Access Switch

The DrayTek G2282x VigorSwitch 24-Port L2+ Managed GbE Access Switch has twenty-four (24) Gigabit Ethernet LAN ports and four (4) SFP+ 10G Fibre links for uplink/downlink. Besides the fixed AC power input, the VigorSwitch G2282x also provide a DC power input as another power source, which helps to ensure uninterrupted operation and protects connected devices in the event of AC power supply failure. This switch supports advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.

Key Features

  • Wire-Speed VLAN Routing
    Improve overall network performance by using the VigorSwitch G2282x to route the inter-VLAN traffic directly and offload the router.
  • Auto Surveillance & Voice VLAN
    Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
  • IP Conflict Prevention
    Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.
  • Access Control
    The VigorSwitch G2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorised hosts.
  • QoS (Quality of Service)
    Improve the performance of critical traffic by prioritising the traffic with CoS, DSCP, and IP Precedence tag.
  • 10G SFP+
    Provides 10G-capable fibre SFP+ ports for aggregation or uplinking to the core switches.
  • ONVIF-Friendly
    Recognise the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.
  • IPv6 Ready
    The VigorSwitch G2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
  • Web-Based GUI
    Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
  • Multiple Admin Accounts
    Multiple Admin accounts with two levels of administrator privilege.
  • Central Switch Management
    Set up VLAN easily from the router and get a centralised hierarchy view of the switches.
  • Energy-Efficient Ethernet
    Compliant with IEEE 802.3az to reduce power consumption.
View full details

Explore Further

Highlights


Layer 2+ VLAN Routing
Use the VigorSwitch to link multiple subnets with with Static Routes and VLAN Routing.


QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.


Auto Surveillance VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.


IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.


Access Control
VigorSwitch G2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter.


Rack Mountable & Silent
Includes rack mount fittings to fit in any 19" rack with 1u height. Quiet in operation.


10GbE SFP+ Ports
4 SFP+ ports provide fast, high bandwidth uplinks to Fibre, Switches, Servers & Network Attached Storage.


IPv6 Ready
VigorSwitch G2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.


ONVIF IP Camera Management
Manage and view ONVIF capable cameras, automatically detecting their topology on the network.


Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.


Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.


Hardware Monitoring
Monitor switch temperature and status remotely. Email alerts for power and overheating issues.

Dimensions and Weight

Width 441 mm, Depth 205 mm, Height 44 mm,Weight 4 kg

Specification

Physical Interfaces

24 x RJ-45 Ethernet Ports (10/100/1000Mbps)
4 x SFP+ Ports (1000Mbps/10Gbps)
Console Port (RJ-45 physical, RS-232 electrical)
VLAN

802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 255 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Protocol VLAN
MAC-based VLAN
Management VLAN
Port Isolation
QoS

Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
802.1p CoS
DSCP
CoS-DSCP
IP Precedence ToS
Rate Limit
Class of Service
Network Security

IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
AAA Authentication
MAC Authentication
Protected Port / Port Isolation
Static Port Security
Dynamic ARP Inspection
DHCP Snooping with Option 82
Loop Detection & Prevention
Access Control Lists (ACL)
Up to 512 ACL Entries
Source and destination MAC
VLAN ID
IPv4/v6 address
Protocol
TCP/UDP port
Spanning Tree

Spanning Tree Protocol
Rapid Spanning Tree Protocol
Multiple Spanning Tree Protocol
Link Aggregation

Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing
Networking Performance

Switching Capacity: 128Gbps
Forwarding Rate: 95.24Mpps
MAC Addresses Supported: 16,000
Jumbo Frames up to 12KB
Packet Buffer size: 12Mbit
Layer 3 Routing Table: Up to 1000 Entries
Multicast

Up to 256 multicast groups
Multicast Group Filtering / Throttling
IGMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier
MLD Snooping V1/V2
Immediate Leave
Report Suppression
IGMP/MLD Querier
Multicast VLAN registration
AAA

RADIUS / TACACS+ Authentication for Management
Multiple AAA Server
MAC / Inaccessible Authentication bypass
RADIUS Authentication 802.1X
Multiple AAA Server
Accounting
Guest VLAN
Port based Authorisation
802.1X Single/Multi
MAC-based
Web-based
Attribute Assignment
User Privilege
VLAN
TACACS+ Authentication
Port Authorisation
Accounting
Management

Virtual Stacking – Single IP Management
OpenVPN Client
ONVIF – IP Camera Management
Running/Startup/Backup Configuration
sFlow
IPv4 & IPv6 Dual-Stack
LLDP(802.1ab) + MED
Web User Interface (HTTP or HTTPS)
Firmware Upgrade/Backup by HTTP/HTTPS
HTTP (Non-TLS) can be disabled for increased security
Configuration Backup/Restore
Factory Default
System Reboot
Dual Firmware Image (Active & Backup Firmware)
Command Line Interface (CLI) via SSH/Telnet
Console Port (RJ45) for CLI management
DrayTek Switch Management support via router (requires router firmware support)
VigorACS Compatible (TR-069)
SNMP v1, v2c, v3 (with Generic Traps)
RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
SNTP (Simple Network Time Protocol)
Diagnostics

Port Status & Usage display
CPU/RAM Usage display
Event Log via Syslog or email
Port Mirroring
Ping Diagnostics
Port-based Cable Test
Hardware Monitor

Remote Monitoring through Web Interface & VigorACS
Hardware Monitor Data Recording & Graphing
Email & LED alert on voltage high/low and overheat
Temperature Monitoring
Voltage Monitoring
Power Saving Mode
Layer 3 Networking Features

Static Route
VLAN Routing
Virtual Router Redundancy (VRRP) Protocol
IPv4 Features

DHCP Client
DNS Client
DHCP Server
Option 82, 66, 67
DHCP Relay
DHCP Snooping
DHCP IP Source Guard
IPv6 Features

Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client
General IEEE Standards Compliance

802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree
802.1x Port Based Network Access Control
802.1ab Link Layer Discovery Protocol (LLDP)
802.1ad QinQ
Operating Requirements

Power Input Requirements: 100-240VAC
Power supply: Internal
Maximum Input Power Consumption: 25 Watts
Cooling: Passively cooled
Operating Temperature: 0ºC to 45ºC
Storage Temperature: -20ºC to 70ºC
Operating Humidity: 10% to 90% RH (non-condensing)
Physical Specifications

Dimensions (W x D x H): 441 x 270 x 45 mm
Rack mountable: 1U
Weight: 4.32 kg (excluding SFP modules/cables)
Brackets included for rack or wall mounting
ROHS & CE Compliant
