Key Features & Benefits
400W PoE Power Budget
Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & monitoring features ensure your PoE devices are powered and working.

Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.

Benefits: Secure & control access to your network.

High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allows your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

Benefits: Provides a fast and secure bridge between networks.

Hardware Monitoring
Monitor switch temperature, power supply and fan status to ensure stable & constant operation. The switch's fans run quieter with Smart fan control.

Benefits: Email notification alerts for power loss, downtime or configuration changes.

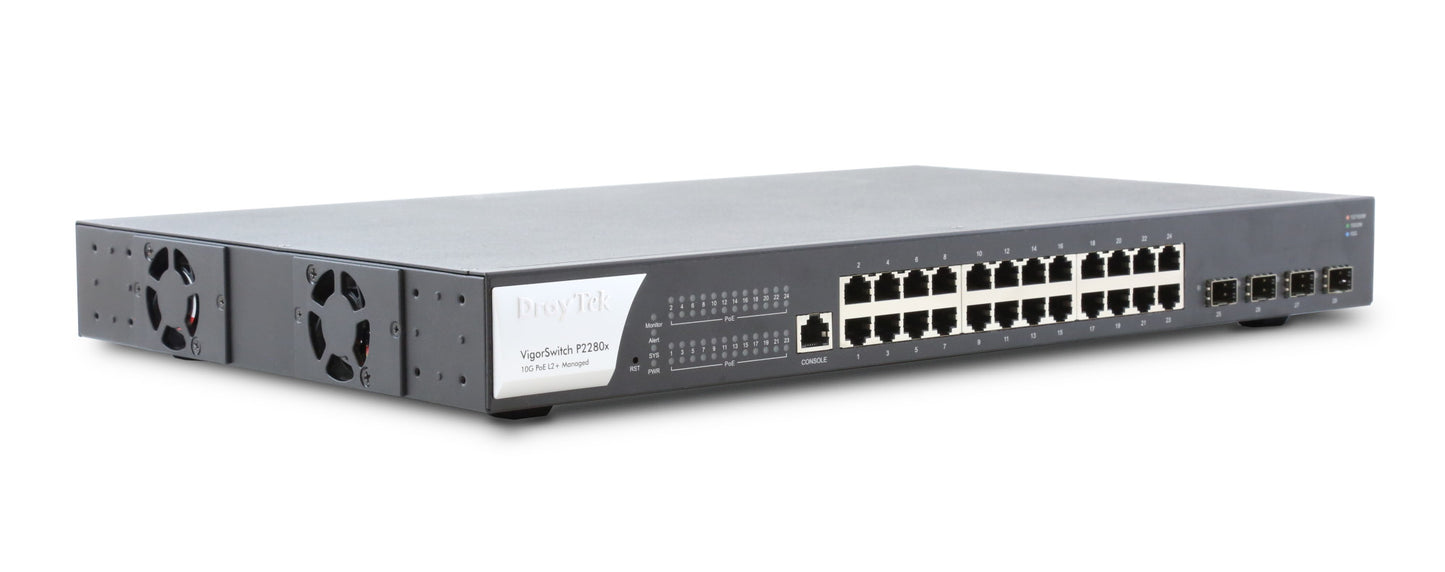

VigorSwitch P2280x
10GbE Gigabit Switch with 24 Gigabit PoE+ Ports & 4 10GbE SFP+ Uplink Ports
The VigorSwitch P2280x is a high-performance, L2+ Managed Gigabit Ethernet switch. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports for high bandwidth uplinks to Servers, Network Attached Storage and Switches.

The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports. Supporting up to 30 watts per port, it can easily power a large number of IP cameras, IP phones, wireless APs and other PoE devices.
Use the 4 SFP+ ports for high speed uplinks between Switches, Servers and Network-Attached-Storage at up to 10 Gigabits per port.

Designed for centralised management, the VigorSwitch P2280x can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

Width 441 mm, Depth 270 mm, Height 45 mm,Weight 4.32 kg

Key Specifications
24 x RJ-45 Gigabit Ethernet Ports with PoE+
4 x SFP+ 10GbE Ports for Uplink / Fibre
PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
Generous Power budget (400W total)
802.3af (PoE) and 802.3at (High Power PoE)
802.1q VLANs (Tag, Port & MAC-based)
VLAN Routing & Static Route with DHCP server / relay
Virtual Router Redundancy Protocol
QoS for Application traffic prioritisation
802.1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN for QoS (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping/Querier (Up to 256 Multicast Groups)
IPv4 and IPv6 Support
Hardware Monitor with smart fan control
Centrally managed or standalone operation
Console Port
Technical Specification (UK Hardware Spec.)
Physical Interfaces
24 RJ-45 Ethernet Ports – 10/100/1000Mbps
4 SFP+ Ports – 1000Mbps/10Gbps
Console Port (RJ-45 physical, RS-232 electrical)
PoE Specification
24-ports 802.3af & 802.3at (High Power) PoE PSE
400 Watts Total Power Budget for PoE
Up to 30 watts per port
Auto Detection of Powered Device (PD) and Consumption Levels
Per Port PoE Status LED Indicators
Alert LED for high PoE Usage
Port Power Consumption Monitoring via Web Interface & CLI
Circuit Protection to Prevent Power Interference between Ports
PoE PD Monitoring & Maintenance Features (per port)
Scheduling
PoE PD Priority
PoE PD Status / Ping monitoring – restart PoE PD port if no response
VLAN
802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 255 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Protocol VLAN
MAC-based VLAN
Management VLAN
Port Isolation
QoS
Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
802.1p CoS
DSCP
CoS-DSCP
IP Precedence ToS
Network Security
IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
AAA Authentication
MAC Authentication
Protected Port / Port Isolation
Static Port Security
Dynamic ARP Inspection
DHCP Snooping with Option 82
Loop Detection & Prevention
Access Control Lists (ACL)
Up to 512 ACL Entries
Source and destination MAC
VLAN ID
IPv4/v6 address
Protocol
TCP/UDP port
Spanning Tree
Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)
Link Aggregation
Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing
Networking Performance
Switching Capacity: 128Gbps
Forwarding Rate: 95.24Mpps
MAC Addresses Supported: 16,000
Jumbo Frames up to 12KB
Packet Buffer size: 12Mbit
Layer 3 Routing Table: Up to 1000 Entries
Multicast
Up to 256 multicast groups
Multicast Group Filtering / Throttling
IGMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier
Multicast VLAN registration
MLD Snooping V1/V2
Immediate Leave
Report Suppression
IGMP/MLD Querier
AAA
RADIUS / TACACS+ Authentication for Management
Multiple AAA Server
MAC / Inaccessible Authentication bypass
RADIUS Authentication 802.1X
Accounting
Guest VLAN
Port based Authorisation
802.1X Single/Multi
MAC-based
Web-based
Attribute Assignment
User Privilege
VLAN
TACACS+ Authentication
Port Authorisation
Accounting *
Management
Virtual Stacking – Single IP Management *
OpenVPN Client
ONVIF – IP Camera Management
Running/Startup/Backup Configuration
sFlow
IPv4 & IPv6 Dual-Stack
LLDP(802.1ab) + MED
Web User Interface (HTTP or HTTPS)
Firmware Upgrade/Backup by HTTP/HTTPS
HTTP (Non-TLS) can be disabled for increased security
Configuration Backup/Restore
Factory Default
System Reboot
Dual Firmware Image (Active & Backup Firmware)
Command Line Interface (CLI) via SSH/Telnet
Console Port (RJ45) for CLI management
DrayTek Switch Management support via router (requires router firmware support)
VigorACS Compatible (TR-069)
SNMP v1, v2c, v3 (with Generic Traps)
RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
SNTP (Simple Network Time Protocol)
Diagnostics
Port Status & Usage display
PoE active display
CPU/RAM Usage display
Event Log via Syslog or email
Port Mirroring
Ping Diagnostics
Port-based cable test
Hardware Monitor
Remote Monitoring through Web Interface & VigorACS *
Hardware Monitor Data Recording & Graphing
Email & LED alert on Fan failure, voltage high/low and overheat
Temperature Monitoring
Voltage Monitoring
Smart Fan Control for low noise operation
Power Saving Mode
Layer 3 Networking Features
Static Route
VLAN Routing
Virtual Router Redundancy (VRRP) Protocol *
IPv4 Features
DHCP Client
DNS Client
DHCP Server *
Option 82, 66, 67
DHCP Relay
DHCP Snooping
DHCP IP Source Guard
IPv6 Features
Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client
General IEEE Standards Compliance
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.3af PoE
802.3at PoE+
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree
802.1x Port Based Network Access Control
802.1ab Link Layer Discovery Protocol (LLDP)
802.1ad QinQ
Operating Requirements
Power Input Requirements: 100-240VAC
Power supply: Internal
Maximum Input Power Consumption: 480 Watts
BTU per Hour: 1423.81(BTU/h)
Cooling: Dual Smart Fan
Operating Temperature: 0 °C to 45 °C
Storage Temperature: -20 °C to 70 °C
Operating Humidity: 10% to 90% RH (non-condensing)
Physical Specifications
Dimensions: 441 x 270 x 45 mm (W x D x H)
Rack mountable: 1U
Weight: 4.32Kg (excluding SFP modules/cables)
Brackets included for rack or wall mounting
ROHS & CE Compliant
Warranty
Two (2) Year Manufacturer's RTB
Optional VigorCare Enhanced Warranty Available
VigorCare D3 3 Year Subscription: VCARE-D3
VigorCare D5 5 Year Subscription: VCARE-D5
Box Contents
VigorSwitch P2280x Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
RJ-45 to RS-232 Console Cable Adapter
Console Cable (RJ-45)
Quick Start Guide
