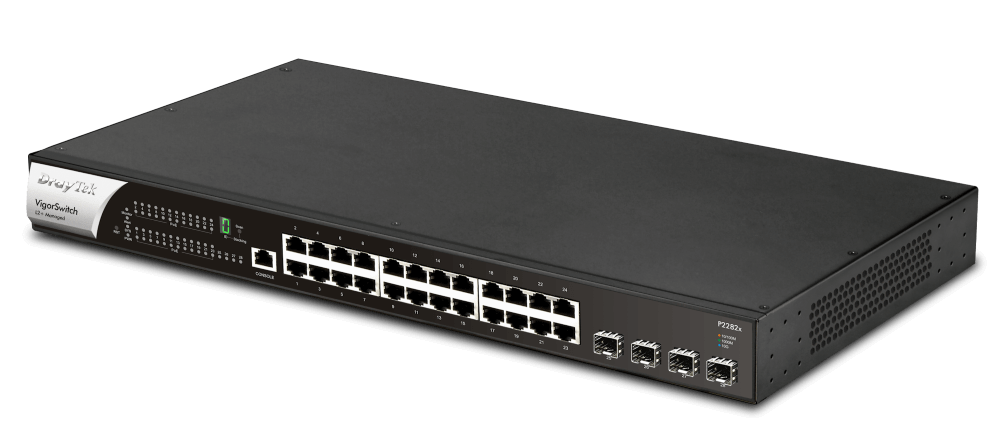

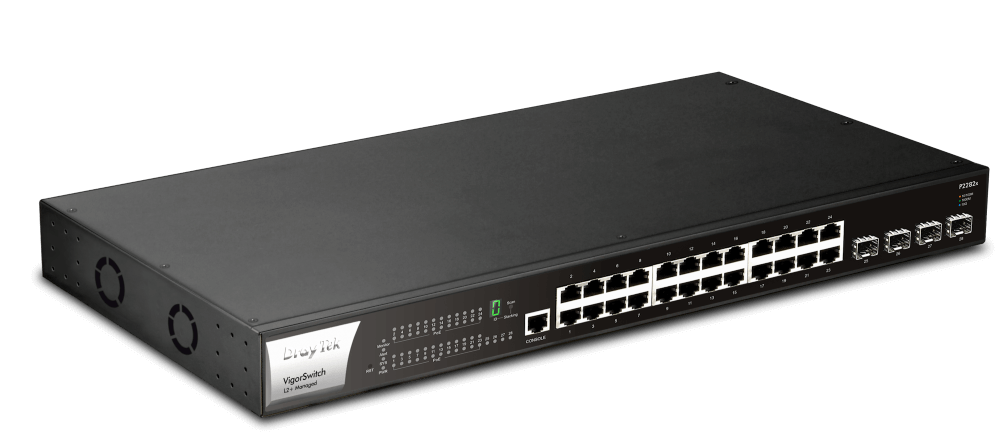

DrayTek VigorSwitch P2282X 10GbE Gigabit Switch with 24 Gigabit PoE+

DrayTek VigorSwitch P2282X 10GbE Gigabit Switch with 24 Gigabit PoE+

£473.93
£473.93
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek P2282x VigorSwitch 24-Port L2+ Managed GbE PoE+ Access Switch With 4 x 10G SFP+ Ports 400W

The DrayTek P2282x VigorSwitch 24-Port L2+ Managed GbE PoE+ Access Switch is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port. This cutting-edge networking switch with power redundancy options allows seamless operation and minimised downtime. It comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.

The PoE VigorSwitch P2282x comes with 24 Power over Ethernet (PoE) ports, allowing you to easily power and connect multiple devices such as IP cameras, wireless access points, and VoIP phones. With a total power output of 400 watts, it ensures stable and efficient power distribution, eliminating the need for additional power cables and adapters. The switch is also equipped with advanced management features, including VLAN support, QoS prioritisation, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.

Key Features

  • Layer 2+ VLAN Routing
    Use the VigorSwitch to link multiple subnets with with Static Routes and VLAN Routing.
  • QoS (Quality of Service)
    Improve the performance of critical traffic by prioritising the traffic with CoS, DSCP, and IP Precedence tag.
  • Auto Surveillance VLAN
    Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
  • IP Conflict Prevention
    Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.
  • Access Control
    The VigorSwitch P2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter.
  • Rack Mountable & Silent
    Includes rack mount fittings to fit in any 19" rack with 1u height. Quiet in operation.
  • 10GbE SFP+ Ports
    4 SFP+ ports provide fast, high bandwidth uplinks to Fibre, Switches, Servers & Network Attached Storage.
  • IPv6 Ready
    The VigorSwitch P2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
  • PoE+ (Power over Ethernet)
    Deliver power and data over one ethernet cable. Split 400W PoE budget across 24 PoE+ ports.
  • Central Switch Management
    Set up VLAN easily from the router and get a centralised hierarchy view of the switches.
  • Energy-Efficient Ethernet
    Compliant with IEEE 802.3az to reduce power consumption.
  • Hardware Monitoring
    Monitor switch temperature and status remotely. Email alerts for power and overheating issues.



SETUP GUIDE - CLICK HERE

View full details

Explore Further

Highlights

Layer 2+ VLAN Routing
Use the VigorSwitch to link multiple subnets with with Static Routes and VLAN Routing.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritising the traffic with CoS, DSCP, and IP Precedence tag.
Auto Surveillance VLAN
Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.
Access Control
The VigorSwitch P2282x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter.
Rack Mountable & Silent
Includes rack mount fittings to fit in any 19" rack with 1u height. Quiet in operation.
10GbE SFP+ Ports
4 SFP+ ports provide fast, high bandwidth uplinks to Fibre, Switches, Servers & Network Attached Storage.
IPv6 Ready
The VigorSwitch P2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
PoE+ (Power over Ethernet)
Deliver power and data over one ethernet cable. Split 400W PoE budget across 24 PoE+ ports.
Central Switch Management
Set up VLAN easily from the router and get a centralised hierarchy view of the switches.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Hardware Monitoring
Monitor switch temperature and status remotely. Email alerts for power and overheating issues.

Dimensions and Weight

Width 440 mm, Depth 281 mm, Height 44 mm,Weight 4.26 kg

Specification

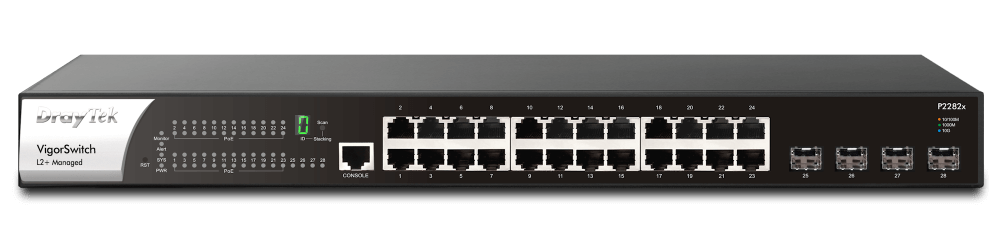

Physical Interfaces

24 RJ-45 Ethernet Ports – 10/100/1000Mbps
4 SFP+ Ports – 1000Mbps/10Gbps
Console Port (RJ-45 physical, RS-232 electrical)
Factory Reset Button
Stacking Scan Button

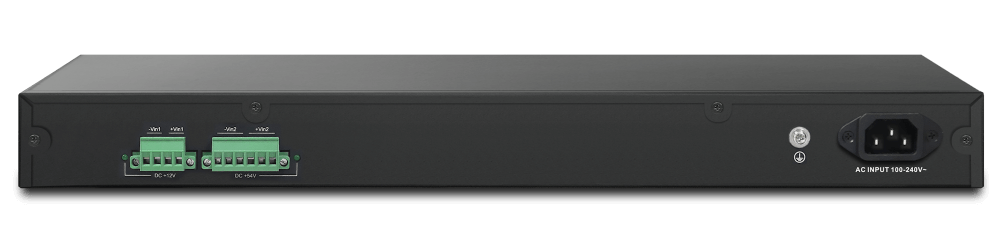

AC Power Socket
DC Backup Power Input
PoE Specification

24-ports 802.3af & 802.3at (High Power) PoE PSE
400 Watts Total Power Budget for PoE
Up to 30 watts per port
Auto Detection of Powered Device (PD) and Consumption Levels
Per Port PoE Status LED Indicators
Alert LED for high PoE Usage
Port Power Consumption Monitoring via Web Interface & CLI
Circuit Protection to Prevent Power Interference between Ports
PoE PD Monitoring & Maintenance Features (per port)
Scheduling
PoE PD Priority
Restart PoE PD if not responding to ping
Restart PoE IP Camera if not providing camera output
VLAN

802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 255 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Protocol VLAN
MAC-based VLAN
Management VLAN
Port Isolation
QoS

Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
802.1p CoS
DSCP
CoS-DSCP
IP Precedence ToS
Network Security

IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
AAA Authentication
MAC Authentication
Protected Port / Port Isolation
Static Port Security
Dynamic ARP Inspection
DHCP Snooping with Option 82
Loop Detection & Prevention
Access Control Lists (ACL)
Up to 512 ACL Entries
Source and destination MAC
VLAN ID
IPv4/v6 address
Protocol
TCP/UDP port
Spanning Tree

Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)
Link Aggregation

Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing
Networking Performance

Switching Capacity: 128Gbps
Forwarding Rate: 95.2Mpps
MAC Addresses Supported: 16,000
Jumbo Frames up to 12KB
Packet Buffer size: 12Mbit
Layer 3 Routing Table: Up to 500 Entries
Multicast

Up to 256 multicast groups
Multicast Group Filtering / Throttling
IGMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier
Multicast VLAN registration
MLD Snooping V1/V2
Immediate Leave
Report Suppression
IGMP/MLD Querier
AAA

RADIUS / TACACS+ Authentication for Management
Multiple AAA Server
MAC / Inaccessible Authentication bypass
RADIUS Authentication 802.1X
Accounting
Guest VLAN
Port based Authorisation
802.1X Single/Multi
MAC-based
Web-based
Attribute Assignment
User Privilege
VLAN
TACACS+ Authentication
Port Authorisation
Accounting
ONVIF Surveillance Management

Discovery of ONVIF-compliant IP Cameras
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance
Device Information
Network Settings Configuration
Time Settings
Reboot
Reset to Factory Default Settings
Ping Check with Mail Alert on disconnection
Management

Web User Interface (HTTP or HTTPS)
HTTP (non-TLS) can be disabled for increased security
Command Line Interface (CLI) via SSH/Telnet
Console Port (RJ45) for CLI management
Central Management
VigorACS
VigorConnect
Vigor Router Switch Management (requires router firmware support)
Running/Startup/Backup Configuration
Configuration Backup/Restore
Factory Default
System Reboot
sFlow
IPv4 & IPv6 Dual-Stack
Virtual Stacking – Single IP Management
LLDP(802.1ab) + MED
Firmware Upgrade/Backup by HTTP/HTTPS
Dual Firmware Image (Active & Backup Firmware)
OpenVPN Client with Certificate-based auth
ONVIF – IP Camera Management
SNMP v1, v2c, v3 (with Generic Traps)
RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
SNTP (Simple Network Time Protocol)
Diagnostics

Port Status & Usage display
CPU/RAM Usage display
MAC Address Table
Device Check
Syslog
Mail Alert
Port Status
Port Speed Change
System Restart
IP Conflict
ONVIF IP Camera Snapshot
Port Mirroring
Ping Diagnostics
Port-based Cable Test
Hardware Monitor

Remote Monitoring through Web Interface & VigorACS
Hardware Monitor Data Recording & Graphing
Temperature Monitoring
Voltage Monitoring
Smart Fan Control for low noise operation
Layer 3 Networking Features

Static Route
VLAN Routing
IPv4 Features

DHCP Client
DNS Client
DHCP Server
Option 82, 66, 67
DHCP Relay
DHCP Snooping
DHCP IP Source Guard
IPv6 Features

Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client
General IEEE Standards Compliance

802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree
802.1x Port Based Network Access Control
802.1ab Link Layer Discovery Protocol (LLDP)
802.1ad QinQ
802.3af PoE
802.3at PoE+
Operating Requirements

AC Power Input Requirements: 100-240VAC
AC Power supply: Internal
Power backup input: DC +12V @ 5A & DC +54V @ 7.4A
Maximum Input Power Consumption: 460.4 Watts
Cooling: Smart Fan
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing)
BTU per Hour: 1570.95 BTU/hr
Physical Specifications

Dimensions (W x D x H): 440 x 281 x 44 mm
Weight (excluding SFP modules/cables): 4.26 kg
Rack mountable: 1U
Brackets included for rack mounting
Package Contents

VigorSwitch P2282x Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
Console Cable
Quick Start Guide

Warranty Information

Please check the Specification Section for Warranty Information

Extended Warranty

Care for your DrayTek with VigorCare Extended Warranty !

DrayTek Extended Warranty Matrix Support Model

VigorCare Enhanced Warranty Service

Prepare for the unforeseen, equipment unfortunately does fail from time to time, be it a power surge, overheating or update failure, having an extended warranty can be a lifeline to your business when you need it most. The following packages below are available.

Broken Equipment

Advanced Replacement

If you suspect that your covered DrayTek product has developed a fault, our experienced support technicians will help you to diagnose the problem and determine whether the unit needs to be service or replaced. If it does, a replacement unit will be sent out the same day for delivery on the next working/business day (to most of the UK). If you wish to take the unit yourself to the service centre (currently North of London), replacement or diagnosis/repair can be carried out in person.

3 or 5 Year Warranty





  • Enhanced Warranty Service
  • 3 or 5 year warranty upgrades available
  • Advanced-Replacement of faulty unit
  • Next working day* replacement unit
  • Cover for 3 or 5 years warranty with single payment
  • Available for all DrayTek Vigor routers
  • Warranty upgrades available to purchase for up to 6 months after product purchase

    •

    With VigorCare, you also have the benefit of an extension to a full 3 or even 5 years of warranty so that if a fault does develop, you will have no bills for parts, labour or replacement in the event that a warranty fault develops. We're proud of the reliability that DrayTek products achieve but however unlikely a problem might be, if your business depends on your DrayTek product, VigorCare should give you the peace of mind and convenience that you need.

    VigorCare membership is subject to the VigorCare Terms & Conditions (see terms tab, above) and should be taken out within 6 months of purchase of your new product

    VigorCare Service Packs

    VigorCare subscription is available for several categories of product. Determine the correct pack for your product below. NOTE: The subscription must be activated via the link below within 6 months of your router and service pack being purchased.

    VigorCare Activation Link

    https://www.draytek.co.uk/support/vigorcare-registration



     Product Code Description Applicable To These DrayTek Products Duration Buy Now
    VCARE-A3 VigorCare A3 3 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080     		3 Years Buy Now Button
    VCARE-A5 VigorCare A5 5 Year Subscription Vigor 130, Vigor 166, Vigor 2762, 2763, 2765, 2766 series
    VigorAP 810, 903, 912C, 960C, 1000C, 1060C
    VigorSwitch P1092, G1080     		5 Years Buy Now Button
    VCARE-B3 VigorCare B3 3 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100     		3 Years Buy Now Button
    VCARE-B5 VigorCare B5 5 Year Subscription Vigor 2620Ln
    Vigor 2832, 2862, 2865, 2866, 2926, 2927 series
    VigorAP 920, VigorAP 918 series
    VigorSwitch P2121, G2100, P2100     		5 Years Buy Now Button
    VCARE-C3 VigorCare C3 3 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282     		3 Years Buy Now Button
    VCARE-C5 VigorCare C5 5 Year Subscription Vigor 2952, 2960, 2962, 3220
    VigorSwitch P1280, G1280, P1282, G1282     		5 Years Buy Now Button
    VCARE-D3 VigorCare D3 3 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x     		3 Years Buy Now Button
    VCARE-D5 VigorCare D5 5 Year Subscription Vigor 3900, Vigor 3910
    VigorSwitch G2280, G2280x, G2500, G2540x
    VigorSwitch P2280, P2280x, P2500, P2540x     		5 Years Buy Now Button



     Warranty Terms & Conditions Apply - please see here

    https://www.draytek.co.uk/support/vigorcare#terms-and-conditions
