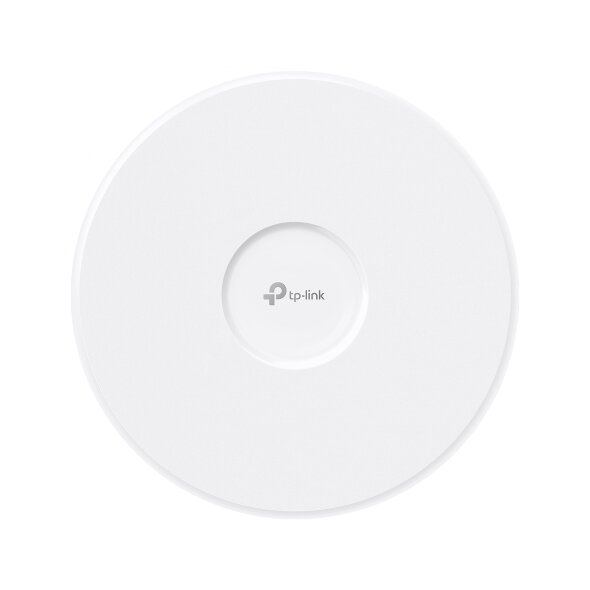

TP-Link EAP773 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

TP-Link EAP773 BE9300 Ultra-Thin Enterprise Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point With Omada Mesh Technology and 10G POE++ Port

The TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point delivers a robust wireless solution with a maximum data transfer rate of 9300 Mbps, ensuring high-speed connectivity for demanding network environments.

Operating across three bands, it offers specific maximum data rates of 574 Mbps on the 2.4 GHz band, 2880 Mbps on one 5 GHz band, and 5760 Mbps on the other 5 GHz band, accommodating a wide range of device connections and user needs.

The device supports advanced security protocols including SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, and WPA3-Enterprise, providing comprehensive network data protection.

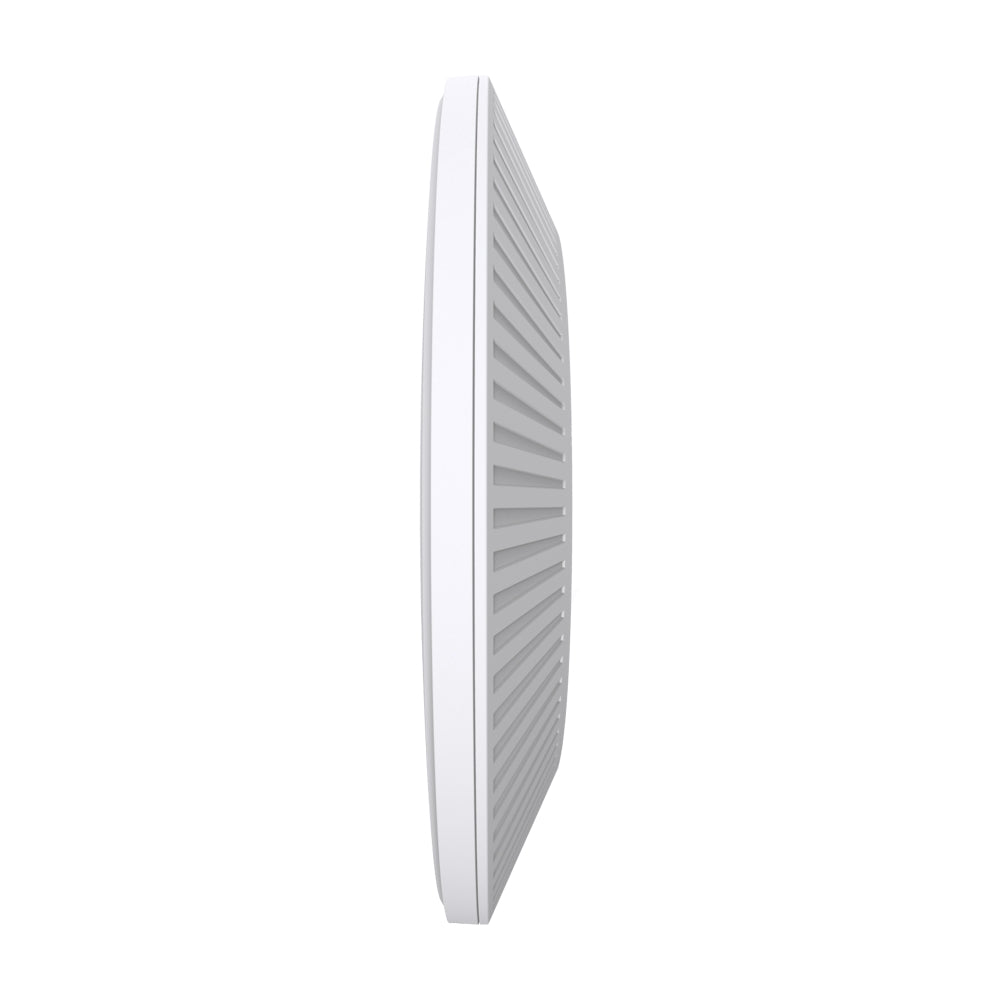

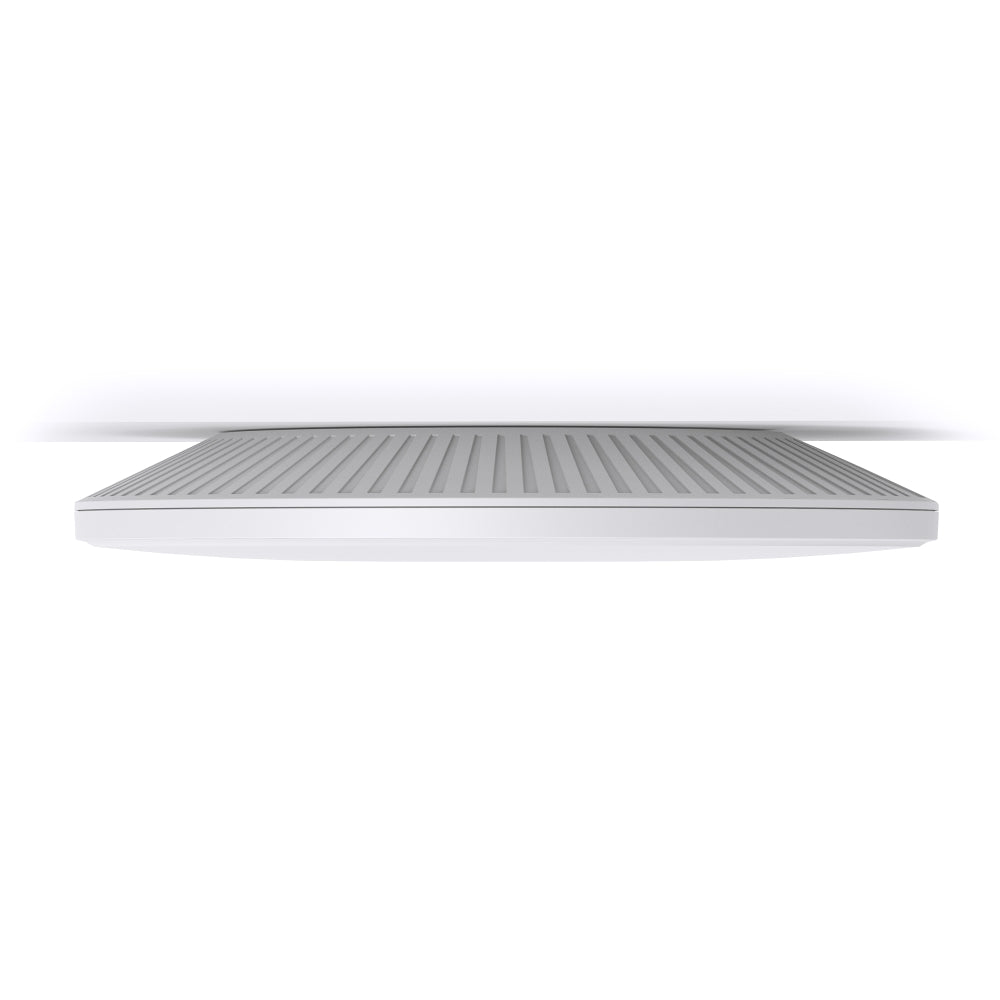

Designed for versatile placement, it can be mounted on ceilings or walls and features a discreet white color that blends seamlessly into various decors. With internal antennas, the unit ensures a clean, unobtrusive installation without compromising signal quality.

It supports Ethernet speeds up to 10,000 Mbps and covers a frequency range from 2.4 to 6 GHz, making it an excellent choice for creating a high-performance wireless network.

Supersized Throughput for Better Experiences

With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. ^‡ Making full use of these new resources, the throughout of EAP773 reaches up to 9.3 Gbps.^†

Higher Capacity for Increased Traffic Demands

WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.^‡

Lower Latency for Boosted Network Reliability

EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.^‡

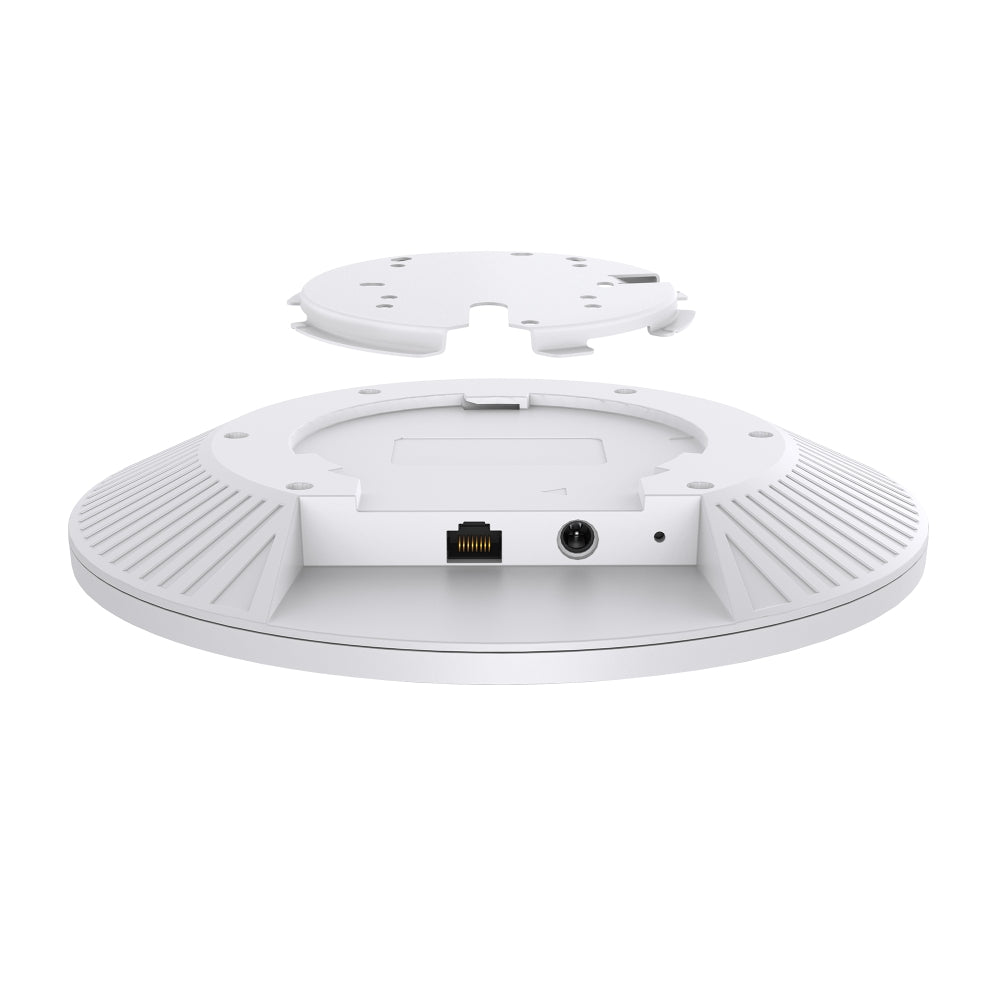

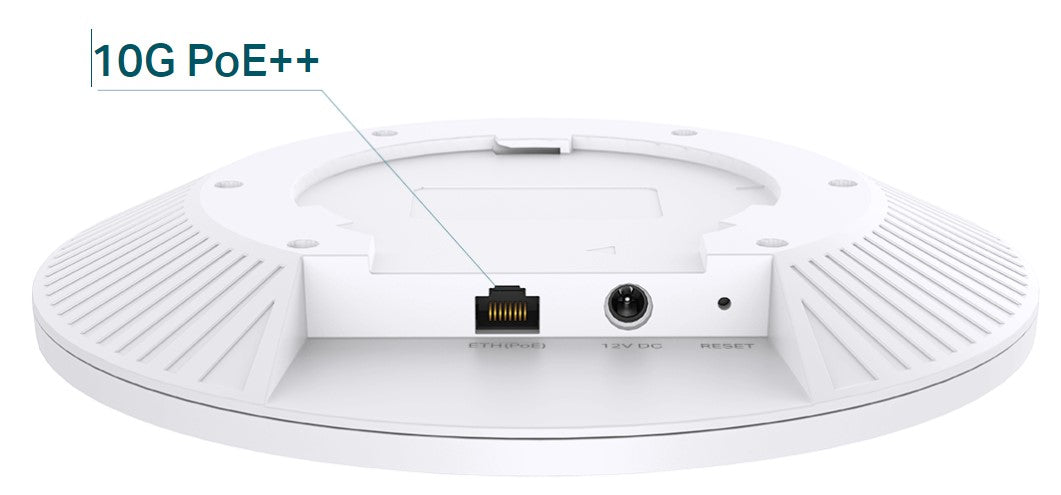

Optimized Wired Performance with 10G PoE++ Port

With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.

Boosted Network Security

• Secure Guest Network with up to 24 SSIDs
• Boost Your Business with  SMS Login
• WPA3 for Worry-Free Open Public Networks
• Rogue AP Detection

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

^‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.

^*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /uk/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

^**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

^△Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller.  Please refer to the User Guides of Omada SDN controllers for configuration methods.
