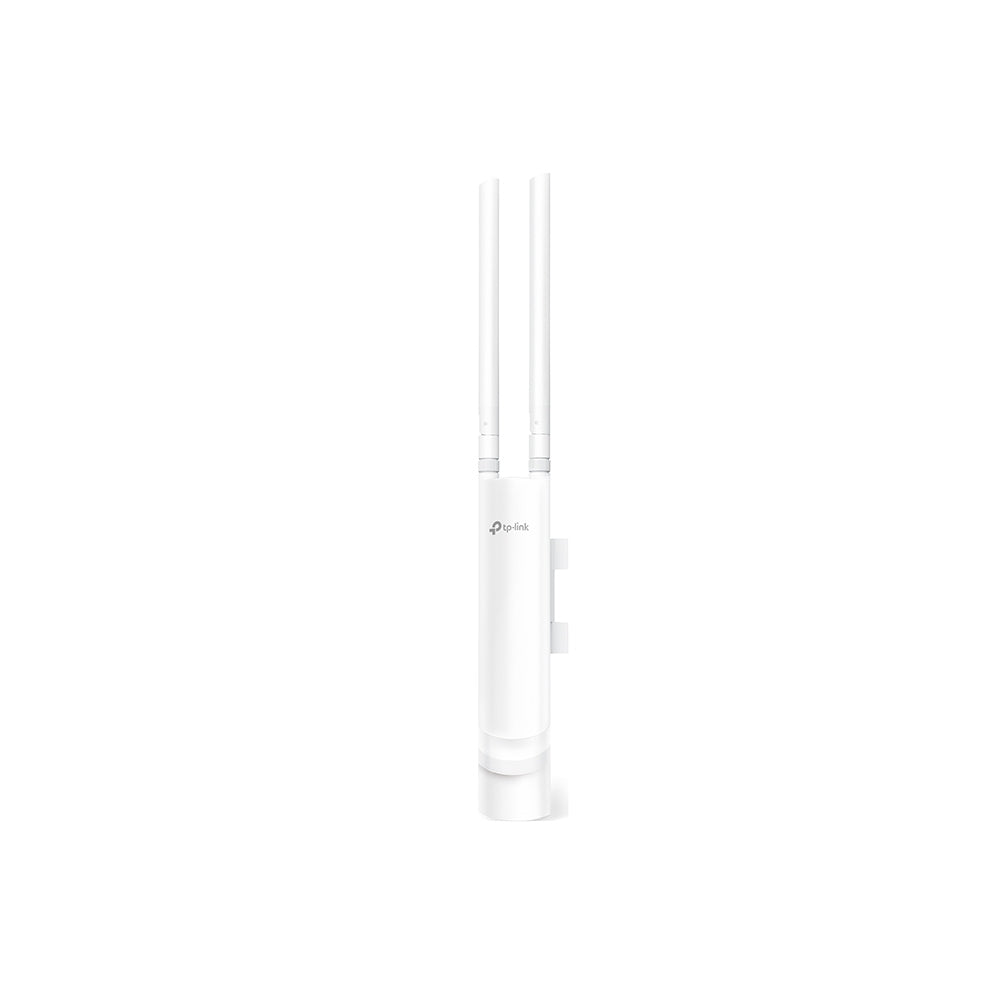

• TP-Link EAP225-Outdoor AC1200 MU-MIMO Wireless Gigabit Indoor or Outdoor Access Point 802.3af Passive PoE Front

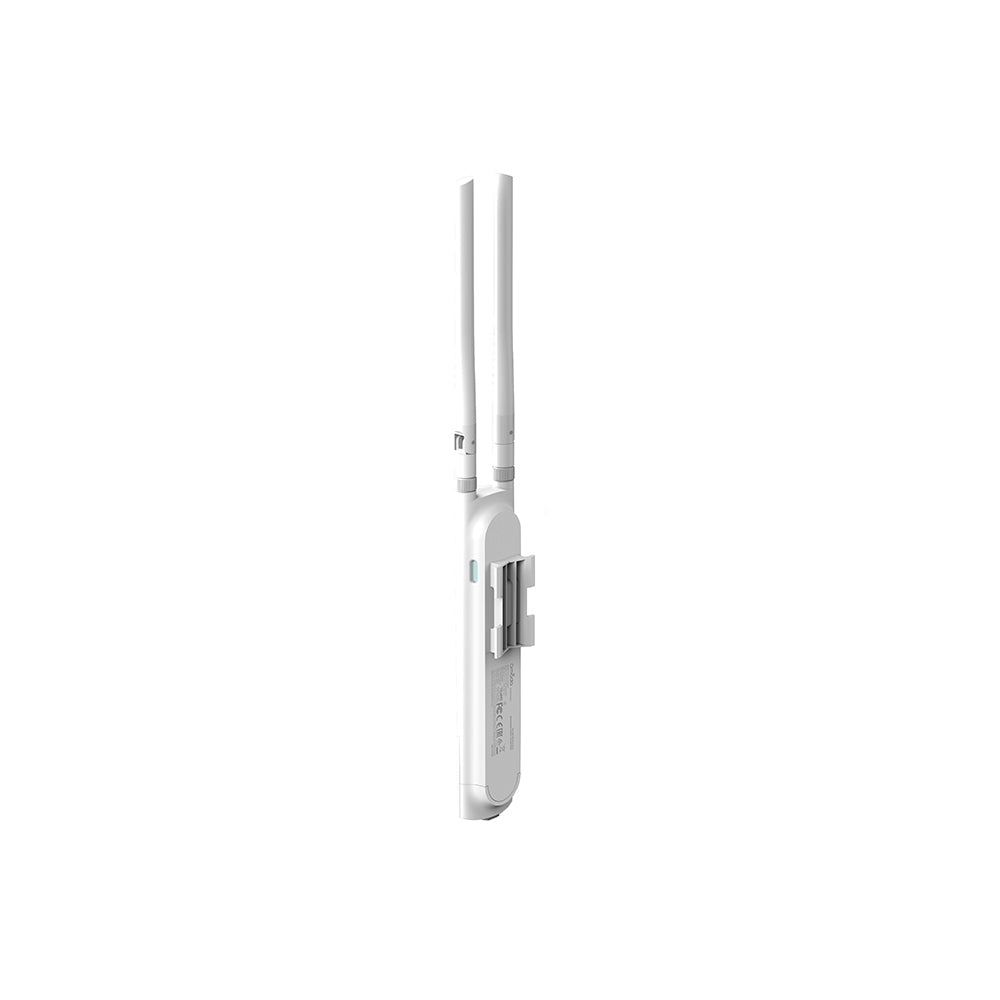

  • TP-Link EAP225-Outdoor AC1200 MU-MIMO Wireless Gigabit Indoor or Outdoor Access Point 802.3af Passive PoE Side View

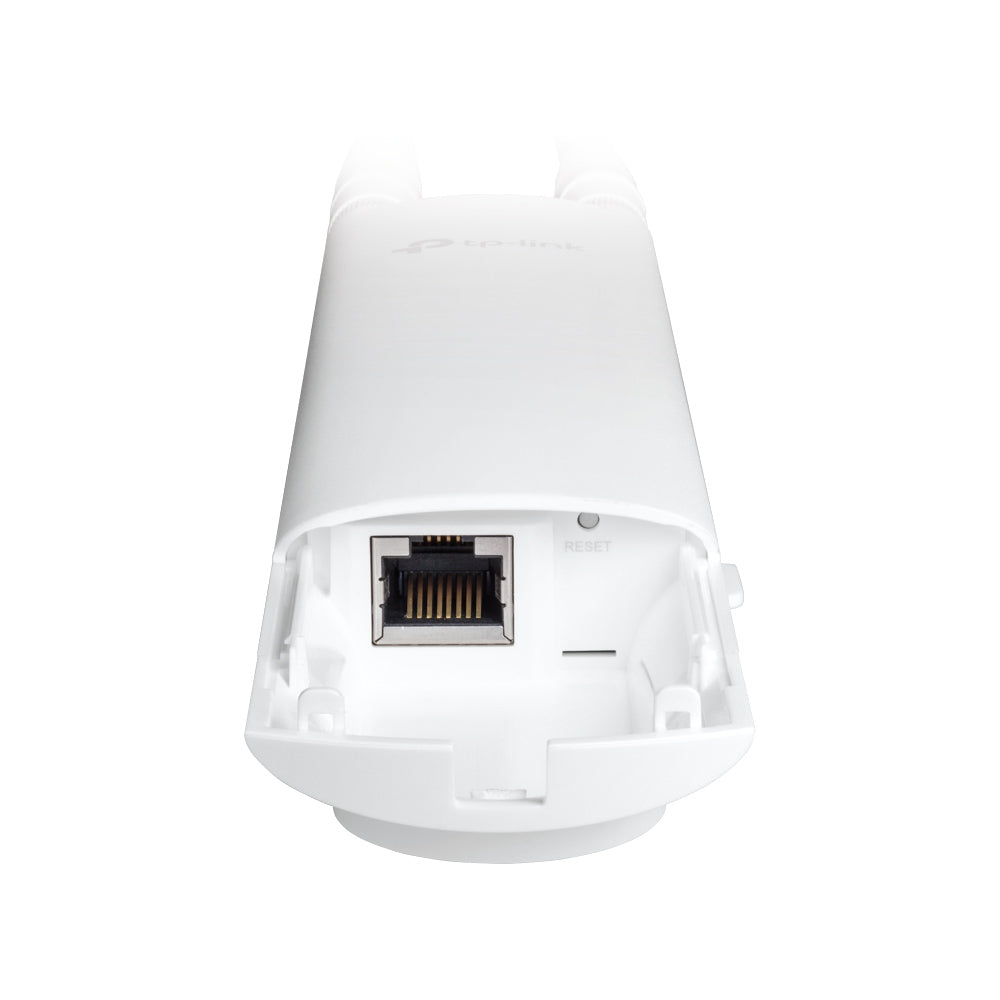

  • TP-Link EAP225-Outdoor AC1200 MU-MIMO Wireless Gigabit Indoor or Outdoor Access Point 802.3af Passive PoE Exposed Gigabit Network Port

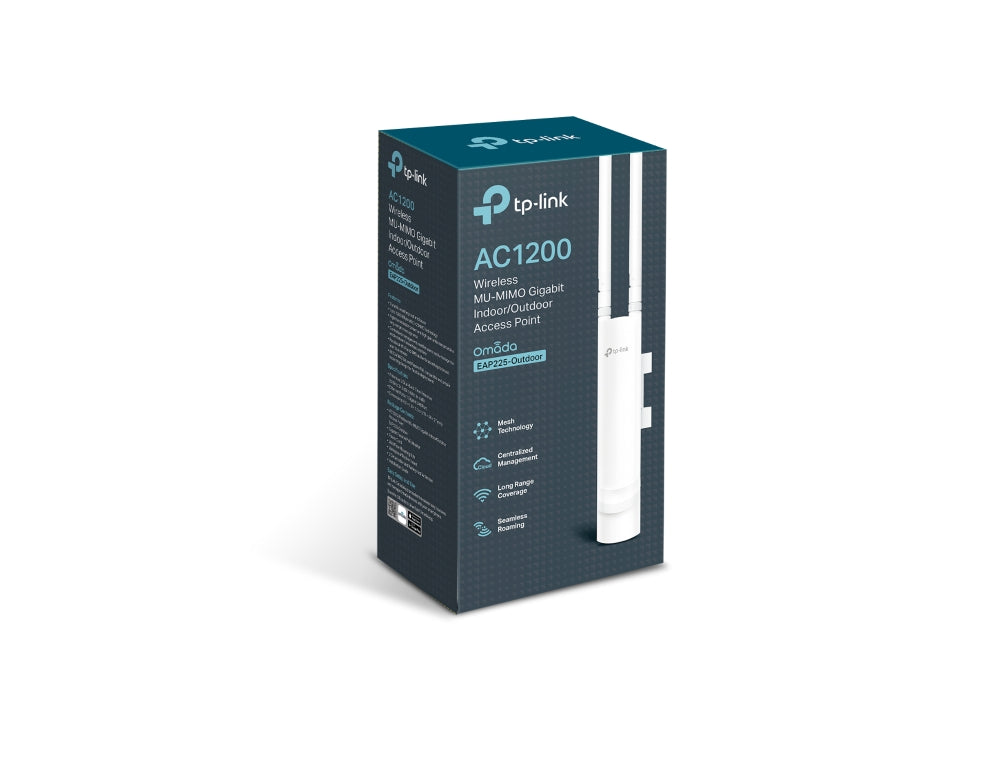

  • TP-Link EAP225-Outdoor AC1200 MU-MIMO Wireless Gigabit Indoor or Outdoor Access Point 802.3af Passive PoE Retail Box View

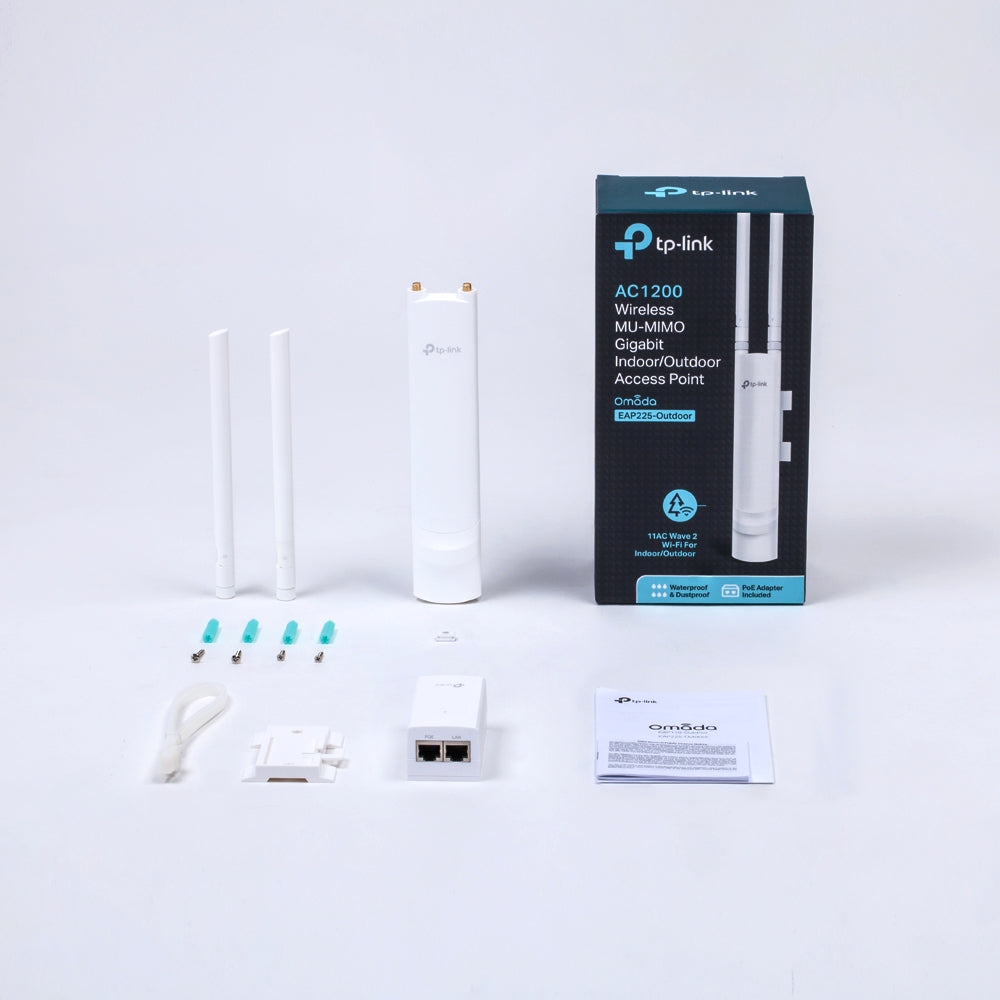

  • TP-Link EAP225-Outdoor AC1200 MU-MIMO Wireless Gigabit Indoor or Outdoor Access Point 802.3af Passive PoE Box Contents View
1 5

TP-Link

TP-Link EAP225 AC1200 Indoor/Outdoor Access Point

TP-Link EAP225 AC1200 Indoor/Outdoor Access Point

£99.99
£99.99
Sale Sold out
Tax included. Shipping calculated at checkout.

TP-Link EAP225-Outdoor AC1200 MU-MIMO Wireless Gigabit Indoor/Outdoor Access Point, 802.3af/Passive PoE, Easily Wall or Ceiling Mount, Free EAP Controller Software

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps with 2×2 MIMO technology
  • High transmission power and high gain antennas provide a long-range coverage area
  • Free Omada Controller software enables administrators easily manage hundreds of EAPs
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS authentication help to boost your business
HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 215.7*45*37.7mm (without antenna & mounting kit)
403.8*90.7*55.2mm (with antenna & mounting kit)
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure IP65
Mounting Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Omada Cloud Controller Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE、FCC、RoHS
Package Contents Access Point EAP225-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
Waterproof Ruber Insert
Waterproof Antenna
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 5%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

  • †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

    ‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.

    §Seamless Roaming requires that clients need to support 802.11k/v and may require additional set up. Performance may vary depending on the client device.

    △Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

View full details

Explore Further

Highlights

Dimensions and Weight

Width 46 mm, Depth 27 mm, Height 215 mm,Weight 0.7 kg

Specification

Interface

1 x Gigabit Ethernet (RJ45) Port (Supports 802.3af PoE and Passive PoE)
Button

Reset
Power Supply

802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption

10.5W
Dimensions ( W x D x H )

8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna

2.4GHz: 2 x 3dBi
5GHz: 2 x 4dBi
Weatherproof Enclosure

IP65
Mounting

Pole/Wall Mounting (Kits included)
Hardware Watch Dog

Yes
WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac
Frequency

2.4GHz
5GHz
Signal Rate

802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps
(MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power

CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP)
FCC:<23dBm(2.4GHz),<22dBm(5GHz)
MANAGEMENT

Omada Controller Software

Yes
Email Alerts

Yes
Management MAC Access Control

Yes
System Logging Local/Remote Syslog

Yes
Web-based Management

Yes
L3 Management

Yes
Multi-site Management

Yes
Management VLAN

Yes
OTHERS

Certification

CE
FCC
RoHS
Environment

Operating Temperature: -30ºC~70ºC (-22ºF ~158ºF)
Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents

1 x EAP225-Outdoor
1 x Power Adapter
1 x Mounting Kits
1 x Installation Guide

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
