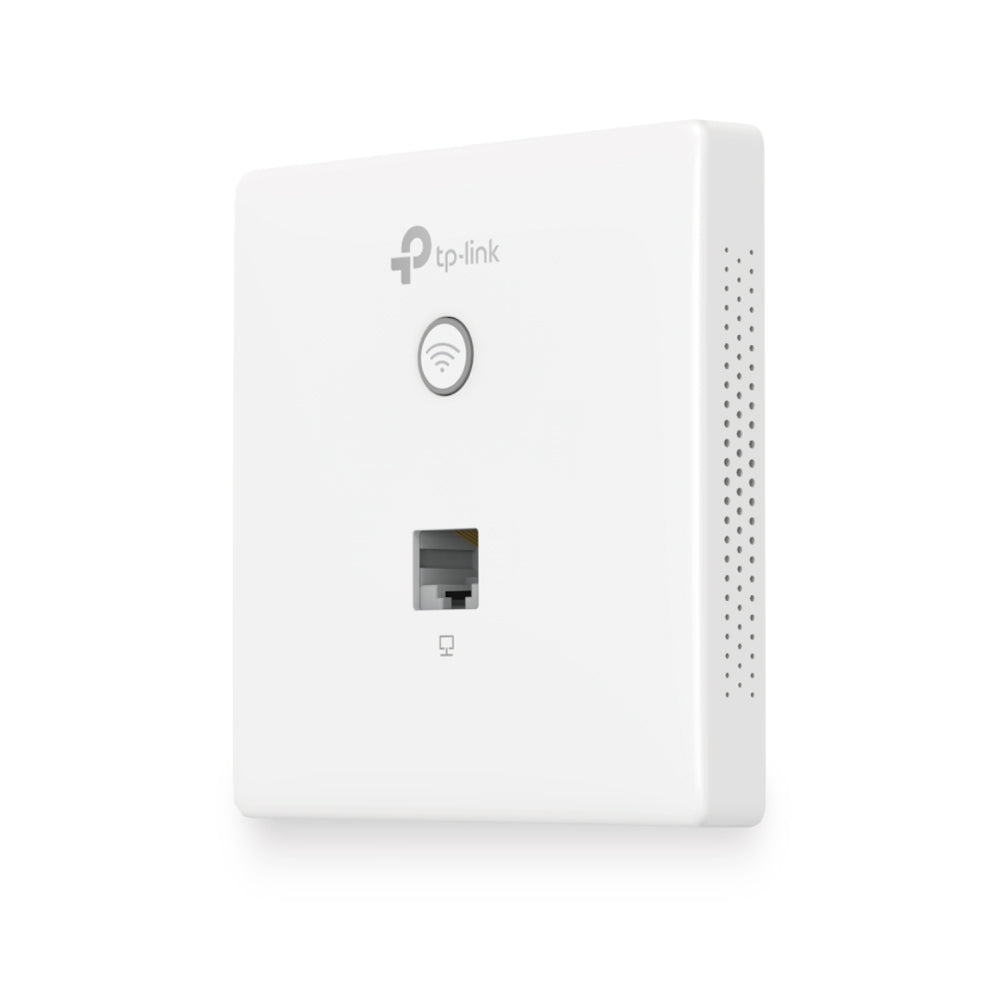

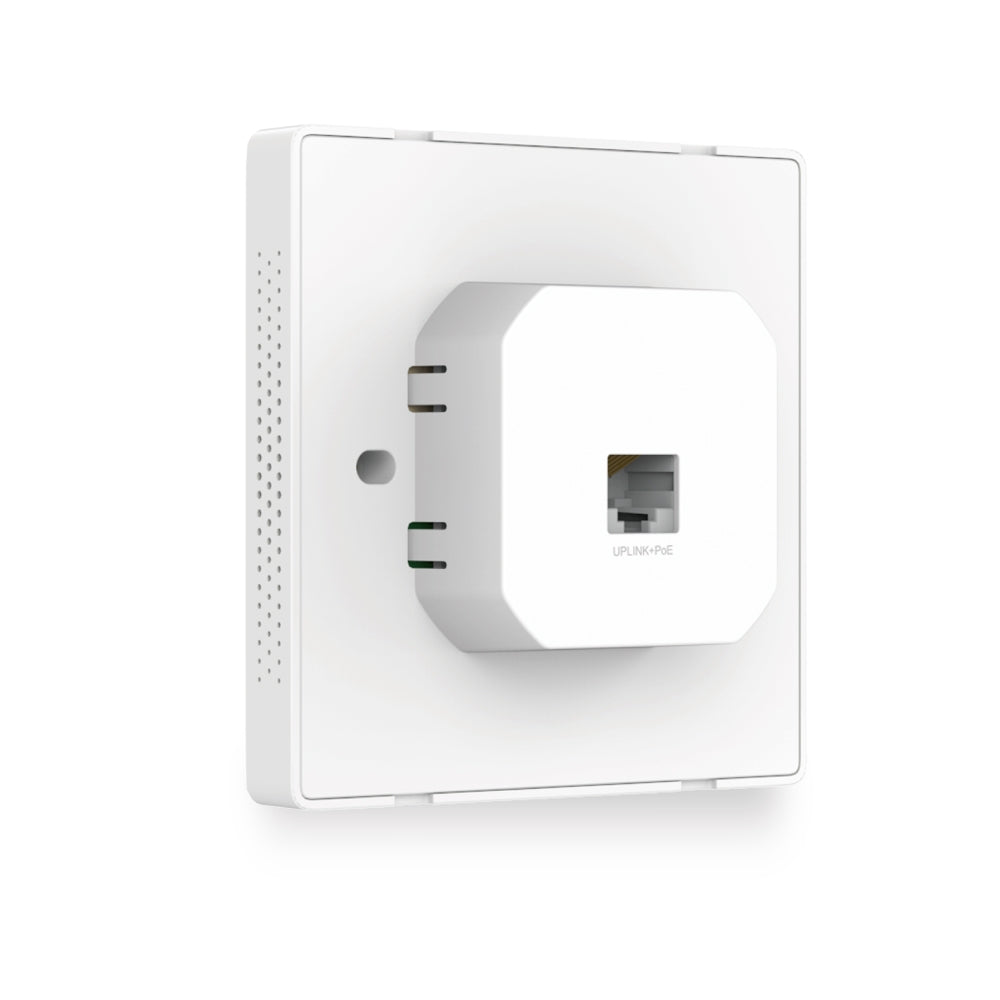

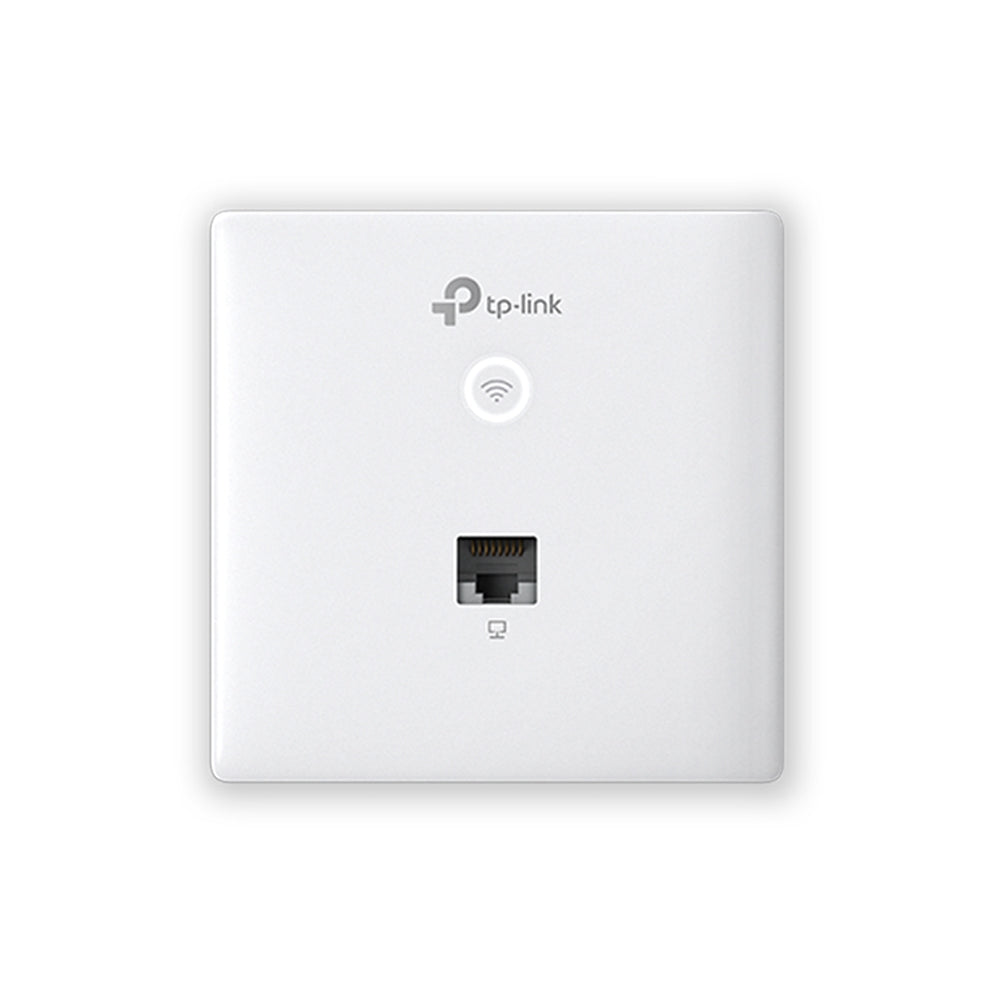

TP-Link EAP230-Wall AC1200 Wall Plate WiFi 5 AP
TP-Link EAP230-Wall AC1200 Wall Plate WiFi 5 AP
Couldn't load pickup availability
TP-Link EAP230-Wall Omada AC1200 Wireless MU-MIMO+Dual-Band Gigabit Wall-Plate Access Point,802.3af/802.3at, Easily Wall Mount, Free EAP Controller Software
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO, 2 Gigabit Ethernet ports (1× uplink + 1× downlink)
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support with lifetime warranty
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 1× 10/100/1000 Mbps Ethernet Port |
| Physical Security Lock | No |
| Button | LED/Wi-Fi Button, RESET |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 7 W |
| Dimensions | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 3.6 dBi |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • MU-MIMO • Band Steering • Beamforming |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | CE: • ≤20 dBm (2.4 GHz, EIRP) • ≤23 dBm (5 GHz, EIRP) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall • Installation Guide • Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Share
Explore Further
Highlights
Dimensions and Weight
Width 86.8 mm, Depth 30.2 mm, Height 86.8 mm,Weight 0.3 kg
Specification
HARDWARE FEATURES
Interface
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock No
Button LED/Wi-Fi Button, RESET
Power Supply 802.3af/802.3at PoE
Power Consumption 7 W
Dimensions 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi
Mounting Wall Plate Mounting
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power CE:
• ≤20 dBm (2.4 GHz, EIRP)
• ≤23 dBm (5 GHz, EIRP)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, RoHS
Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
