Fast Dual-Band WiFi
Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps WiFi speeds with MU-MIMO.

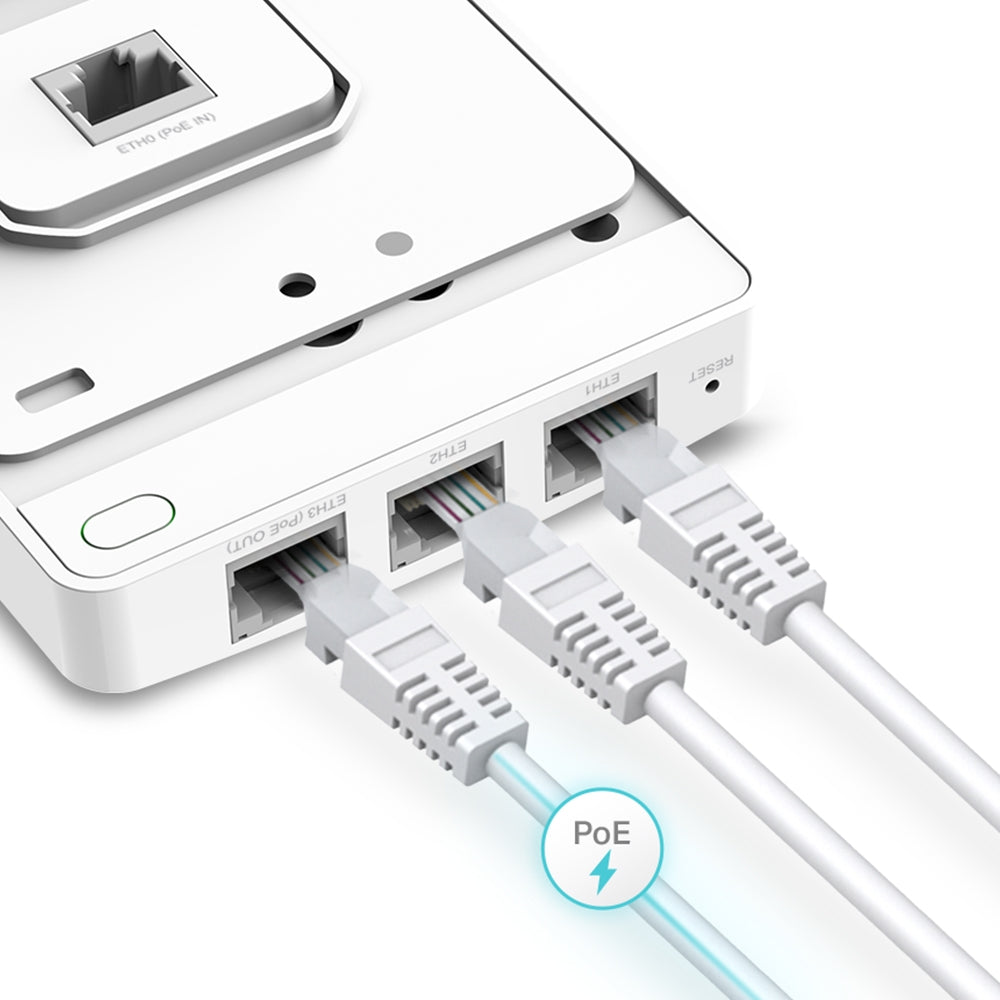

Gigabit Ports
Four (4) Gigabit Ethernet ports (1 x uplink + 3 x downlink), with one of the downlink ports supporting PoE pass-through to provide power for a wired device.
Integrated into Omada
Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management
Cloud access and Omada app for ultra convenience and easy management.

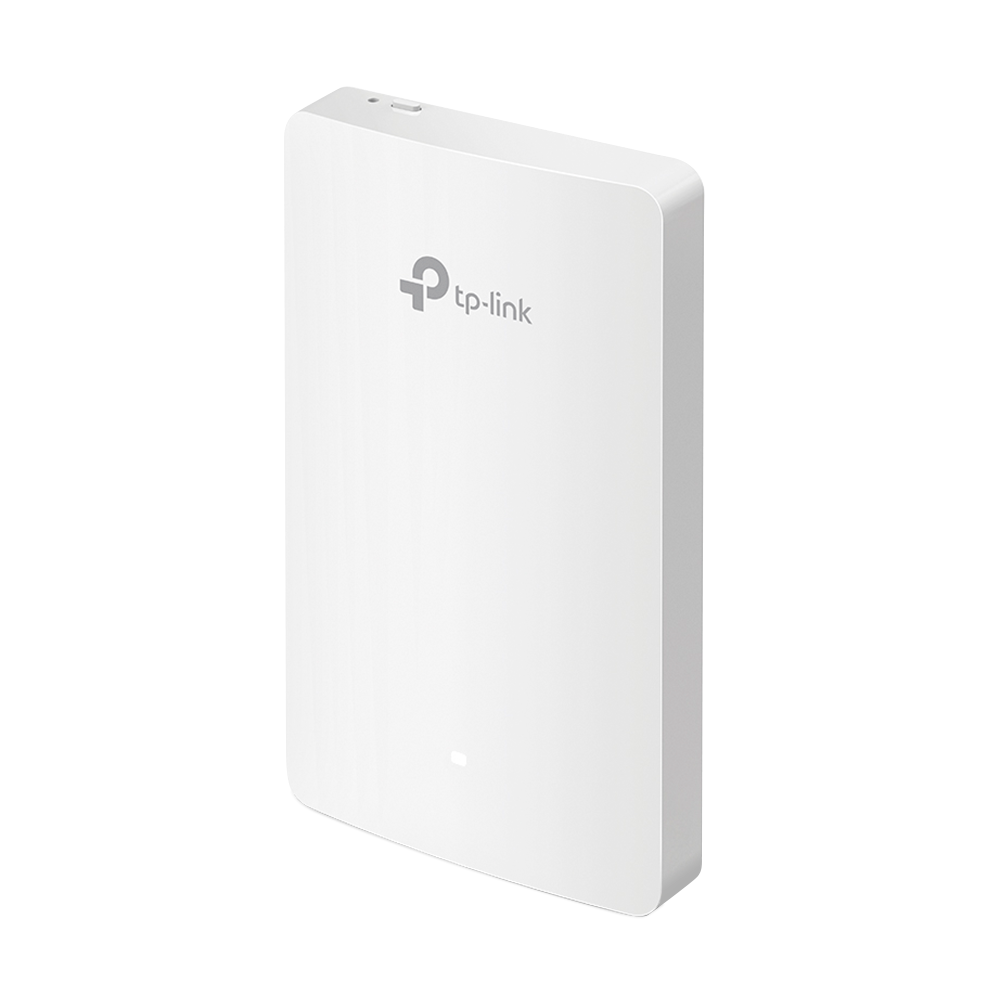

Elegant Appearance
Ultra-slim and inconspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
Easy Installation and PoE Support
Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Secure Guest Network
Multiple authentication options (SMS/Facebook WiFi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech
Optimise network performance with MU-MIMO, Band Steering, and Beamforming technologies.

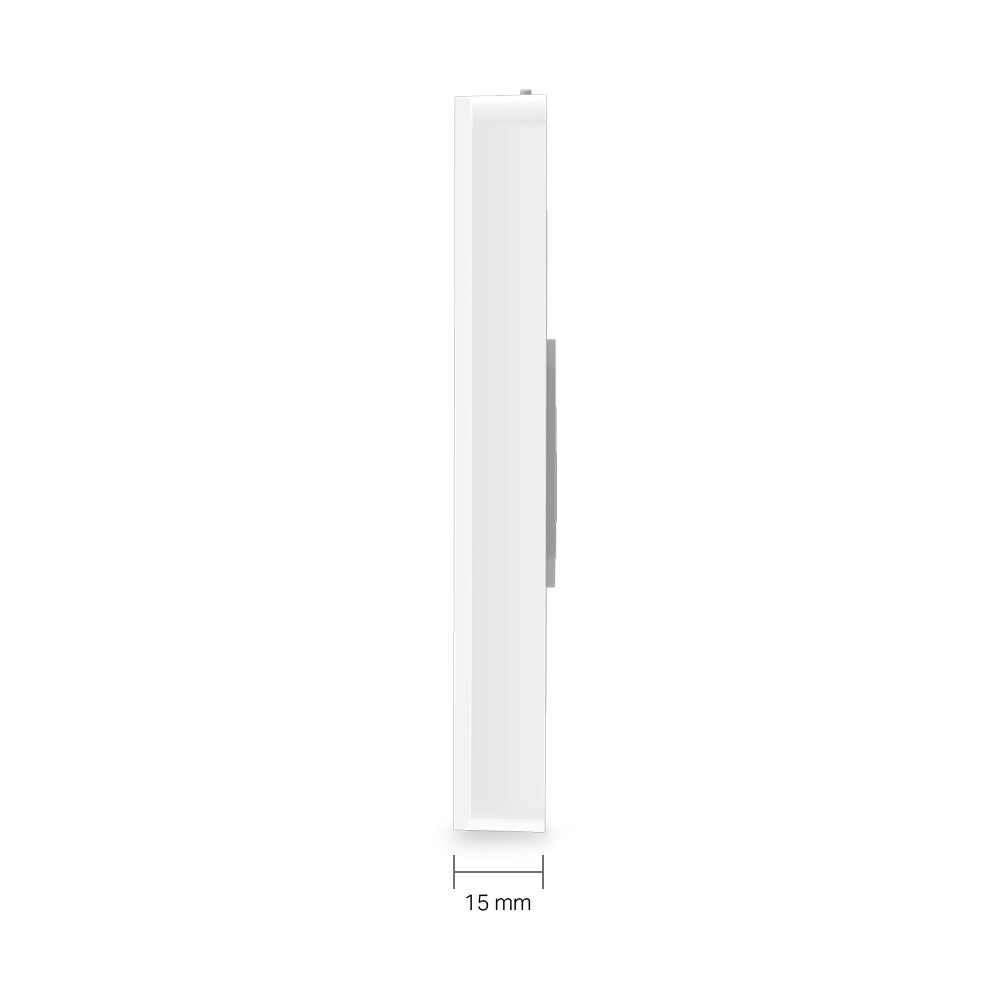

Width 86 mm, Depth 20 mm, Height 143 mm,Weight 0.4 kg

Hardware Features

Interface

Uplink: 1 x 10/100/1000 Mbps Ethernet Port
Downlink: 3 x 10/100/1000 Mbps Ethernet Ports
Note: One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.
Physical Security Lock

Yes
Button

Reset
Power Supply

802.3af/802.3at PoE
Power Consumption

9.8 watts / 24.4 watts (PoE Out Included)
Dimensions

143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in.)
Antenna

2 Dual-Band Antennas
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 4 dBi
Mounting

Wall Plate Mounting
Wireless Features

Wireless Standards

IEEE 802.11a/b/g/n/ac
Frequency

2.4 GHz and 5 GHz
Signal Rate

5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power

CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, EIRP)
FCC:
<21 dBm (2.4 GHz)
<21 dBm (5 GHz)
Management

Omada App

Yes
Centralised Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300 - sold separately)
Omada Hardware Controller (OC200 - sold separately, see accessories tab)
Omada Software Controller
Cloud Access

Through OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller
Email Alerts

Yes
LED ON/OFF Control

Yes
Management MAC Access Control

Yes
SNMP

v1,v2c
System Logging Local/Remote Syslog

Local/Remote Syslog
SSH

Yes
Web-based Management

HTTP/HTTPS
L3 Management

Yes
Multi-site Management

Yes
Management VLAN

Yes
Other Specifications

Certification

CE, FCC, RoHS
System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Environment

Operating Temperature: 0ºC – 40ºC (32ºF – 104ºF)
Storage Temperature: -40ºC – 70ºC (-40ºF – 158ºF)
Operating Humidity: 10% – 90% RH non-condensing
Storage Humidity: 5% – 90% RH non-condensing
Package Contents

1 x TP-Link EAP235-Wall
1 x Installation Guide
1 x Mounting Screw
