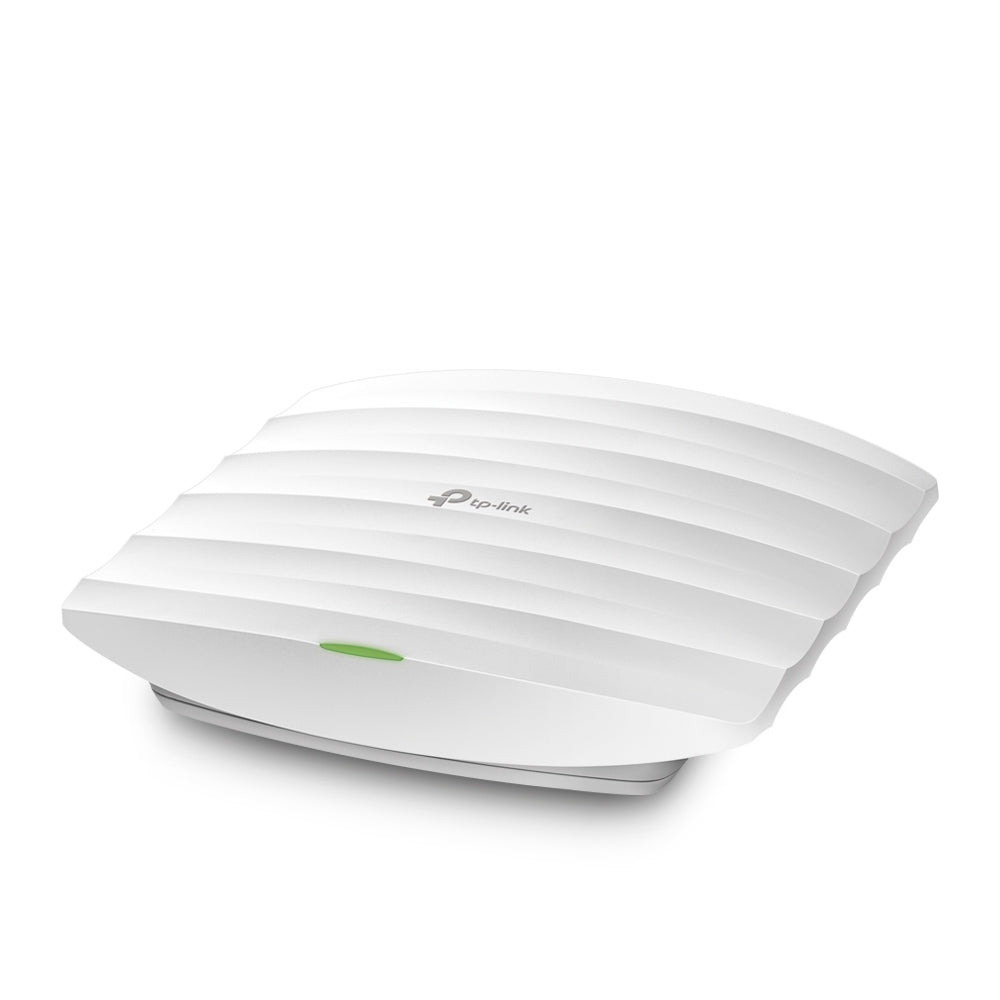

• TP-LINK EAP245 Mesh Wireless Access Point AC1750 Dual Band WiFi 5 AP

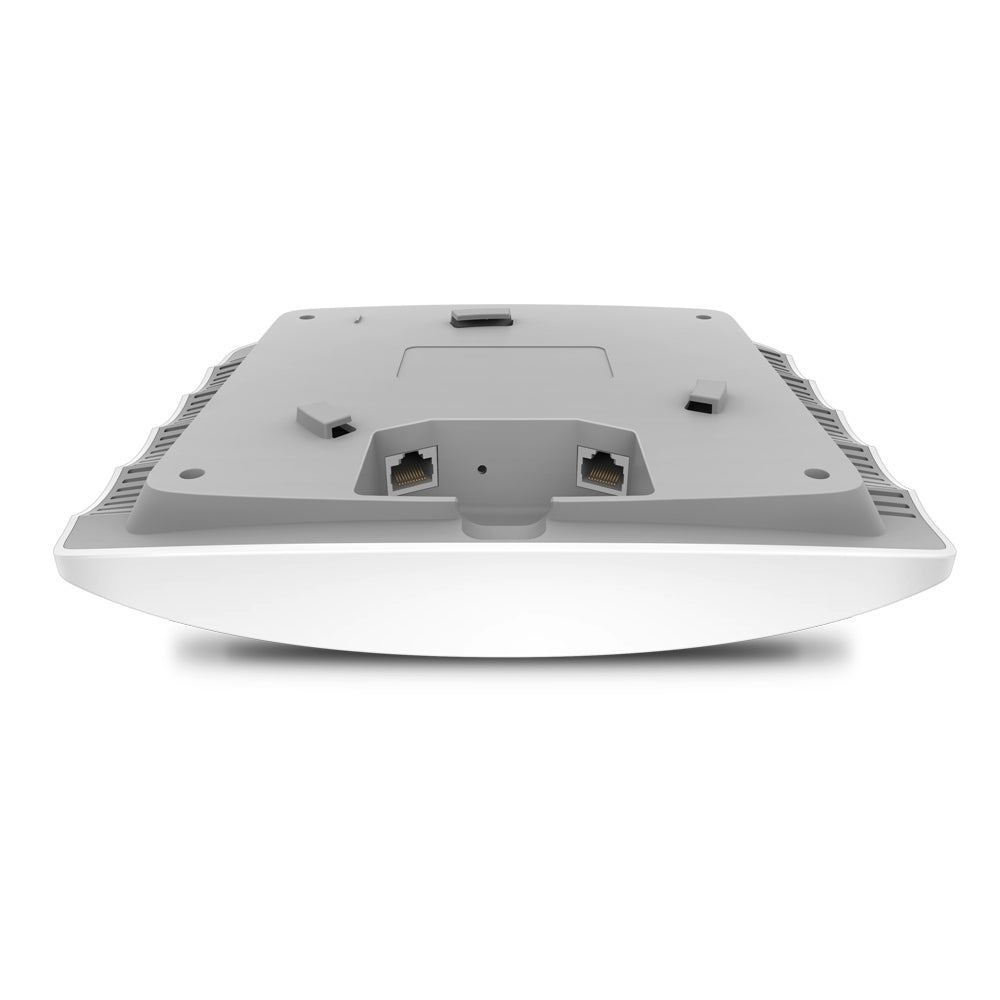

  • TP-LINK EAP245 Mesh Wireless Access Point AC1750 Dual Band WiFi 5 AP Port View
1 2

TP-Link

TP-Link EAP245 AC1750 Ceiling Mounted WiFi 5 Access Point

TP-Link EAP245 AC1750 Ceiling Mounted WiFi 5 Access Point

£120.99
£120.99
Sale Sold out
Tax included. Shipping calculated at checkout.

TP-Link EAP245 AC1750 802.11AC Wireless Access Point Wi-Fi 5 Dual Band AP

  • Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz
  • Total 1750Mbps WiFi speeds
  • Supports Seamless Roaming
  • Cloud centralised management
  • Support Power over Ethernet (802.3at)
  • Secure guest network along with multiple authentication options
  • Band Steering
  • Load balance
  • Supports management VLAN

Superior Wi-Fi Speeds and Performance -  The EAP245 features QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming - 802.11k/802.11v seamless roaming switches clients automatically to the EAP245 access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook WiFi and SMS Login - The EAP245's Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation - EAP245 supports both 802.3at PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Cloud Centralised Management Anytime, Anywhere - Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App - Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Box Contents:

  • AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
  • Power Adapter
  • Mounting Kits
  • Installation Guide
  • PoE Adapter
EAP245 Specifications
Interface Gigabit Ethernet (RJ-45) Port *2 (Support IEEE802.3af PoE and Passive PoE )
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/A PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type Internal Omni
2.4GHz: 3* 3.5dBi
5GHz: 3*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE：
≤20dBm(2.4GHz)
≤23dBm(5GHz)
FCC:
≤24dBm(2.4GHz)
≤24dBm(5GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Software Controller
OC200
APP support Yes
Cloud Access Yes (Through Omada Software Controller or OC200)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP Yes
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Power Adapter
Mounting Kits
Installation Guide
PoE Adapter
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



View full details

Explore Further

Highlights

Fast Dual-Band WiFi
Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz
Total 1750 Mbps WiFi speeds
MU-MIMO, Load Balance, and professional antennas
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)
Centralised Management: Cloud access and Omada app
Seamless Roaming
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.)

Dimensions and Weight

Width 205.5 mm, Depth 181.5 mm, Height 37.1 mm,Weight 1.1 kg

Specification

EAP245 Specifications
Interface Gigabit Ethernet (RJ-45) Port *2 (Support IEEE802.3af PoE and Passive PoE )
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/A PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 12.3 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type Internal Omni
2.4GHz: 3* 3.5dBi
5GHz: 3*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE：
≤20dBm(2.4GHz)
≤23dBm(5GHz)
FCC:
≤24dBm(2.4GHz)
≤24dBm(5GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Software Controller
OC200
APP support Yes
Cloud Access Yes (Through Omada Software Controller or OC200)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP Yes
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Power Adapter
Mounting Kits
Installation Guide
PoE Adapter
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
