Superior WiFi 6 Speeds
Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology.
Complete In-Room WiFi Coverage
Guarantees strong signals and corner-to-corner WiFi coverage in each room.
Higher Network Efficiency
OFDMA and DL/UL MU-MIMO deliver data to multiple devices simultaneously with less lag.
Full Gigabit Ports
Connect multiple devices with four (4) gigabit ports and one (1) downlink port offering PoE pass-through.
Centralised Cloud Management
Integrates into Omada for cloud access and remote management.

Width 86 mm, Depth 20 mm, Height 143 mm,Weight 0.4 g

Omada Solution
Omada Cloud Access
Omada platform integrates network devices, including access points, switches and gateways, providing 100% centralised cloud management. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

High Efficiency
Centralised Cloud Management
Zero-Touch Provisioning
AI-Driven Technology
Auto Channel Selection and Power Adjustment
Multi-tenant Privilege Assignment
Higher Security
Separate Management and User Data
Abundant Security Functions
Higher Reliability
99.99% SLA Availability
Reliable Connections with High-Density Clients
Hassle-Free Centralised Cloud Management
100% centralised cloud management of the whole network from different sites — all controlled from a single interface anywhere, anytime.

Omada Cloud-Based Controller
No additional hardware controller investment and installation on customer premises.
Omada Software Controller
On-premises controller with no charging for hardware.
Omada Hardware Controller
On-premises controller with no need to run a PC/server.
Zero-Touch Provisioning for Efficient Deployment
Omada zero-touch provisioning allows remotely deployment and configuration of multi-site networks, so there's no need to send out an engineer for on-site configuration. The Omada Cloud ensures efficient deployment with lower costs.

Step 1: Plug in on-site and connect the Omada powered devices to the internet.
Step 2: Enroll the devices through your Omada Cloud Dashboard.
Step 3: Devices automatically obtain the configuration file from the cloud.
Step 4: Enjoy 100% remote provisioning and cloud management.
AI-Driven Technology for Stronger Performance and Easy Network Maintenance
Intelligent Network Analysis, Warning, and Optimisation

Analyses potential network problems and sends optimisation suggestions for higher network efficiency.
Locates network faults, warns and notify users, and generates solutions to reduce network risk.
Auto Channel Selection and Power Adjustment

Provides powerful wireless performance while greatly reducing WiFi interference by automatially adjusting the channel settings and transmission power levels of neighbouring APs in the same network.

Assign Different Management Roles
Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.

Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status. Check network usage and traffic distribution, receive network condition logs, abnormal event warnings, and notifications, or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connections at a glance.

Comprehensive Protection for the Whole Network
Better Protection for User Privacy
TP-Link Omada separates network management data from user data, with no user traffic passing through the cloud, ensuring better protection for users' privacy.
Abundant Security Functions
Powerful firewall and advanced security functions further protect the network and data.
Multiple Factors Guarantee Higher Reliability
Higher reliability of cloud service is guaranteed with 99.99% SLA availability, 24/7 automated fault detection, geographically isolated backup servers, and reliable product quality. Your network functions even if management traffic is interrupted.

Reliable Connections Even with High-Density Clients
Equipped with enterprise chipsets, dedicated antennas, advanced RF functions, auto channel selection, and power adjustment, Omada WiFi 6 APs have high concurrency capacities for remarkable performance in high-density environments.

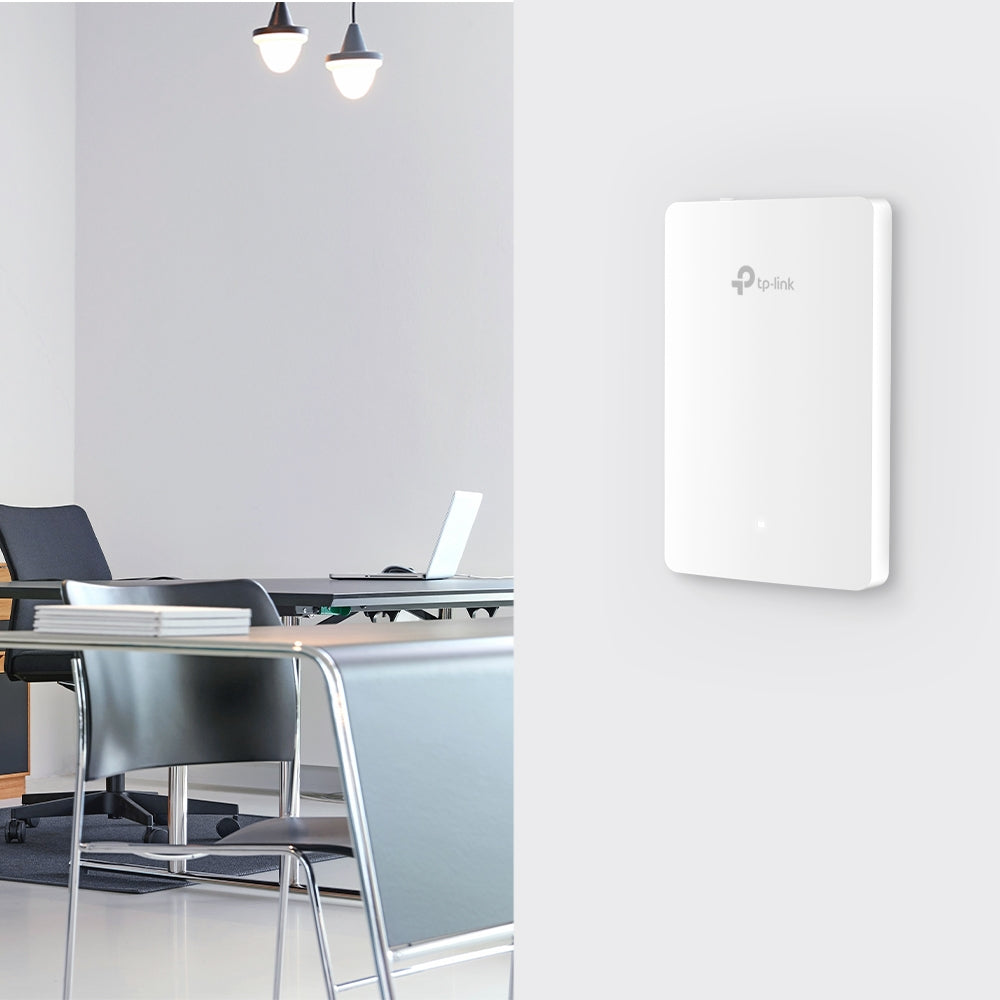

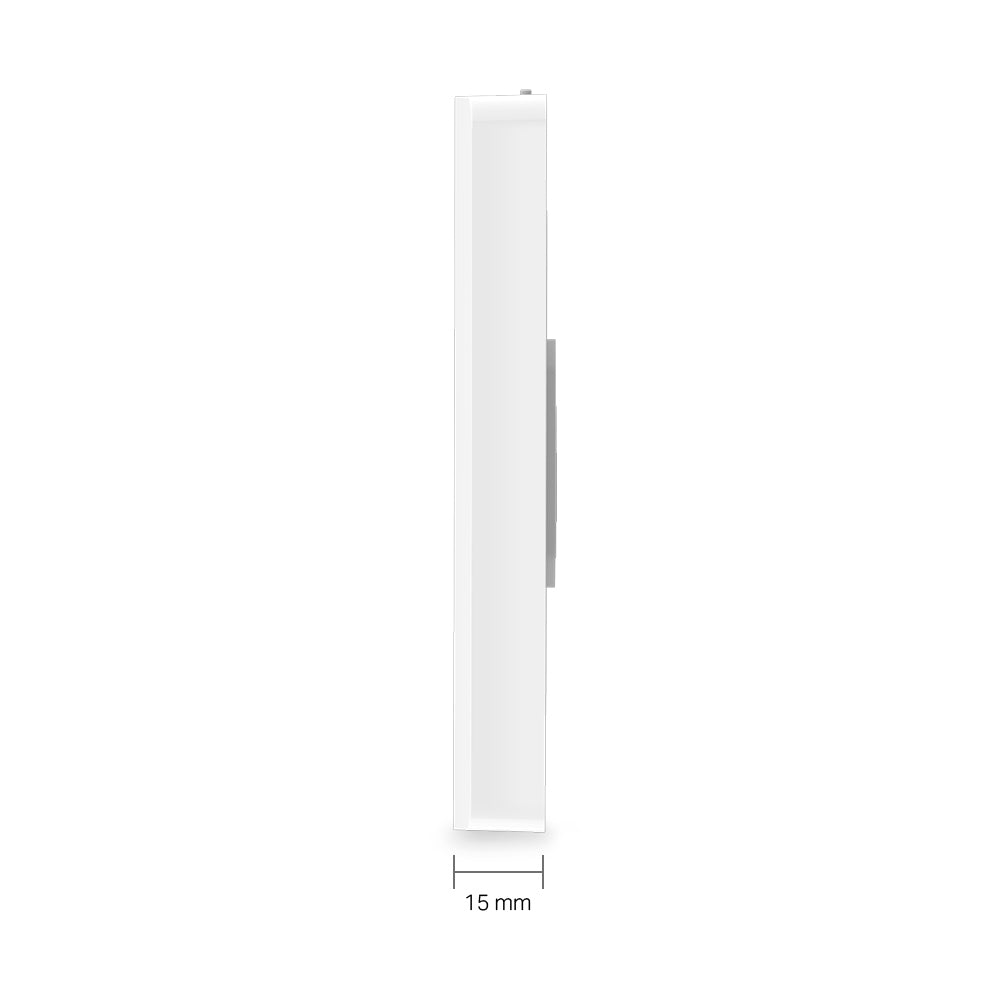

Easy-Mount Design
This slimline, inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86 mm wall junction box.

PoE Power Supply
With IEEE 802.3af/at PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.

Business-Class Hardware Design
Enterprise-class chipsets offer outstanding performance and support longer running time, higher client capacity and greater range. Dedicated high-power amplifiers, specialised antennas and professionally designed RF shields ensure excellent wireless performance.

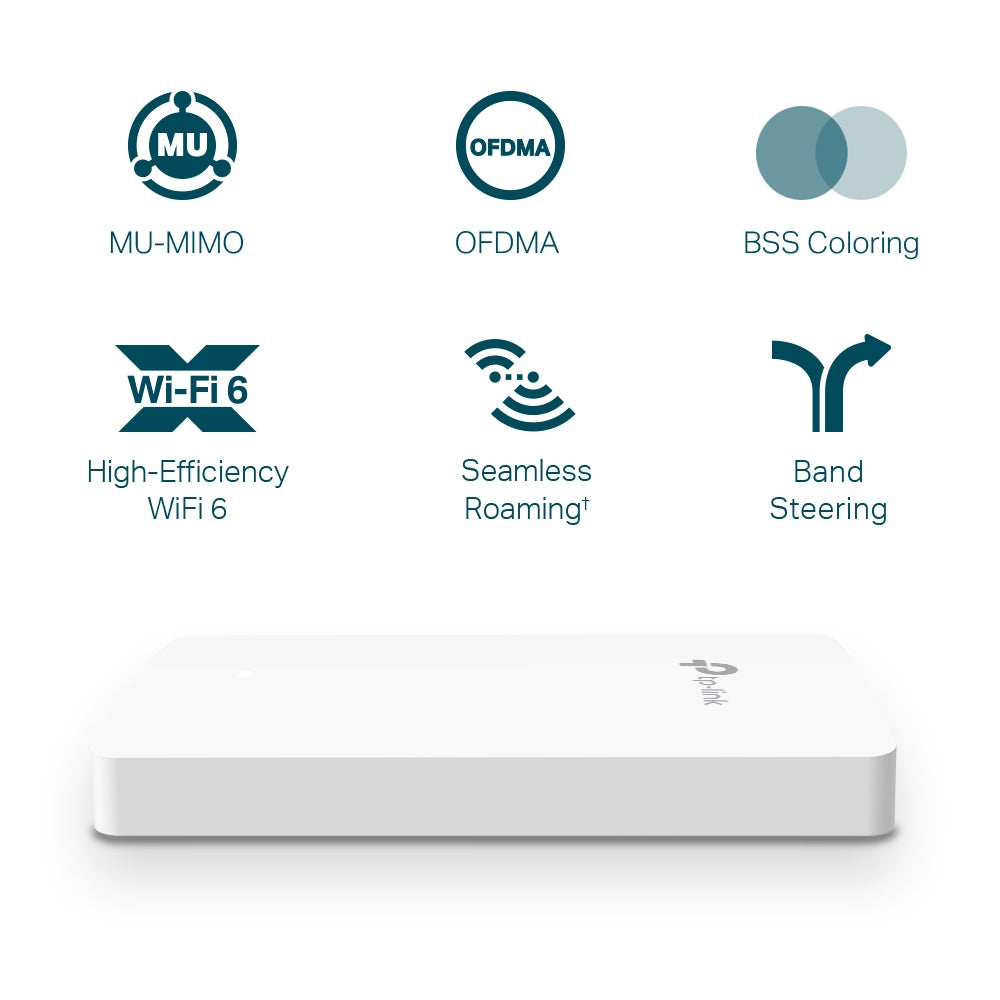

Increased Efficiency with OFDMA
The WiFi 6 standard uses OFDMA for more efficient channel use and reduced latency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

Advanced RF Management
MU-MIMO, Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications.

Warranty: Limited Lifetime

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
