Hardware Features
Interface

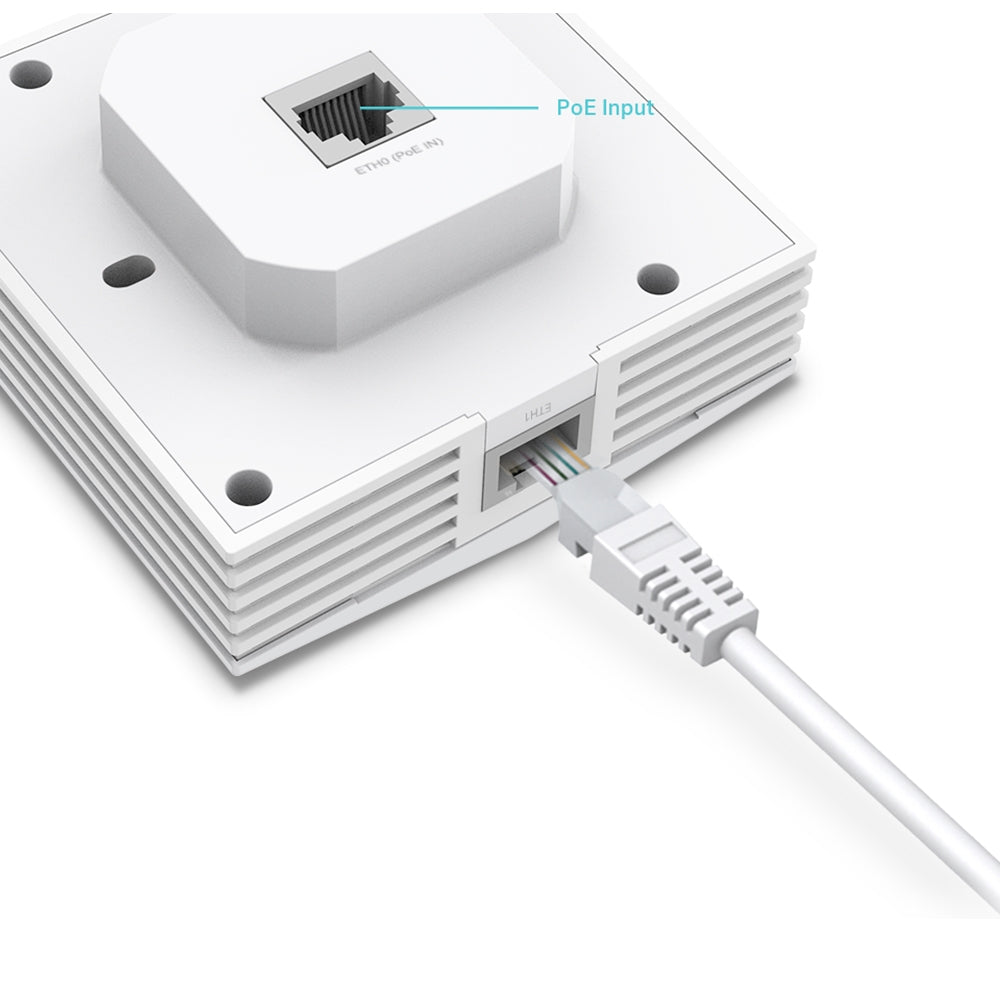

Uplink: 1 x 10/100/1000 Mbps Ethernet Port
Downlink: 1 x 10/100/1000 Mbps Ethernet Port
Physical Security Lock
No
Button
Reset, LED
Power Supply
802.3af/at PoE
Power Consumption
11.5 W
Dimensions
86 x 86 x 42.6 mm (3.4 x 3.4 x 1.7 in.)
Antenna
2 x Dual-Band Antennas
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 5 dBi

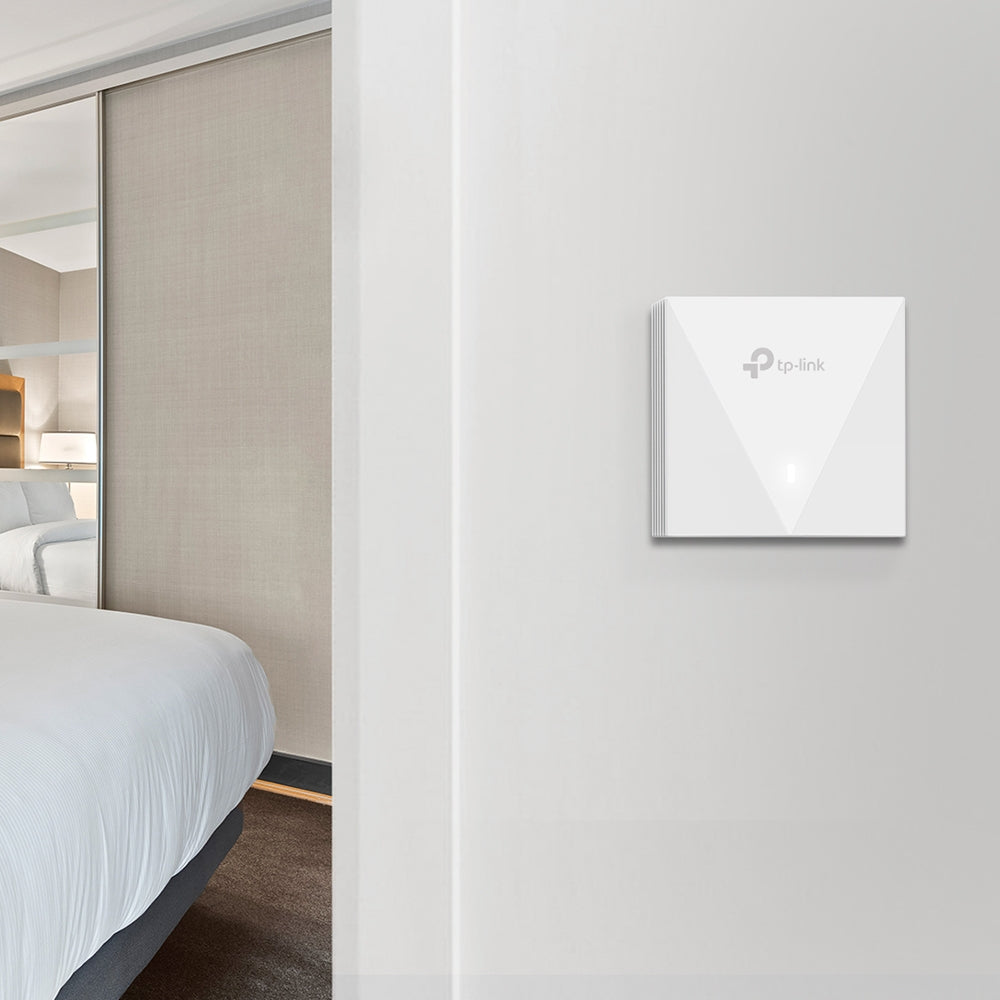

Mounting
Wall Plate Mounting (kits included)
Wireless Features
Concurrent Clients
100+
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)
Management
Omada App
Yes

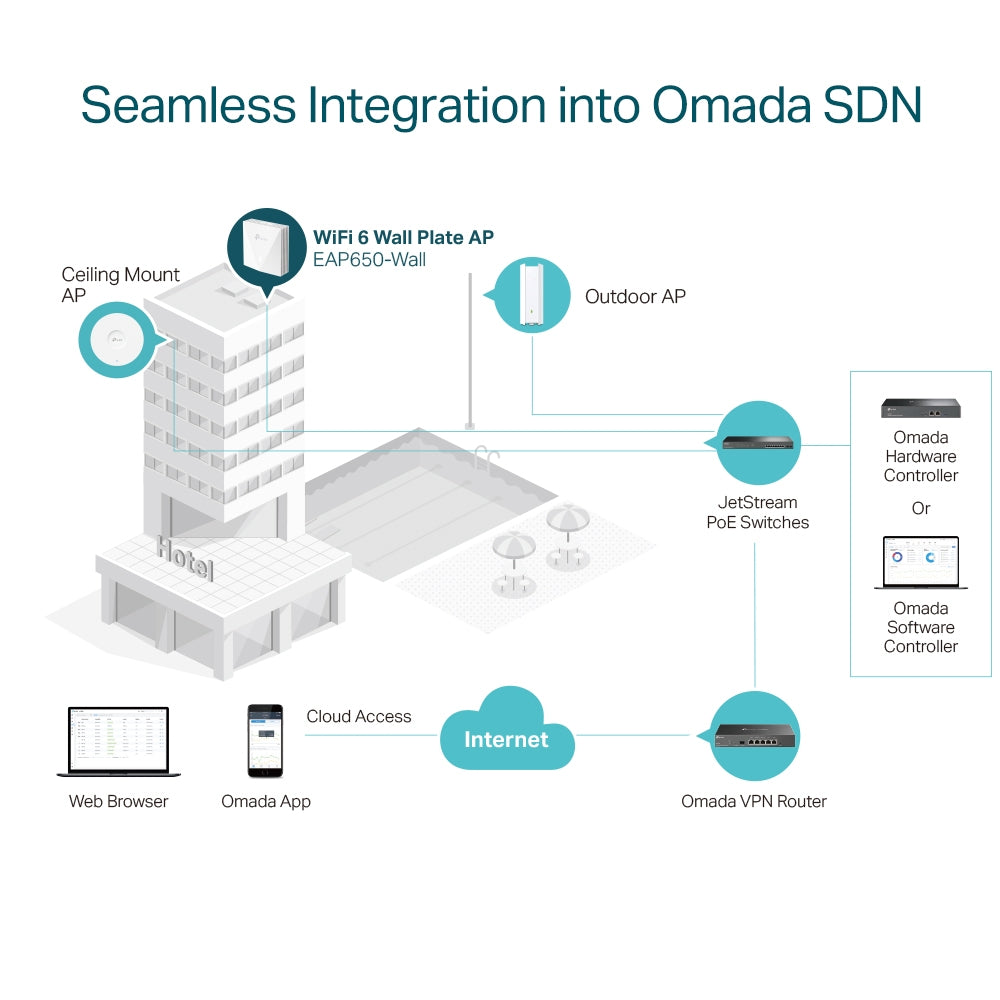

Centralised Management
Omada Hardware Controller (OC300/OC200 - sold separately)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Requires OC300/OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Other Specifications
Certification
CE, RoHS
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: -40°C – 70°C (-40°F – 158°F)
Operating Humidity: 10% – 90% RH non-condensing
Storage Humidity: 5% – 90% RH non-condensing
Package Contents
1 x TP-Link EAP650-Wall
1 x Installation Guide
1 x Mounting Kits
