TP-Link EAP655-WALL AX3000 Wall Plate WiFi 6 AP
TP-Link EAP655-WALL AX3000 Wall Plate WiFi 6 AP
TP-Link EAP655-Wall Wall Plate WiFi 6 Access Point AX300 Wireless AP
The TP-Link EAP655-Wall Plate WiFi 6 Access Point brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.
Key Features
-
Blazing-Fast AX3000 WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds -
Higher Network Efficiency
Deliver data to more devices at the same time with less lag. -
Complete In-Room WiFi Coverage
Guaranteed strong signals and corner-to-corner WiFi coverage. -

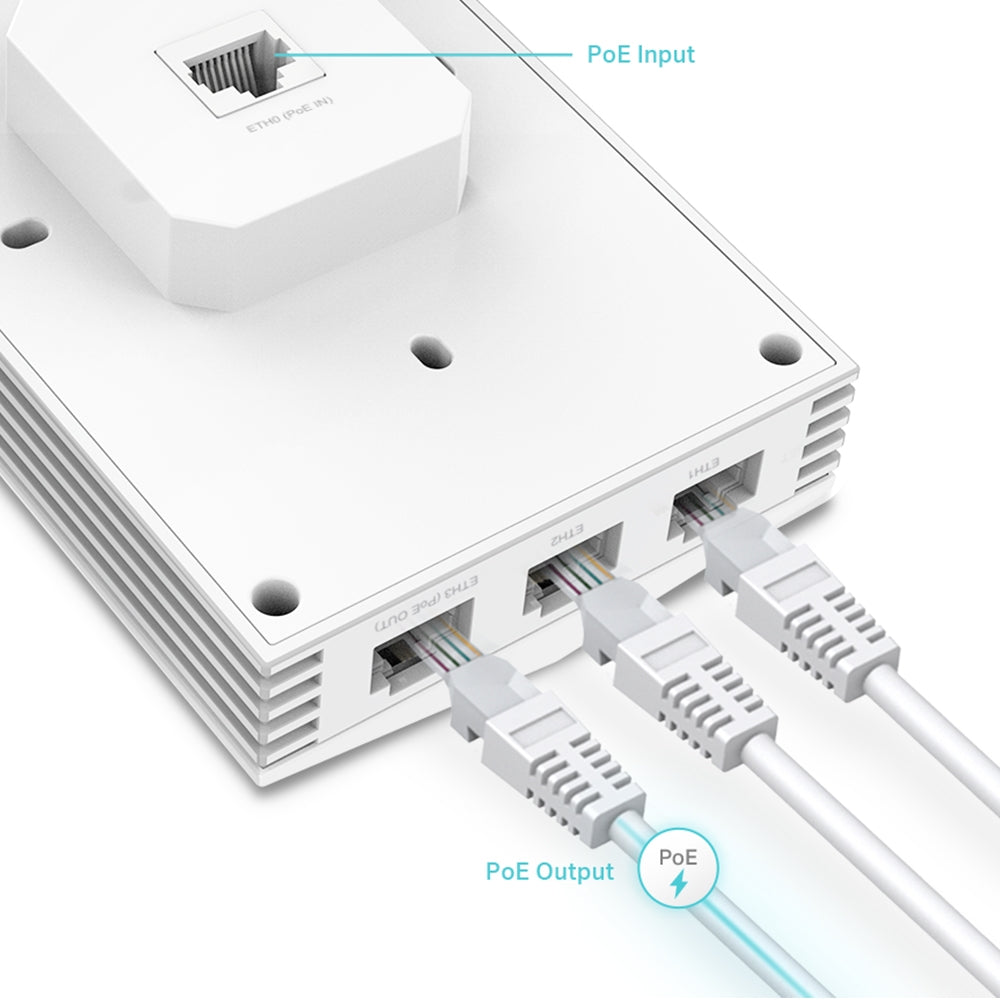

Multiple Gigabit Ports
Connect multiple devices with three (3) downlink gigabit ports, one with PoE pass-through. -
Centralised Cloud Management
Integrates into Omada for cloud access and remote management. -
Secure Guest Network
Implement multiple authentication options (SMS/Facebook WiFi/ Voucher) packed with high-quality wireless security technologies. -

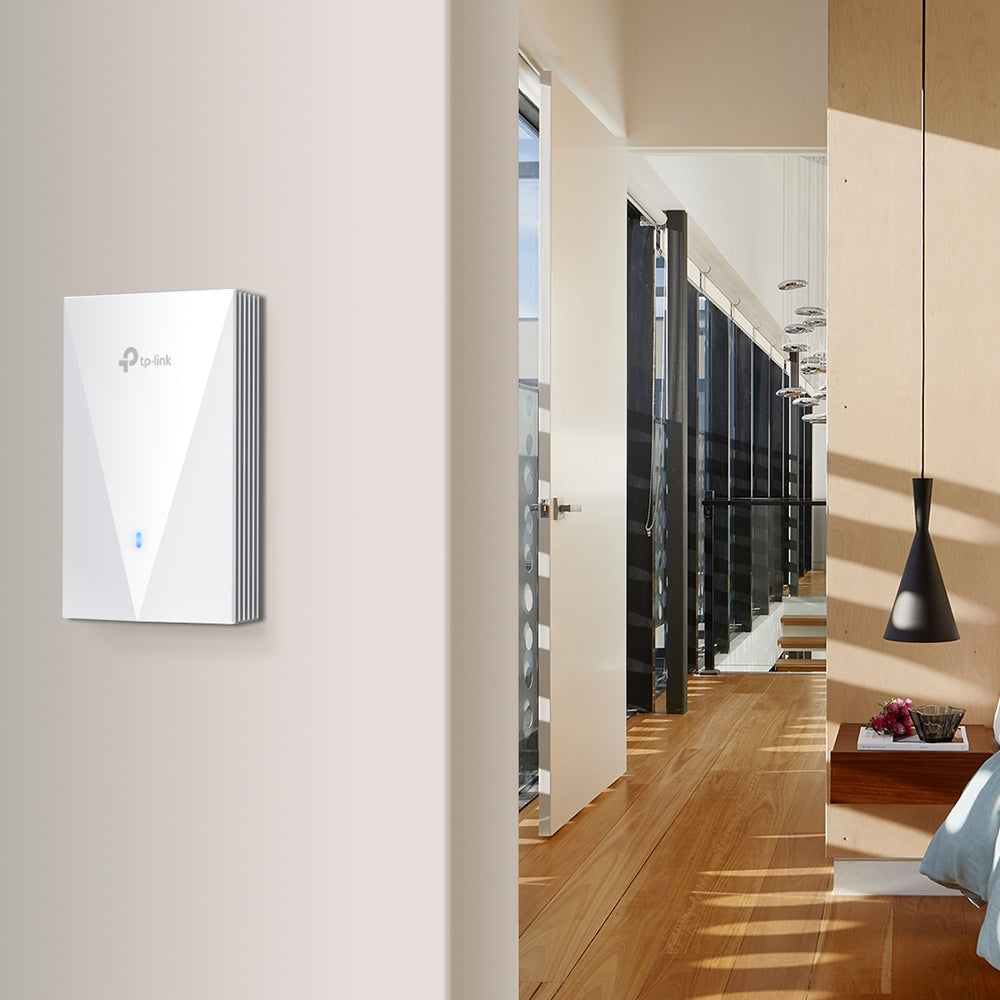

Easy Installation and PoE Support
Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. -
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160. -
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption. -
Seamless Roaming
Uninterrupted streaming when moving between APs.
Package Contents
1 x TP-Link EAP655-Wall
1 x Installation Guide
1 x Mounting Kits
Share
Explore Further
Highlights
Blazing-Fast AX3000 WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds
Higher Network Efficiency
Deliver data to more devices at the same time with less lag.
Complete In-Room WiFi Coverage
Guaranteed strong signals and corner-to-corner WiFi coverage.
Multiple Gigabit Ports
Connect multiple devices with three (3) downlink gigabit ports, one with PoE pass-through.
Centralised Cloud Management
Integrates into Omada for cloud access and remote management.
Secure Guest Network
Implement multiple authentication options (SMS/Facebook WiFi/ Voucher) packed with high-quality wireless security technologies.
Easy Installation and PoE Support
Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160.
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption.
Seamless Roaming
Uninterrupted streaming when moving between APs.
Dimensions and Weight
Width 86 mm, Depth 42.6 mm, Height 143 mm,Weight 0.4 g
Specification
Hardware Features
Interface
Uplink: 1× 10/100/1000 Mbps Ethernet Port
Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock
No
Button
Reset, LED
Power Supply
802.3af/at PoE
Power Consumption
EU: 12W (802.3at PoE, PoE Out off)
US: 12.6W (802.3at PoE, PoE Out off)
Dimensions
143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna
2 Dual-Band Antennas
2.4 GHz: 2× 3 dBi
5 GHz: 2× 5 dBi
Wireless Features
Concurrent Clients
100+
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz band1 & 2, EIRP)
<26 dBm (5GHz band3, EIRP)
FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
Management
Omada App
Yes
Centralised Management
Omada Hardware Controller (OC300, sold separately)
Omada Hardware Controller (OC200,sold separately)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of OC300 or OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
Others
Certification
FCC, RoHS
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: -40°C – 70° (-40°F – 158°F)
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing
Package Contents
1 x AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
1 x Installation Guide
1 x Mounting Kits
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
