TP-Link Switch TL-SX3016F Jetstream 16 Port Desktop Ethernet Switch

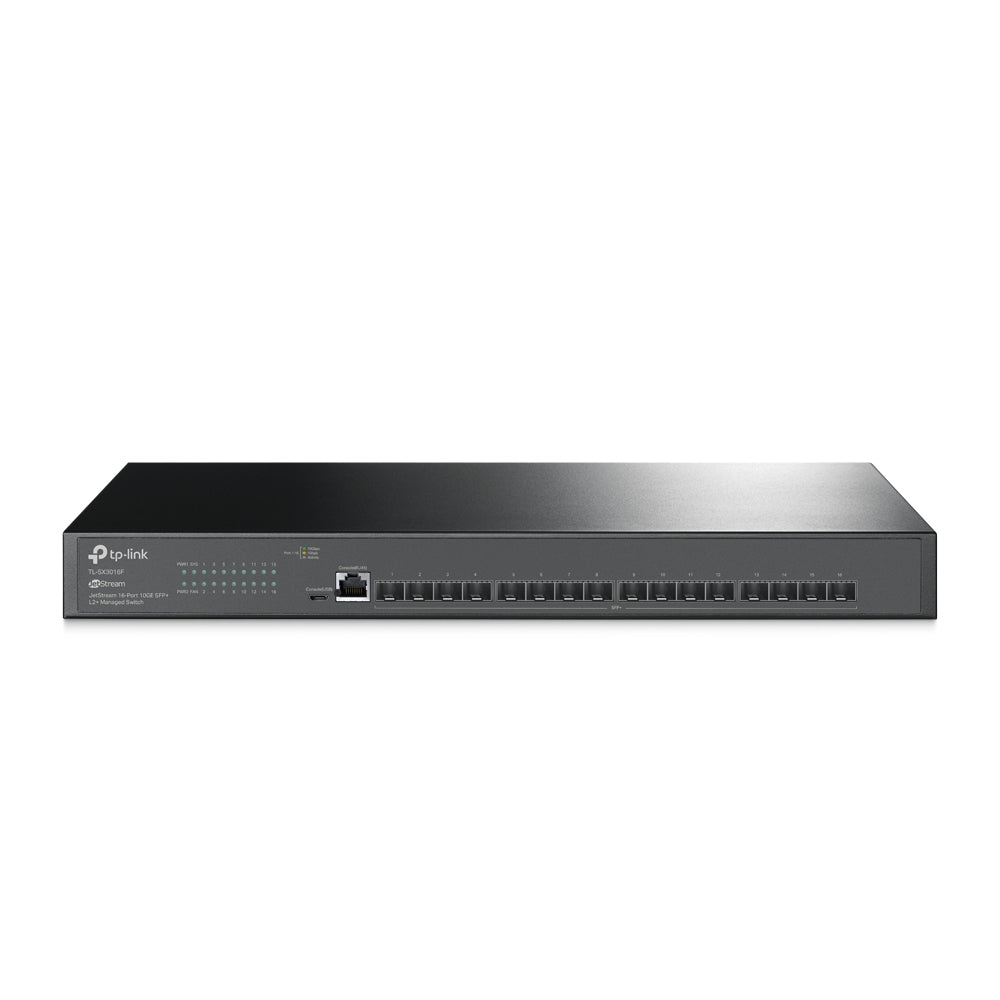

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

Key Features of TL-SX3016F Jetstream 16 Port

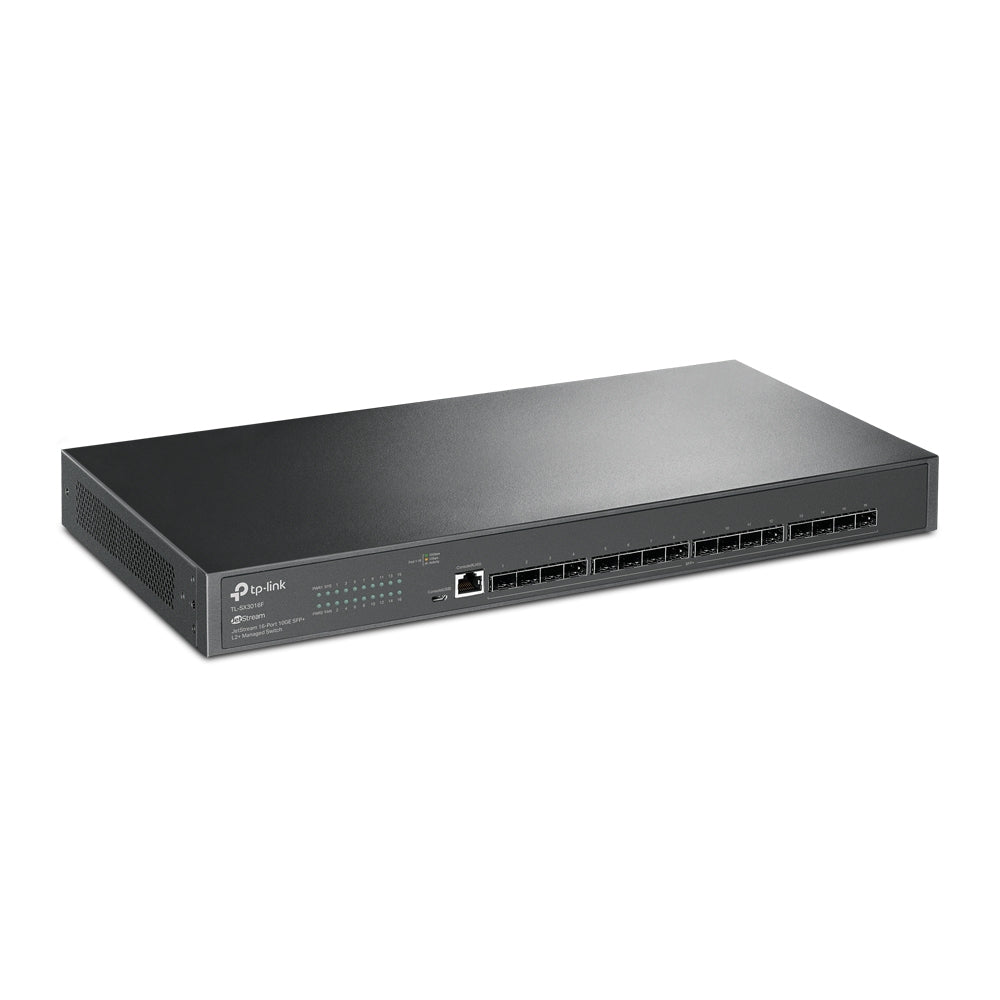

1. 16× 10GE SFP+ Slots
Offers ultra-high-speed connections for core switches, servers, or uplinks.

Ideal for data centers, enterprise backbones, and aggregation layers.

2. Advanced Layer 2+ Features
Includes features like 802.1Q VLAN, Link Aggregation Control Protocol (LACP), Spanning Tree Protocol (STP/RSTP/MSTP), IGMP snooping, and QoS (Quality of Service).

Supports static routing, allowing traffic segmentation and inter-VLAN routing without a full Layer 3 switch.

3. Enterprise-Level Security
Features such as Access Control Lists (ACLs), 802.1X authentication, Port Security, and IP-MAC-Port binding help secure network access.

4. Robust Management Options
Managed via:

Web GUI

Command Line Interface (CLI)

SNMP v1/v2c/v3

RMON

Also supports centralized management via Omada SDN, ideal for IT admins managing multiple devices.

5. High Switching Capacity
Delivers 320 Gbps switching capacity and 238.1 Mpps forwarding rate, ensuring non-blocking performance even under heavy loads.

6. Efficient Cooling & Durable Build
Equipped with smart fans for efficient cooling.

Rack-mountable metal chassis designed for 24/7 reliability.

7. Future-Proof Infrastructure
With full 10G fiber support and Layer 2+/static routing, it’s a solid backbone switch for growing networks needing future scalability.

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatibility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability.

The IP-MAC-Port Binding (IMPB)
and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move yourdata smoother and faster.

The OAM function helps facilitate network management. Moreover, the easy-to-use
web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Networking Security
The L2+ managed switches provide IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS/TACACS+
server to require some authentication information before access to the network is allowed.

Advanced QoS features
To integrate voice, data and video service on one traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc. to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice
VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant L2+ features
The L2+ managed switches support a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/
MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loopback Detection, Cable Diagnostics and IGMP Snooping.

IGMP snooping
ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, L2+ managed
switches support L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

ISP Features
The L2+ managed switches support a bundle of ISP features such as 802.3ah OAM, DDM, sFlow, QinQ, L2PT PPPoE ID Insertion, IGMP authentication etc. 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improve monitor and troubleshoot Ethernet networks, help facilitate network management.

DDM(Digital Diagnostic Monitoring) function helps view the status of SFP modules inserting to the Switch and to configure alarm settings, warning settings, temperature
threshold settings, voltage threshold settings, bias current threshold settings, TX power threshold settings, and Rx power threshold settings.

Enterprise Level Management Features
TP-Link’s new L2+ managed switches are easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI), industry-standard Command Line Interface (CLI), SNMP (v1/v2c/v3), and RMON. This allows the switch to provide valuable status information and send reports on abnormal events. It also supports Dual Image and Dual Configuration to provide improved reliability and network uptime.

IPv6 Support
The L2+ managed switches support various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

Layer 3 Features
• 16 IPv4/IPv6 Interfaces (32 IPv4/IPv6 Interfaces for TL-SG3428X-M2 & TL-SG3428XPP-M2)
• Static Routing - 48 static routes
• Static ARP - 128 static entries
• 512 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
- DHCP interface relay
- DHCP VLAN relay
• DHCP L2 Relay

Layer 2 Features
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both

Layer 2 Multicast
• Supports 1000 (IPv4, IPv6) IGMP groups (511 groups for TL-SG3428X-M2 & TLSG3428XPP-M2)
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile
