TP-Link TL-SG1005P 5 Port Gigabit Desktop Switch 4-Ports POE+

TP-Link TL-SG1005P 5 Port Gigabit Desktop Switch 4-Ports POE+

£33.99
£38.15 £33.99
Sale Sold out
Tax included. Shipping calculated at checkout.

TP-Link TL-SG1005P 5 Port Gigabit Layer 2 UnManaged Desktop Switch Rackmount 4 Ports-POE+ 65W Budget 10GB/s Switching Capacity



5-Port Gigabit Desktop PoE Switch with 4-Port PoE+
5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports*
Requires no configuration and installation

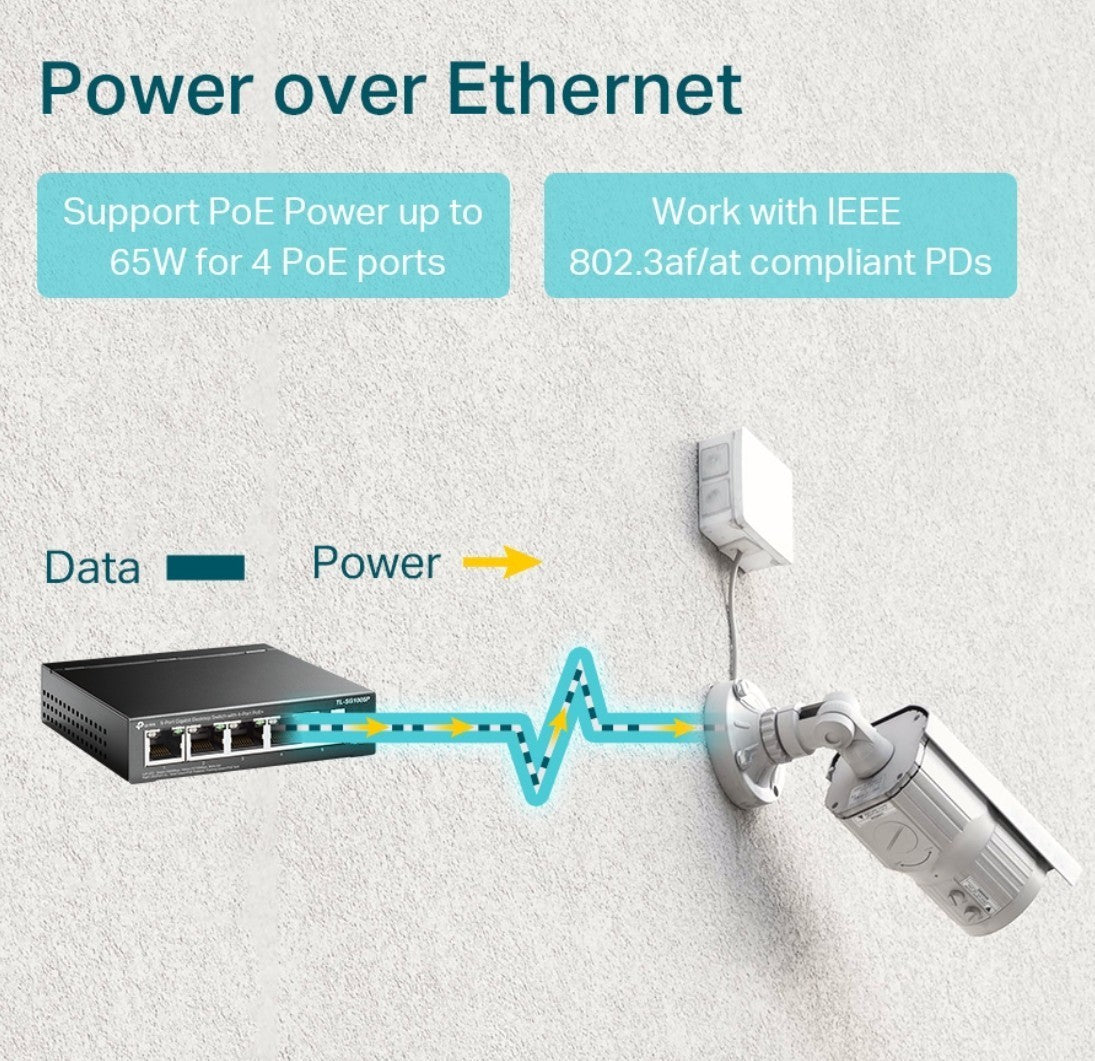

Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

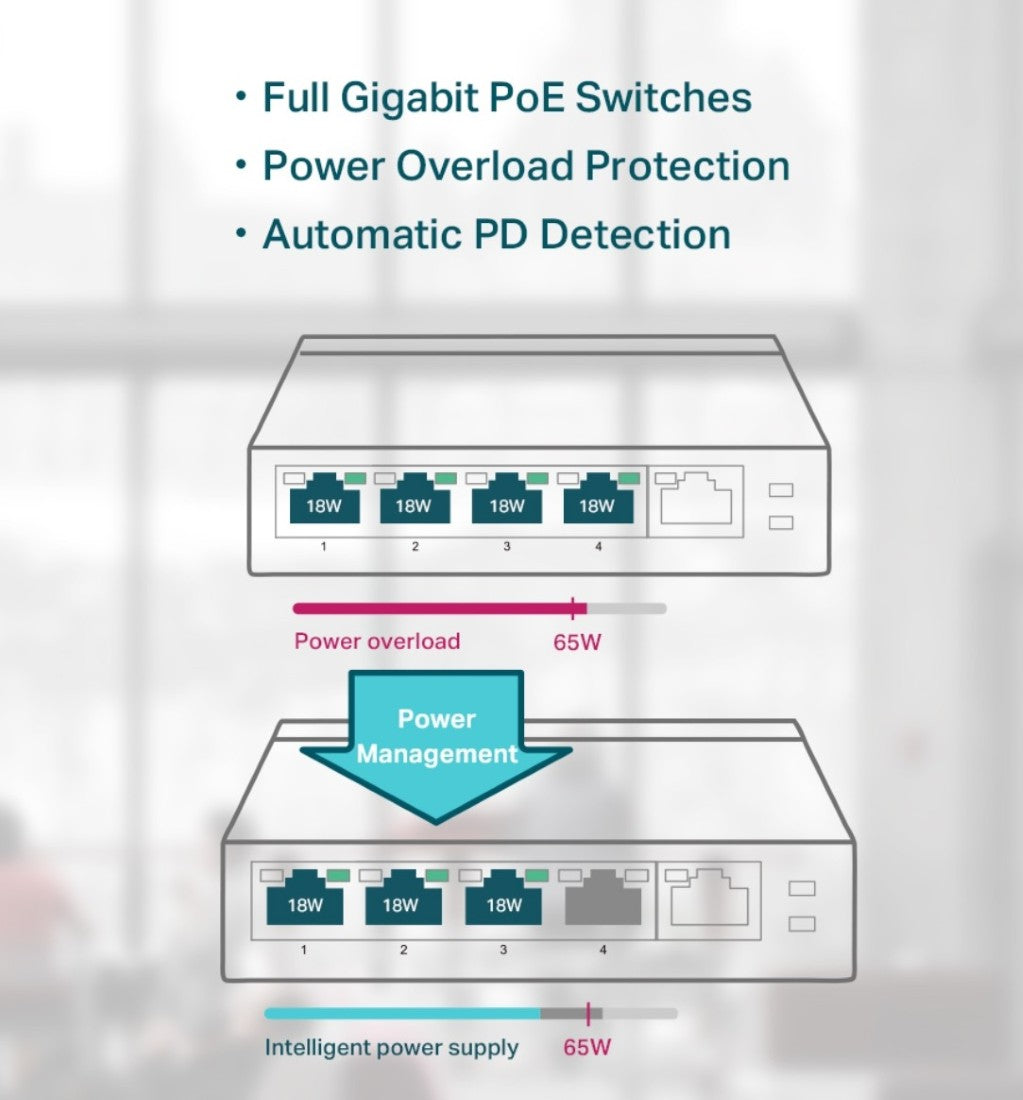

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

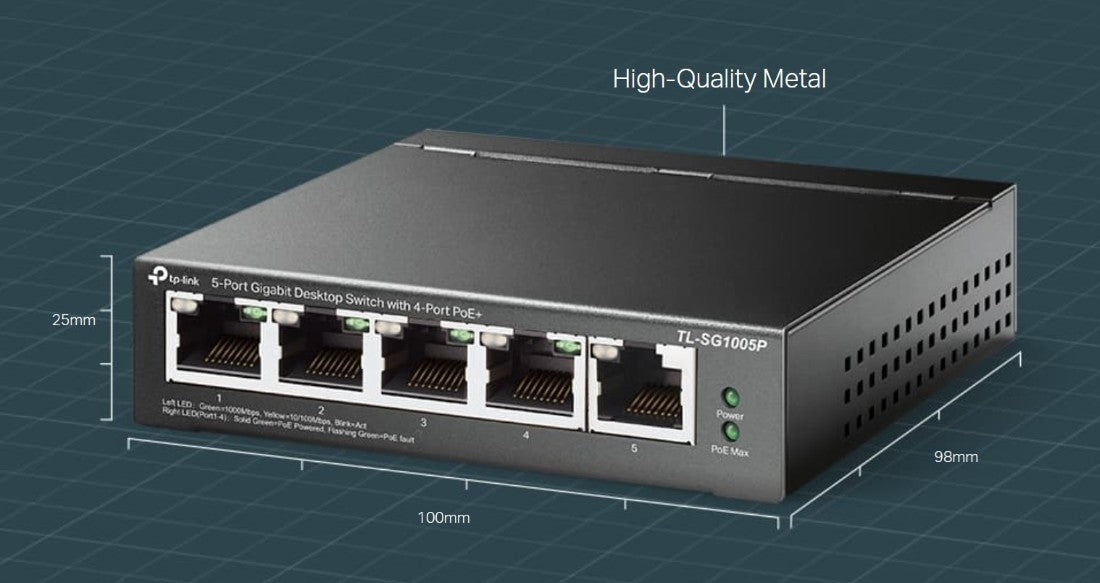

Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

Compact Desktop Design with Wall-Mounting and Fanless Design

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

View full details

Explore Further

Highlights

5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for all PoE ports*
• Up to 250m data and power transmitting range under Extend Mode**
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically
rebooting the dropped or unresponsive PD devices
• Plug and Play, no configuration and installation required
Disclaimers
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.

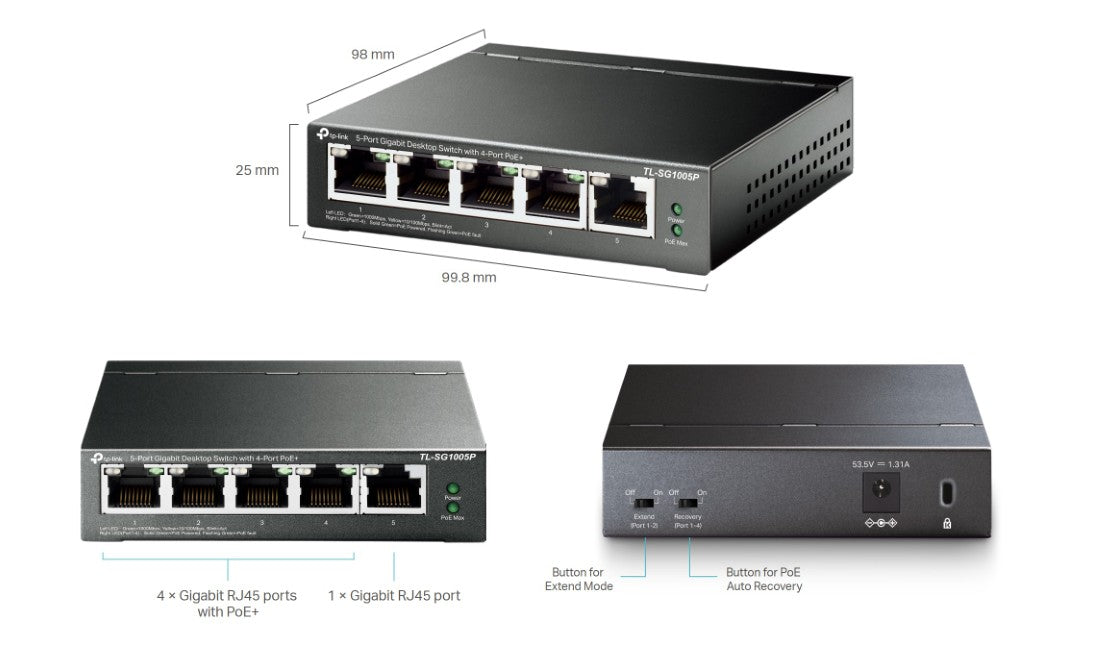

Dimensions and Weight

Width 99.8 mm, Depth 98 mm, Height 25 mm,Weight 0.8 kg

Specification

Specifications
Model TL-SG1005P V5
Standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE
802.3af, IEEE 802.3at
Interface • 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4)
• AUTO Negotiation/AUTO MDI/MDIX
Network Media (Cable)
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5 or above cable (maximum 100m)
• 1000BASE-T: UTP category 5e or above cable (maximum 100m)
Max Power Consumption 74.54 W (220 V/50 Hz, with 65 W PD connected)
Max Heat Dissipation 254.18 BTU/h (with 65 W PD connected)
PoE Ports (RJ45)
PoE Standard: 802.3 af/at
PoE Ports: 1-4, up to 30 W per port
PoE Power Budget: 65 W
Transmission Method Store-And-Forward
Packet Forwarding Rate 7.44 Mbps
Switch Capacity 10 Gbps
MAC Address Table 2K
Packet Buffer Capacity 1 Mbit

Jumbo Frame 16 KB
Extend Mode For Ports 1-2
PoE Auto Recovery For Ports 1-4
Advanced Features
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Ethernet
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Certification FCC, CE, RoHS
Package Contents Switch, Power Adapter, Installation Guide
Operating Temperature 0°C to 40 °C (32 °F to 104°F )
Storage Temperature -40 °C to 70 °C (-40 °F to 158°F )
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing

Disclaimers
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a
result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the
power consumption of PoE-powered devices or the cable quality and type.

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
