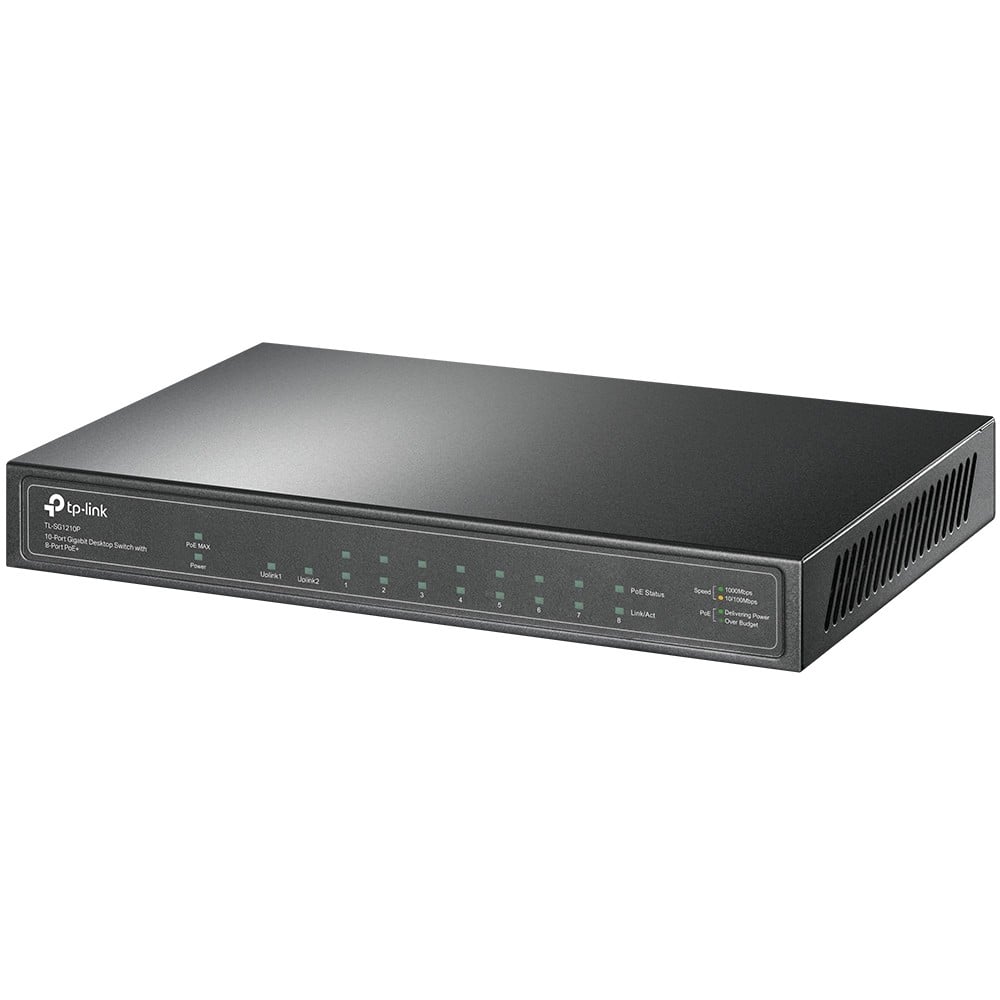

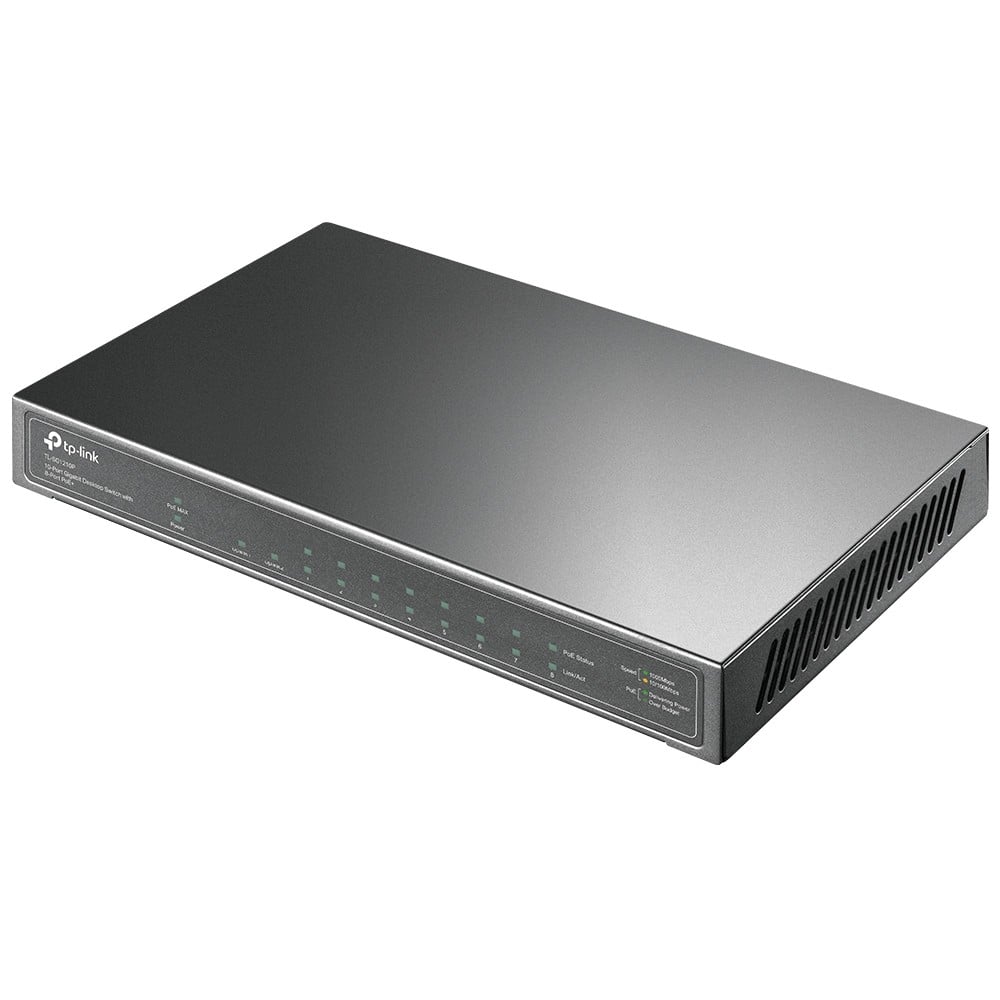

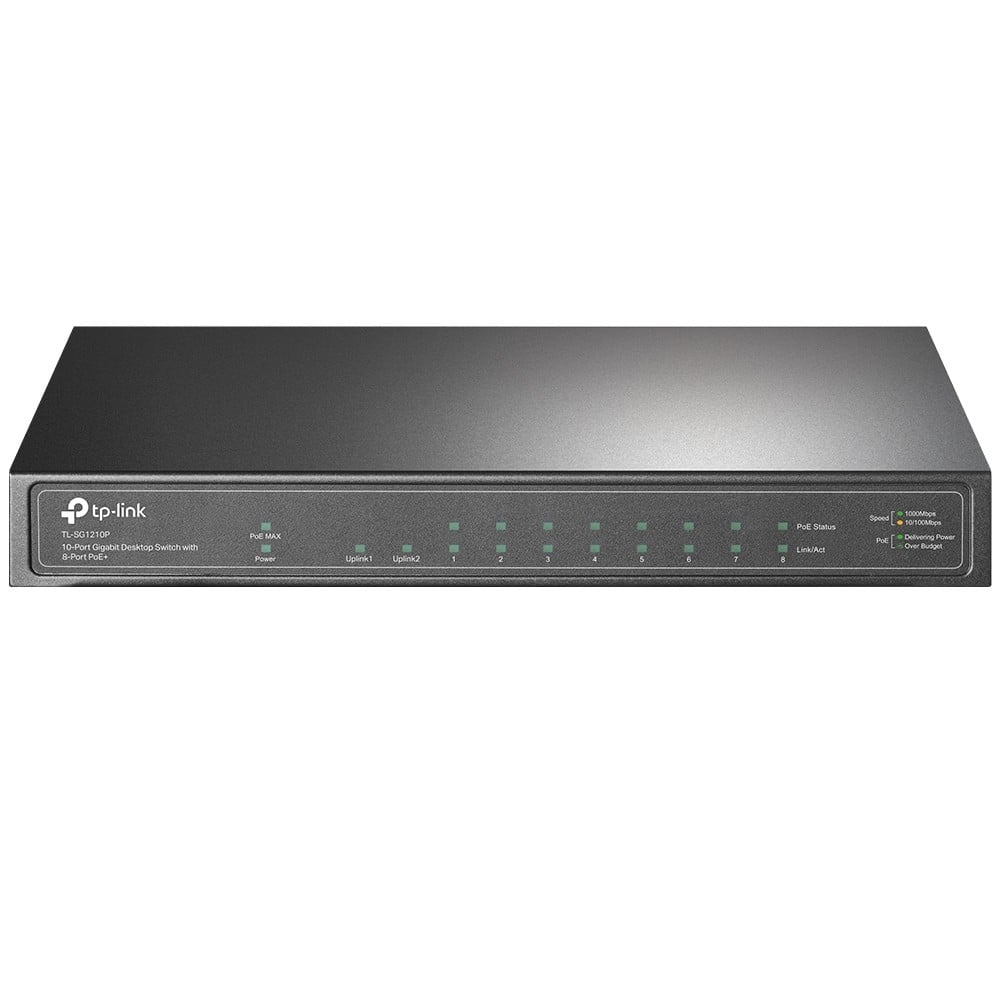

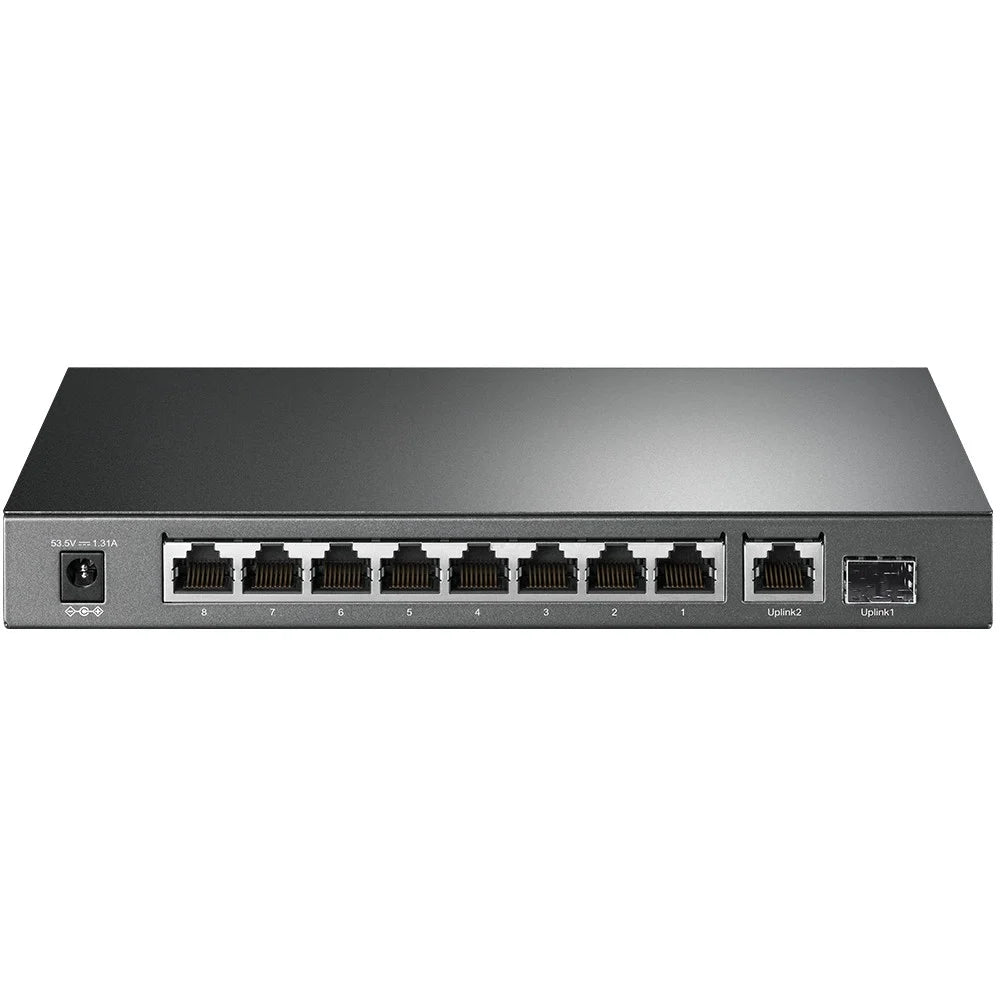

TP-Link TL-SG1210P 10 Port Gigabit Desktop Switch 8 Ports POE+

Power over Ethernet


Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management


When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance


Qos

For Fluent Online Experience


Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP

Snooping

Traffic Optimization for IPTV


IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing


Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Width 209 mm, Depth 126 mm, Height 26 mm,Weight 1.3 kg

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
SFP module slots quantity 1
Basic switching RJ-45 Ethernet ports quantity 9
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 9
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Network
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
IGMP snooping Yes
Optical fiber
Fiber type Single-mode
Fiber ethernet cabling technology 1000BASE-X
Data transmission
MAC address table 4000 entries
Switching capacity 20 Gbit/s
Store-and-forward Yes
Security
IGMP snooping Yes
Design
Wall mountable Yes
Product colour Grey
LED indicators Yes
Housing material Metal
Certification CE, FCC, RoHS
Performance
Fanless Yes
Auto-negotiation Yes
Harmonized System (HS) code 85176990
Power
Power consumption (max) 78.13 W
Power supply included No
Power consumption (typical) 7.11 W
Input current 1.31 A
DC input voltage 53.5 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity 8
Total Power over Ethernet (PoE) budget 63 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 266.42 BTU/h
Weight & dimensions
Width 209 mm
Depth 126 mm
Height 26 mm
Packaging content
Quick start guide Yes
User guide Yes
Manual Yes
Cables included AC
Technical details
Product colour Grey
Housing material Metal
Certificates
Certification CE, FCC, RoHS
Indication
LED indicators Yes
Packaging data
Quick start guide Yes
User guide Yes
Manual Yes
Cables included AC
