Ubiquiti E7 UniFi Enterprise Tri-Band WiFi 7 Access Point

WiFi 7 with 6 GHz support.
Ten (10) spatial streams.
Real-time spectral analysis for enhanced channel selection.
Dedicated spectral analyser radio.
Long-range 6 GHz performance with AFC.*
185 m2 (2,000 ft2) coverage.
1,000+ connected devices.

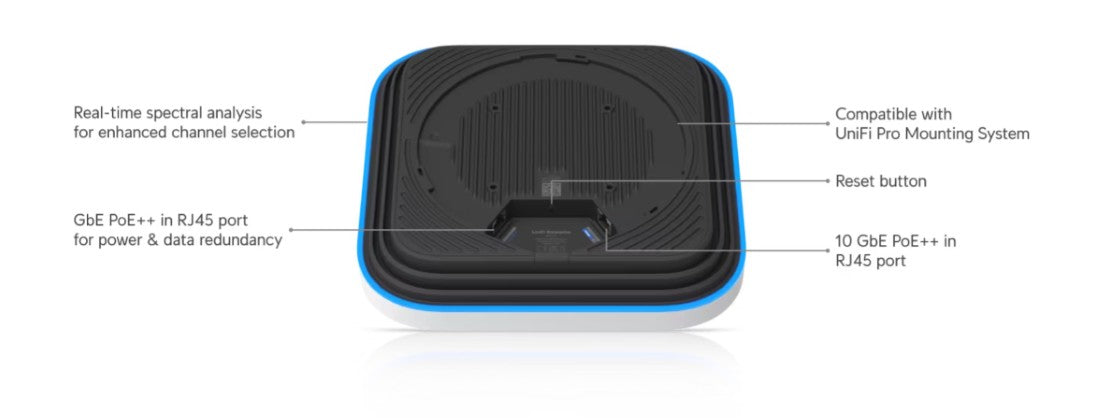

One (1) 10 GbE RJ45 port and one (1) GbE RJ45 port for power & data redundancy.
Powered using PoE++.
Ideal for High-Density Deployments
Designed for extensive coverage, the E7 can effectively serve areas up to 185 square metres (2,000 square feet). It features a dedicated spectral analyser radio that enables real-time spectral analysis, enhancing channel selection and optimising network performance. With 10 spatial streams, the E7 offers robust data throughput and can accommodate over 1,000 connected devices, making it ideal for high-density deployments.

Easy and Seamless Installation
For connectivity, the E7 includes a 10 GbE RJ45 port and a secondary GbE RJ45 port for power and data redundancy to ensure high availability. The access point is powered using Power over Ethernet++ (PoE++), simplifying installation by reducing the need for separate power sources. Its design incorporates a backwards-compatible mounting system, facilitating seamless integration into existing network infrastructures.

Width 250 mm, Depth 43.5 mm, Height 250 mm,Weight 2500 g

Overview
Dimensions
250 x 250 x 43.5 mm
(9.8 x 9.8 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
10
Coverage Area
185 m² (2,000 ft²)
Max. Client Count
1000+
Uplink
10 GbE
1 GbE

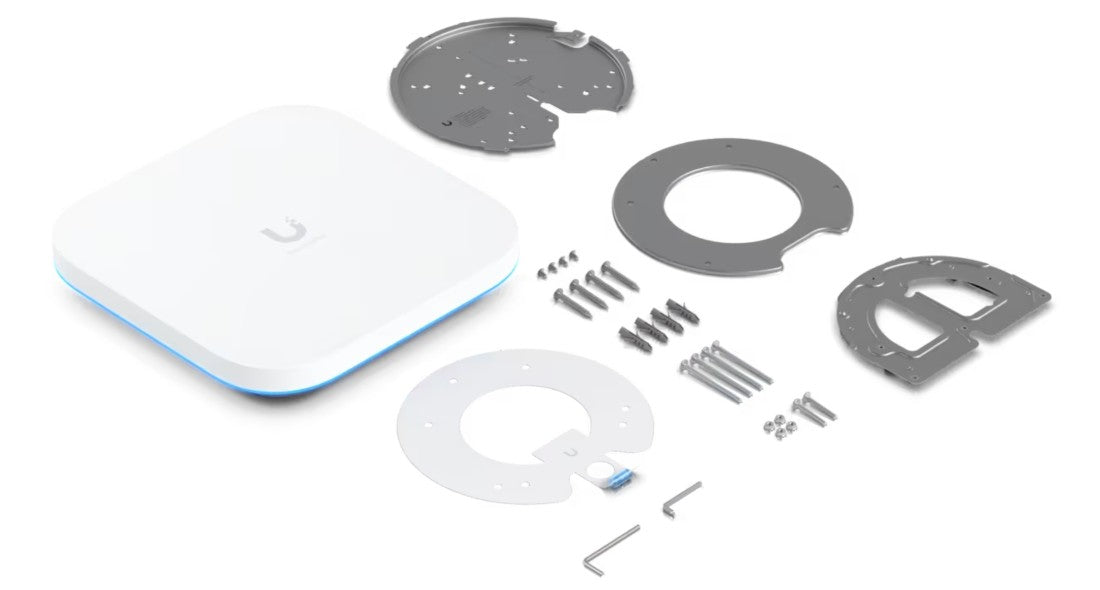

Mounting
Ceiling, Wall, VESA
(Pro Mount Included)
Power Method
PoE++

Performance
MIMO
6 GHz
4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
11.5 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
6 dBi
5 GHz
6 dBi
2.4 GHz
5 dBi
Max. TX Power
6 GHz
24 dBm / 30 dBm
5 GHz
30 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Real-Time Spectral Analysis
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
43W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port
Weight
1.8 kg (4 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System
R/G/B
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06372-24-08356
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements
UniFi Network
Version 9.2.87 and later
Mobile App
iOS™ version 10.24.1 and later
Android™ version 10.25.2 and later
