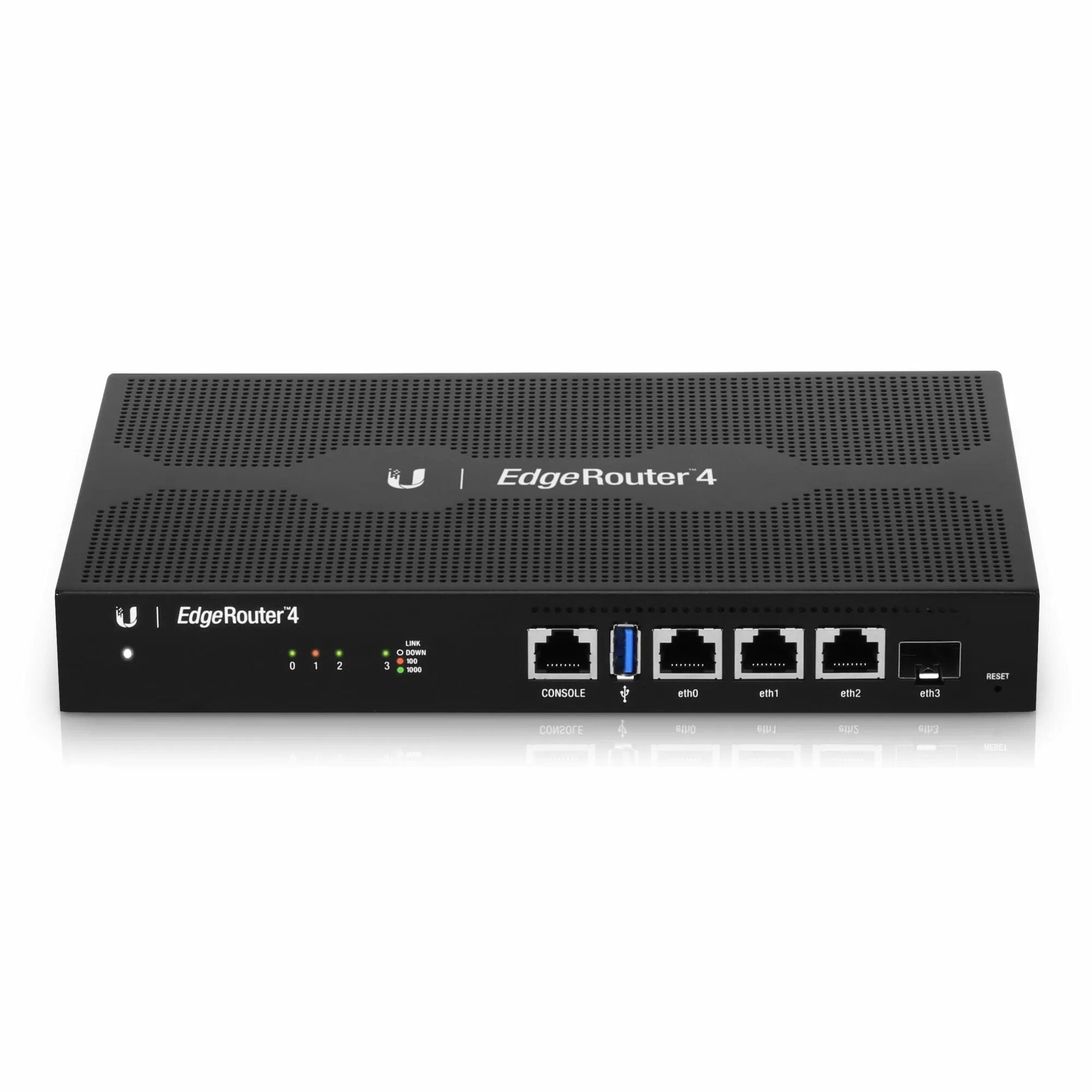

• Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router Main View

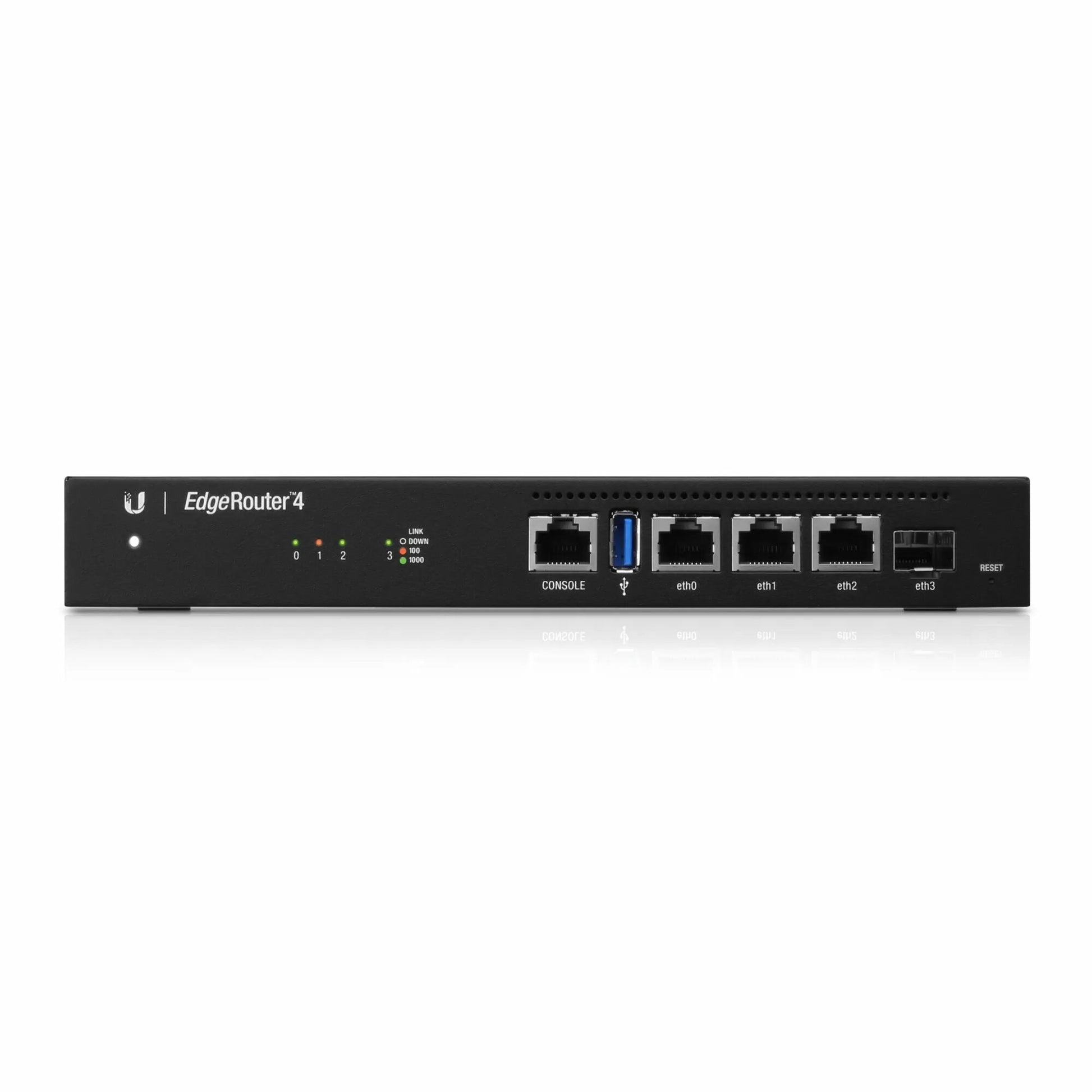

  • Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router Front Close Up

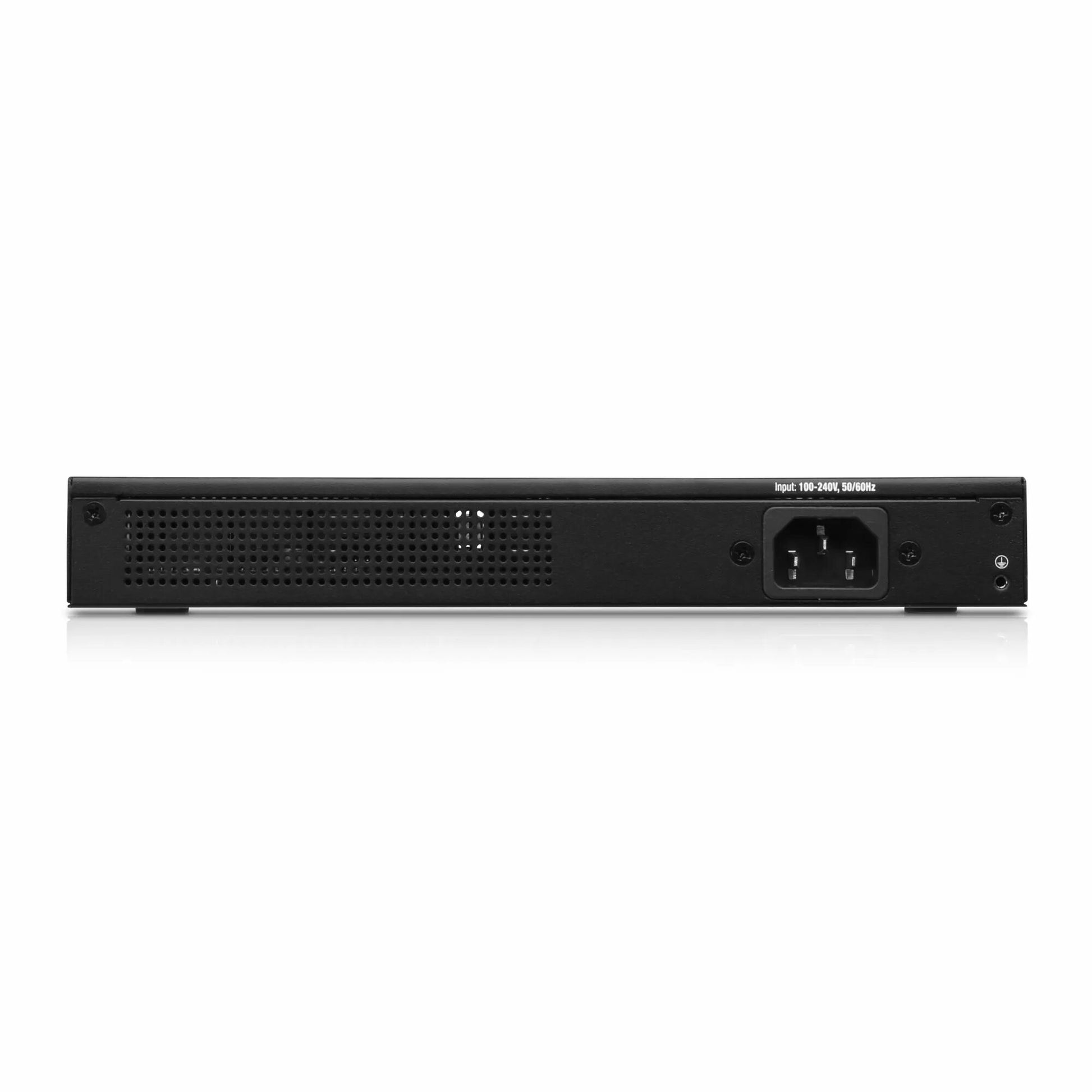

  • Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router Rear View

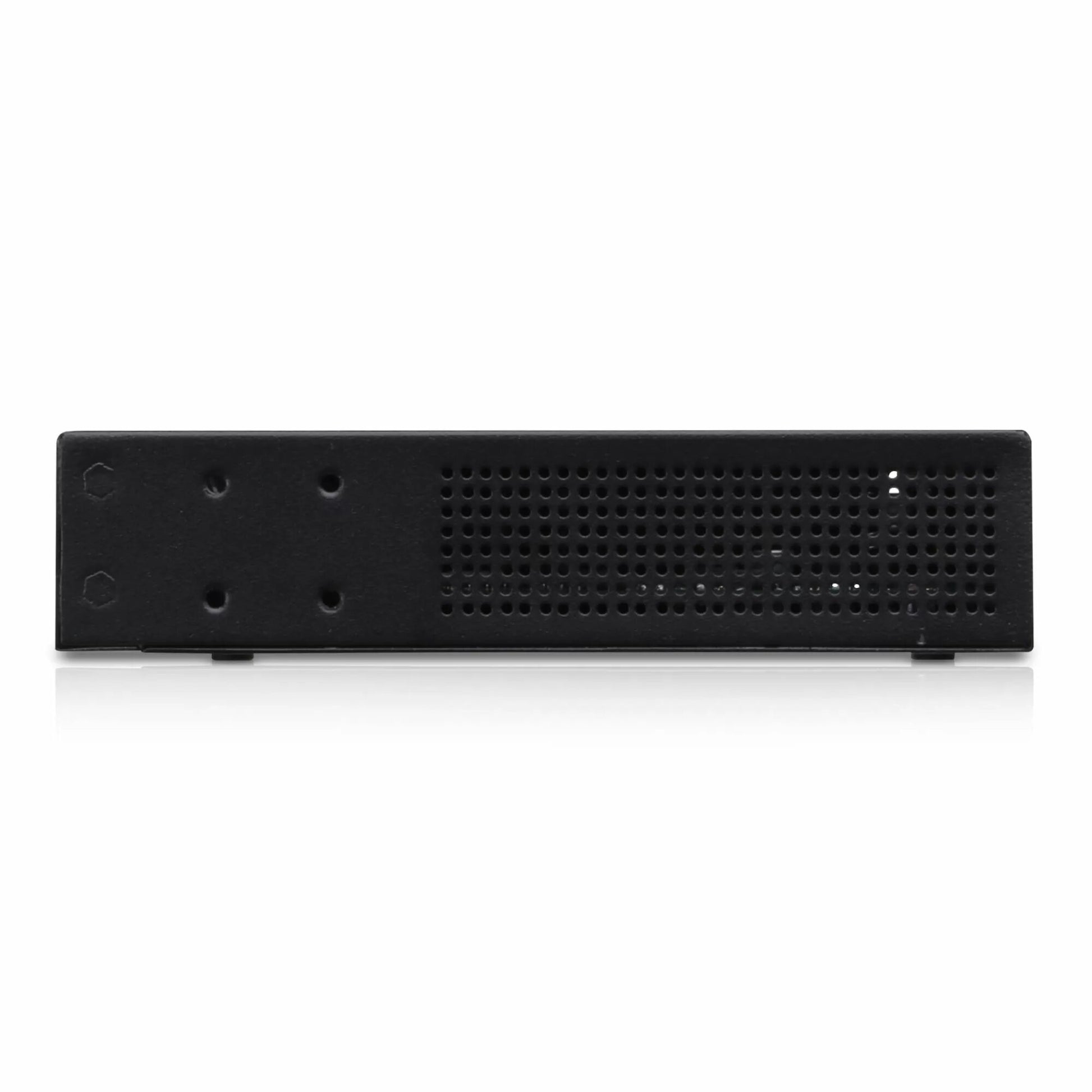

  • Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router Side View
1 4

Ubiquiti

Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router With 1x SFP Port

Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router With 1x SFP Port

£153.99
£153.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti ER-4 EdgeRouter 4-Port Gigabit Broadband Router w/ 1x SFP Port

The Ubiquiti ER-4 EdgeRouter4 Gigabit Broadband Router combines carrier class reliability with enterprise level features in a compact and affordable unit. The Ubiquiti ER-4 Router offers Gigabit Ethernet ports and an SFP port for a fibre link. It is capable of routing up to 3.4 million packets per second and has a line rate of 4 Gbps. Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network.

Key Features

  • 3x 10/100/1000 Gigabit RJ45 routing ports.
  • 1x 10/100/1000 Gigabit SFP port.
  • 3.4 million packets per second for 64-byte packets.
  • Easily control dynamic and static IP addressing for your network devices.
  • Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS.
  • The CLI provides quick and flexible configuration by command line.
  • Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces.
  • Compact durable metal case with silent fanless operation.
  • 4 Gbps for packets 128 bytes or larger in size.
  • Wall or rack-mountable*(*rack mount sold seperately)
View full details

Explore Further

Highlights

3x 10/100/1000 Gigabit RJ45 routing ports.
1x 10/100/1000 Gigabit SFP port.
3.4 million packets per second for 64-byte packets.
Easily control dynamic and static IP addressing for your network devices.
Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS.
The CLI provides quick and flexible configuration by command line.
Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces.
Compact durable metal case with silent fanless operation.
4 Gbps for packets 128 bytes or larger in size.

Dimensions and Weight

Width 229 mm, Depth 136.5 mm, Height 31.1 mm,Weight 1.5 kg

Specification

Mechanical
Dimensions 229 x 136.5 x 31.1 mm (9 x 5.4 x 1.2")
Weight 795 g (1.8 lb)
Hardware
Processor 4-core 1 GHz MIPS64
System memory 1 GB DDR3 RAM
On-board flash storage 4 GB eMMC, 8 MB SPI NOR
Networking interface (3) 10/100/1000 RJ45 ports
(1) 1 Gbps SFP port
Management interface (1) RJ45 serial port
(4) Ethernet ports
Power method Universal AC power cord (C13), 30W, DC, 50/60 Hz
Power supply Internal AC/DC power adapter
Supported voltage range 100-240V AC
Max. power consumption 13W
ESD/EMP protection Air: ± 24 kV, contact: ± 24 kV
Button Factory reset
LEDs Data ports: speed/link/activity
SFP data port: link/activity
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
