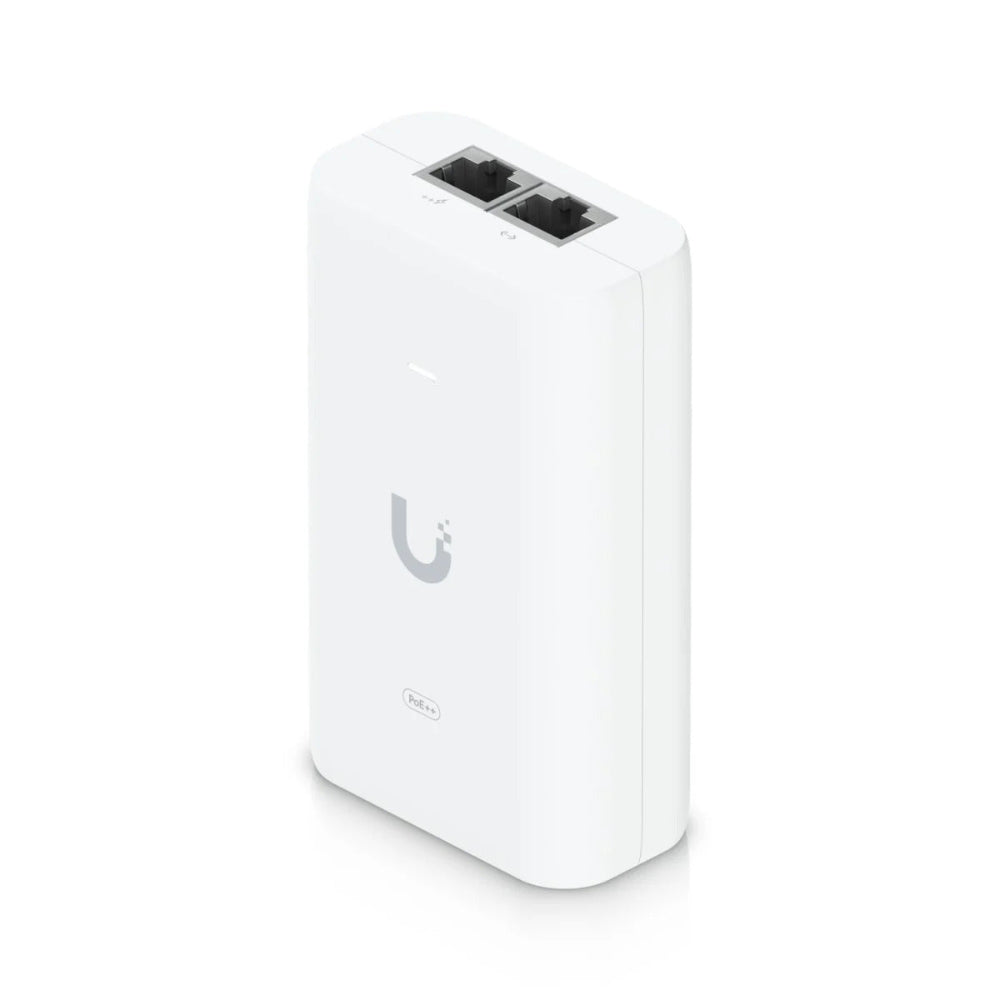

• Ubiquiti U-POE++ 60W POE Adapter With UK Power Lead Side On View

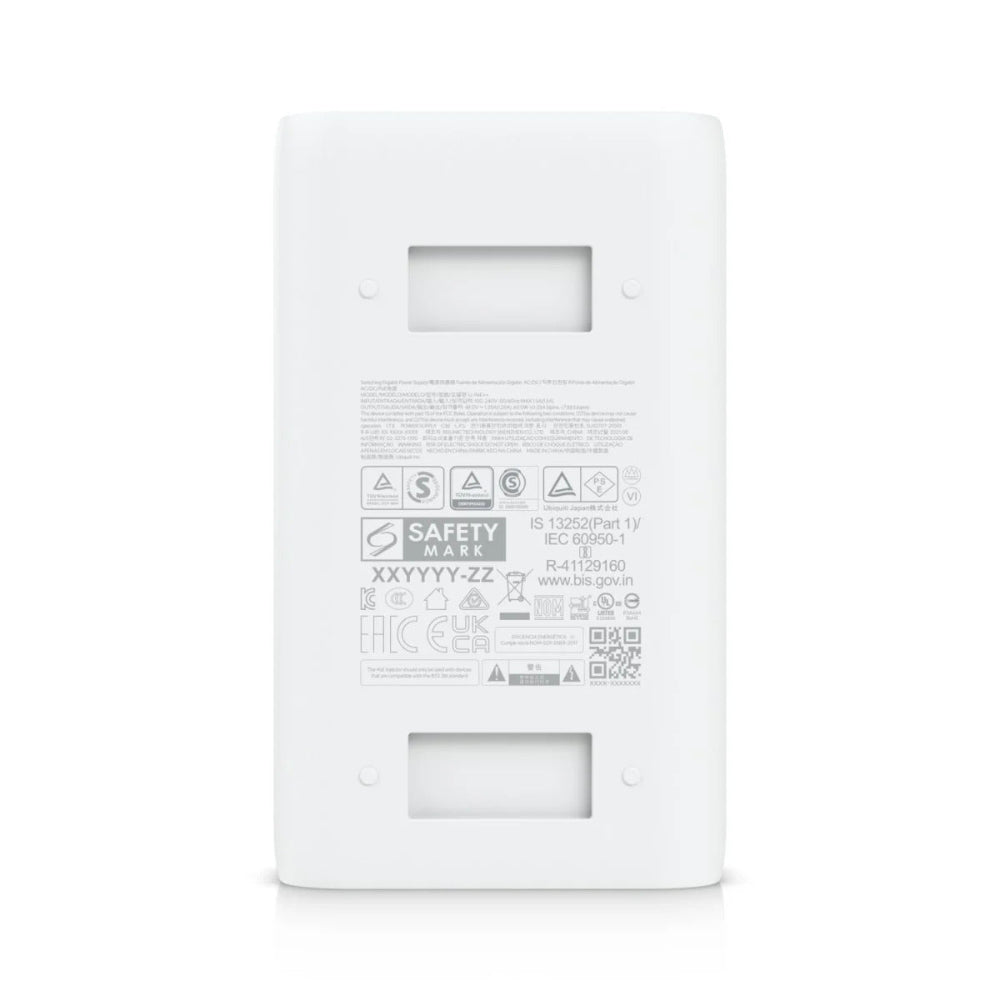

  • Ubiquiti U-POE++ 60W POE Adapter Rear View Showing Compliance and Specification Information

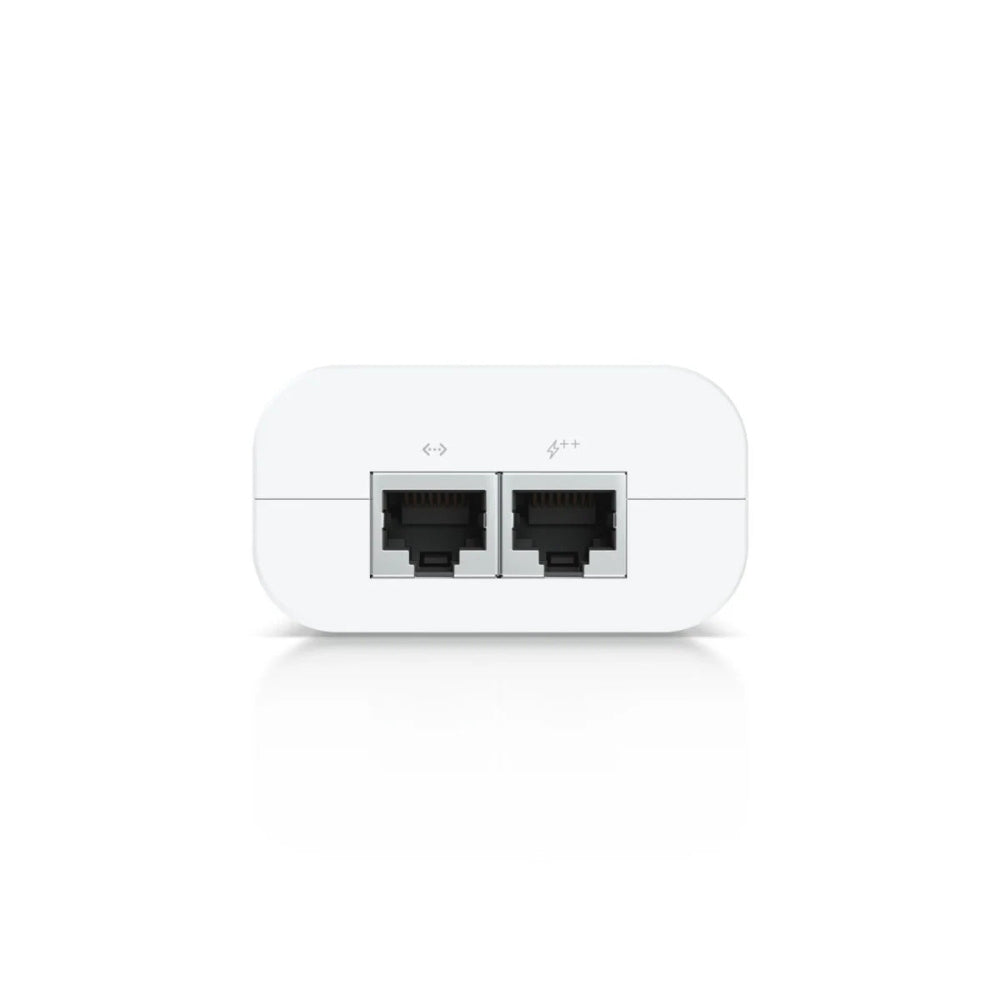

  • Ubiquiti U-POE++ 60W POE Adapter Horizontal View Showing POE++ Port and RJ45 1GB Port

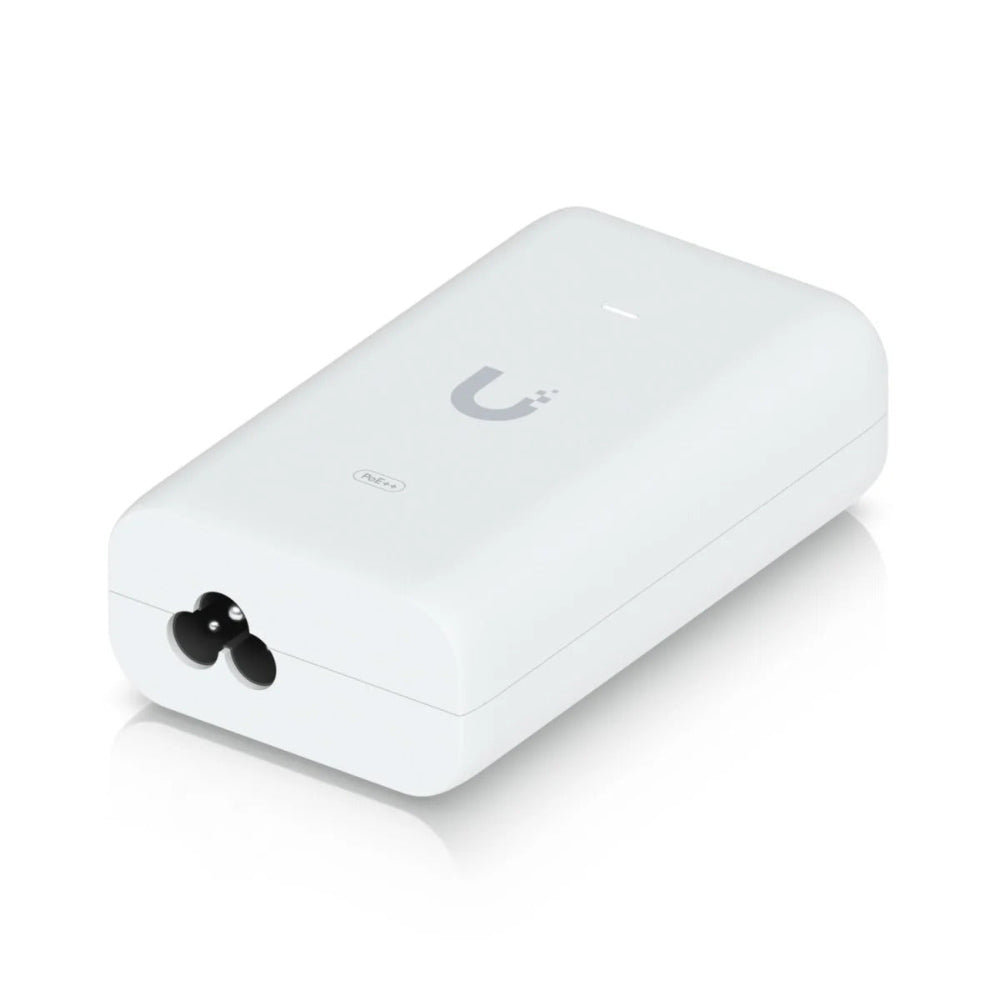

  • Ubiquiti U-POE++ 60W POE Adapter View Showing Clover Leaf Port and LED Status Light Illuminated

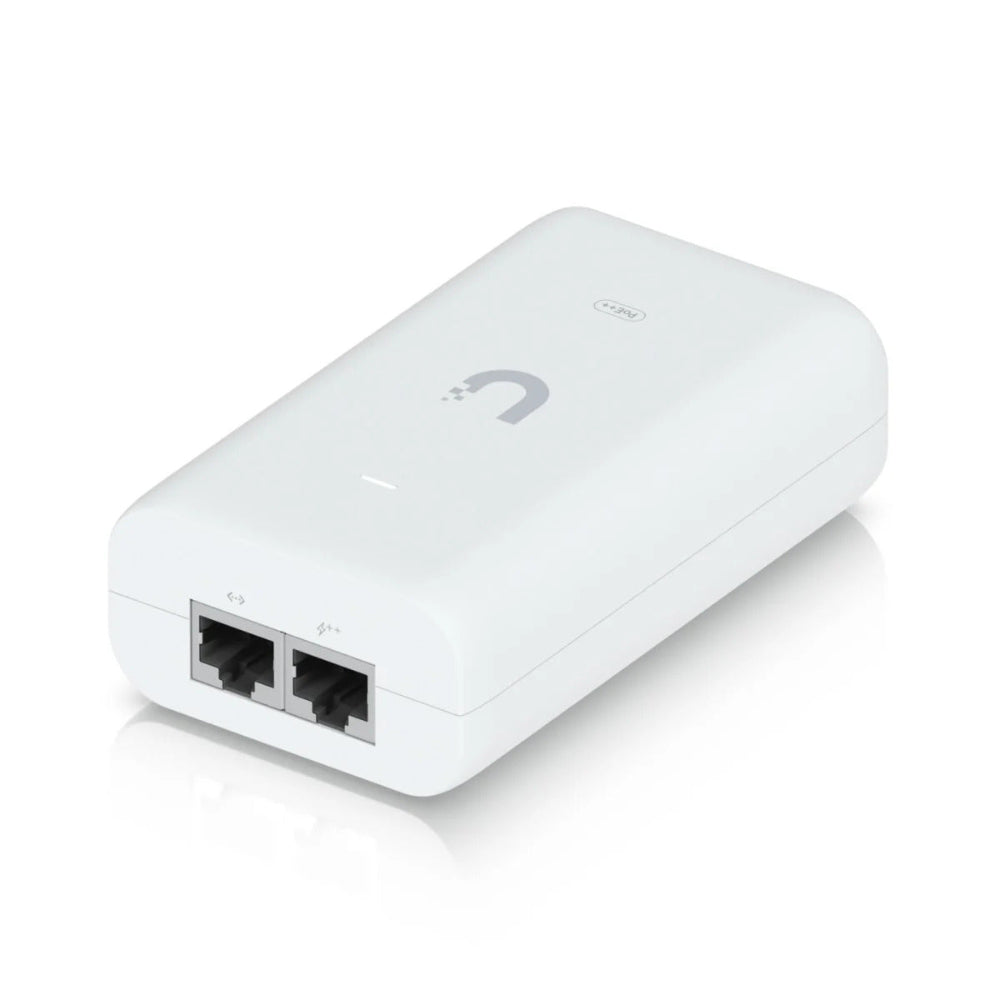

  • Ubiquiti U-POE++ 60W POE Adapter With UK Power Lead Horizontal View Showing POE++ and RJ45 1GB Port

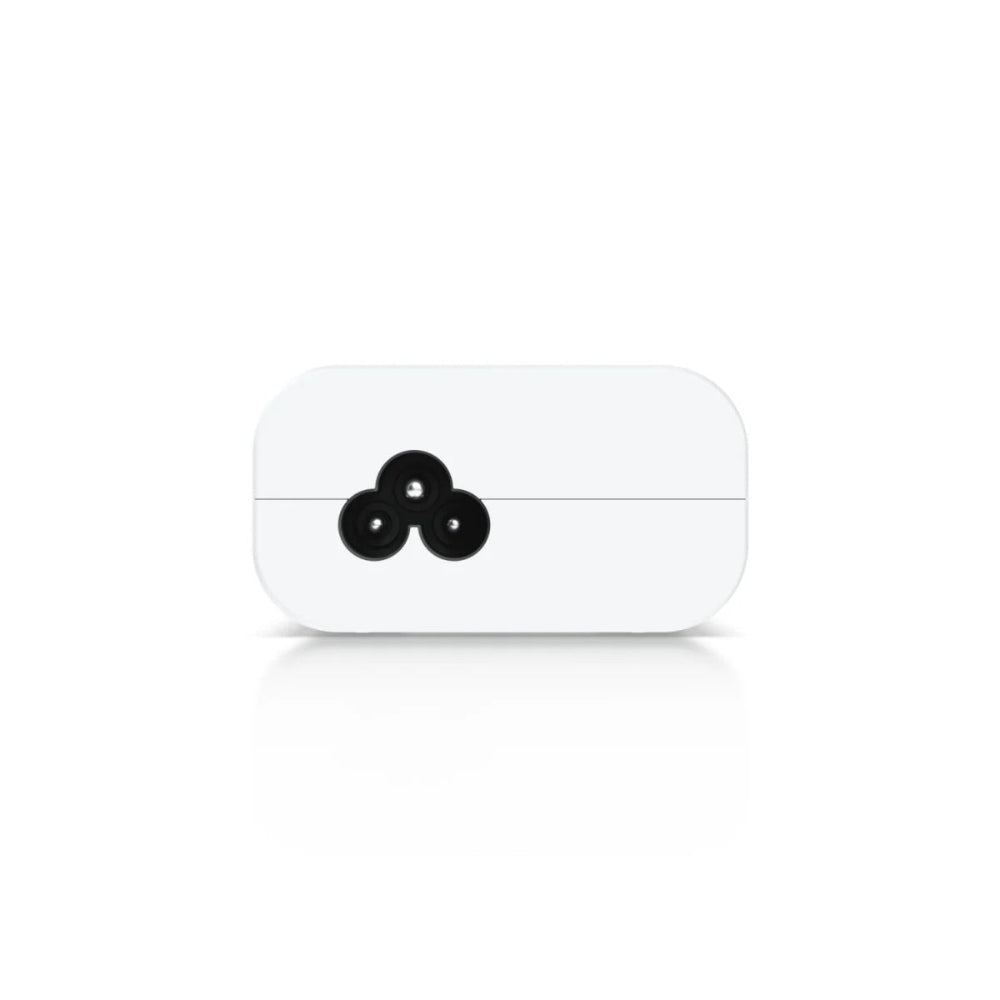

  • Ubiquiti U-POE++ 60W POE Adapter With UK TableTop View Showing Clover Leaf Port

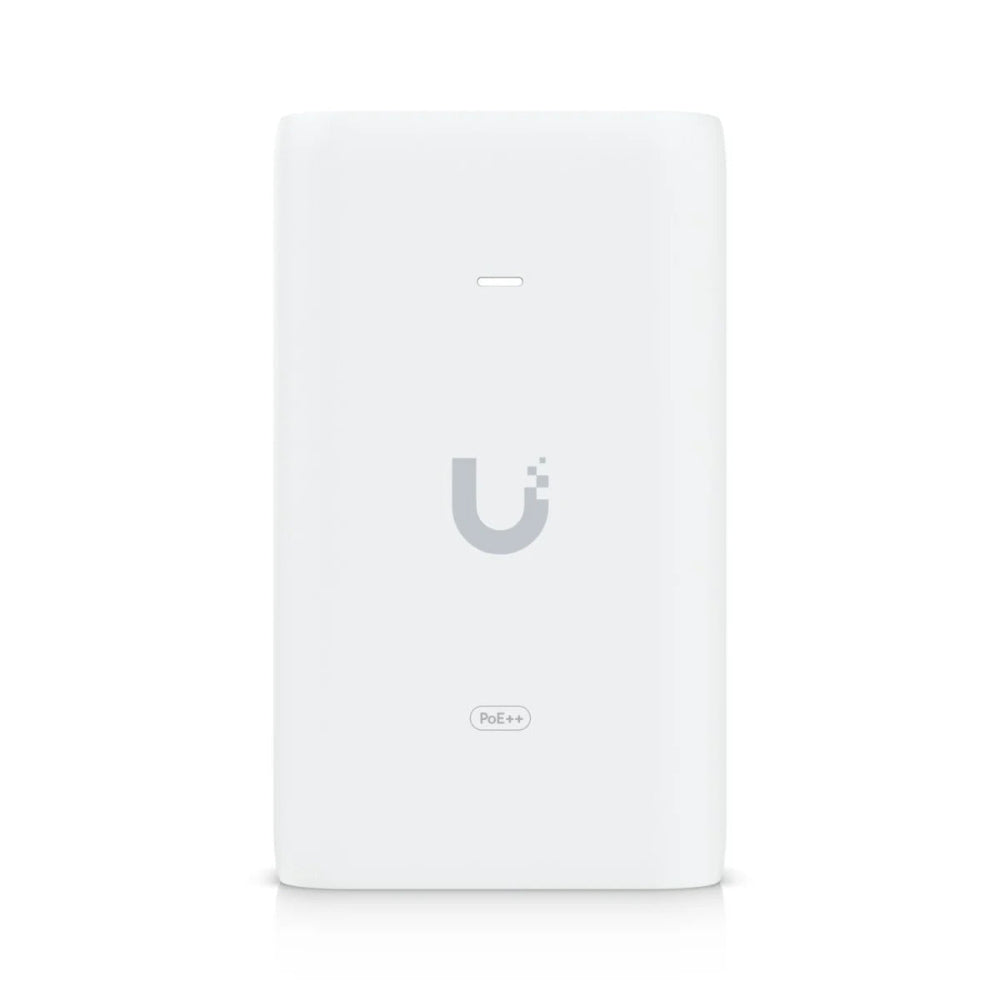

  • Ubiquiti U-POE++ 60W POE Adapter With UK Power Lead Main Image Showing Ubiquiti Logo LED and poe++ badge
1 7

Ubiquiti

Ubiquiti U-POE++ Adapter 60W With UK Power Lead

Ubiquiti U-POE++ Adapter 60W With UK Power Lead

£36.99
£36.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti U-POE++ UniFi Gigabit Power Over Ethernet PoE++ Injector 802.3bt 60W

The official Ubiquiti 60 Watt POE++ Adapter IEEE 802.3bt Standard

It ships with the official White UK Power certified clover leaf lead to get you up and running quickly, has a backplate to help with wall mount.

An adapter that can provide power to UniFi PoE++ devices, reduce dependency on PoE switch power, and comes with a Gigabit LAN connection.

KEY BENEFITS

  • Powerful - Delivers up to 60W of PoE+
  • Rating - Adapter Output 48V 1.25A 60W
  • Protect - Surge, peak pulse, and overcurrent protection
  • Network - 1 X RJ45 1GB Ethernet Network Port, AC cable with earth ground, and 1 X PoE++ output
  • Monitor - LED indicator for status monitoring

Compatible with the following Ubiquiti Products
UVC-G4-PTZ
UA-G2-SK-Pro
UA-Hub-Door
UA-G2-SK
UC-Display
UA-SK-Elevator

Good to know!

IEEE 802.3bt, also known as Power over Ethernet (PoE)++, is the latest PoE standard, enabling the transmission of up to 90 watts of power(60W from this device) over standard Ethernet cables. It builds upon earlier standards like 802.3af and 802.3at while introducing new types and features. 802.3bt supports two types: Type 3 (PoE++) with 60W and Type 4 (Hi-PoE) with 90W(NOT THIS DEVICE), allowing it to power a wider range of devices.

Key features of IEEE 802.3bt include:

Higher Power:
Provides up to 90W of power, enabling the use of more power-hungry devices like high-definition IP cameras, digital signage, and LED lighting.

Four-Pair Utilization:
Utilizes all four pairs of wires in a standard Ethernet cable for power transmission, minimizing power loss and improving efficiency.

Backward Compatibility:
Maintains backward compatibility with older IEEE PoE standards (802.3af and 802.3at).

New Types:
Introduces Type 3 (60W) and Type 4 (90W), expanding the power delivery capabilities.

Improved Power Delivery:
Optimizes power delivery for better efficiency and reliability.

View full details

Explore Further

Highlights

Powerful - Delivers up to 60W of PoE+
Rating - Adapter Output 48V 1.25A 60W
Protect - Surge, peak pulse, and overcurrent protection
Network - 1 X RJ45 1GB Ethernet Network Port, AC cable with earth ground, and 1 X PoE++ output
Monitor - LED indicator for status monitoring

Dimensions and Weight

Width 63 mm, Depth 34 mm, Height 106 mm,Weight 210 g

Specification

Overview
Dimensions
106 x 63 x 34 mm
(4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output Voltage
48V DC at 1.25A
Rated Voltage
100—240V AC at 50/60Hz
Gigabit LAN Port
Yes
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector
IEC-320 C6
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
1.3A @ 120V AC
Inrush Current
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency
85+%
Switching Frequency
65 kHz
Output Ripple
1% Max.
Line Regulation
≤ 1%
Load Regulation
≤ 3%
Max. PoE+ Wattage per Port by PSE
60W
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Power Method
Universal AC input, 100—240V AC, 50/60 Hz
Power Supply
AC/DC
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Supported Voltage Range
100—240V AC
Surge Protection
Difference and Common Mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% Falsencondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
