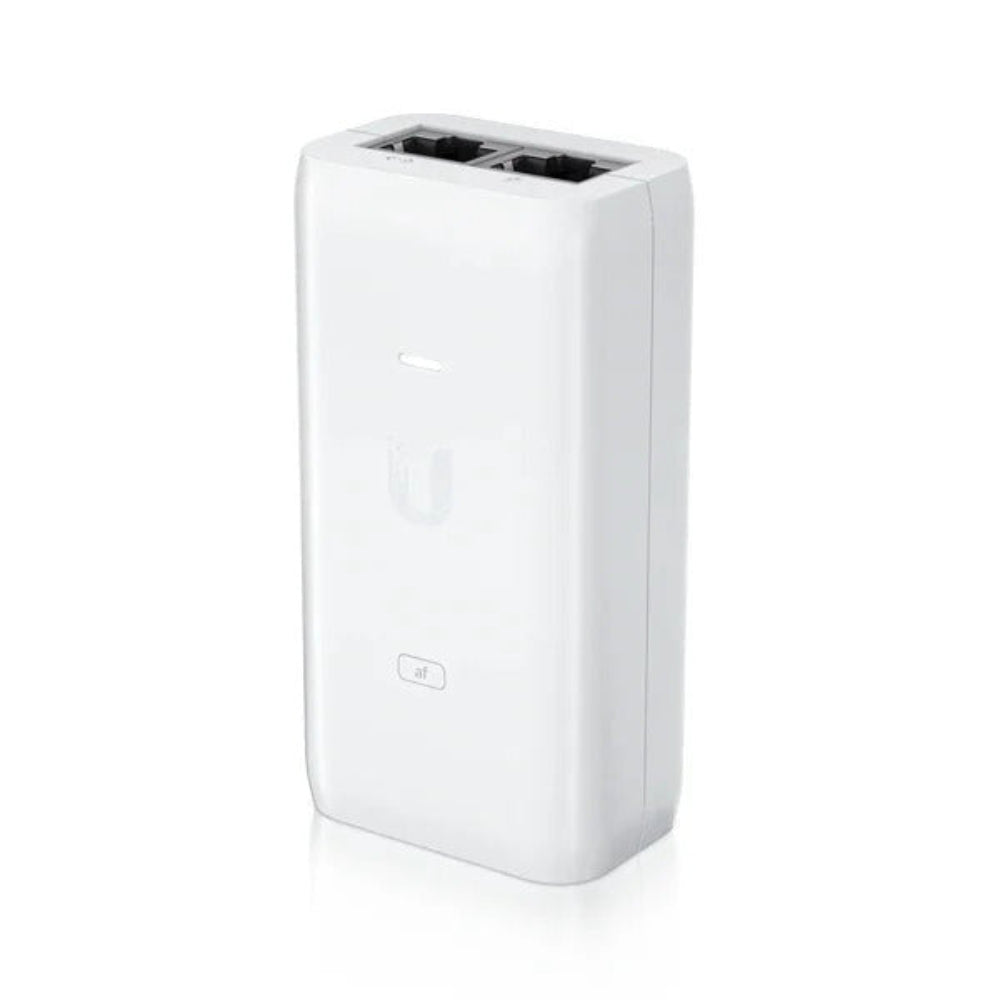

• Ubiquiti U-POE-AF 15W POE Adapter U-POE With UK Power Lead Side On View

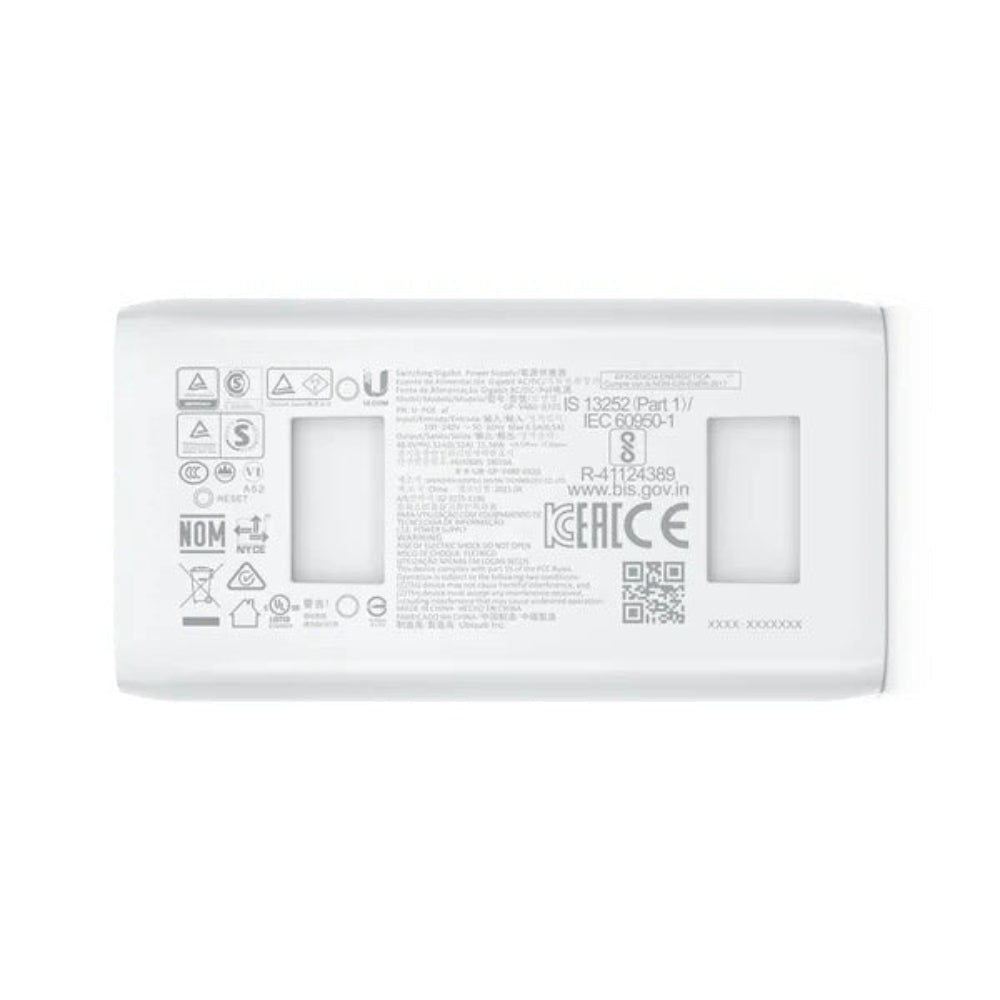

  • Ubiquiti U-POE-AF 15W POE Adapter U-POE Rear View Showing Compliance and Specification Information

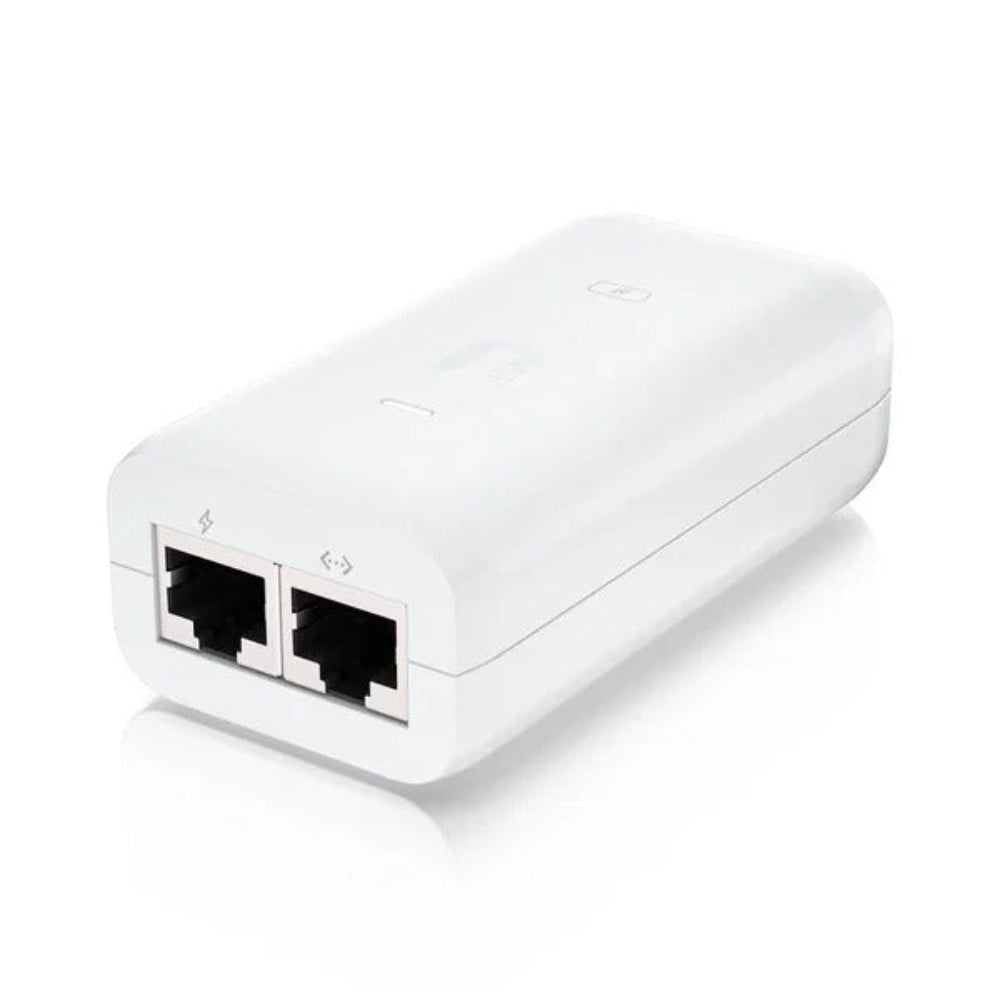

  • Ubiquiti U-POE-AF 15W POE Adapter U-POE With UK Power Lead Horizontal View Showing POE and RJ45 1GB Port

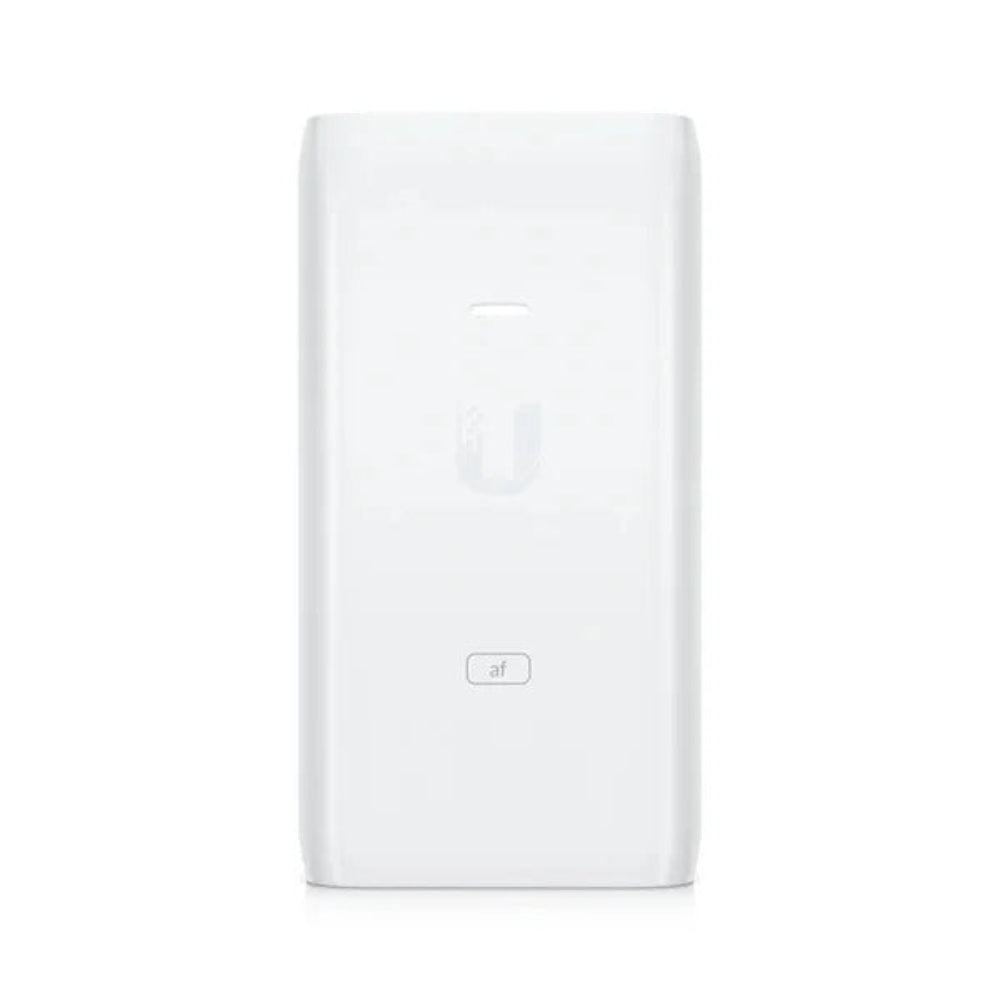

  • Ubiquiti U-POE-AF 15W POE Adapter U-POE With UK Power Lead Main Image Showing Ubiquiti Logo LED and af badge

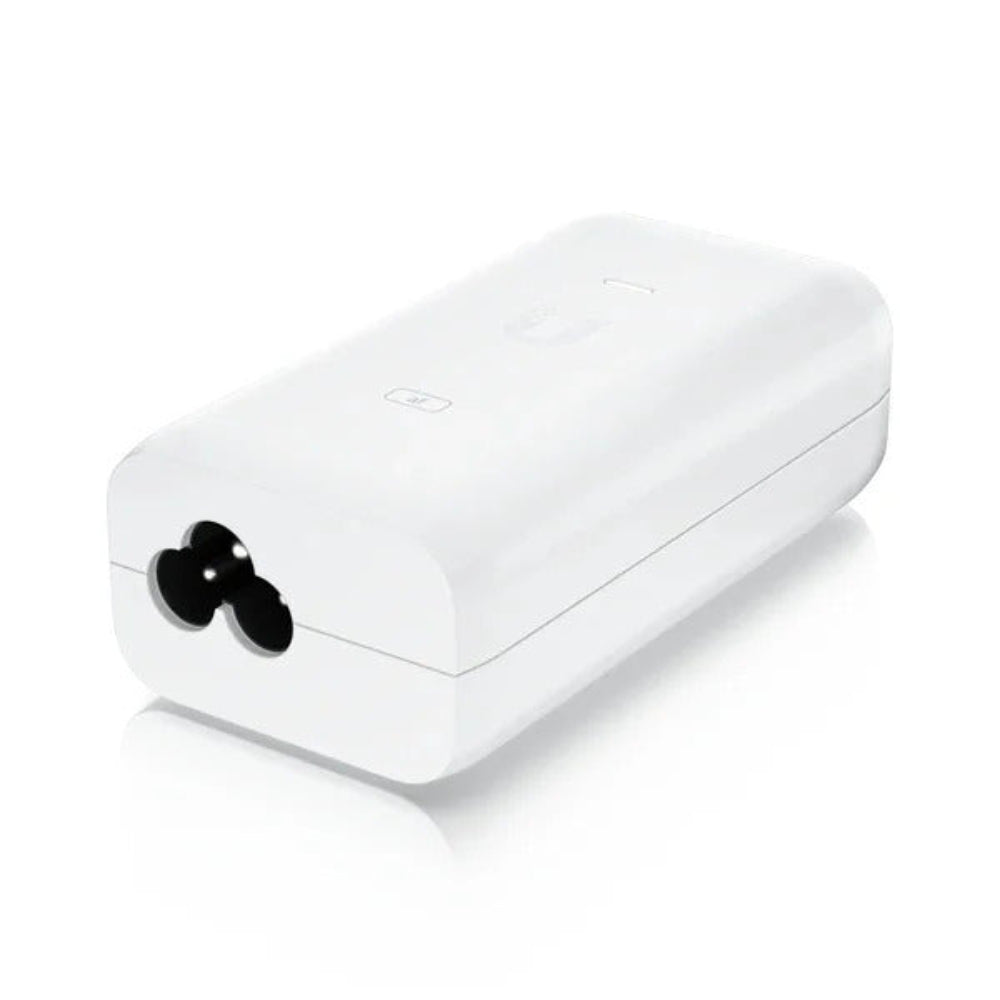

  • Ubiquiti U-POE-AF 15W POE Adapter U-POE With UK Power Lead TableTop View Showing Clover Leaf Port
1 5

Ubiquiti

Ubiquiti U-POE-AF POE Adapter 15W With UK Power Lead

Ubiquiti U-POE-AF POE Adapter 15W With UK Power Lead

£12.99
£12.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti U-POE-af UniFi Gigabit Power Over Ethernet PoE Injector 802.3aF 15W

The official Ubiquiti 15 Watt POE+ Adapter IEEE 802.3af Standard

Previously known as Ubiquiti U-POE-AF - Now rebadged to Ubiquiti U-POE

It ships with the official White UK Power certified clover leaf lead to get you up and running quickly, has a backplate to help with wall mount.

An adapter that can provide power to UniFi PoE devices, reduce dependency on PoE switch power, and comes with a Gigabit LAN connection.

KEY BENEFITS

  • Power - Delivers up to 15W of PoE
  • Rating - Adapter Output 48V 0.32A 15.36W
  • Protect - Surge, peak pulse, and overcurrent protection
  • Network - 1 X RJ45 1GB Ethernet Network Port, AC cable with earth ground, and 1 X PoE output
  • Monitor - LED indicator for status monitoring

Compatible with the following Ubiquiti Products
Ubiquiti UK-Ultra
Ubiquiti U6-PLUS
Ubiquiti U6-IW
Ubiquiti U6-Mesh
Ubiquiti U6-Pro
Ubiquiti U6-Lite
Ubiquiti UAP-AC-IW
Ubiquiti UTP-Touch
Ubiquiti UVC-G5-Dome-Ultra
Ubiquiti UVC-G5-Turret-Ultra
Ubiquiti UVC-G5-Pro
Ubiquiti UVC-G5-Flex
Ubiquiti UVC-G5-Bullet
Ubiquiti UVC-G5-Dome
Ubiquiti UVC-AI-Pro
Ubiquiti UVC-AI-DSLR
Ubiquiti UVC-AI-Bullet
Ubiquiti UVC-AI-360
Ubiquiti UVC-AI-Theta-Pro
Ubiquiti UVC-AI-Theta
Ubiquiti UVC-AI-Theta-Hub
Ubiquiti UVC-G4 Doorbell Pro PoE Kit
Ubiquiti UVC-G4-DOME
Ubiquiti UVC-G4-Bullet
Ubiquiti UVC-G4-Pro

Good to know!

IEEE 802.3af is a Power over Ethernet (PoE) standard, meaning it defines how to deliver power to network devices over Ethernet cables. This standard, also known as PoE, was introduced in 2003 and allows for the transmission of power and data through a single cable. It provides a maximum of 15.4 watts from the power sourcing equipment (PSE) and delivers up to 12.95 watts to the powered device (PD).

Here's a more detailed breakdown:
Power Delivery:
802.3af uses DC power (44-57V) over the Ethernet cable, allowing for the simultaneous transmission of data and power.
Wattage:
The standard allows for a maximum of 15.4 watts at the source (PSE), but the actual power delivered to the powered device is typically 12.95 watts due to losses in the cable.
Applications:
802.3af is suitable for powering low-power devices like VoIP phones, static surveillance cameras, and wireless access points.
Compatibility:
802.3af devices are compatible with both 802.3af and 802.3at switches



View full details

Explore Further

Highlights

Power - Delivers up to 15W of PoE
Rating - Adapter Output 48V 0.32A 15.36W
Protect - Surge, peak pulse, and overcurrent protection
Network - 1 X RJ45 1GB Ethernet Network Port, AC cable with earth ground, and 1 X PoE output
Monitor - LED indicator for status monitoring

Dimensions and Weight

Width 46 mm, Depth 33 mm, Height 86 mm,Weight 100 g

Specification

Dimensions
86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
Weight
100 g (3.5 oz)
Output Voltage
48V DC @ 0.32A
Rated Voltage
100—240V AC @ 50/60Hz
Gigabit LAN Port
Yes
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
AC Connector
IEC-320 C6
Clamping Protection
11V Data, 60V Power
Data In / PoE
RJ45 Shielded Socket
Input Current
500mA Max.
Inrush Current
<100A peak at 25°C
Efficiency
84.25+%
Switching Frequency
65 kHz
Output Ripple
200mV p-p
Line Regulation
≤ 3%
Load Regulation
≤ 5%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and Common Mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% Falsencondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, UL

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
