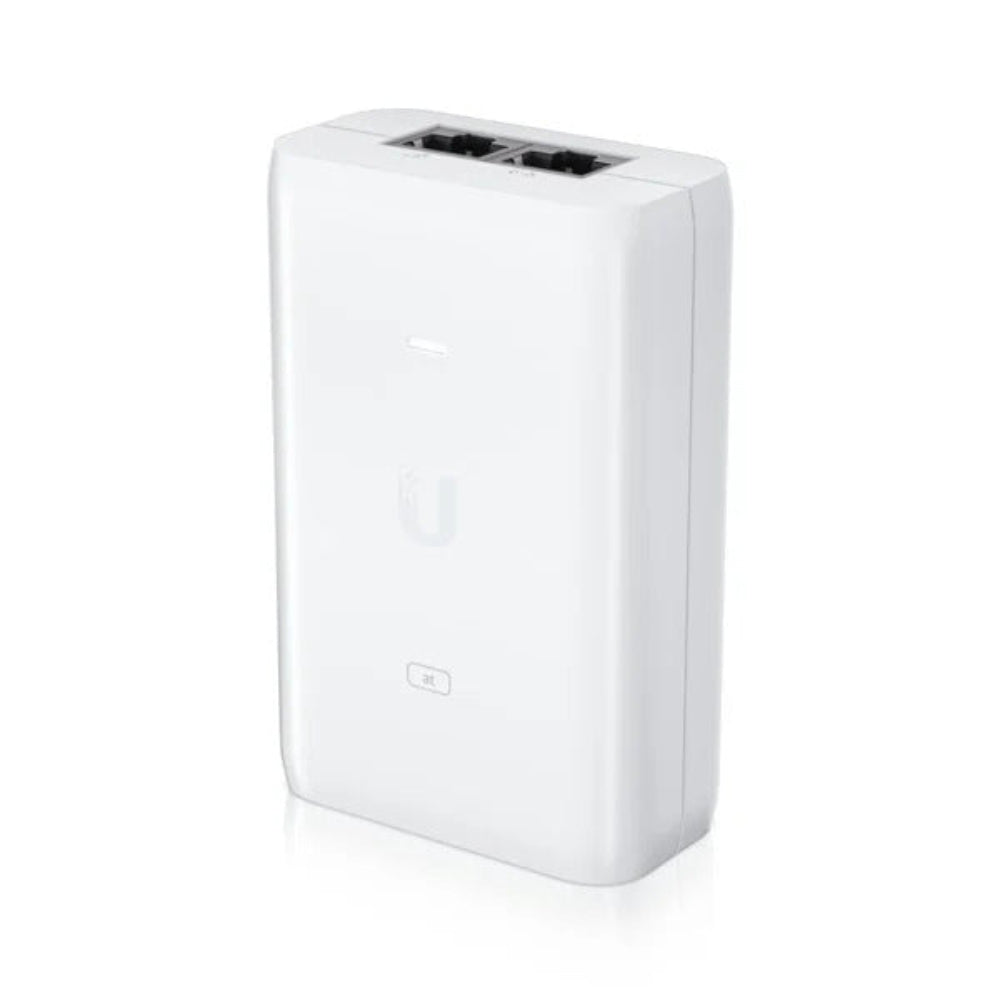

• Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ Main Image

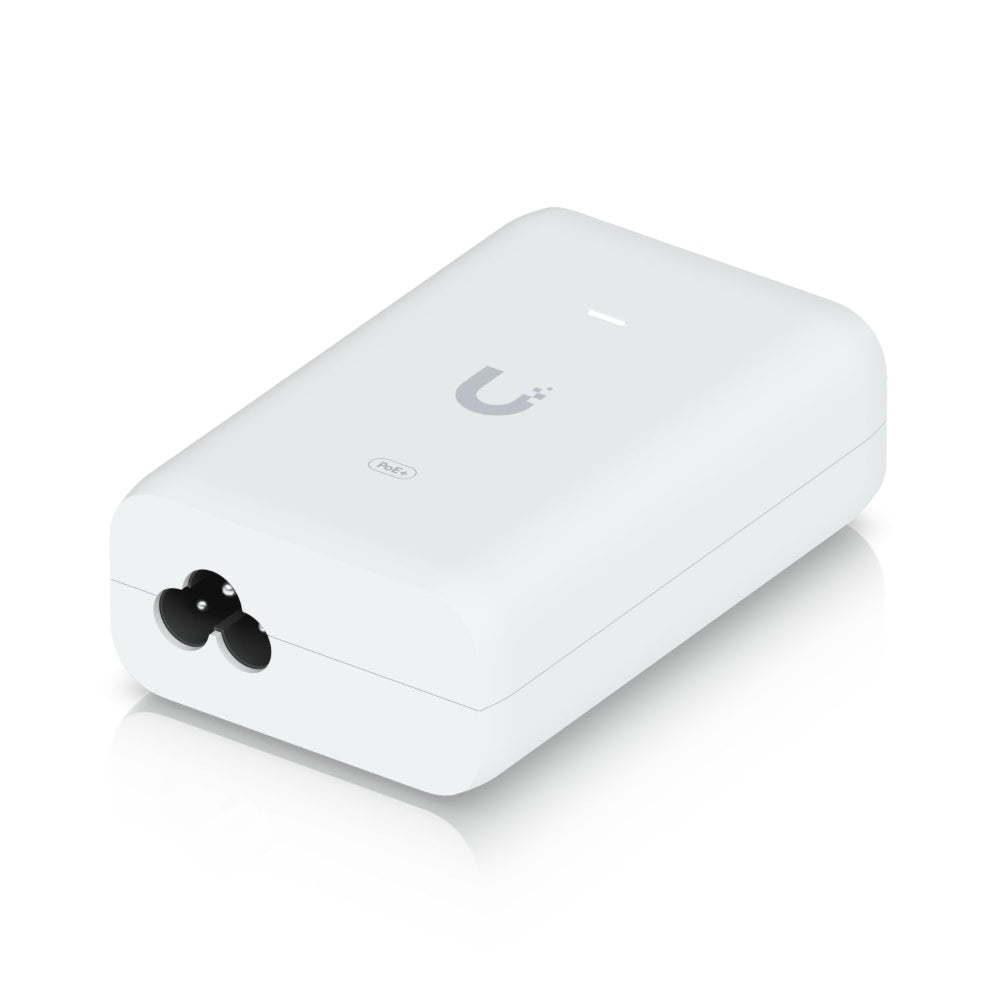

  • Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ Horizontal View Showing Clover Leaf Port and LED

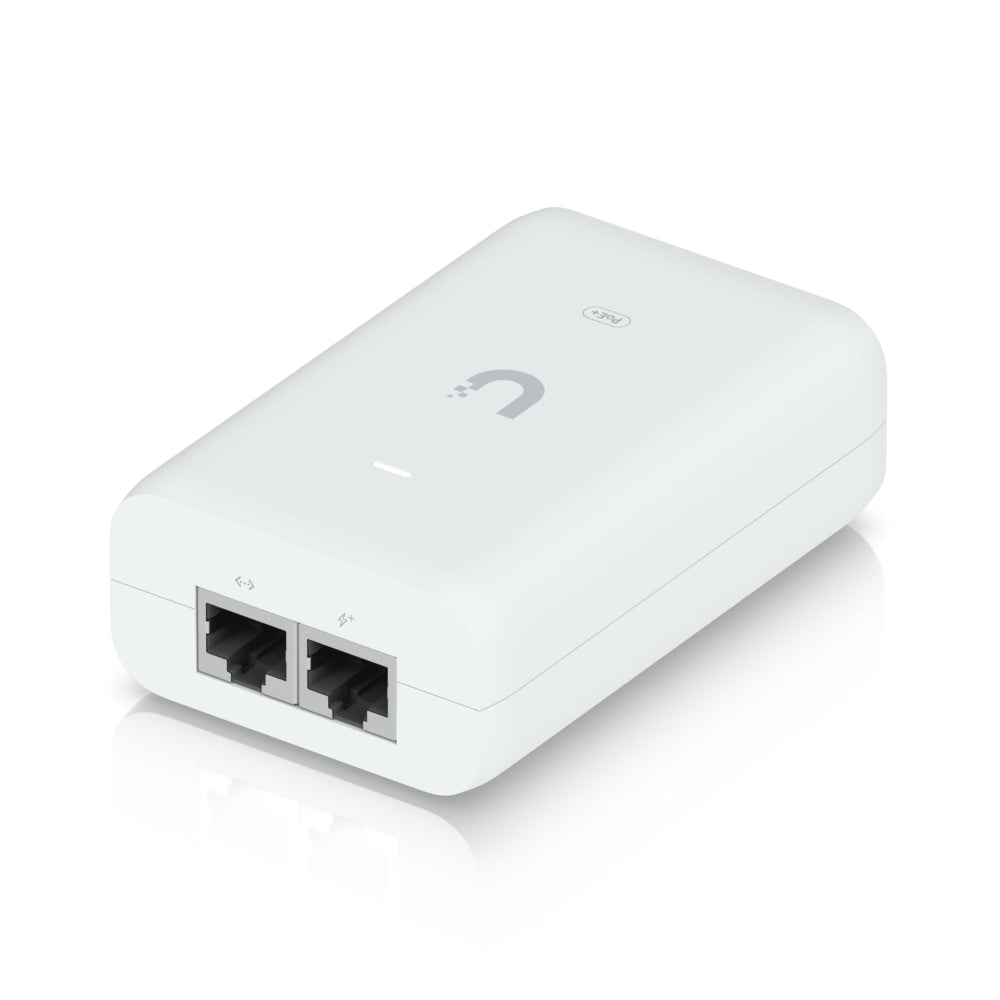

  • Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ With UK Power Lead Table View

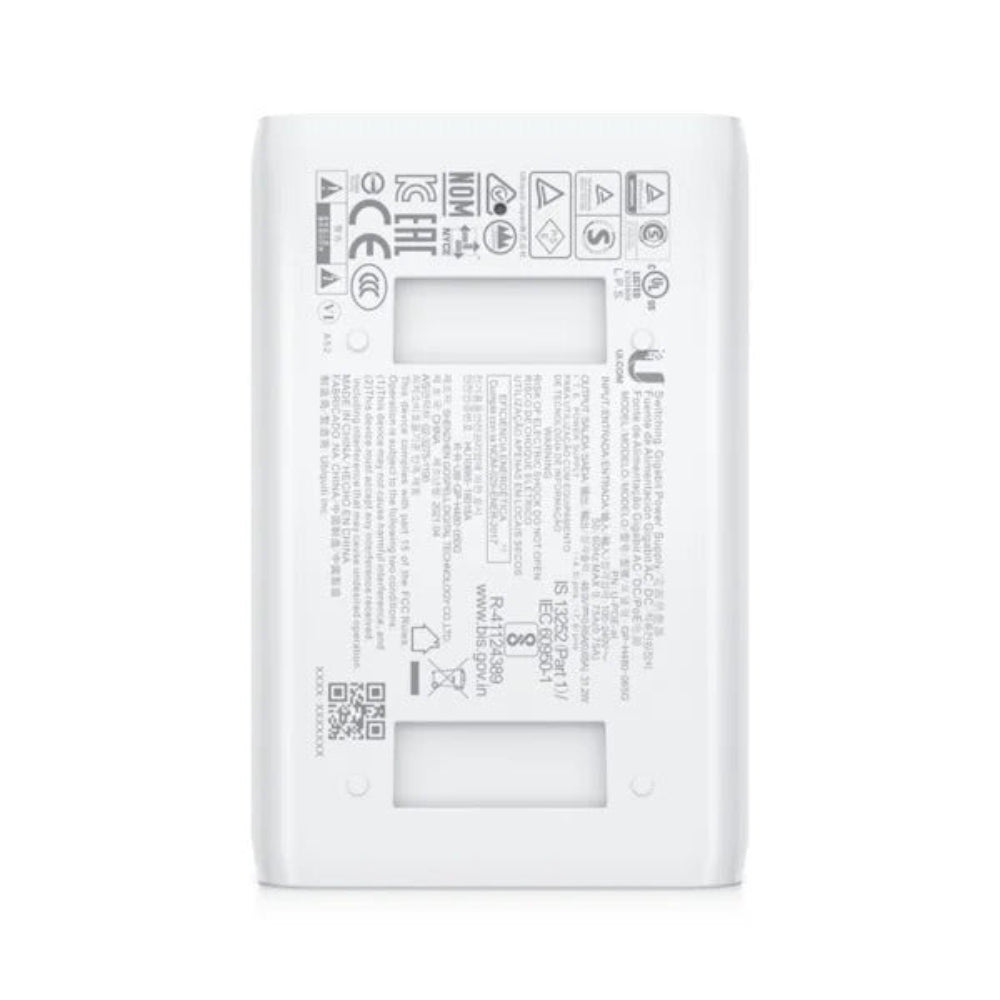

  • Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ With UK Power Lead Rear of Unit

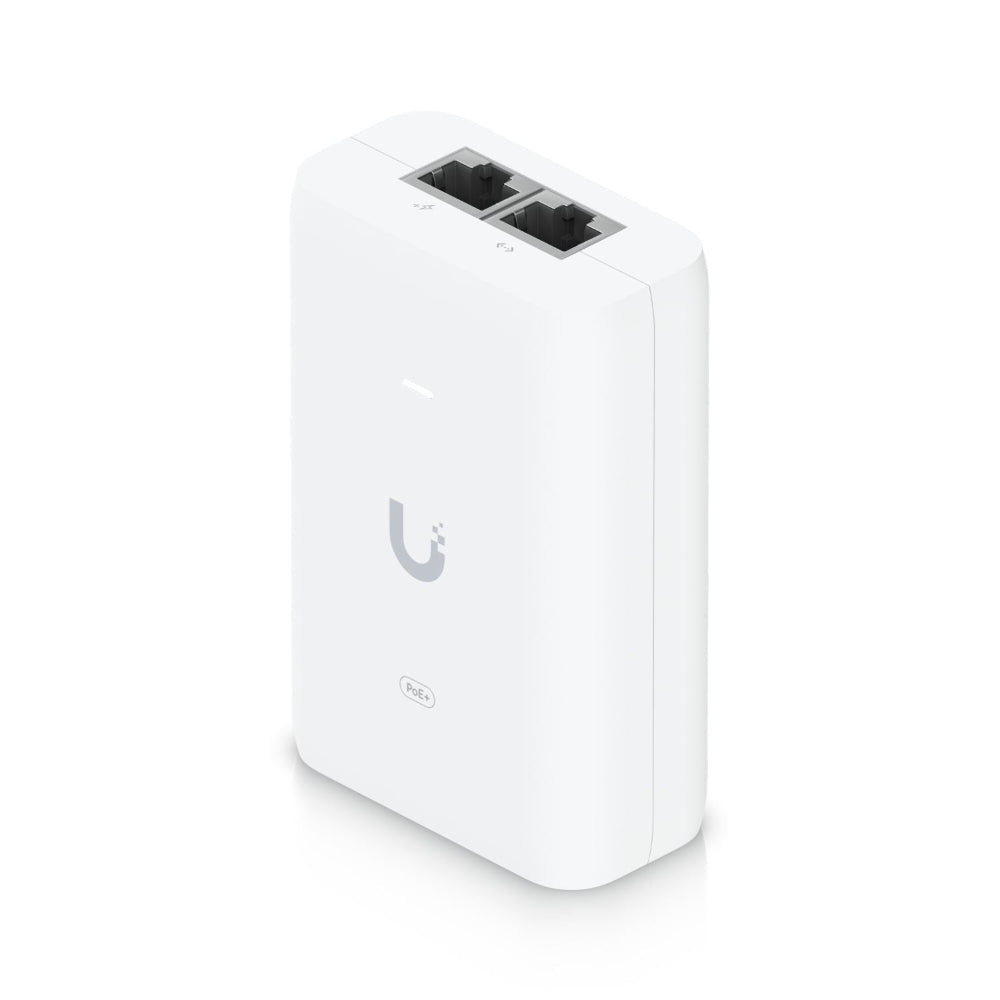

  • Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ With UK Power Lead Upright View

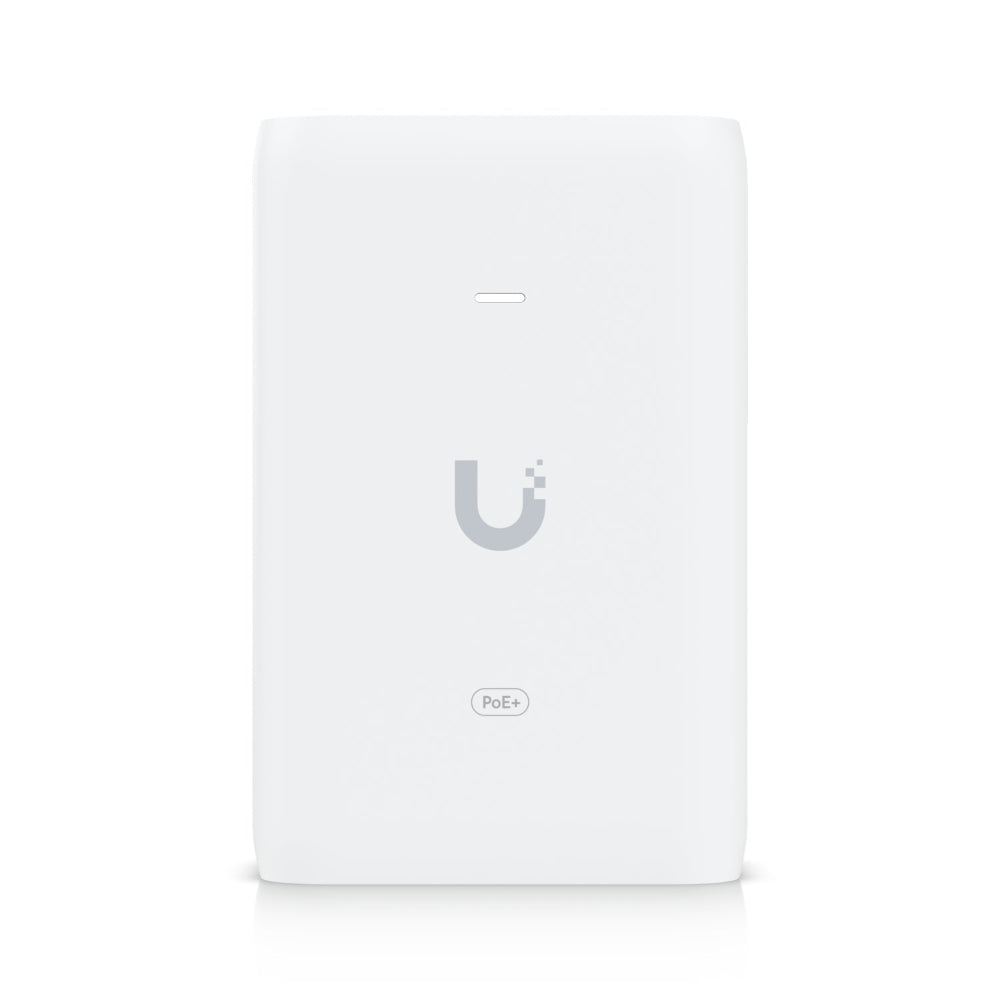

  • Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ Face On View Showing Logo

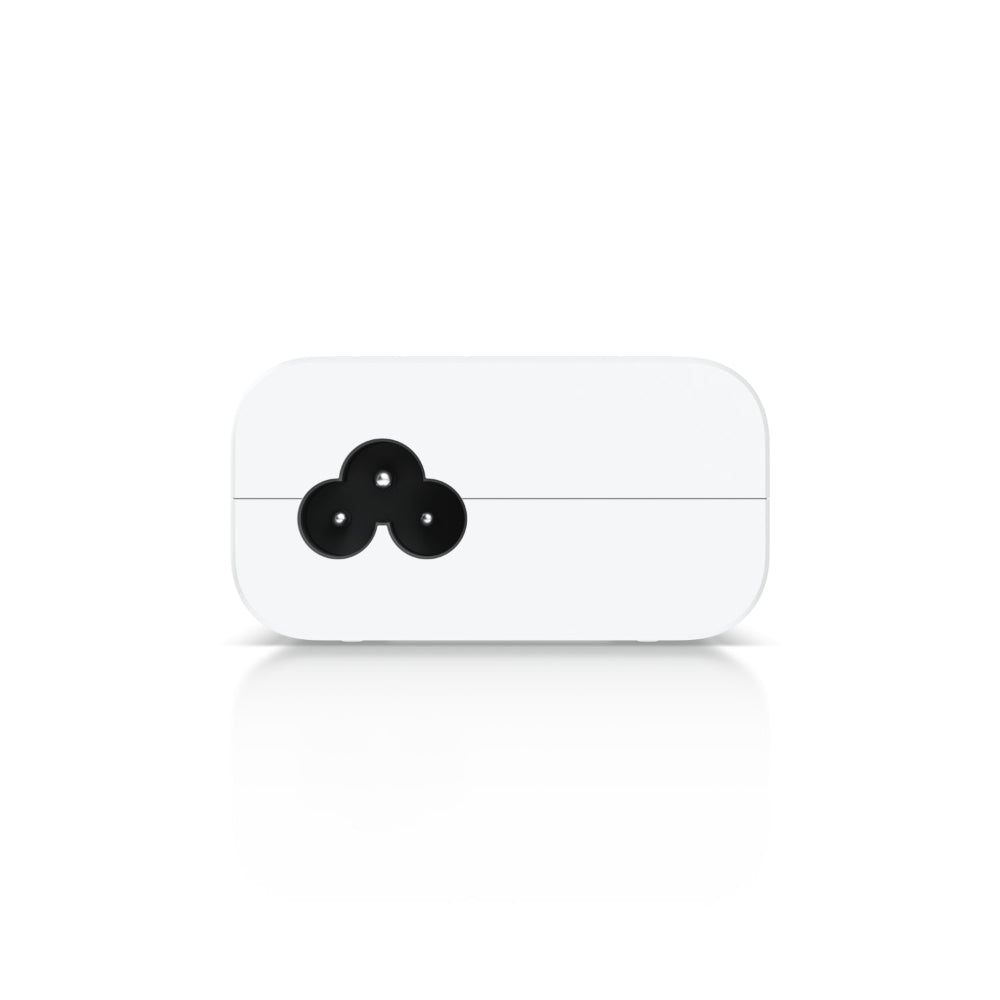

  • Ubiquiti U-POE-AT POE+ Adapter 30W U-POE+ Horizontal View Showing Clover Leaf Plug Access
1 7

Ubiquiti

Ubiquiti U-POE-AT POE+ Adapter 30W With UK Power Lead

Ubiquiti U-POE-AT POE+ Adapter 30W With UK Power Lead

£16.99
£16.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti U-POE-at UniFi Gigabit Power Over Ethernet PoE+ Injector 802.3at 30W

The official Ubiquiti 30 Watt POE+ Adapter IEEE 802.3at Standard

Previously known as Ubiquiti U-POE-AT - Now rebadged to Ubiquiti U-POE+

It ships with the official White UK Power certified clover leaf lead to get you up and running quickly, has a backplate to help with wall mount.

An adapter that can provide power to UniFi PoE+ devices, reduce dependency on PoE switch power, and comes with a Gigabit LAN connection.

KEY BENEFITS

  • Powerful - Delivers up to 30W of PoE+
  • Rating - Adapter Output 48V 0.65A 31.2W
  • Protect - Surge, peak pulse, and overcurrent protection
  • Network - 1 X RJ45 1GB Ethernet Network Port, AC cable with earth ground, and 1 X PoE+ output
  • Monitor - LED indicator for status monitoring

Compatible with the following Ubiquiti Products
Ubiquiti U6-LR
Ubiquiti UVC-G5-PTZ
Ubiquiti U6-IW
Ubiquiti UVC-AI-DSLR
Ubiquiti UVC-AI-Pro
Ubiquiti UDB-Pro
Ubiquiti UTP-TouchMax
Ubiquiti UA-Ultra

Good to know!

IEEE 802.3at is a Power over Ethernet (PoE) standard also known as PoE+. It allows for higher power delivery over Ethernet cables, providing up to 30 watts per port to devices, which is an increase from the 15.4 watts of the original PoE (802.3af) standard. This allows for powering more power-hungry devices like VoIP phones with LCDs, wireless access points, and PTZ cameras. 802.3at is also backwards compatible with 802.3af, meaning it can power older devices that comply with the standard PoE

View full details

Explore Further

Highlights

Powerful - Delivers up to 30W of PoE+
Rating - Adapter Output 48V 0.65A 31.2W
Protect - Surge, peak pulse, and overcurrent protection
Network - 1 X RJ45 1GB Ethernet Network Port, AC cable with earth ground, and 1 X PoE+ output
Monitor - LED indicator for status monitoring

Dimensions and Weight

Width 63 mm, Depth 35 mm, Height 93 mm,Weight 156 g

Specification

Overview
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
Rated Voltage
100—240V AC @ 50/60Hz
Gigabit LAN Port
Yes
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
AC Connector
IEC-320 C6
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
0.75A Max.
Inrush Current
<100A peak at 26°C
Efficiency
87%
Switching Frequency
70 kHz Max.
Output Ripple
1% Max.
Line Regulation
≤ 3%
Load Regulation
≤ 5%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and Common Mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% Falsencondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, UL

Warranty Information

All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
