Ubiquiti U6 Enterprise UniFi Tri-Band WiFi 6E Access Point 802.11AX Wireless AP 10.1GBps Aggregate Thruput 600+ Clients
The Ubiquiti U6-Enterprise UniFi Tri-Band WiFi 6E Access Point is a next-generation, enterprise-grade access point designed to take advantage of WiFi 6E speeds. Ideal for demanding, high-density networks, the U6-Enterprise can support up to 600+ clients over its 2.4GHz, 5GHz, and 6GHz channels. Each of the U6-Enterprise's three bands also utilises OFDMA technology, which tactically distributes high volumes of data to ensure that your clients maintain a reliably fast, quality connection.
Key Features
-
· Supports up to 600+ clients.
· 10.2 Gbps aggregate, over-the-air radio rate.
· 6 GHz band (4x4 MU-MIMO and OFDMA) with a 4.8 Gbps radio rate.
o 5 GHz band (4x4 MU-MIMO and OFDMA) with a 4.8 Gbps radio rate.
o 2.4 GHz band (2x2 MU-MIMO and OFDMA) with a 573.5 Mbps radio rate.
· One (1) 2.5GbE RJ45 port (optimised for use with USW Enterprise series supporting 2.5GbE PoE switching, see accessories tab).

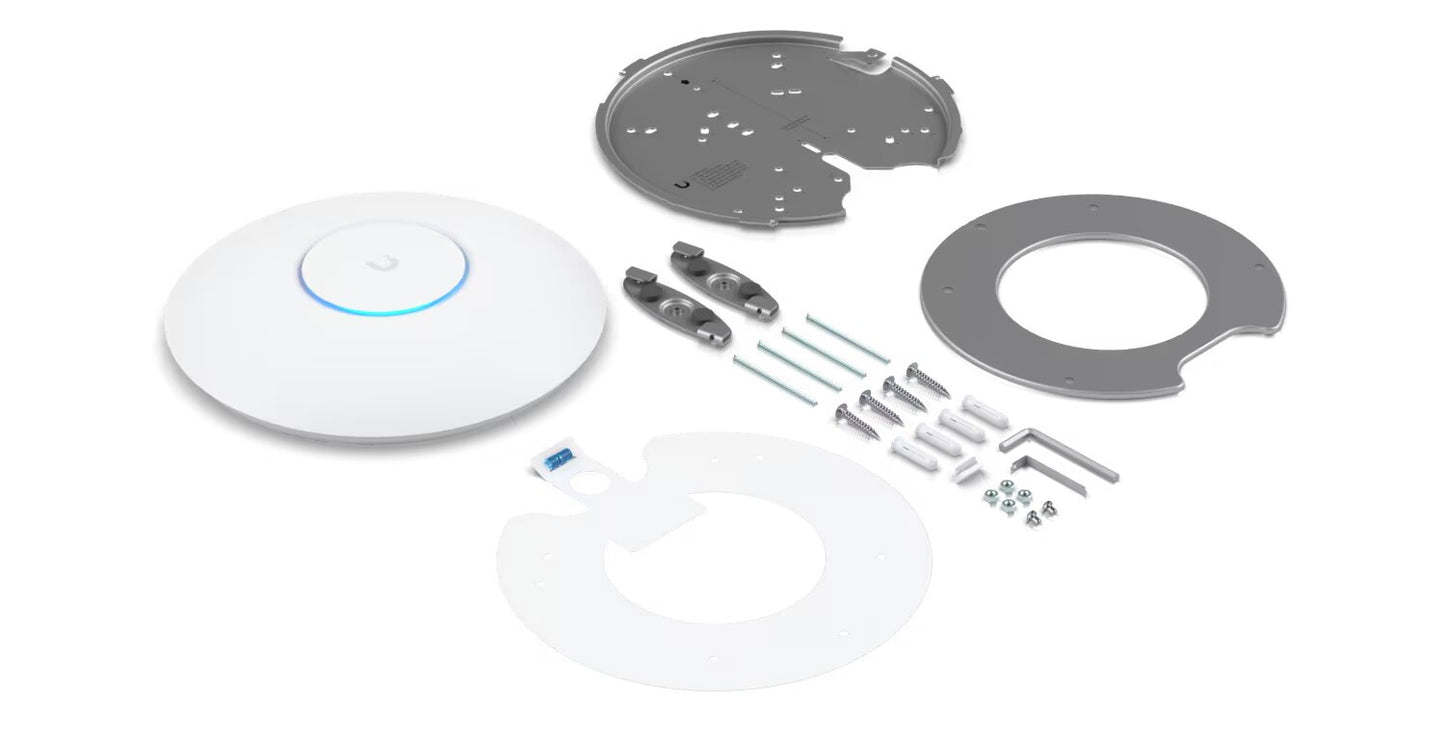

· Includes mounting plate, backing plate, and screw kit for quick and easy installation.
· Powered with 802.3at PoE+ (SOLD SEPERATELY)
· Ceiling-mounted WiFi 6E AP with 10 spatial streams and 6 GHz support to provide seamless, multi-band coverage within high client density environments.
· WiFi 6E with 6 GHz support
· 10 spatial streams
· 140 m² (1,500 ft²) coverage
· 600+ connected devices
· Powered using PoE+
· 2.5 GbE uplink
Share
Explore Further
Highlights
Ceiling-mounted WiFi 6E AP with 10 spatial streams and 6 GHz support to provide seamless, multi-band coverage within high client density environments.
WiFi 6E with 6 GHz support
10 spatial streams
140 m² (1,500 ft²) coverage
600+ connected devices
Powered using PoE+
2.5 GbE uplink
Dimensions and Weight
Width 220 mm, Depth 48 mm, Height 220 mm,Weight 1.9 kg
Specification
Mechanical
Dimensions Ø220 x 48 mm (Ø8.7 x 1.9")
Weight Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb)
Enclosure material Polycarbonate, aluminum
Mount material Stainless steel (SUS304)
Hardware
Networking interface (1) 2.5 GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE+
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Optional)
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
3.2 dBi
5.3 dBi
6 dBi
LEDs White/blue
Button Reboot and factory-reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6/6E)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 600+
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 7.2.91 and later
