Ubiquiti
Ubiquiti U6-LR Long Range AX3000 UniFi WiFi 6 Access Point
Ubiquiti U6-LR Long Range AX3000 UniFi WiFi 6 Access Point
Ubiquiti U6-LR UniFi Long Range WiFi 6 PoE+ Wireless Access Point 3Gbps Aggregate Thruput 802.11AX
Please note: This wireless access point is not supplied with a PoE injector.
The Ubiquiti U6-LR UniFi Long Range WiFi 6 PoE+ Access Point is a high-performance access point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz WiFi 6 (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environment (IP54 rated)(SEE OUTDOOR INSTALLATION NOTES BELOW), and comes equipped with a Bluetooth Low Energy Radio for location based services.
- WiFi 6*
- 8 spatial streams
- 185 m² (2,000 ft²) coverage
- 350+ connected devices
- Powered using PoE+
- GbE uplink
- *WiFi 6 for 5 GHz. WiFi 4 for 2.4 GHz.
Important Outdoor installation requirements
The Ubiquiti U6-LR may be installed outdoors under an eave or other protected location. Do not install the U6-LR in an open environment. The mounting location should be at least 60 cm (2 ft) from the edge of the eave or ceiling and the cable feed must be pointed downwards when wall-mounted. Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks
Share
Explore Further
Highlights
WiFi 6*
8 spatial streams
185 m² (2,000 ft²) coverage
350+ connected devices
Powered using PoE+
GbE uplink
*WiFi 6 for 5 GHz. WiFi 4 for 2.4 GHz.

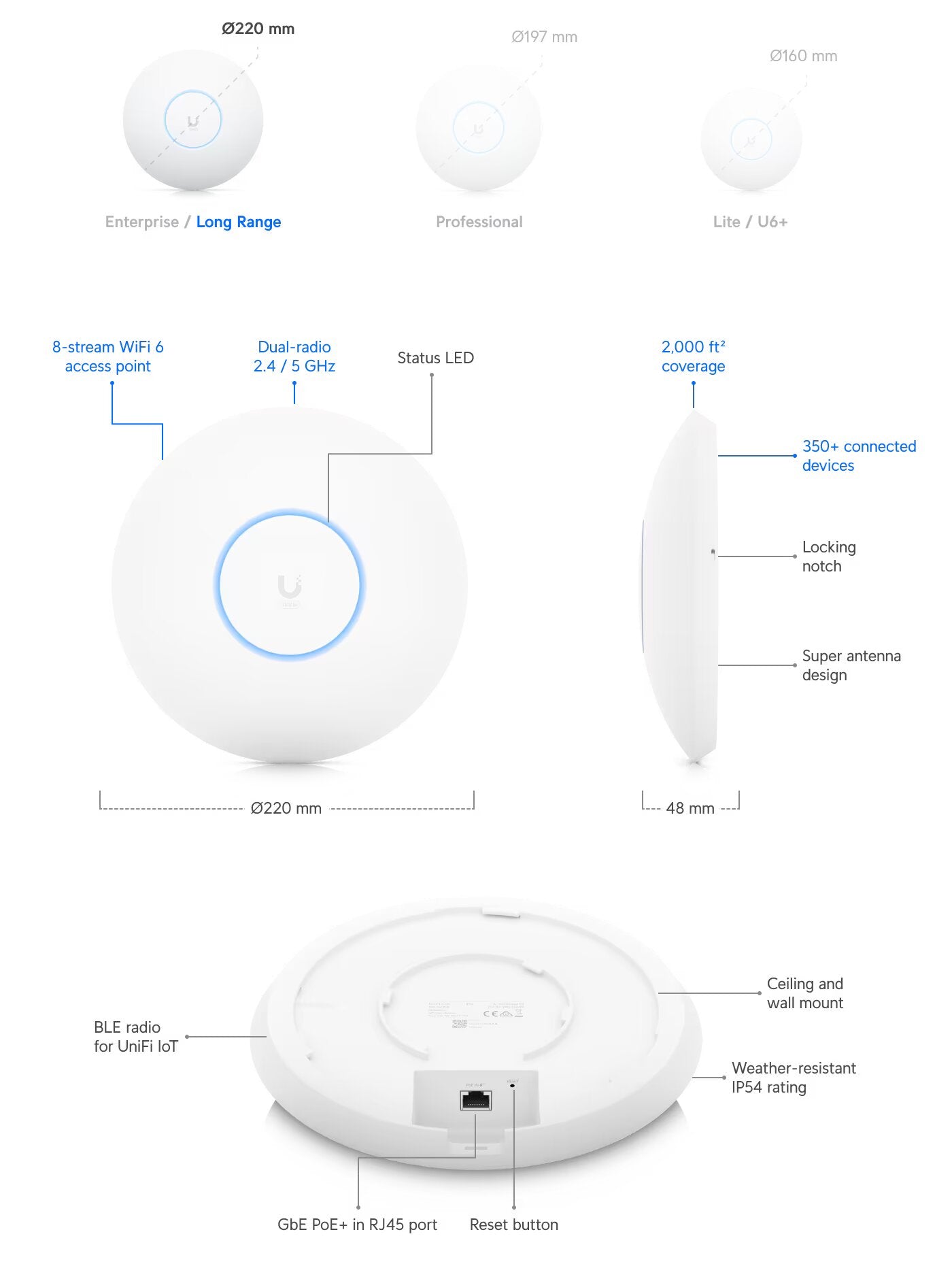

Dimensions and Weight
Width 220 mm, Depth 48 mm, Height 220 mm,Weight 1.7 kg
Specification
Mechanical
Dimensions Ø220 x 48 mm (Ø8.7 x 1.9")
Weight Without mount: 800 g (1.8 lb)
With mount: 930 g (2.1 lb)
Enclosure material Polycarbonate
Mount material Stainless steel (SUS304)
Weatherproofing IP54
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE+
Passive PoE, 48V
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Not included)
Supported voltage range 44—57V DC
Max. power consumption 18.5W
Max. TX power
2.4 GHz
5 GHz
6 GHz
26 dBm
26 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
4 x 4
4 x 4
–
Throughput rate
2.4 GHz
5 GHz
6 GHz
600 Mbps
2400 Mbps
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
5.5 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 6.0.34 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
