Ubiquiti U6-Mesh-Pro Wireless Access Point AX2900
Ubiquiti U6-Mesh-Pro Wireless Access Point AX2900
Ubiquiti U6-Mesh-Pro UniFi Indoor/Outdoor WiFi 6 Access Point (2.9Gbps AX)
- WiFi 6
- 4 spatial streams
- 185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
- 350+ connected devices
- Powered using PoE
- GbE uplink with (1) GbE passthrough port

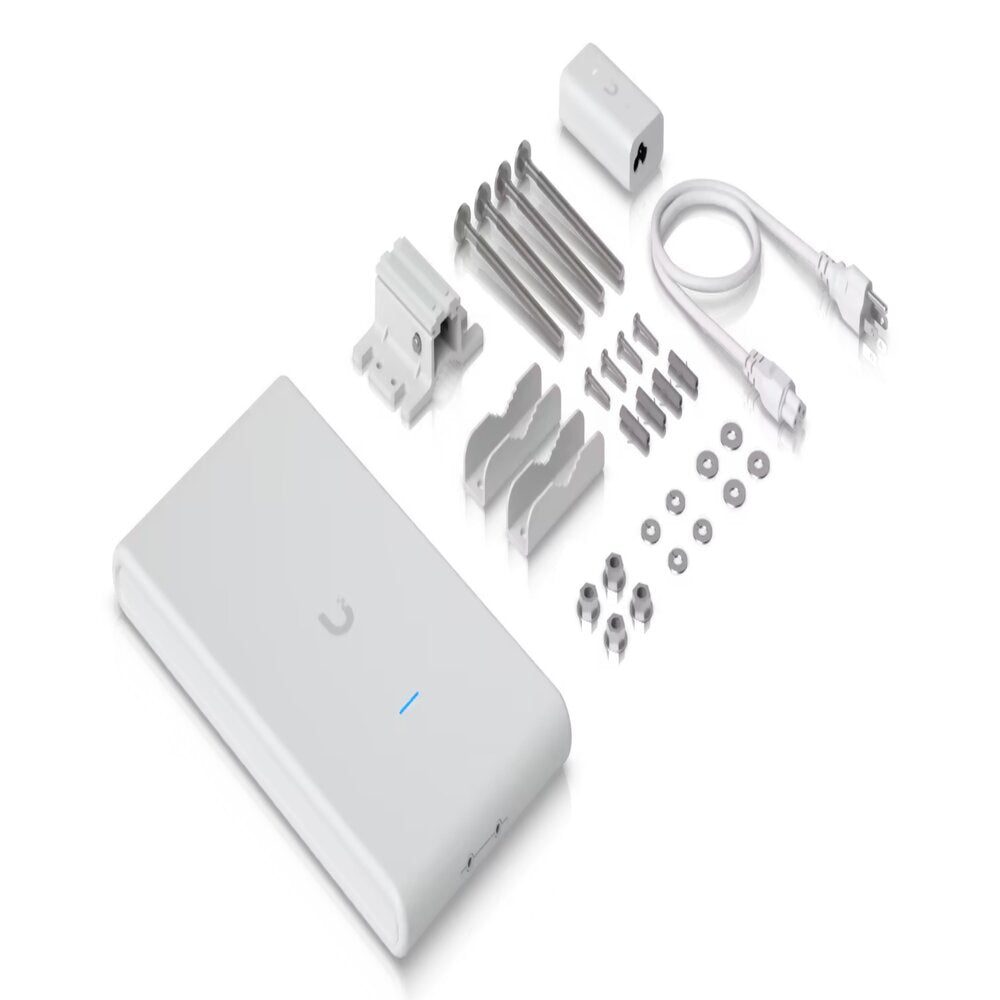

- Versatile wall and pole mounting(Kit included in box)
- Weatherproof IPX6(outdoor exposed)
Optimize Your Business Connectivity with the Ubiquiti U6-Mesh-Pro Wireless Access Point
The Ubiquiti U6-Mesh-Pro Wireless Access Point is an advanced Wi-Fi 6 networking solution designed to improve connectivity, boost network stability, and streamline wireless infrastructure management for businesses. Ideal for medium to large enterprises, it combines high-performance features with ease of use to support evolving network demands.
Key Features of the Ubiquiti U6-Mesh-Pro
Superior Network Stability and Speed: Equipped with Wi-Fi 6 technology, the U6-Mesh-Pro ensures seamless, high-speed connectivity with minimal downtime, enabling your business to maintain an efficient and active network.
Enhanced Security for Safe Operations: With advanced WPA3 encryption, traffic management, and content filtering, this access point protects your network from cyber threats and helps maintain a secure browsing environment.
Easy Network Management: Streamline setup and administration with intuitive tools that make it easy to manage coverage, configure settings, and perform maintenance, allowing you to control your network effectively.
Scalable for Growing Businesses: Designed for adaptability, the U6-Mesh-Pro scales effortlessly with your business, supporting increased connectivity needs as your organization expands.
Professional and Durable Design: Its sleek, office-ready design and durable construction ensure the U6-Mesh-Pro performs reliably in busy workplaces, making it a valuable addition to any business network infrastructure.
Perfect For:
- Medium to Large Enterprises: The U6-Mesh-Pro is ideal for businesses that require a powerful and stable networking solution to handle complex setups and high traffic.
- Tech-Forward Environments: For businesses that prioritize reliable, high-speed connectivity, the U6-Mesh-Pro delivers advanced networking features that support modern, tech-driven operations.
Choose the Ubiquiti U6-Mesh-Pro for a secure, high-performance, and easily manageable wireless access solution that grows with your business. Enhance your wireless network’s stability, security, and scalability with this robust networking solution.
Share
Explore Further
Highlights
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port
Versatile wall and pole mounting
Weatherproof (outdoor exposed)

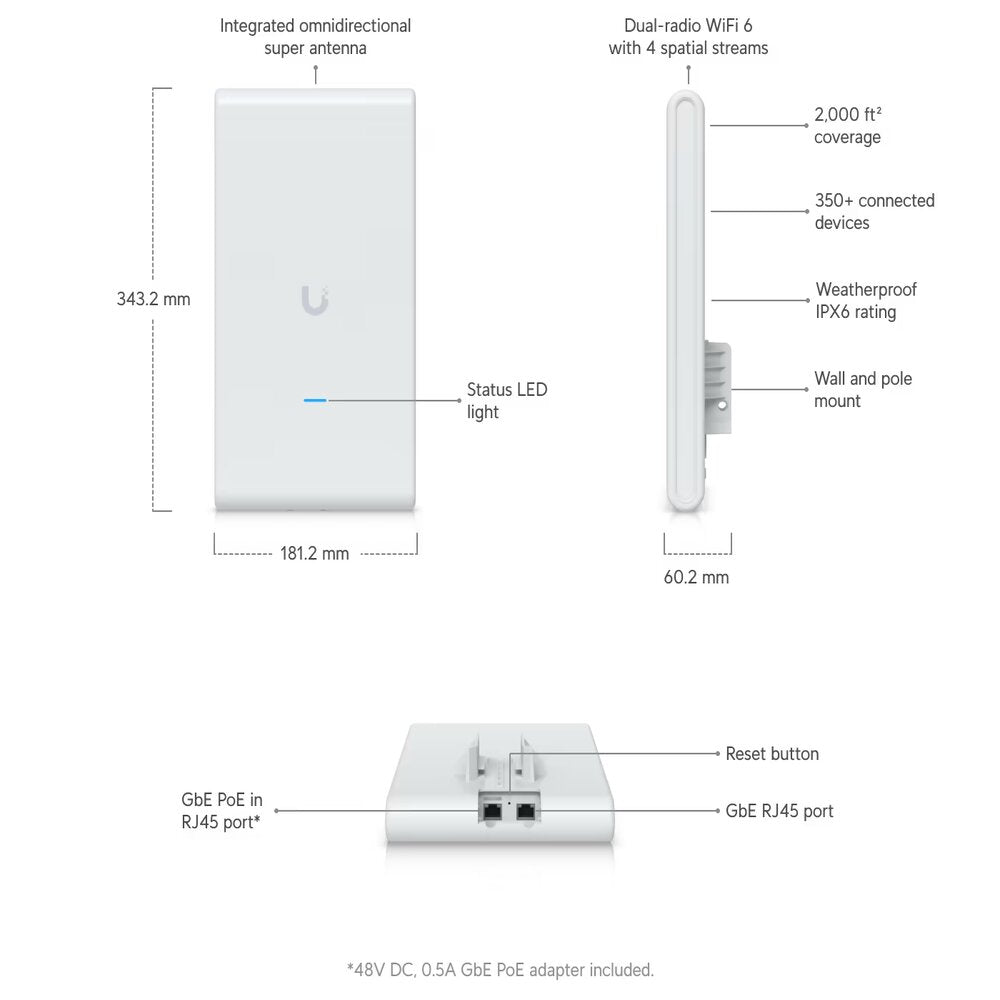

Dimensions and Weight
Width 181.2 mm, Depth 60.2 mm, Height 343 mm,Weight 819 g
Specification
Mechanical
Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight 819 g (1.8 lb)
Enclosure material UV-stabilized polycarbonate
Mount material Aluminum alloy, steel
Pole mount diameter 1~2.5" on pipe outer diameter
Weatherproofing IPX6
Hardware

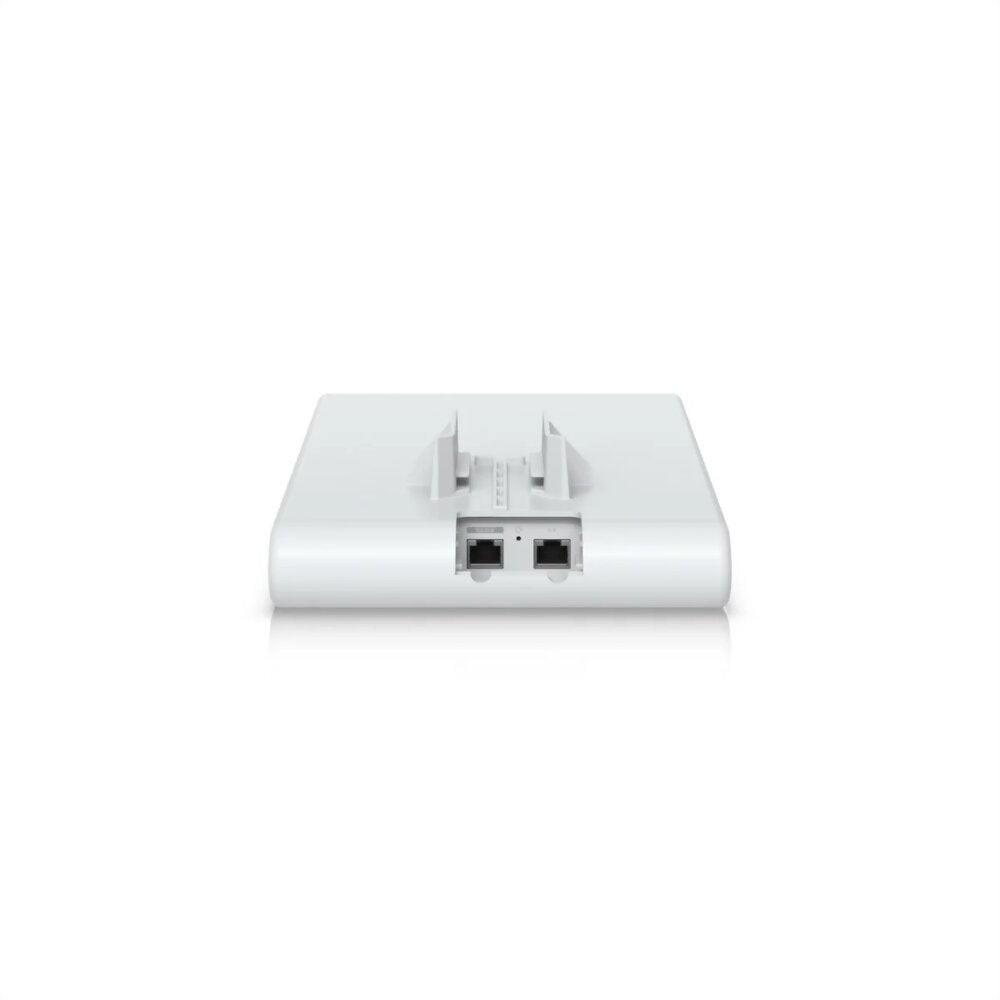

Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported voltage range 42.5—57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
27 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps (BW40)
2.4 Gbps (BW160)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
8 dBi
8 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.1.127 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
