Ubiquiti
Ubiquiti U6-PLUS U6+ UniFi WiFi 6 Access Point 2.9Gbps AX
Ubiquiti U6-PLUS U6+ UniFi WiFi 6 Access Point 2.9Gbps AX
Ubiquiti U6-PLUS (U6+) UniFi WiFi 6 AP Wireless Access Point 2.9Gbps 802.11AX
Please note: This wireless access point is not supplied with a PoE injector.

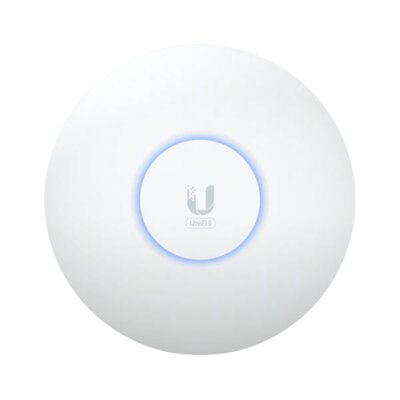

The Ubiquiti U6+ UniFi WiFi 6 Ceiling Mounted Access Point is a compact, PoE-powered access point that improves upon the U6 Lite by bringing higher performance and dual-band WiFi 6 support. It is ideal for small and medium-sized businesses.
Key Features
· Dual-band WiFi 6 support (2.4/5 GHz).
· 3.0 Gbps aggregate throughput rate.
· (1) GbE RJ45 Input.
· Power via PoE for simple installation.
· Supports WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) wireless security protocols.
· Compact and durable enclosure for long-lasting performance.
· 4 spatial streams
· 140 m² (1,500 ft²) coverage
· 300+ connected devices
· Powered using PoE
· GbE uplink
Share
Explore Further
Highlights
WiFi 6
4 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE
GbE uplink
Dimensions and Weight
Width 160 mm, Depth 33 mm, Height 160 mm,Weight 0.7 kg
Specification
Mechanical

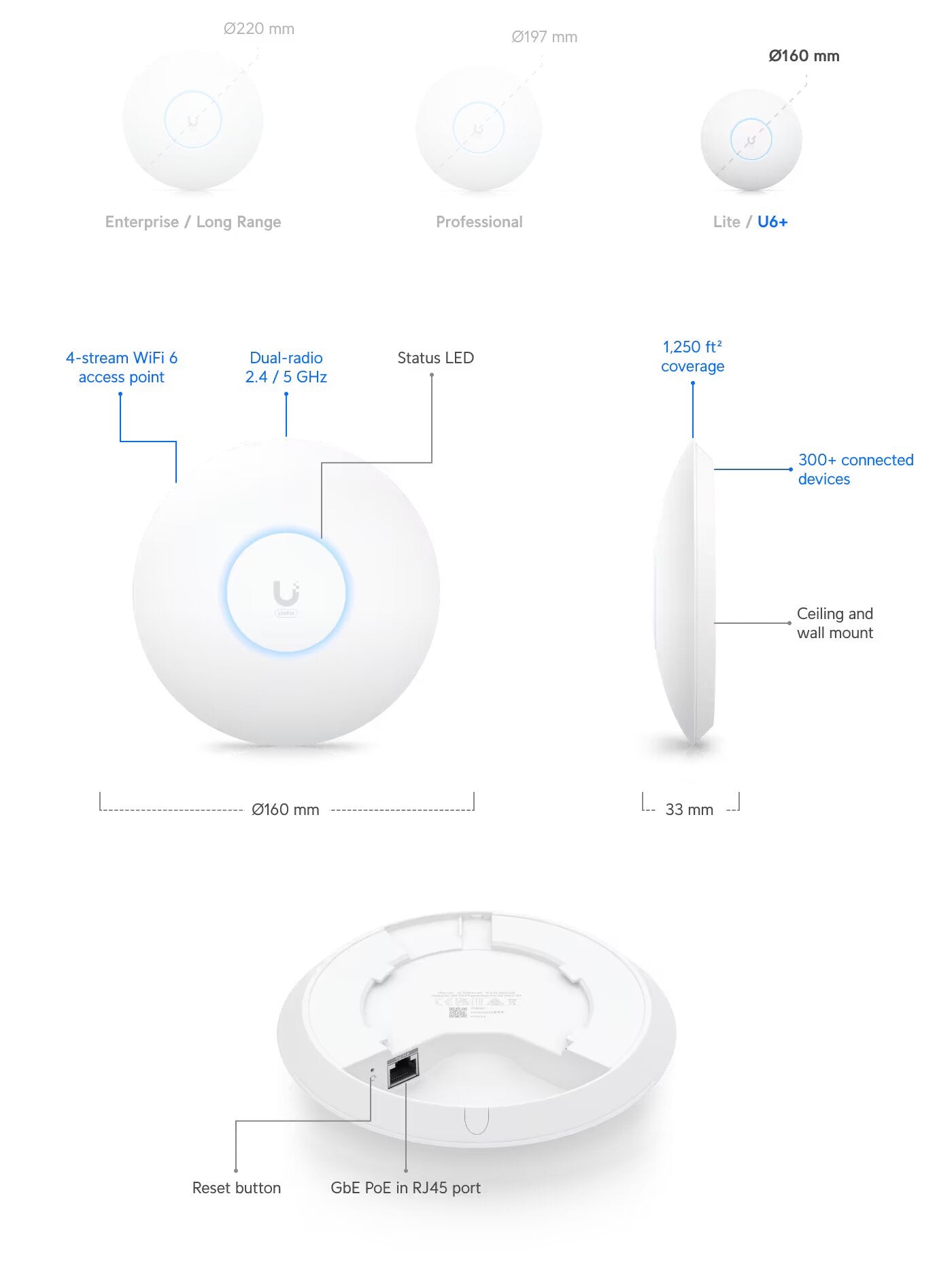

Dimensions Ø160 x 33 mm (Ø6.3 x 1.3")
Weight Without mount: 338 g (0.8 lb)
With mount: 413 g (0.9 lb)
Enclosure material Polycarbonate, aluminum
Mount material ABS, SGCC steel
Hardware

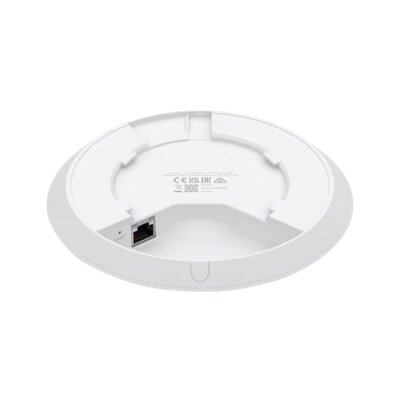

Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Supported voltage range 44–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
23 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
2 x 2
–
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
2402 Mbps
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
3 dBi
5.4 dBi
–
LEDs White/blue
Button Factory reset

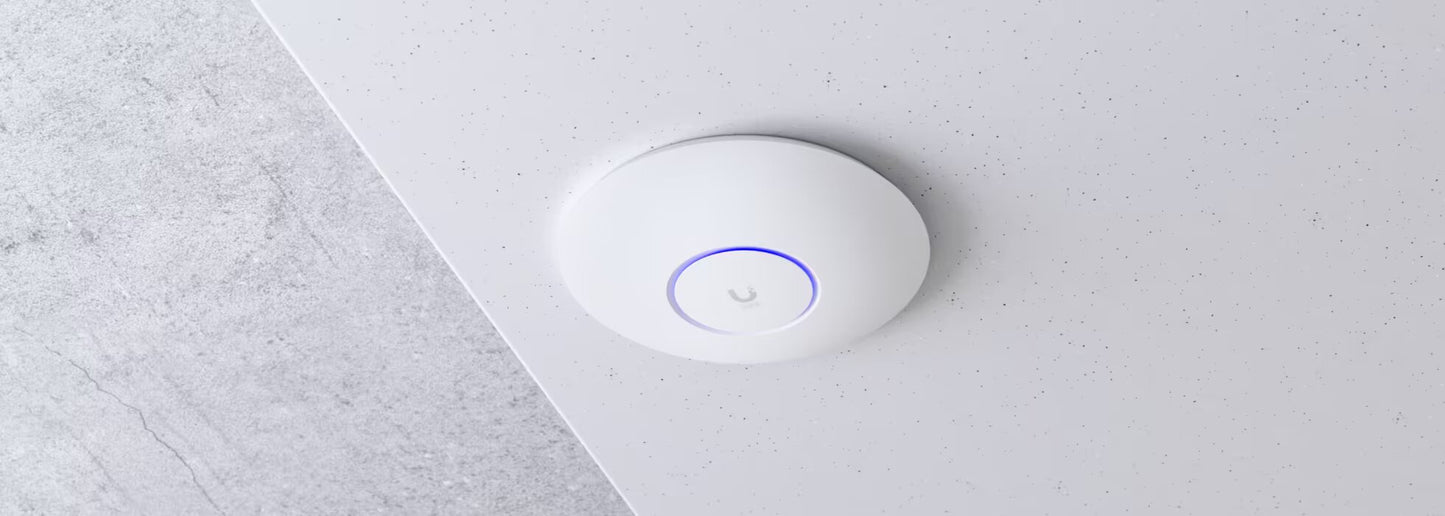

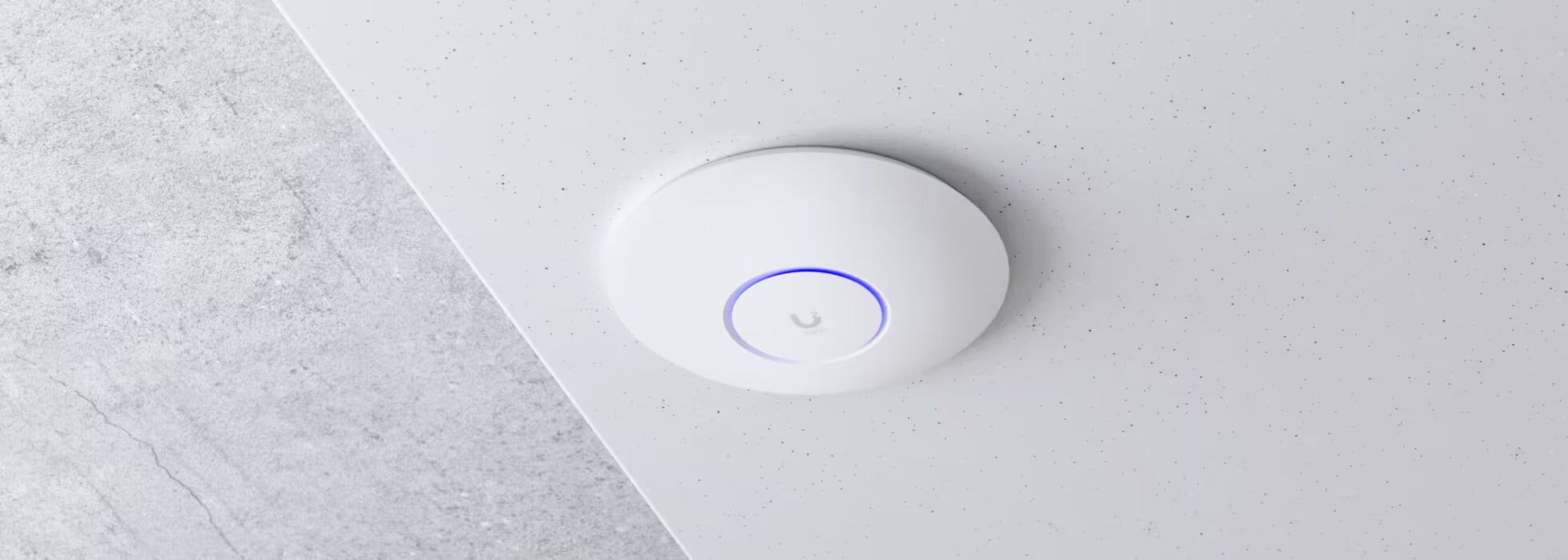

Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Concurrent clients 300+
Software
Management application UniFi Network: Version 7.3.76 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
