Ubiquiti
Ubiquiti U6-Pro UniFi WiFi 6 Access Point 5.3Gbps 802.11AX
Ubiquiti U6-Pro UniFi WiFi 6 Access Point 5.3Gbps 802.11AX
Ubiquiti U6-Pro UniFi AX5400 WiFi 6 AP Indoor Access Point (AX) Dual-Band 300 Clients
The Ubiquiti U6-Pro UniFi WiFi 6 Access Point is an indoor WiFi 6 AP with 5.3Gbps over the air speed and a 300+ client capacity. The U6-Pro is a dual-band WiFi 6 (802.11ax) access point that represents the next generation of high-performance wireless technology for home and enterprise users. Delivering blazing fast over the air speeds of up to 5.3 Gbps over its 5GHz and 2.4GHz channels, the U6-Pro will maximise the WiFi experience of any residential or office deployment. Plus, with its ability to support over 300 concurrent clients, the U6-Pro ensures reliable wireless coverage across even the most device-dense environments. The U6-Pro also marries power with ease of use through streamlined setup, configuration, and mobile-friendly management via the UniFi Network app.
Key Features
- Dual-band WiFi 6 (802.11ax) capability.
- Up to 4.8 Gbps over the air speed via the 4x4 5GHz channel.
- Up to 573.5 Mbps over the air speed via the 2x2 2.4GHz channel.
- 300+ concurrent client support.
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion.

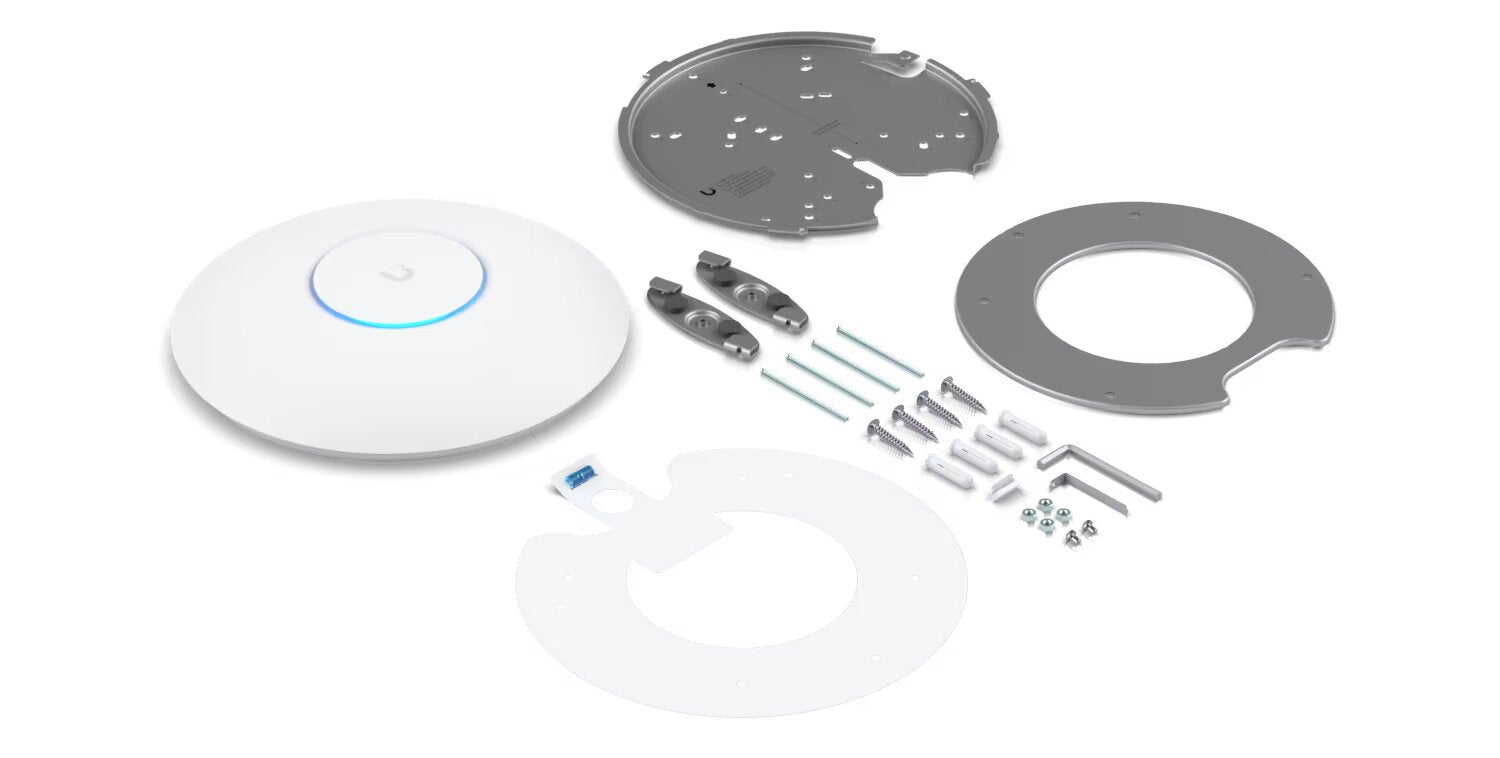

- Universal mounting plate, backing plate, and screw kit included.
- Managed with UniFi Network Application Version: 6.1.56 or higher.

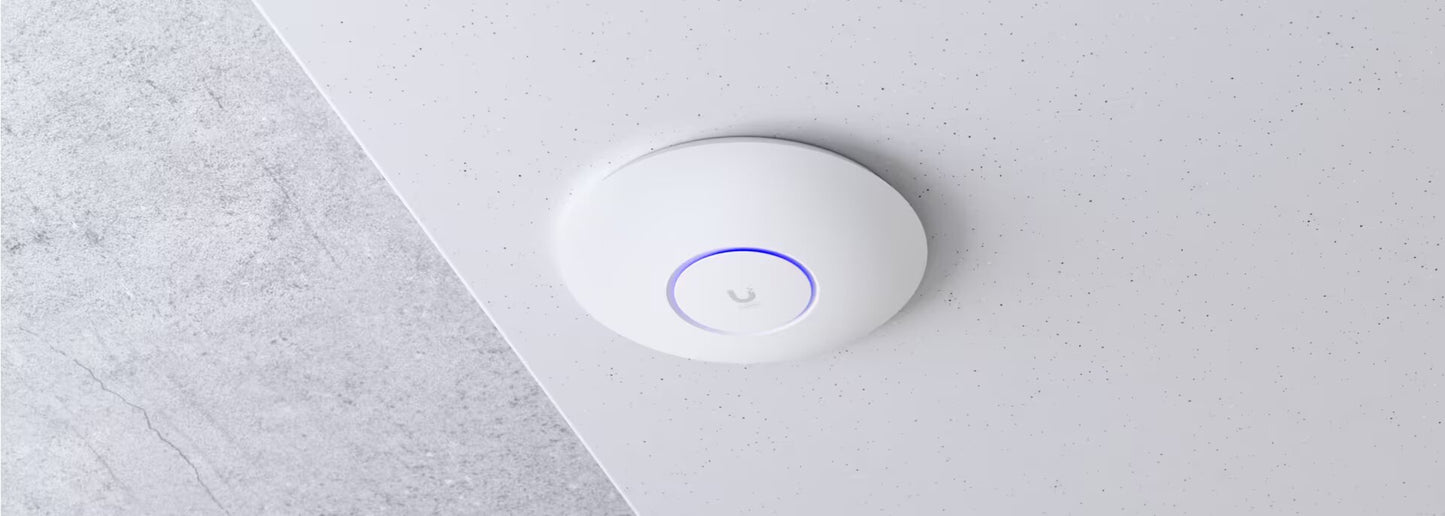

- Ceiling-mounted WiFi 6 AP with 6 spatial streams designed for large offices.
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 350+ connected devices
- Powered using PoE
- GbE uplink
Share
Explore Further
Highlights
Dual-band WiFi 6 (802.11ax) capability.
Up to 4.8 Gbps over the air speed via the 4x4 5GHz channel.
Up to 573.5 Mbps over the air speed via the 2x2 2.4GHz channel.
300+ concurrent client support.
Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion.
Universal mounting plate, backing plate, and screw kit included.
Managed with UniFi Network Application Version: 6.1.56 or higher.
Ceiling-mounted WiFi 6 AP with 6 spatial streams designed for large offices.
6 spatial streams
140 m² (1,500 ft²) coverage
350+ connected devices
Powered using PoE
GbE uplink

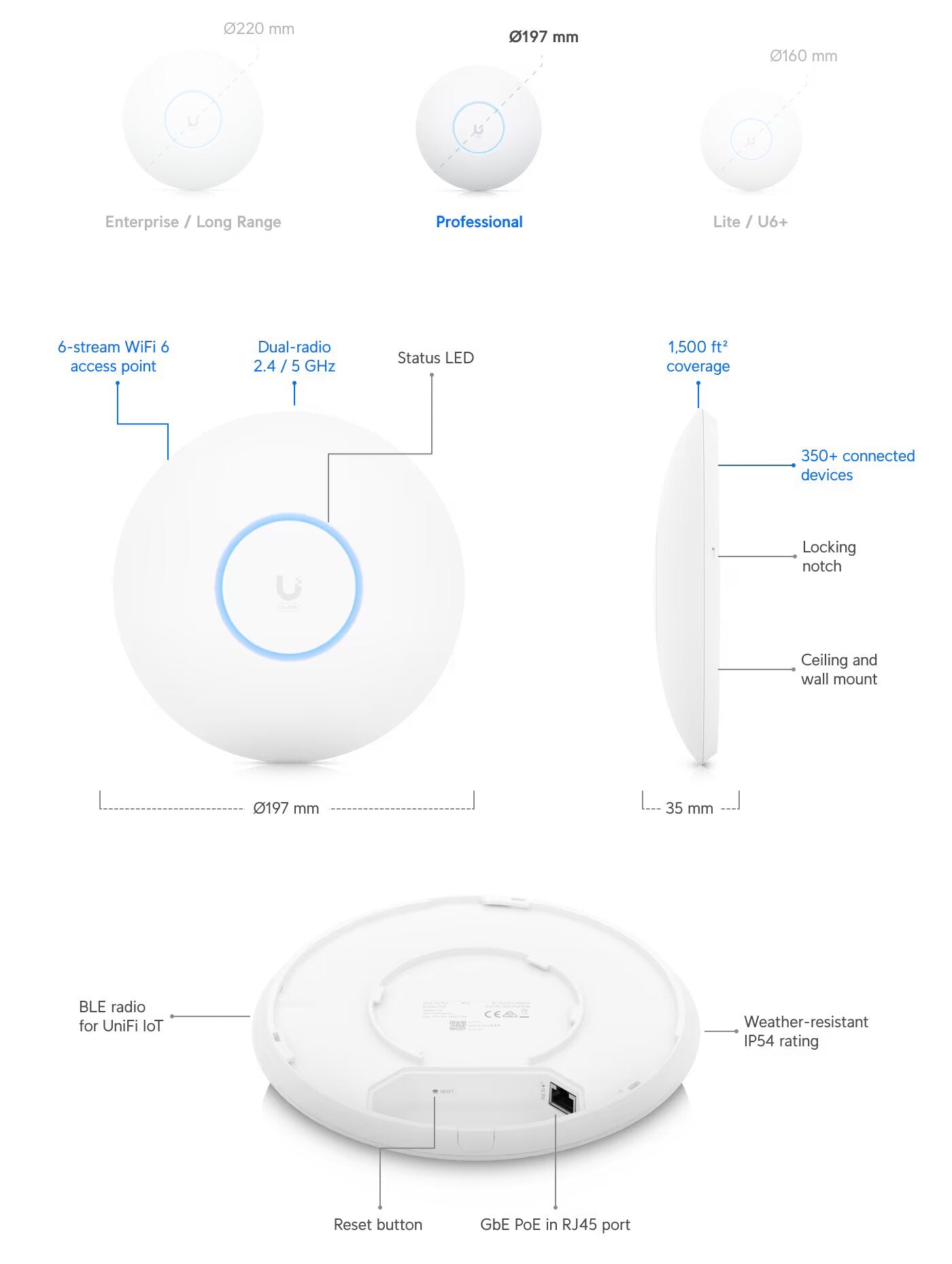

Dimensions and Weight
Width 197 mm, Depth 35 mm, Height 197 mm,Weight 1.4 kg
Specification
Mechanical
Dimensions Ø197 x 35 mm (Ø7.8 x 1.4")
Weight Without mount: 580 g (1.3 lb)
With mount: 720 g (1.6 lb)
Enclosure material Polycarbonate
Mount material Stainless steel (SUS304)
Weatherproofing IP54
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE
Power supply UniFi PoE switch
PoE adapter (Not included)
Supported voltage range 44—57V DC
Max. power consumption 13W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
–
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
4.8 Gbps
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
6 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 6.1.56 and later
Warranty Information
All products come with a minimum 12 Months Warranty - Please check the Specification Section to see if longer!
