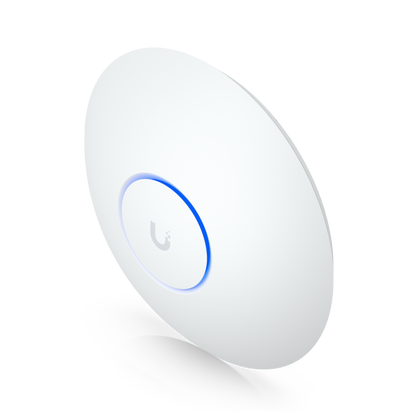

Ubiquiti U7-LR Long Range 4.9GBPs BE UniFi WiFi 7 Access Point

Supports the WiFi 7 (802.11be) standard for ultra-fast wireless performance and reduced latency.
Delivers a combined throughput of up to 4.9 Gbps (688Mbps at 2.4GHz, 4.3Gbps at 5GHz) to support high-density environments and bandwidth-intensive applications.
Features a 2.5 GbE uplink port for high-speed wired backhaul and seamless network integration.
Long-range design with high-efficiency antennas extends wireless coverage across large areas.
PoE (Power over Ethernet) support simplifies installation by combining data and power over a single cable.
Seamless integration with UniFi Network Controller for centralised management, monitoring, and configuration.
Includes advanced features such as band steering, client roaming optimisation, and traffic shaping for enhanced user experience.
Sleek, low-profile enclosure with versatile mounting options for ceiling or wall installation.
Backward compatible with WiFi 6/6E and earlier devices to ensure broad client support.

Width 175.7 mm, Depth 43 mm, Height 175.7 mm,Weight 1.5 kg

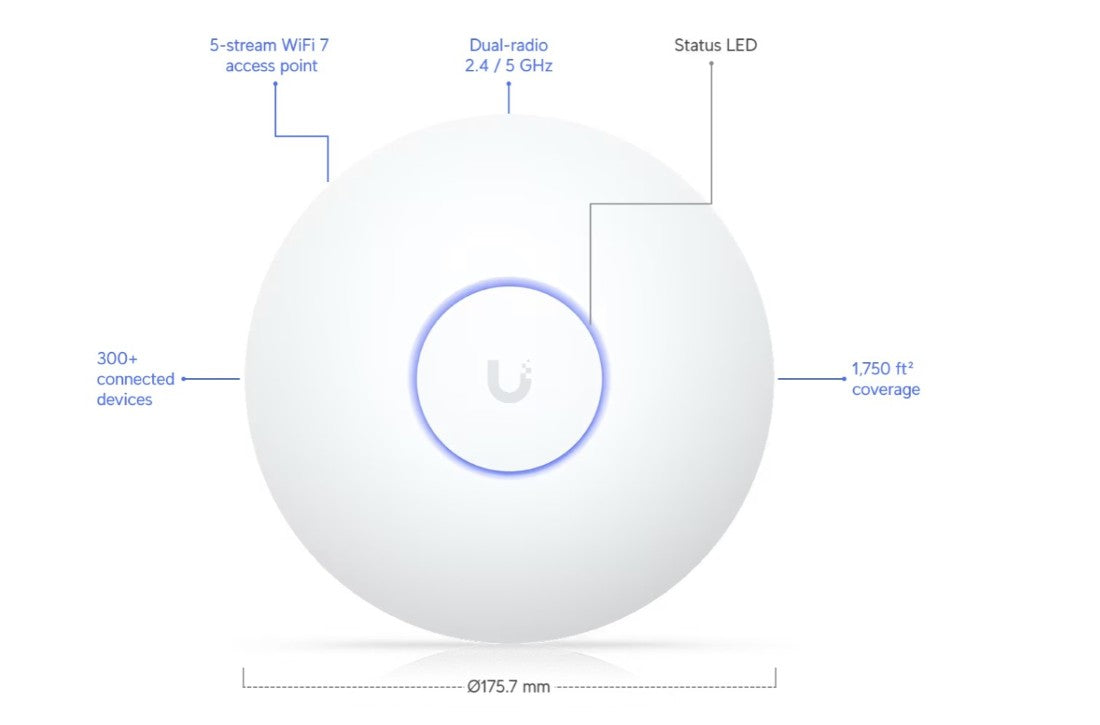

Overview
Dimensions

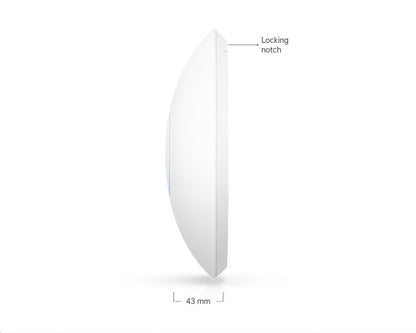

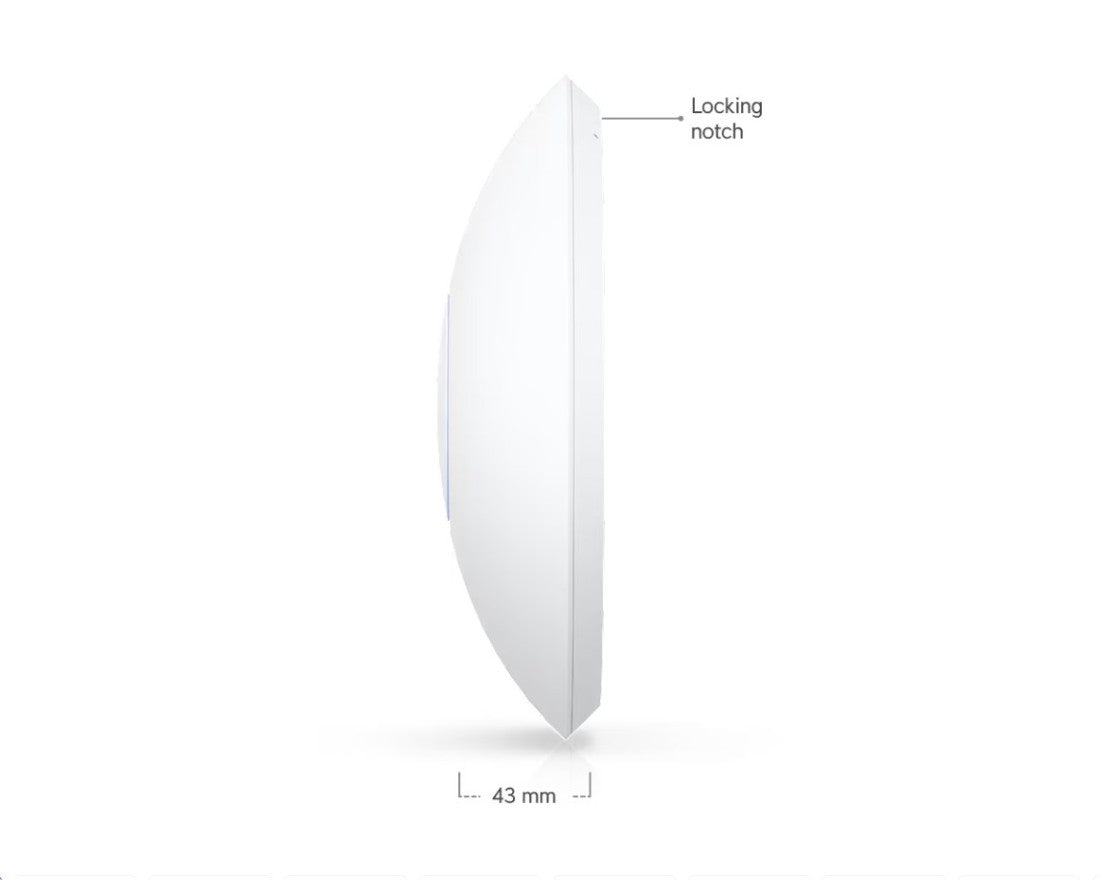

Ø175.7 x 43 mm
(Ø6.9 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
300+
Uplink
2.5 GbE

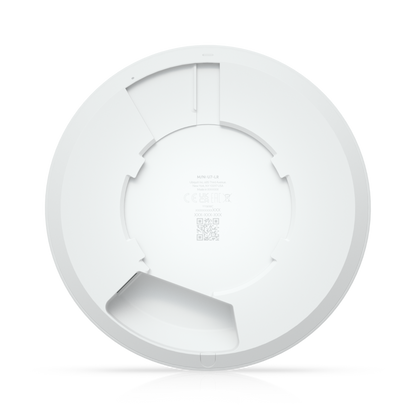

Mounting
Ceiling, Wall

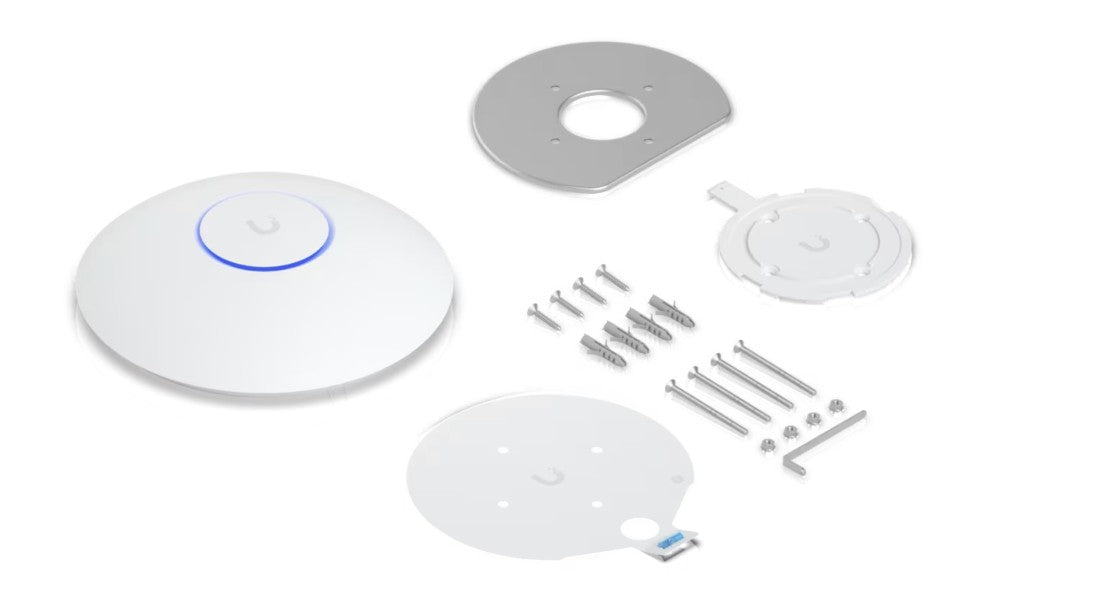

(Plastic Mounting Plate included)
Power Method
PoE

Performance
MIMO
5 GHz
3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW160)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
27 dBm
2.4 GHz
26 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
14W
Includes PoE Adapter
—
Supported Voltage Range
42.5—57V DC
Networking Interface

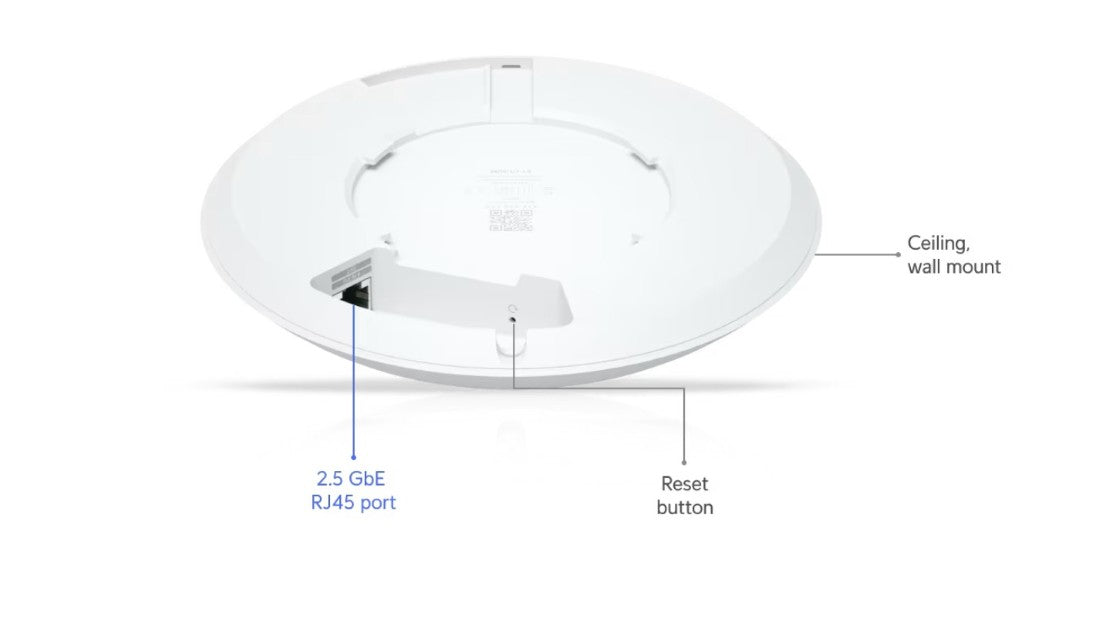

(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)

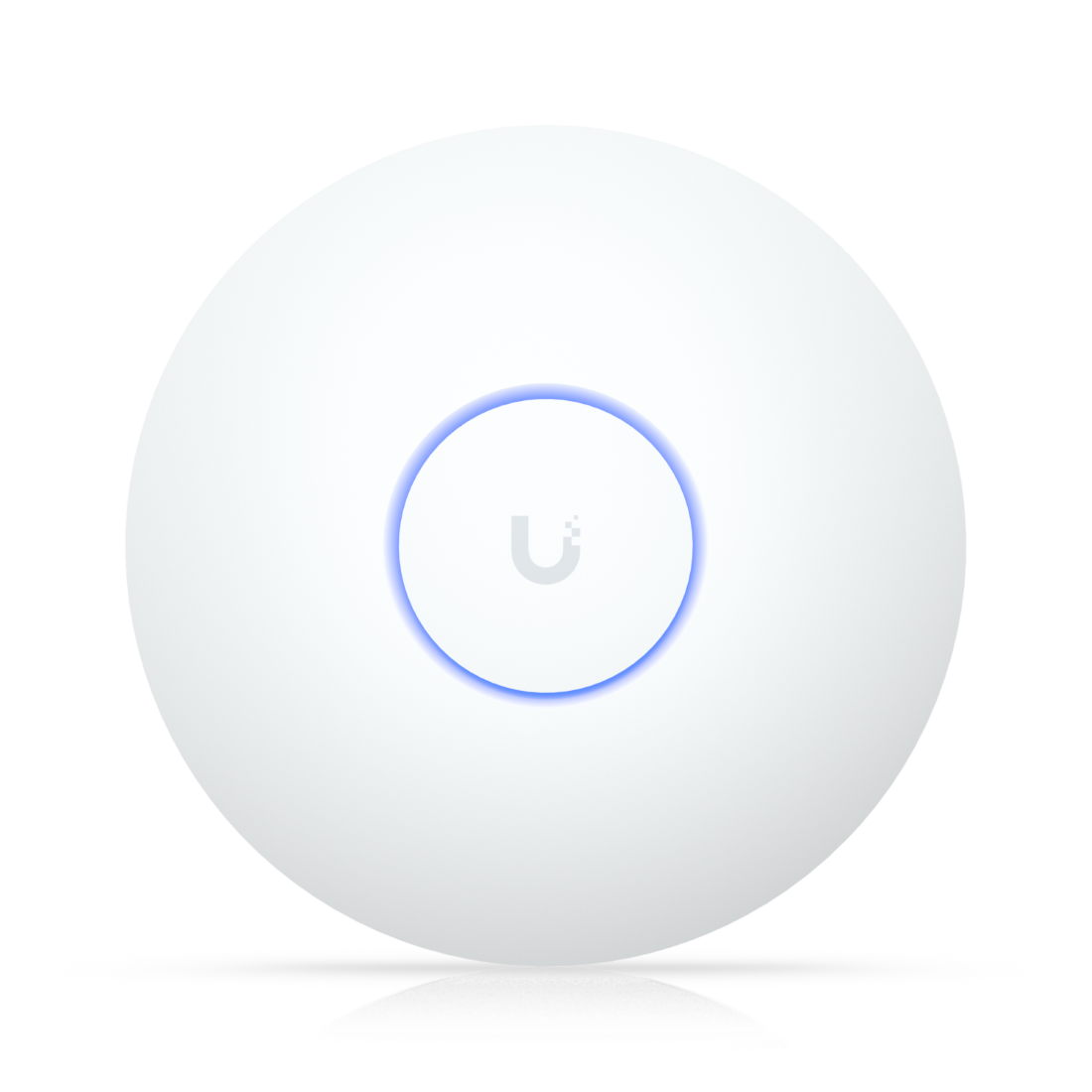

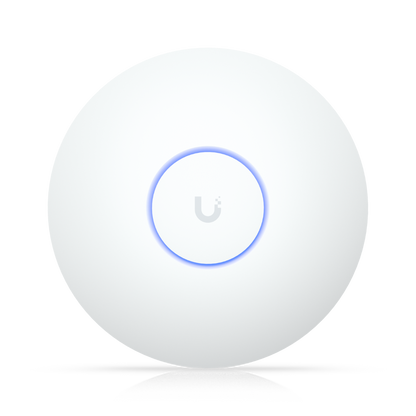

LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel, SRRC
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements
UniFi Network
Version 9.1.120 and later
Mobile App
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
