Ubiquiti U7-Outdoor UniFi WiFi 7 Access Point (5Gbps BE)
Ubiquiti U7-Outdoor UniFi WiFi 7 Access Point (5Gbps BE)
Couldn't load pickup availability
Ubiquiti U7-Outdoor UniFi WiFi 7 Access Point (5Gbps BE)
- WiFi 7 dual radio
- 4 spatial streams
- Essential WiFi speed
- (1) 2.5GbE port
- PoE+ powered
- Weatherproof (outdoor-capable)
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Share




Explore Further
Highlights
1/2.5 GbE RJ45 port
PoE+ Powered
Max. data rate
2.4 GHz - 688 Mbps (BW40)
5 GHz - 4.3 Gbps (BW240)
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Concurrent clients 250+

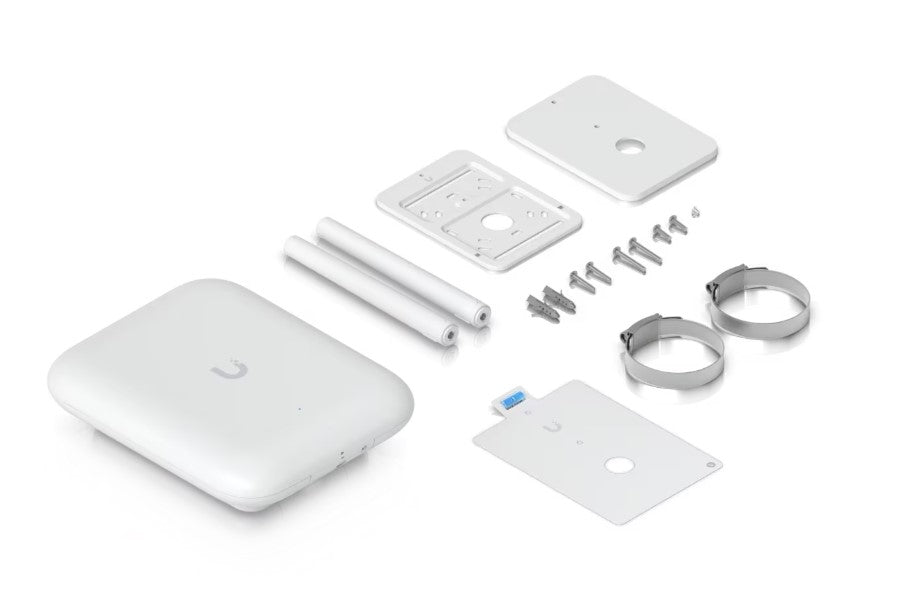

Mounting Wall, ceiling, pole (Included)
Weatherproofing IPX6

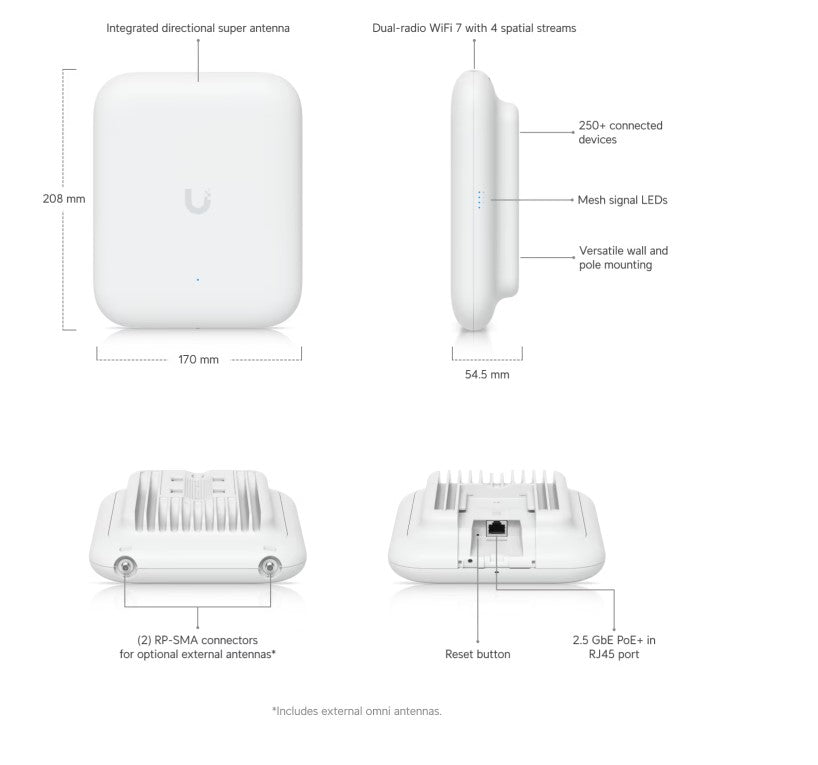

Dimensions and Weight
Width 170 mm, Depth 54.5 mm, Height 208 mm,Weight 1200 g
Specification
Mechanical
Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
Weight 1.2 kg (2.6 lb)
Enclosure material UV-stabilized polycarbonate, aluminum alloy
Mount material Polycarbonate, SGCC steel
Pole mount diameter 25–60 mm (1–2.36") on pipe outer diameter
Wind survivability 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE Switch
Supported voltage range 42.5—57V DC
Max. power consumption 19W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
26 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
4.3 Gbps (BW240)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
Directional internal: 8 dBi/External omni: 3 dBi
Directional internal: 12.5 dBi/External omni: 4 dBi
–
Antenna beamwidth
2.4 GHz
5 GHz
6 GHz
90°
45°
–

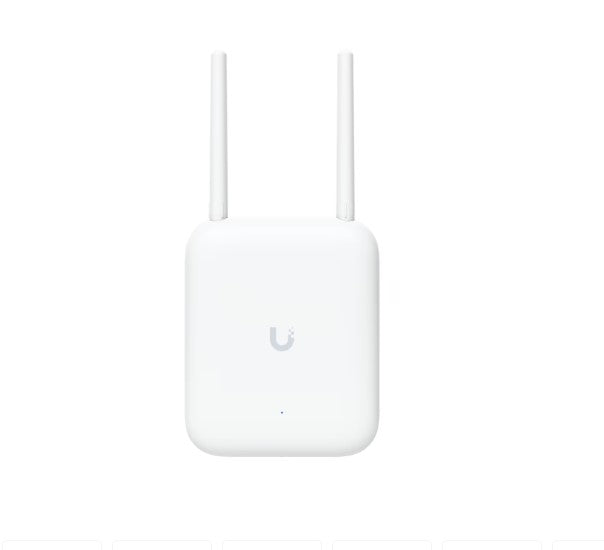

Antennas (1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna
LEDs (1) Power: white/blue
(4) Mesh signal: blue
Button Factory reset
Mounting Wall, ceiling, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 250+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
Application Requirements
UniFi Network Version 8.3 and later
