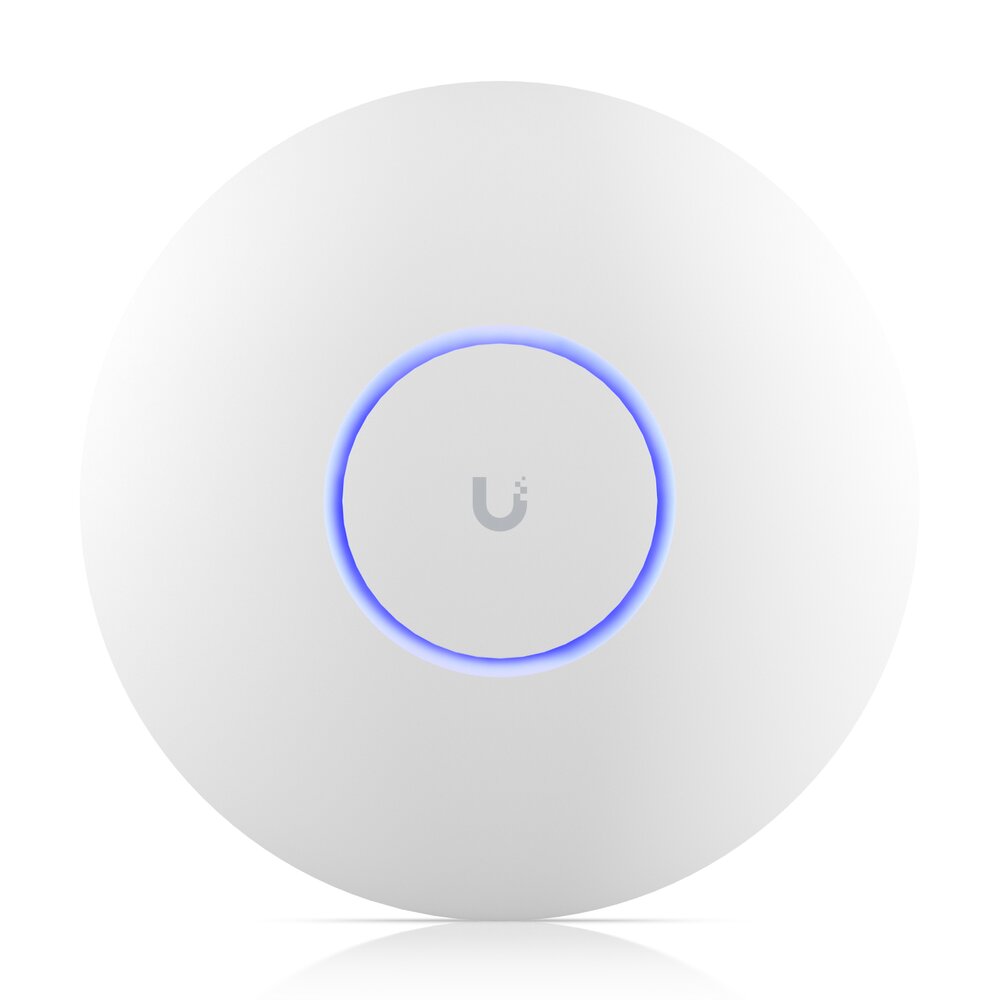

• Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE Front View

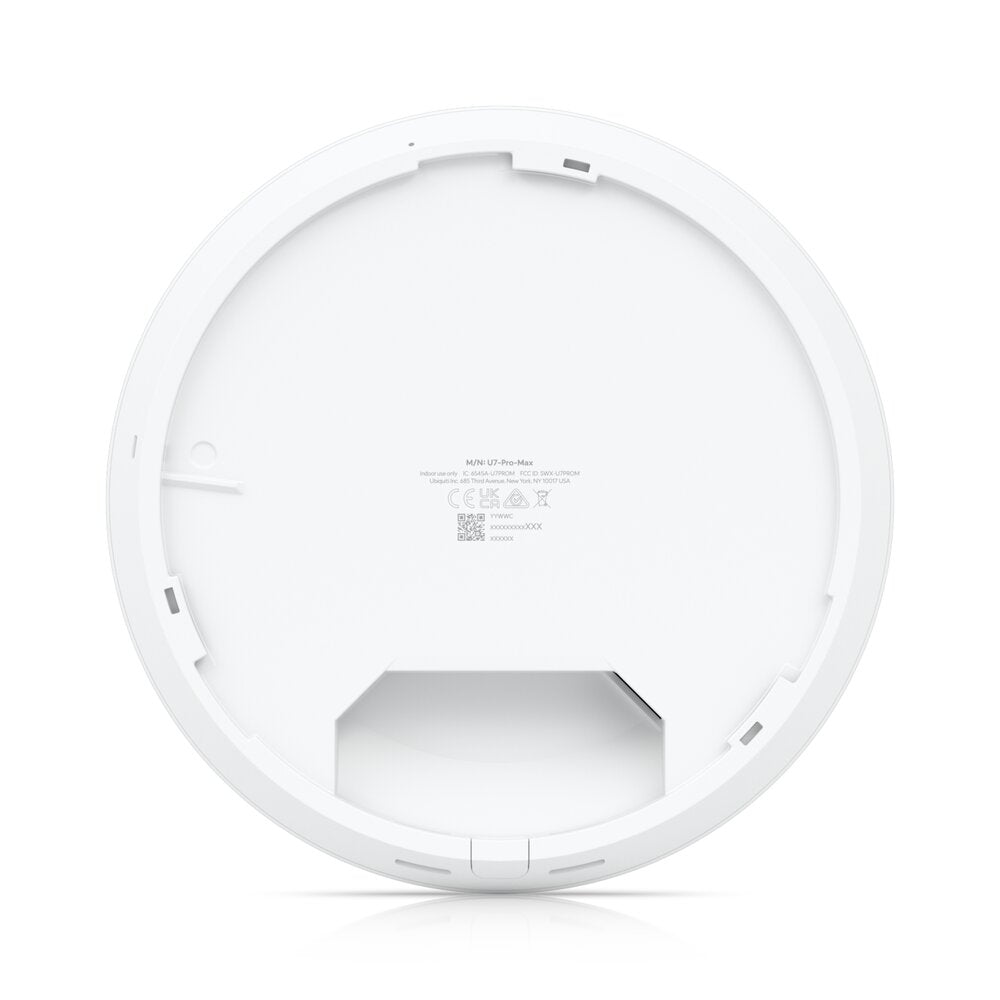

  • Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE Base View

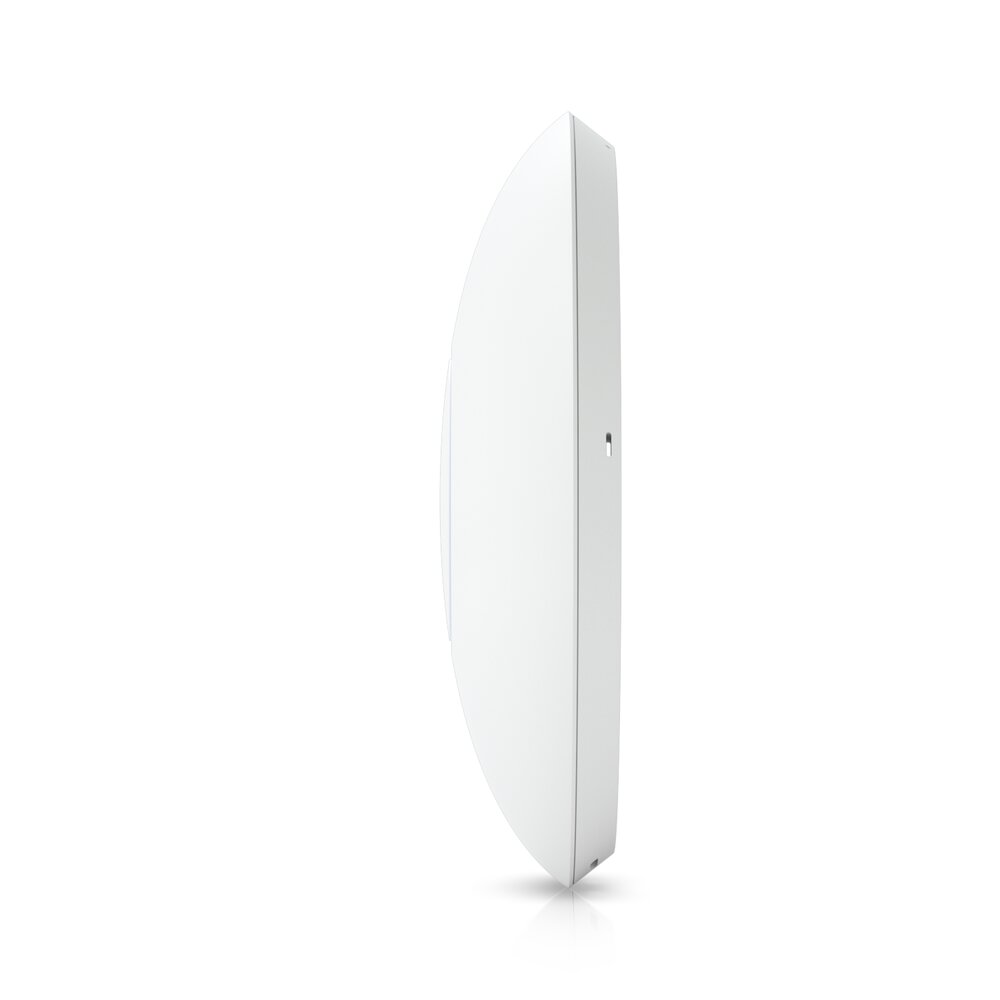

  • Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE Right View

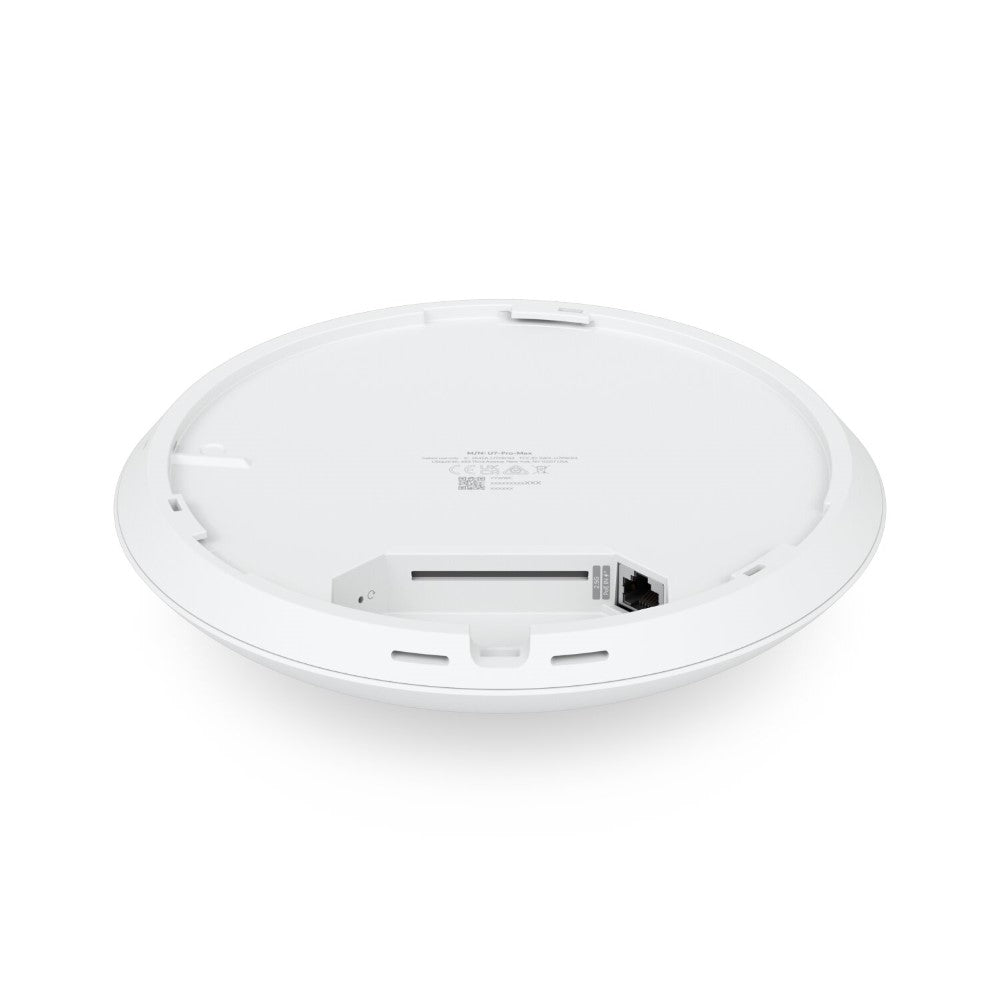

  • Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE Showing 2.5GBe Uplink Port

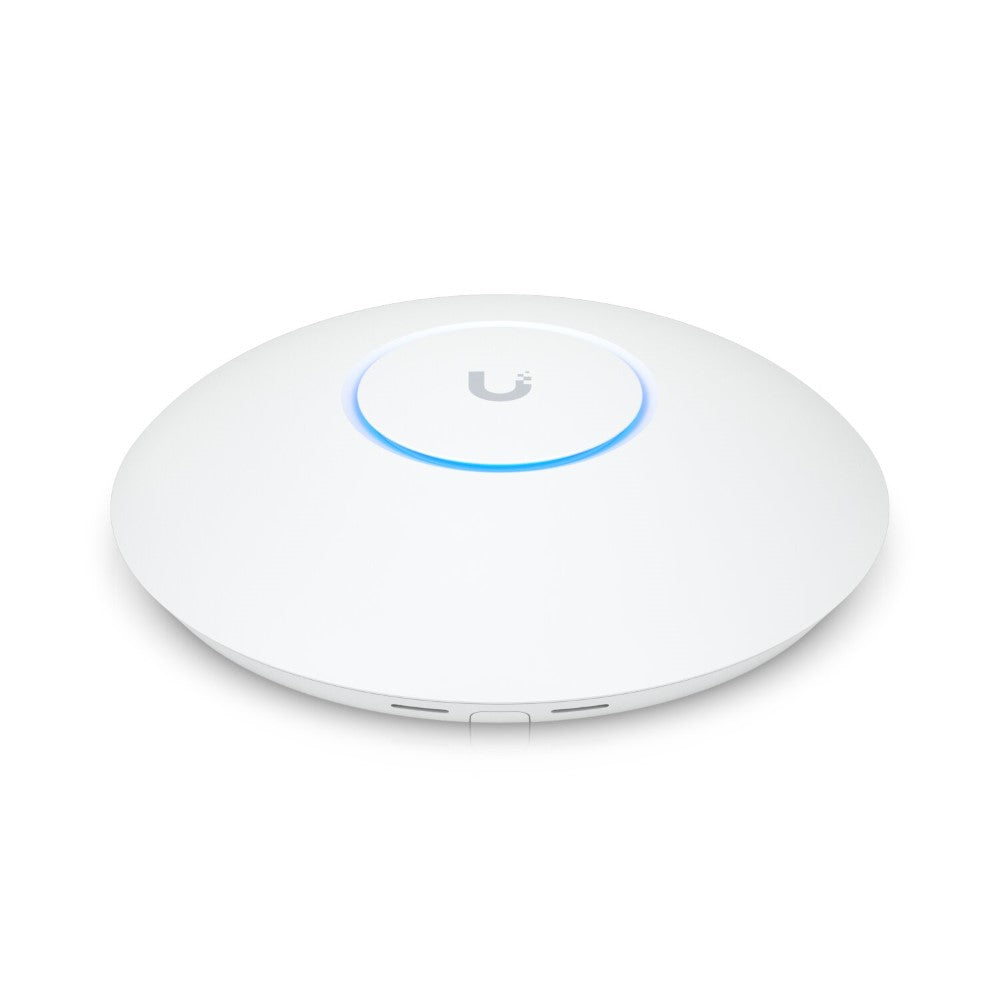

  • Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE TableTop View

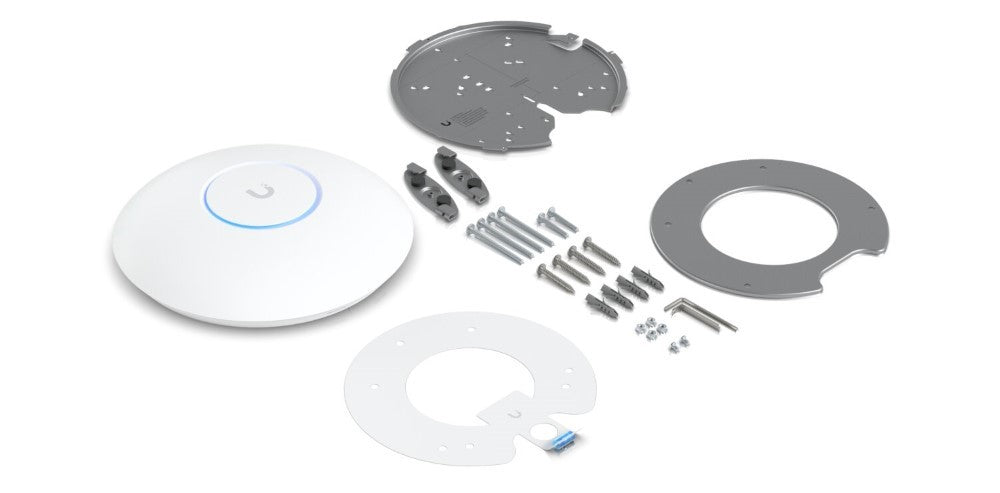

  • Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE Box Contents

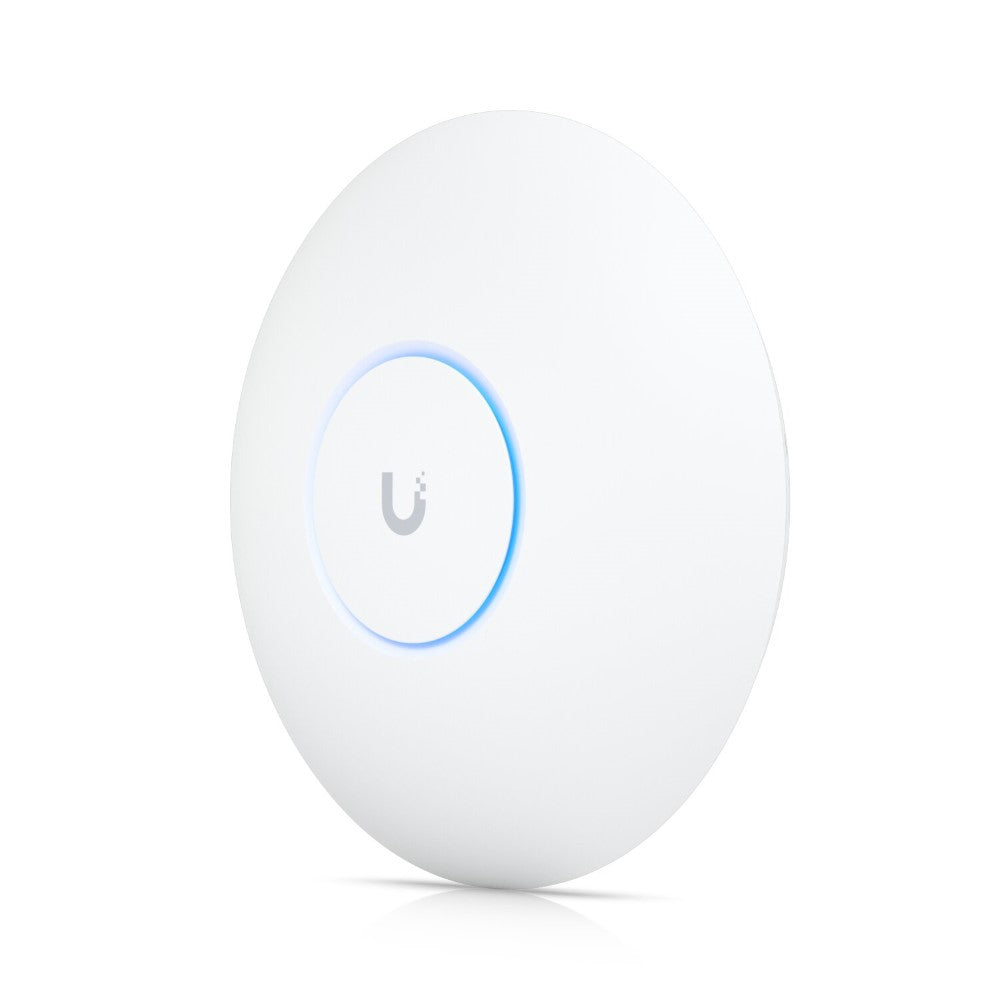

  • Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE Side Profile
1 7

Ubiquiti U7 Pro Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE

Ubiquiti U7 Pro Max UniFi Tri-Band WiFi 7 Access Point 15.1Gbps BE

£290.00
£290.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point 802.11be 15.1Gbps Wireless

Please note: This wireless access point is not supplied with a PoE injector.


The Ubiquiti U7-Pro-Max UniFi Tri-Band WiFi 7 Access Point is a ceiling-mounted AP with eight (8) spatial streams, 6 GHz support, and a dedicated spectral scanning engine for high density interference-free WiFi in demanding, large-scale environments.

Key Features

  • WiFi 7 with 6 GHz support.
  • Eight (8) spatial streams.
  • Real-time spectral analysis for enhanced channel selection (requires UniFi Network 8.2.93 and later).
  • 160 m² (1,750 ft²) coverage.
  • Supports 500+ connected devices.
  • Powered using PoE+.
  • 2.5 GbE uplink port.
  • Multi-Link Operation (MLO) capability (coming soon).
View full details

Explore Further

Highlights

WiFi 7 with 6 GHz support.
Eight (8) spatial streams.
Real-time spectral analysis for enhanced channel selection (requires UniFi Network 8.2.93 and later).
160 m² (1,750 ft²) coverage.
Supports 500+ connected devices.
Powered using PoE+.
2.5 GbE uplink port.
Multi-Link Operation (MLO) capability (coming soon).

Dimensions and Weight

Width 206 mm, Depth 206 mm, Height 46 mm,Weight 680 g

Specification

Mechanical
Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
Weight 680 g (1.5 lb)
Enclosure material Polycarbonate, aluminum
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
29 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
4 x 4
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz
688 Mbps
8648 Mbps
5765 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
6 dBi
5.9 dBi
LEDs White/blue
Button Factory reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 500+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz
6 GHz
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.2.93 and later
